Характеристики

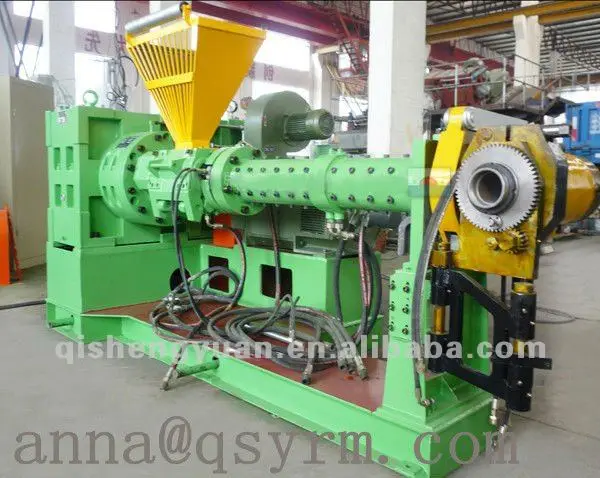

XJD series Cold Feed Extruder,rubber extrusion machine,rubber extruder machinery

Production Flow

Usage :

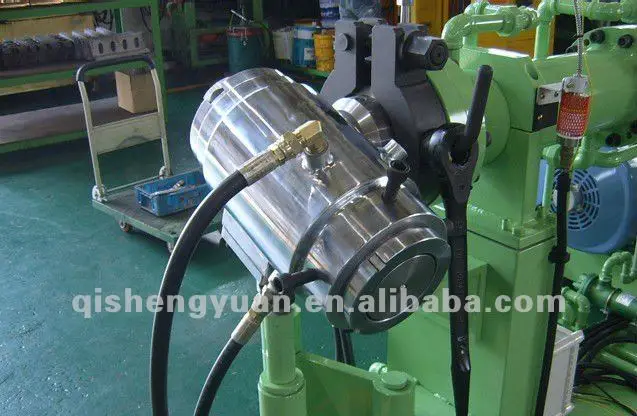

The Extruder is consist of screw,machine barrel,headpiece,fixing patter device,pulling device,cutting device,batching device and

transmission device and control system, the headpiece is extrusion mould. It

is mainly applied to extrude rubber and plastic

products.

Parameters:

hot feed rubber extruder

type and spec.Item.	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw rolational speed(r/min)	20.27 35.47	27.40 53.72	20~60	27~81	22.4~67.2	19.7~59.1
Motor power(kw)	7.5	17	30	15.3~55	33.3~100	33.3~100
Overall dimensions L×W×H(mm)	1600×675 ×1053	2050×735 ×1275	2770×665 ×1300	3585×814 ×1470	4549×1140 ×1750	4950×1150 ×1483
Capacity (kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(t)	1.5	2.6	3.3	4.5	7.21	9

Cold feed rubber extruder

Type	XJD90	XJD120	XJD150	XJD200	XJD250
Screw diameter (mm)	90	120	150	200	250
Screw L/D	13/15	14/16	14/16	12/16	16/18
Screw speed (r/min)	8-65	8-52	4-45	3-33	2-26
Pin barrel rows	9/10	10/12	10/12	10/12	10/12
Number per row	6	6	8	8	10
Motor power (KW)	55	90	185	280	500
Max output (kg/h)	30-400	100-800	150-1500	200-2500	500-4500
Weight(kg)	3000	5500	8500	12000	18000

Product Description

1.The barrel is composed of several zones. the spiral slots is made in the feeding zone of barrel to increase the feeding capacity working together with feeding rolls , different number

of pins are fitted which enhance mixing and plastic capacity for extrusion material in the

plasticity and extrusion zone,.

2.The screws and barrels are made of high quality alloy steel with nitrogen hardening which makes it more wear-resistant and more corrosion protection.

3.The temperature each zone may be automatically probed and controlled by hot water circulating device with good sensitivity, and can be adjusted according to requirement of process.

4.The extruder is driven by a change frequency motor or D.C motor, which achieve continuous and smooth speed regulation.

5.For adopting of higher efficiency screw and pin-barrel, the extruders have better mixing and

plasticating result, higher extrusion capacity, and lower temperature for rubber, the

output of production and the quality of product are raised.

Company Information

our company.jpg

QINGDAO QISHENGYUAN MECHANICAL CO., LTD was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service .
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001:2008 & CE quality management system certification,Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians,We specialized produce Rubber two roll mixing mill machine,Rubber crusher mill machine,Rubber Kneader machine,rubber calender machine,rubber press vulcanizer machine,rubber refiner machine,waste tire recycling plants,Batch off cooling plants,rubber cutting machine,rubber strainer machine,Tires production line,Conveyor belt production line and so on.
We can design the machine as customer requires.
