Волоконная лазерная маркировочная машина 20
- Категория: Laser Marking Machines >>>
- Поставщик: Liaocheng,Dongchangfu,Ketai,Laser,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.48 $* | 0.51 $* |
| Aug-17-2025 | 0.43 $* | 0.66 $* |
| Jul-17-2025 | 0.52 $* | 0.41 $* |
| Jun-17-2025 | 0.61 $* | 0.19 $* |
| May-17-2025 | 0.6 $* | 0.3 $* |
| Apr-17-2025 | 0.11 $* | 0.48 $* |
| Mar-17-2025 | 0.78 $* | 0.76 $* |
| Feb-17-2025 | 0.38 $* | 0.82 $* |
| Jan-17-2025 | 0.30 $* | 0.57 $* |
Характеристики
Fiber laser marking machine 20w
fiber laser cutting machine
laser slimming machine
fiber laser marking machine for sale
Product Description
Parameters:
Type specification | KT-10 | KT-20 | KT-30 | KT-50 |
Wave length of laser | 1064nm | |||
Laser repetition frequency | 20kHz~100kHz | |||
Laser power | 10W | 20W | 30W | 50W |
Marking scope | 70*70 /100*100 /200*200mm/300*300mm | |||
Laser sources | Fiber module | |||
Laser Head | Scanning head | |||
The minimum focus facula diameter | 20μm | |||
Minimal character | 0.01mm | |||
Marking speed | ≤7000mm/s | |||
Repeated accuracy | 0.0025mm | |||
Cooling ways | Force-air Cooling | |||
Power supply | 220V/ 50Hz/2kVA | |||
Process Material | All kinds of metal and part of Non-metal Materials | |||
Support format | PLT, BMP, DXF, JPG, TIF, AI etc | |||
Package | Standard Crate for export | |||
Detailed Images
Advantages
Fiber laser marking machine 20w
fiber laser cutting machine
laser slimming machine
fiber laser marking machine for sale
Imported IPG fiber laser source is optional.
Long lifetime, over 100,000 hours.
Compact laser source with air cooling.
2 to 5 times more productive a traditional laser marker or laser engraver.
Super quality galvanometer scanning system.
High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
More stable performance.
Professional control board and marking software.
The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
Output power is stable, optical mode is good, beam quality is excellent.
Marking speed is fast, efficient, and high accuracy.
Appearance is professional, operation is simple.

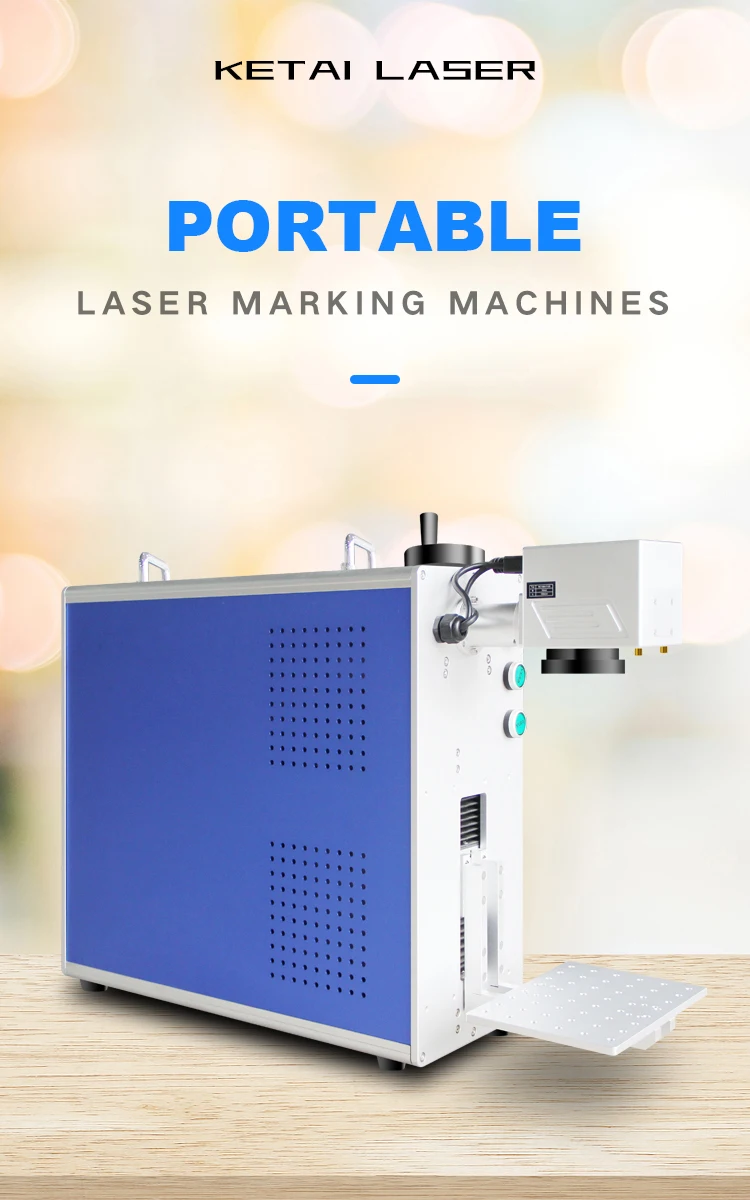

Two model choices: Portable or free-standing.
Runs without consumable spare parts, no need maintenance, great for continuous working.
![SFKUAO32}]T2$7NZ0[22R2](http://sc01.alicdn.com/kf/HTB1QvZFHpXXXXbEXFXXq6xXFXXXh/221240821/HTB1QvZFHpXXXXbEXFXXq6xXFXXXh.jpg)
desktop fiber laser machine
The fiber laser marking machine KT series 10w 20w 30w is suitable for any industry to use,
it comes with scale ruler ,marking simple and precise positioning ,it has substantial work face,can
enableing a wide range uninterrupted marking.The system of he machine with integrated design .small size,low power cosuption,long life ,high efficiency,maintenace-free,high quality laser beam spot fine,,without supplies.The scanning galvanometer of the fiber laser marking machine isimported,good sealing,waterproof and dust ,small,compact and solid,superior performance servo motors,power excellence.
it comes with scale ruler ,marking simple and precise positioning ,it has substantial work face,can
enableing a wide range uninterrupted marking.The system of he machine with integrated design .small size,low power cosuption,long life ,high efficiency,maintenace-free,high quality laser beam spot fine,,without supplies.The scanning galvanometer of the fiber laser marking machine isimported,good sealing,waterproof and dust ,small,compact and solid,superior performance servo motors,power excellence.
The software is simple and powerful function,transfer fast stable with digital transmission
Widely used in metal materials,esp.suitable forsome demands more fine ,higher precision and smoothness ,higher areas,are widely used in electronics ,seperstion of components, integrated cirxuit(IC),electrical circiut,mobile communications, precision intruments, glasses watches and clocks,computer keyboard ,juwerly accessories,hardware products,kitchen utensils appliances,tools,
auto accessories,plastic buttons,plumbing accessories,PVC pipe,
medical equipment,packing bottles ,sanitaty are,etc.
Laser cutting engraving machine engraving fields:
color plates, plexiglass, glass, acrylic, wood, leather, cloth, mobile film cutting, marble, bamboo, paper, rubber,plastics and other non-metallic materials.
plastics
Samples
Our Services
1.One year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
Packaging & Shipping
1.Standard Ply-wooden case for exporting, non fumigation
2.Express and transport (or by customers' demand)
3. 5~7 working days after payment received
![T}432C`~P{0]X0Y{5%]05QG](http://sc01.alicdn.com/kf/HTB1JLWiHpXXXXXuaXXXq6xXFXXXR/221240821/HTB1JLWiHpXXXXXuaXXXq6xXFXXXR.jpg)
Company Information
Liaocheng Dongchangfu Ketai Laser Equipment Co., Ltd. was established in 2 0 1 2, located in the beautiful jiangbei water city- Liaocheng, with superior geographical position and convenient transportation. It is a high-tech enterprise integrating product development, production, manufacturing, after-sales and service.
With several years' development, now we have grown up to be a professional factory. Our main products include laser engraving machine, laser cutting machine, fiber laser marking machine, C O 2 laser marking machine, UV laser marking machine, laser welding machine, and other related products. The main models we produce include: 3 0 2 0, 4 0 6 0, 5 0 7 0, 6 0 9 0, 1 0 6 0, 1 3 9 0, 1 6 1 0, 1 3 2 5 etc., and can customize machine according to request.
Our products are widely applied to electrical appliances, handsets, hardware, precision machinery, jewelries, glasses, clocks, watches, craft work gifts, plastic mold, medical instruments, etc. Maintains good relations of cooperation with many famous international laser companies and famous experts in laser field. Sincerely provide customers with full range of laser solutions. All the products gained high reputation from home and abroad with their excellent quality, competitive price and quick after-sale services.
We also provide O E M services for distributors and agents worldwide. If you are interested to be our dealer, please feel free to contact us. We are sincerely looking forward to cooperate with friends all over the world.
