Характеристики
LKS Custom Payment Kiosk ticket vending machine touch screen kiosk is developed specifically for Payment use in Bank, Hospital, Railway Station, Metro Station, Parking Lot, Theatre, Shopping Mall, etc.
LKS ticket vending machine / payment kiosk / best sell kiosk is manufactured in Cold-Roll Steel Sheets using steel plate of 1,5mm to 2.5mm which ensures the stability and rigidity of all structure.
LKS ticket vending machine , payment kiosk, best sell kiosk are including touch screen self payment kiosk, touch screen bill payment kiosk, Coin Operated Wifi Kiosk ,Touch Screen Display self service payment kiosk, payment terminal atm kiosk, Kiosk On Wheels Kiosk, swipe card reader kiosk, self payment terminal kiosk, ticket vending machine wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.

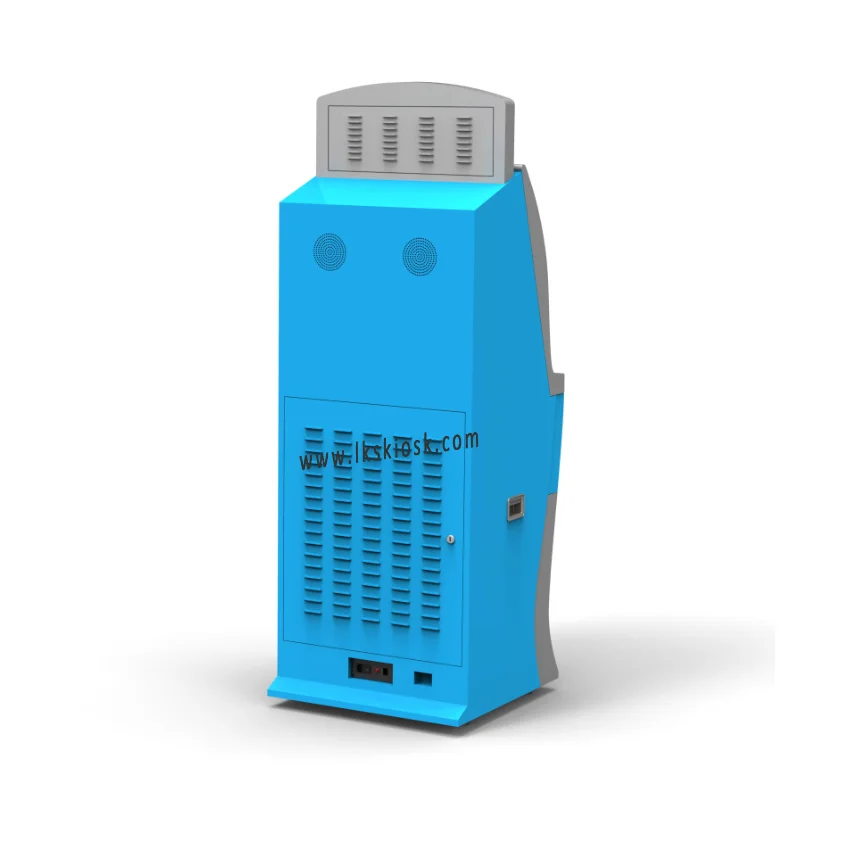

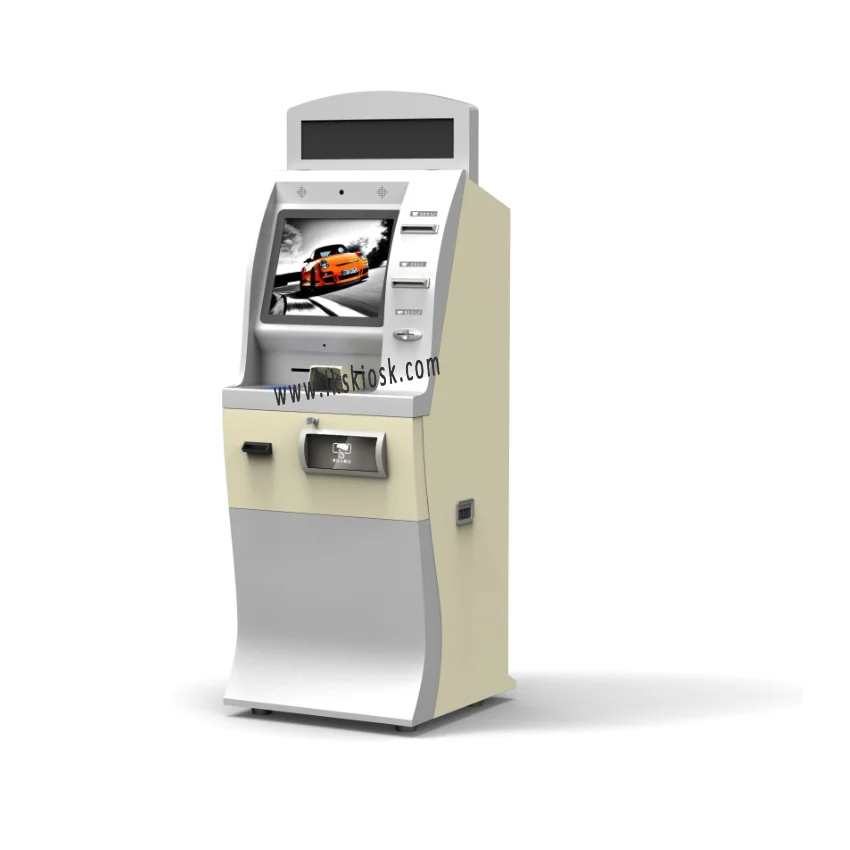

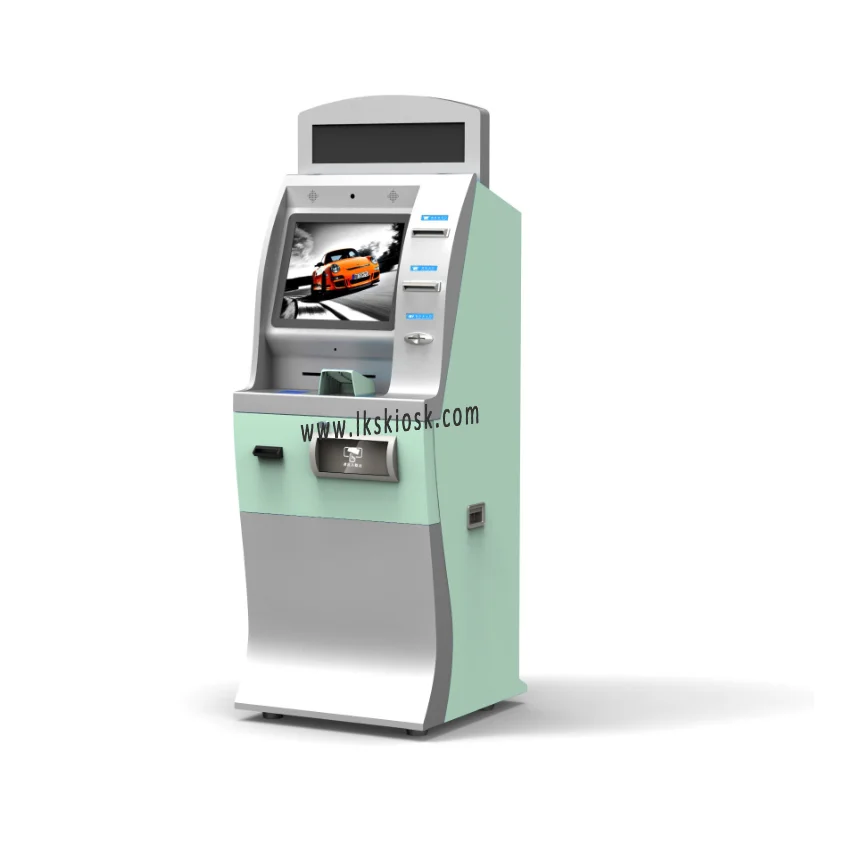

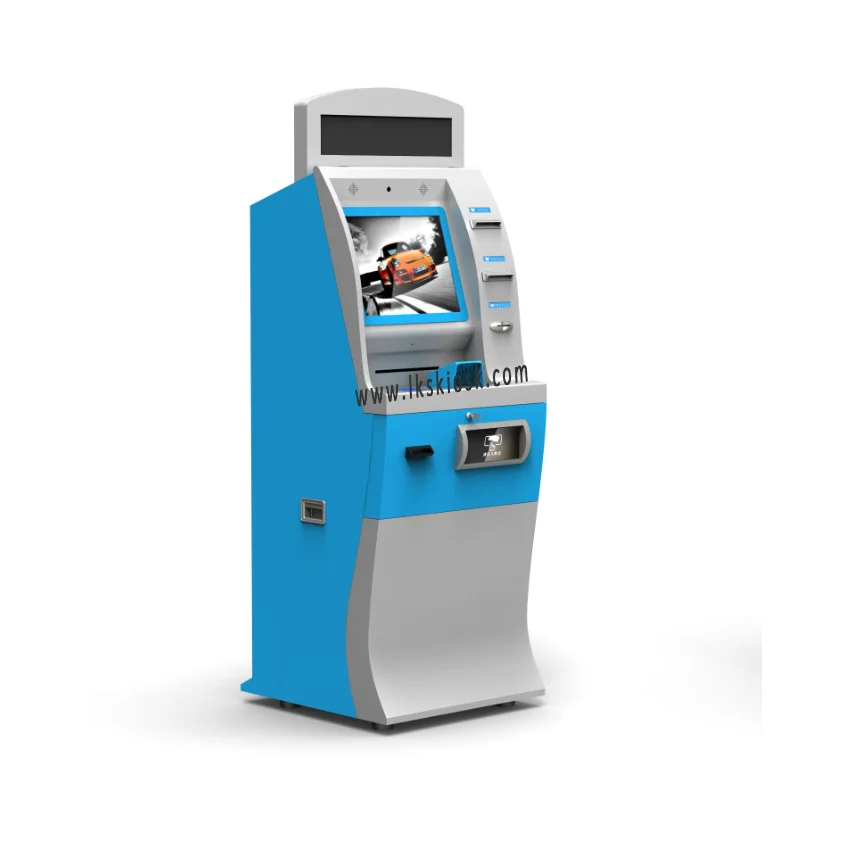

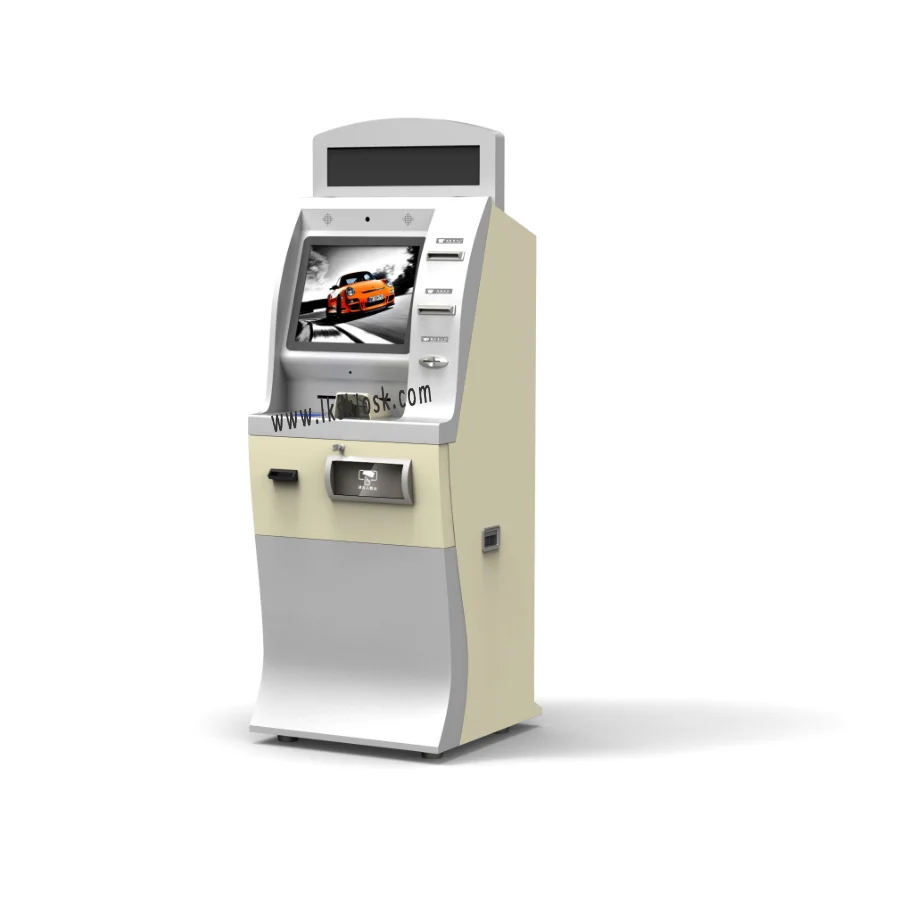

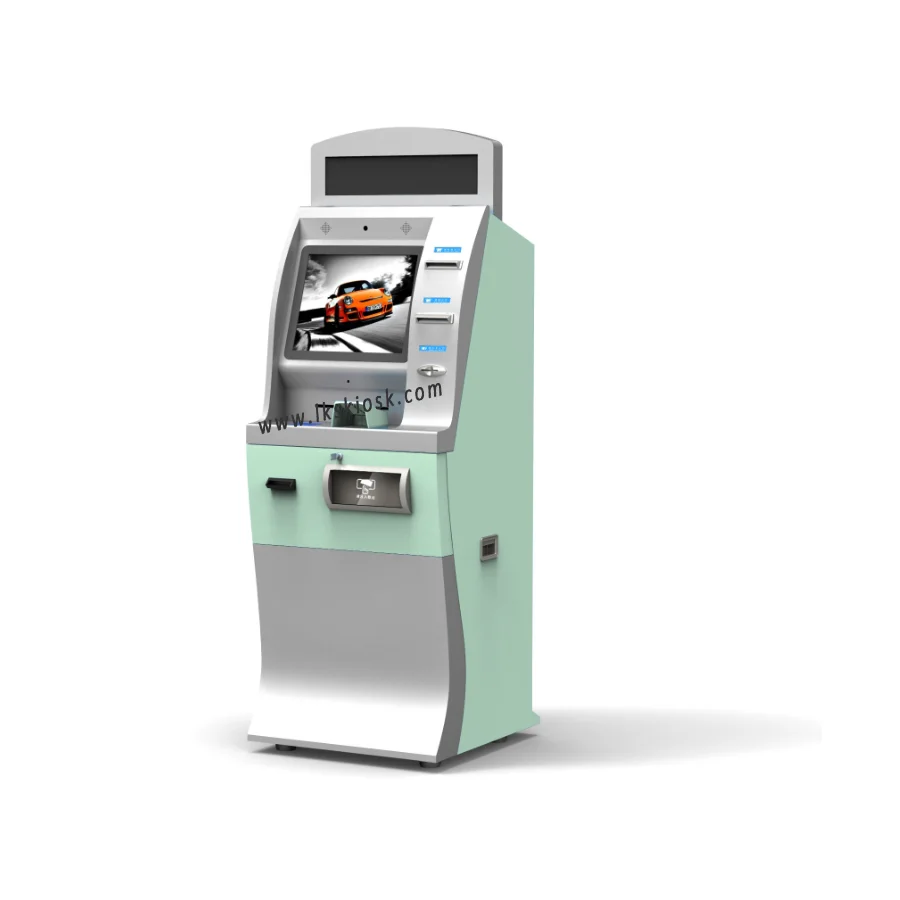

Pictuer of the Custom Payment Kiosk ticket vending machine touch screen kiosk:
Standard hardware components List of Custom Payment Kiosk ticket vending machine touch screen kiosk is as following:
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm ( 0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50 , S70 , UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
Encrypted Pinpad | Keylift ~ span | 2,000,000 cycles |
Key force | 2~3N | |
Key trip | >2.5mm | |
Protection level | ip65 | |
Cashcode Bill acceptor | Validation Rate | 96% or higher |
Banknote Insertion | Four-way | |
Escrow | One banknote | |
Capacity | 1000 notes Max | |
Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
Accepting Speed | 2 Coins/Sec | |
Supply Voltage | 10V-16V DC | |
Epson receipt thermal printer | Autocutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 , USB | |
UPS | Input voltage | 145-290va |
Output voltage | 200-255va | |
Max time for supplying a single PC | 3~20minutes (for single PC) | |
Digital Power Supply | AC input voltage range | 100 ~ 240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100 ~ 240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof , Antirust , Anti-acid , Anti-dust , Static free, have color and LOGO upon request. | |
Packing | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List of Custom Payment Kiosk ticket vending machine touch screen kiosk is as following:
- Cash dispenser
- Coin dispenser
- Advertising screen
- Barcode scanner
- Passport reader
- Web camera
- NFC card reader
- Coin acceptor
Process of followsheet of LKS Custom Payment Kiosk ticket vending machine touch screen kiosk
Mass producing of LKS Custom Payment Kiosk ticket vending machine touch screen kiosk :
Certificates of LKS Custom Payment Kiosk ticket vending machine touch screen kiosk
Receiption Desk of LKS Custom Payment Kiosk ticket vending machine touch screen kiosk :
Office of LKS Custom Payment Kiosk ticket vending machine touch screen kiosk :
Shipping terms for LKS Custom Payment Kiosk ticket vending machine touch screen kiosk :
