Resistive-Reactive Load Banks

The RL Series Resistive-Reactive Load Banks offers a 0.80 power factor load and is designed for testing large generators, switchgear, transformers and UPS systems. The structural skid with fork lift pockets allows for portability and is ideal for shipyards, power plants, OEMs and data centers. The RL Series is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems where rated kVA, rated power factor and rated current testing is required.



Technical Parameter of AC400-1500kVA-RL Loadbank



System Parameter

Rating voltage/frequency

400VAC 3 phase 4 wire, 50Hz, phase voltage 230VAC

Max Load Power

Apparent Power: 1500kVA

Resistive Load: 1200kW; Inductive Load: 900kvar

Load Resolution

Resistive Load: 14 steps, 1, 2, 2, 5, 10, 10, 20, 50, 100, 200,200,200,200,200kW

Inductive Load: 13 steps, 1, 2, 2, 5, 10, 10, 20, 50, 100,100,200,200,200kvar

Power Factor

0.8

Load Tolerance (each step)

±5%

Load Tolerance(overall)

±3%

Fan Control Power

380VAC 3 phase 4 wire, 50Hz, phase voltage 220VAC

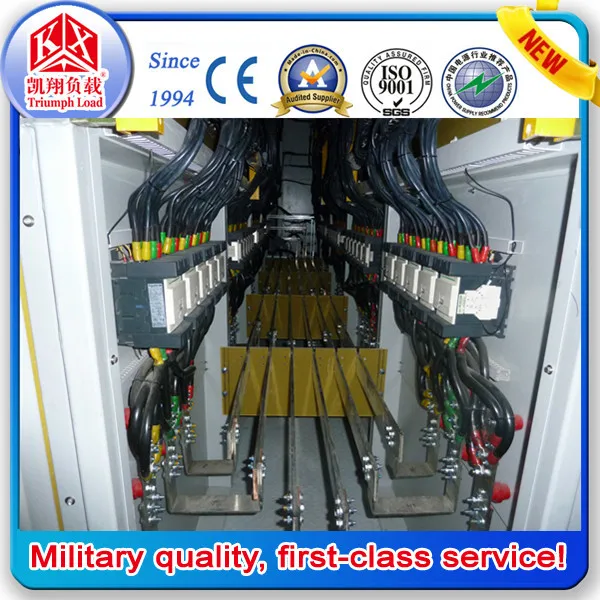

Wire Connection

Load bank input——Copper bar (star coupling ”Y”)

Control power input——Connector-bar

Communication Interface

RS485,RS232

Insulation

F

Max Protection Grade

IP54

Way of Working

Continuous Working

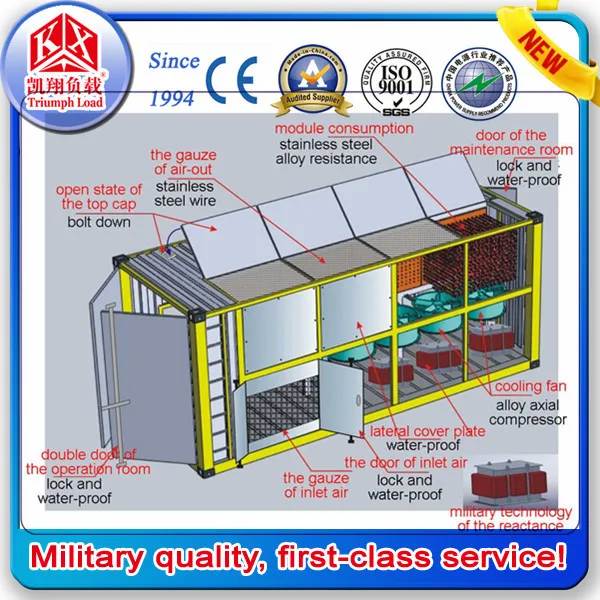

Cooling

Forced air cooling, horizontal inlet air and exhaust cooling (sidewards cooling)

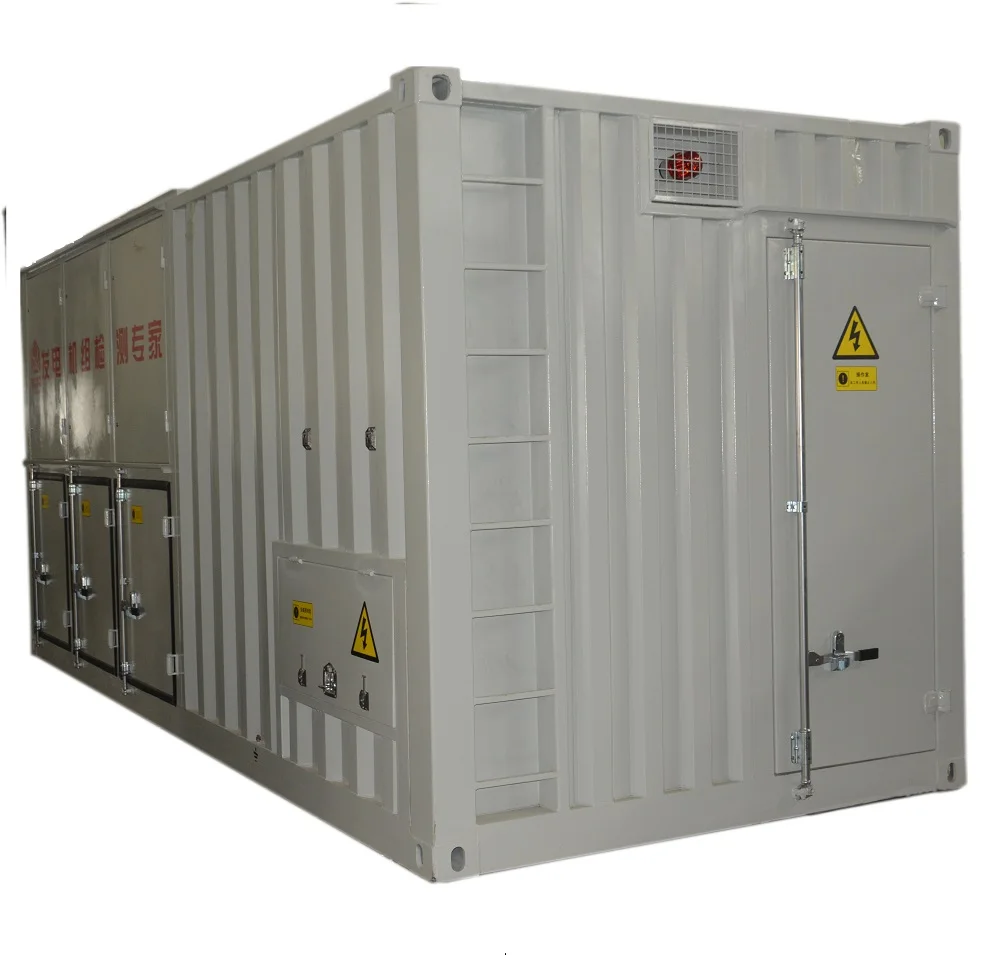

Enclosure

Container type with a ladder, air inlet and outlet with mesh enclosure and protection door

Transportation

Hoisting

Color

RAL7032

Dimensions

About 6058mm*2438mm*2591mm(L×W×H)

Weight

About 9000kg

Operating Environment Parameter

Ambient Temperature

-10℃~+50℃

Relative Humidity

≤95%

Atmospheric Pressure

86~106kPa

Brands of Main Components

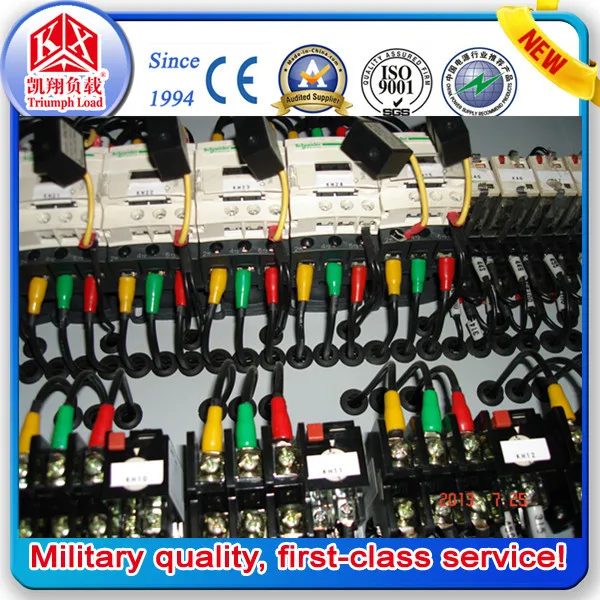

Contactor

CHINT

Fuse

DELIXI

MCU

INFINEON

Alloy Resistor

(self-developing)

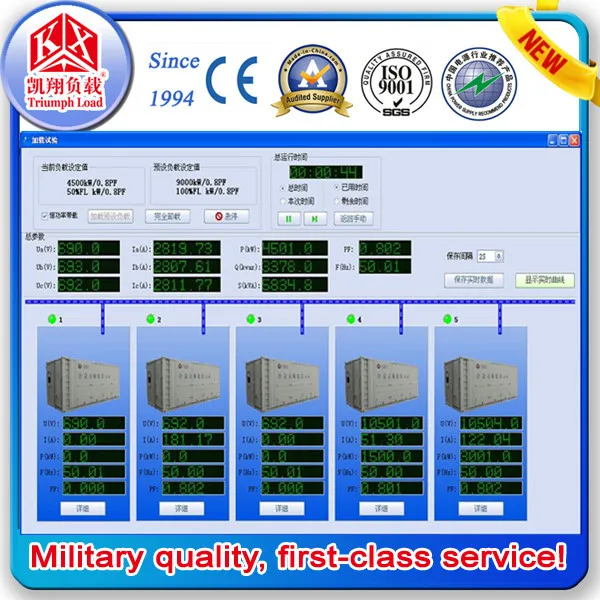

Data Processing Software

(self-developing)
