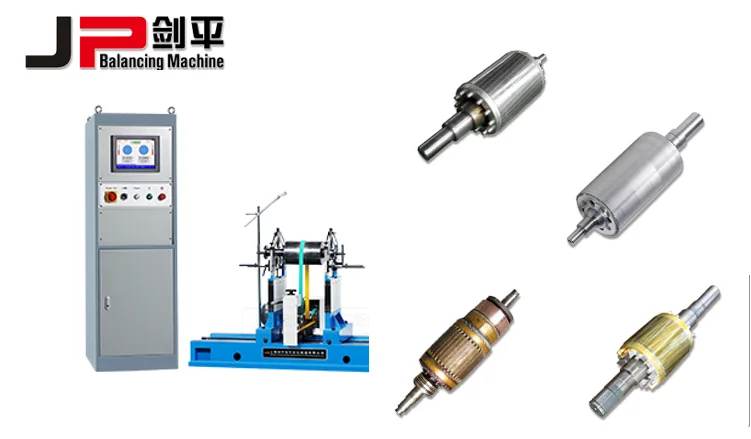

JP Rotor Motor Balancing Machine (PHQ-1000H)



Production Description



• Specially designed brackets transmit mechanical force with low vibration damping
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application



Range of Application

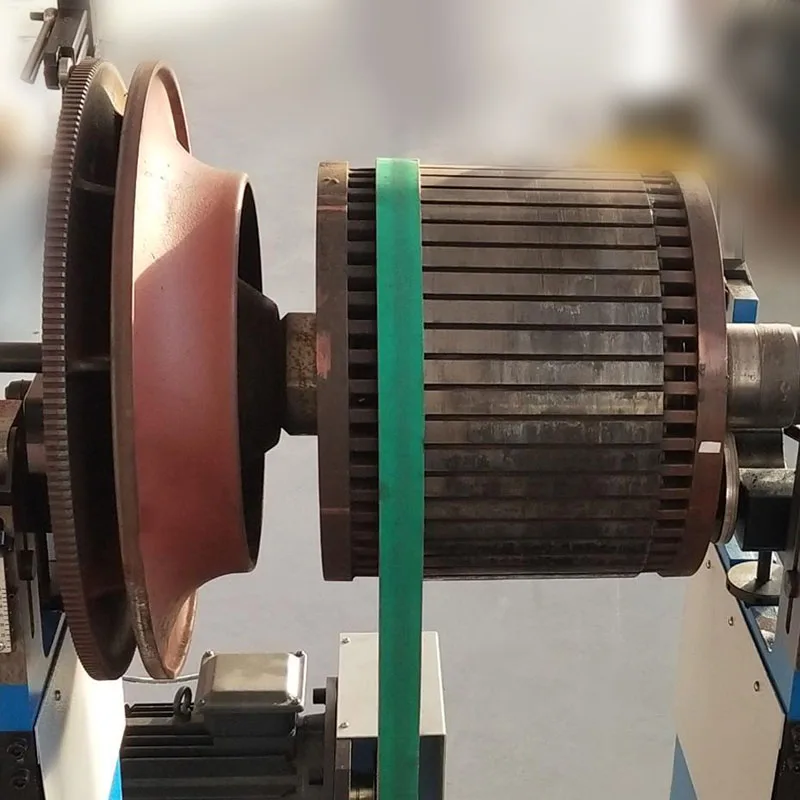

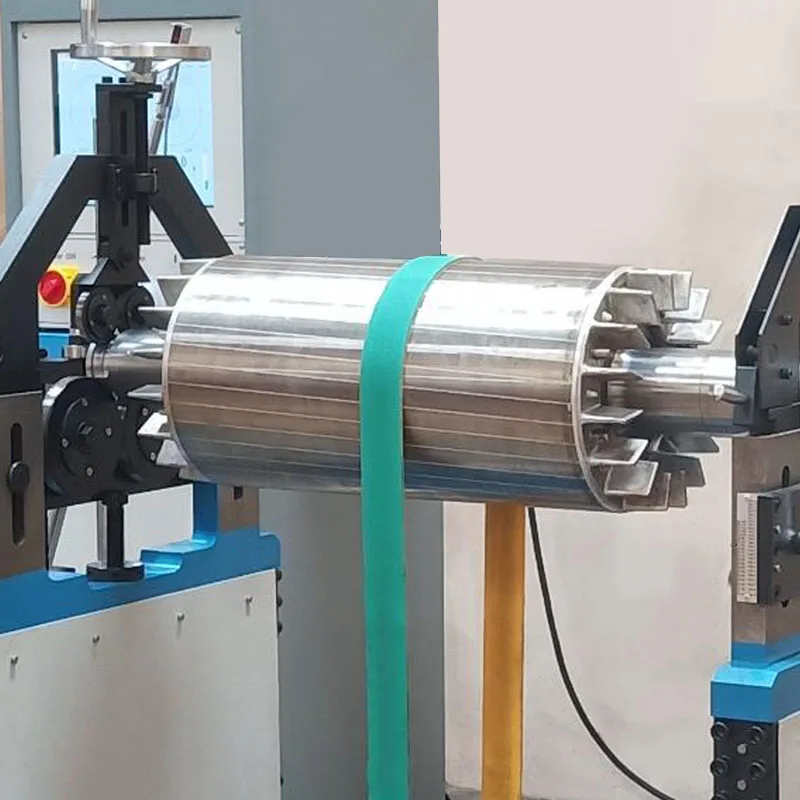

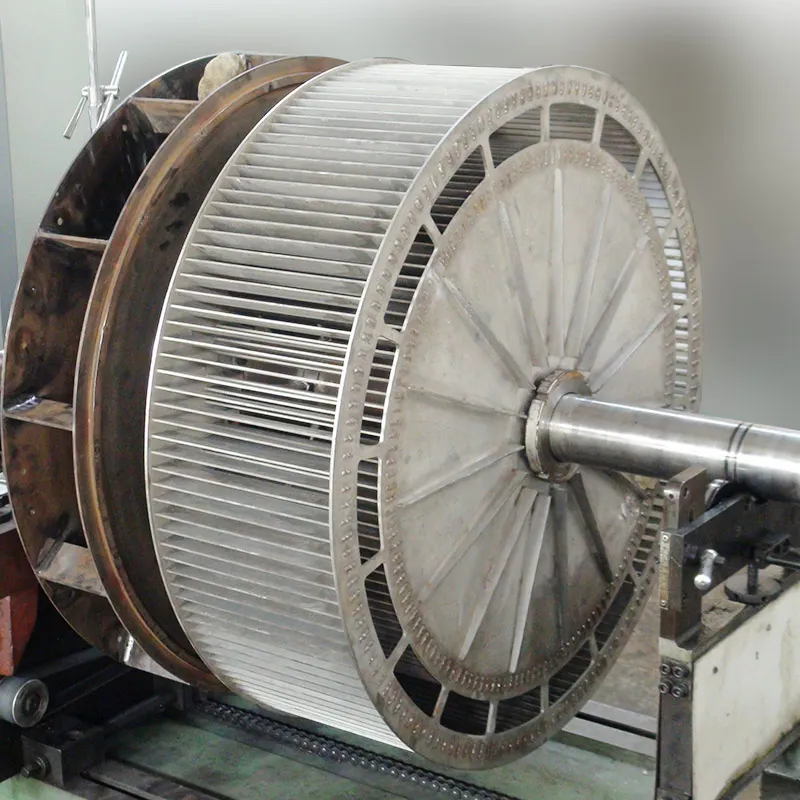

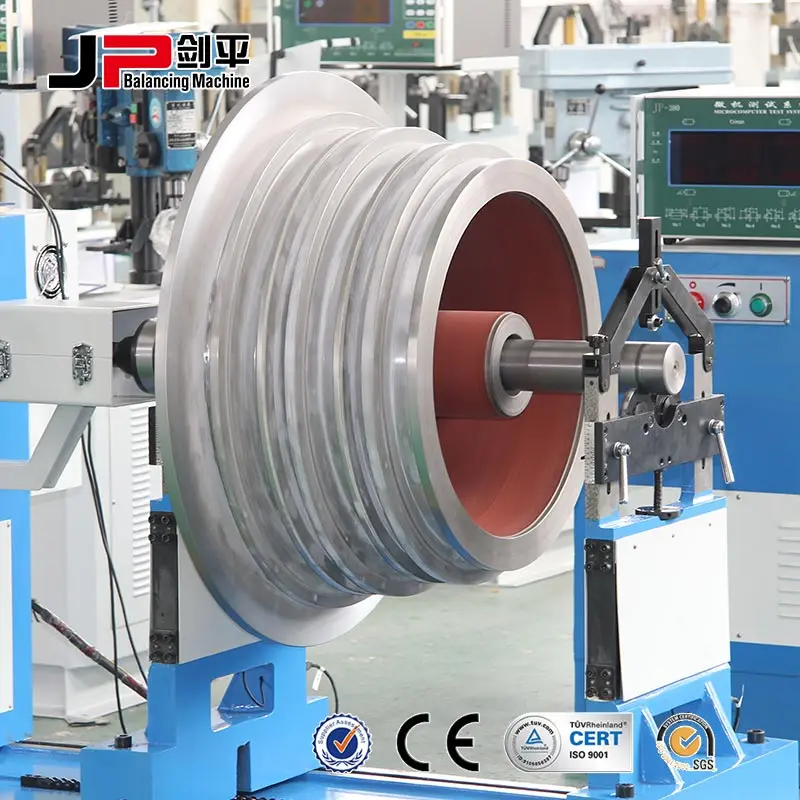

This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency



Special Features



The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.



Production Parameters



Technical data at a glance	PHQ-1000H	PHQ-2000H	PHQ-3000H	PHQ-5000
Max Mass of Workpiece(kg)	1000	2000	3000	5000
Max Diameter of Workpiece (mm)	Φ1600	Φ1800	Φ2100	Φ2400
Distance Between Two Support Bearings (mm)	160~1780	160~1780	160~2280	500~2200
Journal Diameter Scope of Workpiece (mm)	Φ 25~1204)	Φ25~1204)	Φ25~1204)	Φ40~380
Diameter Scope of Driving Belt (mm)	Φmax700	Φmax800	Φmax900	Φ50~1000
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	1330,19181)	684,9861)	921,13291)	795,18531)
Motor Power (kw)	42)	5.52)	7.52)	152)
Length of Bed (mm)	2000	2000	2500	2500
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.5g· mm/kg
