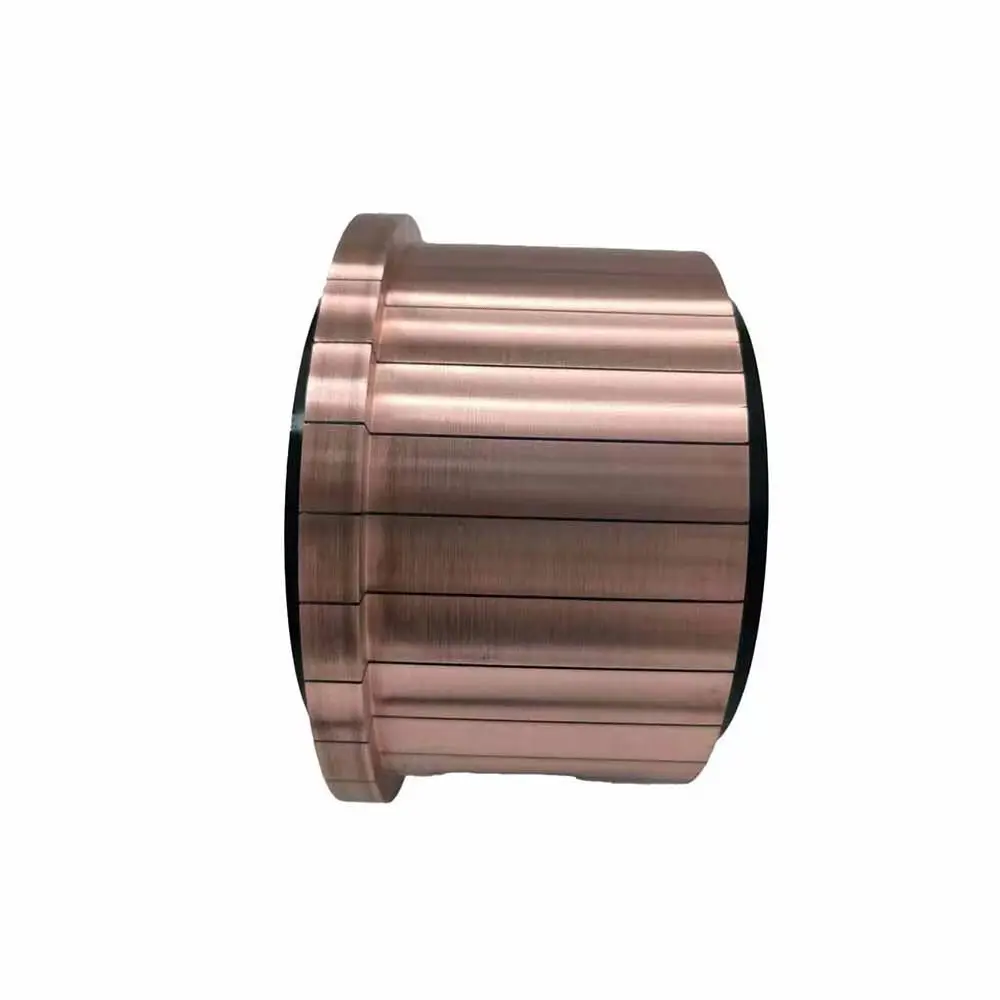

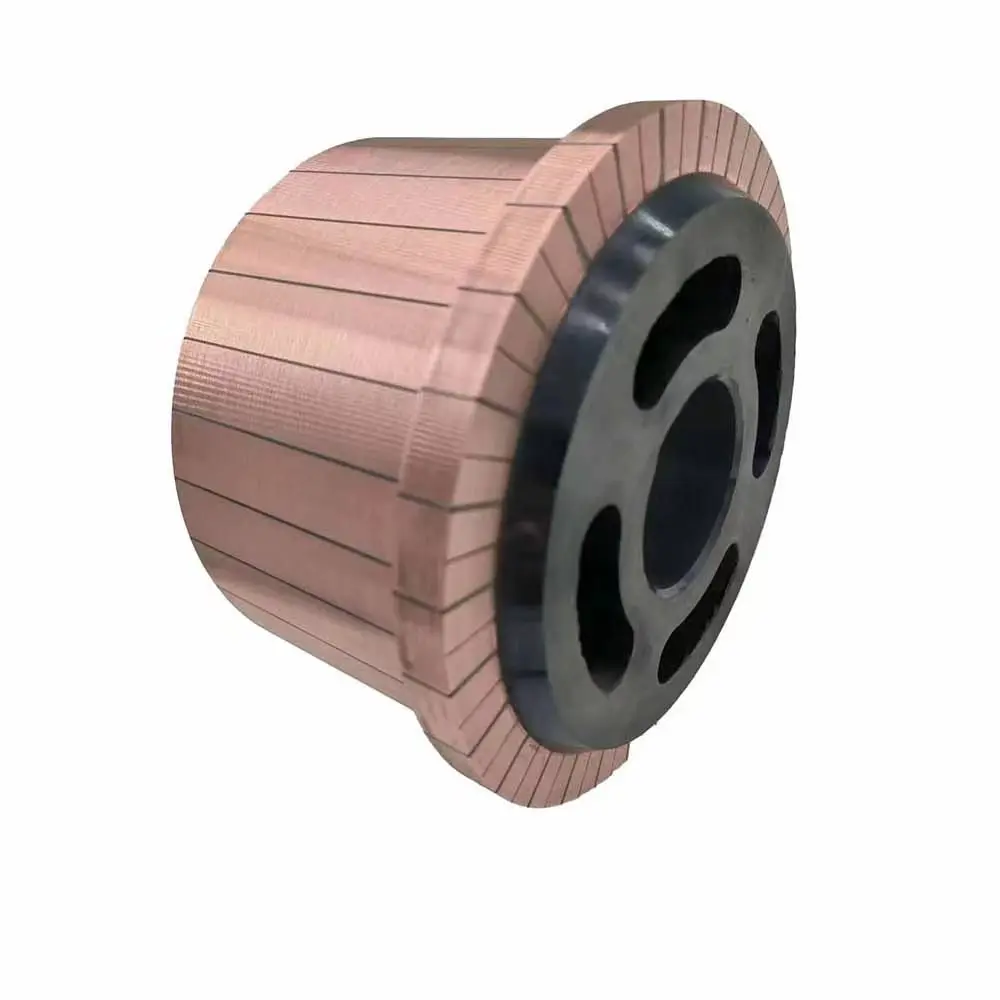

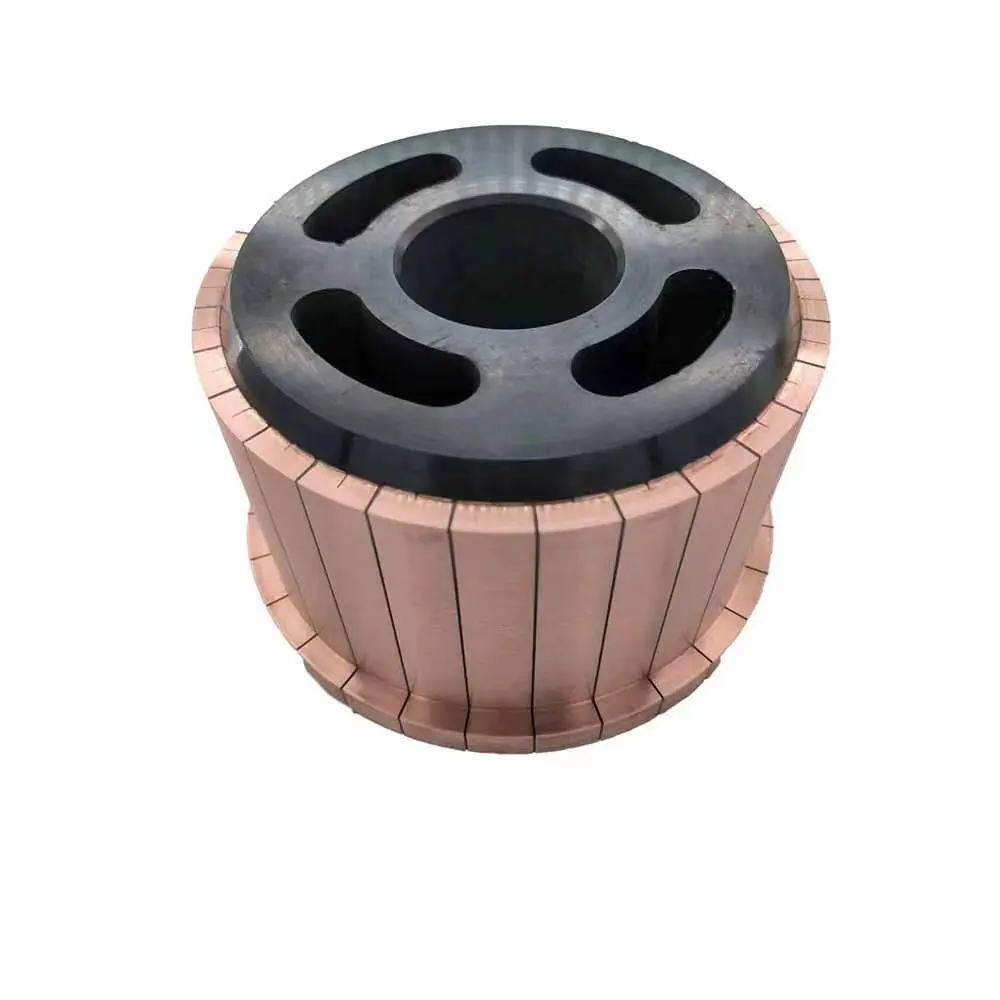

29 сегментов большой коммутатор для арматуры OD149.6xID50.52XH104.2


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.26 $* 0.45 $*
Aug-15-2025 0.11 $* 0.9 $*
Jul-15-2025 0.79 $* 0.4 $*
Jun-15-2025 0.31 $* 0.16 $*
May-15-2025 0.22 $* 0.81 $*
Apr-15-2025 0.14 $* 0.44 $*
Mar-15-2025 0.80 $* 0.34 $*
Feb-15-2025 0.69 $* 0.57 $*
Jan-15-2025 0.79 $* 0.33 $*

Характеристики



Product Description















































































 Model



BHY-4173-29

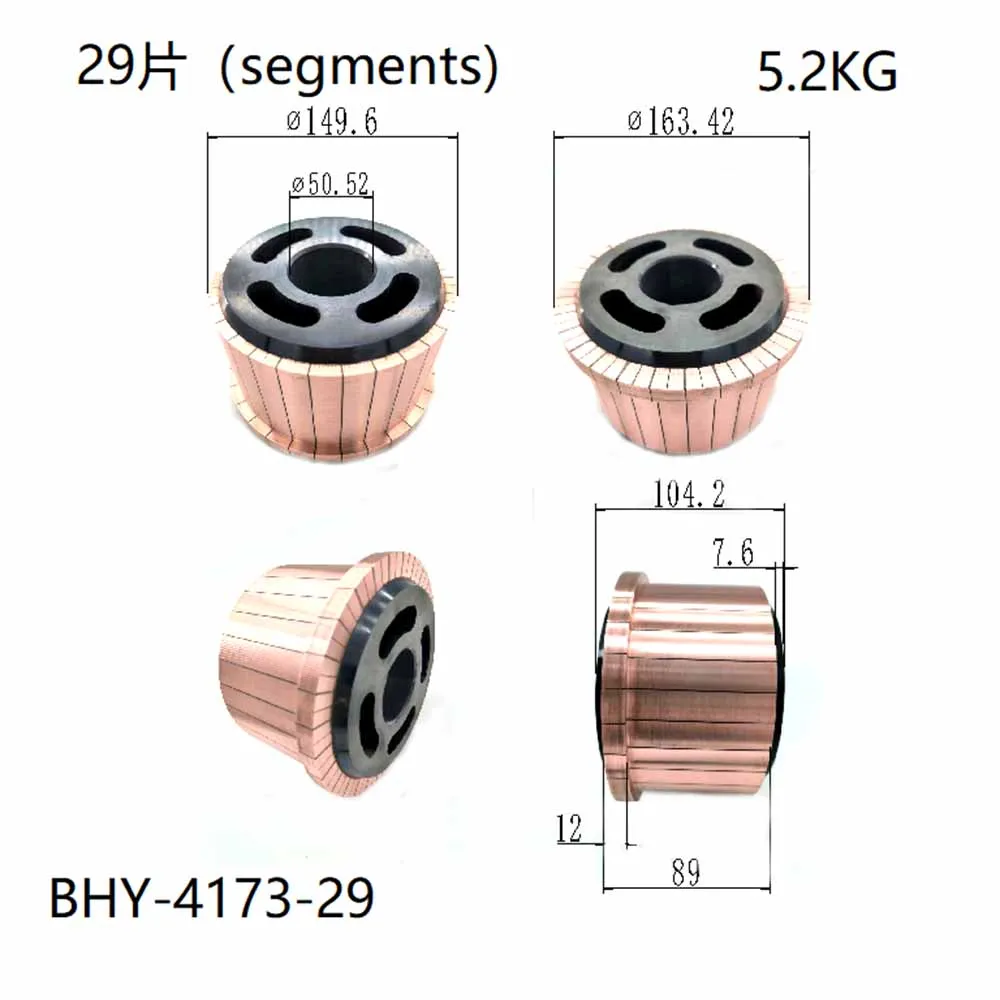

 SizeOD149.6xID50.52XH104.2

 Material



 0.03% or0.08%silver/ Copper/ bakelite CN6551



 Structure:

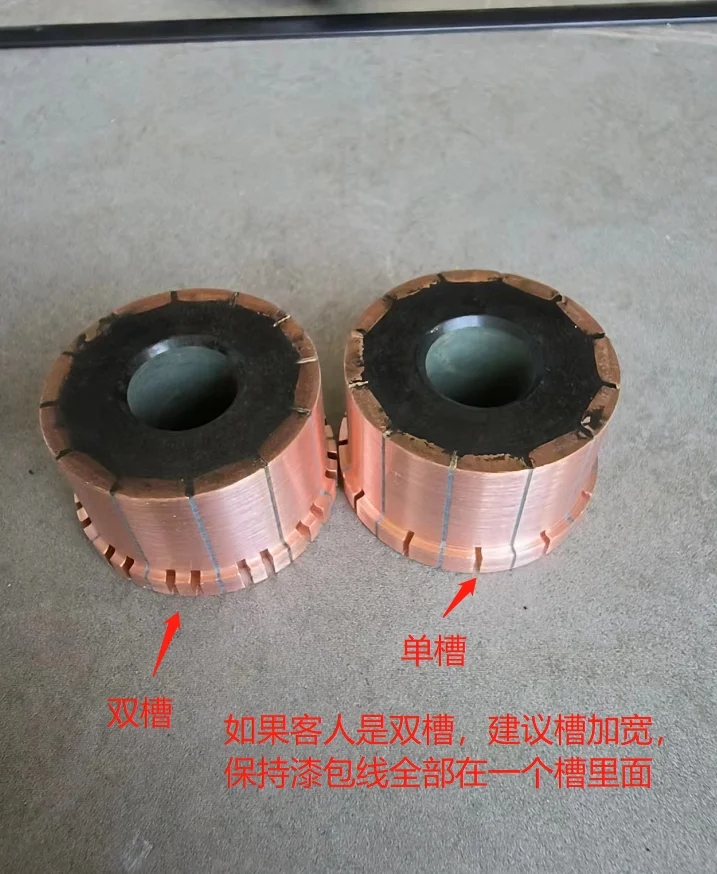

 Segmented hook/ groove commutator



 Usage:



 AC/DC motor spare parts



 Voltage



 12V  24V  48V  60V



 Sample



 Free(In Stock )



 Delivery



 5-30 wokingdays



 Packing



 Plastic box/carton/pallet/customized



 Term of trade



 FOB shanghai/ ningbo/.......



 Transport



 By sea/ air/ train/Fedex/Dhl......



 Payment



 T/T ,paypal ,western union......



 Production capacity



 1,000,000pcs/month



 Service& Warranty



 Best service for all customers, with 6 months' warranty






Technical Specifications:


















1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4± 0.1, width 0.5± 0.05 ) should be tolerated.


2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl
3. Spin Test: Under 180±2 , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003.

4. Insulation Resistance: The insulation resistance is greater than 50 under 500V.






Product Uses


1.Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances



2. commutator for  automotive  motor industry:Starting , generator , Wiper  , Air conditioner  , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering  ,  Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .



3.Commutator for power tools  : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and  for other electrical tools .



4. Commutator for other  industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.





commutator workshop








Packaging & Shipping


.jpg





Our team and service








Contact us


.png





Thousands of  sizes in stock ,no need to making moud again. factory prices ,free samples. exports to more than 30 countries, welcome to inquiry ,select and purchase!!
