Automation copper cable wire granulator is a is a professional dry separation of waste wire and cable production line.The machine has the features of large production capacity, low power consumption, the high rate of separation, a first feeding, multi machine collaboration. All controlled by PLC.
The granulator has not only improved the purity of copper,but also reduced the pollution to the environment.
The granules are transported to the separation unit by a blower system. The separation takes place on a vibrating dry separator. An adjustable air stream is directed onto a screen, where the light (plastic) fraction is lifted and falls down the vibrating surface. The heavy (copper) parts remain lying on the surface of the screen and move upwards.
Technical Parameters
Technical Specification of Scrap copper cable granulator is as following (if need which machine, pls click the picture):
Model
MX-300
MX-400
Capacity
100-200KG/H
200-300KG/H
Power
18KW
27KW
Recovery rate
98%
98%
Dimension
1900*1500*2250 (mm)
3000*2000*2300 (MM)
Suitable cable diameter
0.5-30MM
0.5-30MM
Weight
1800kg
2260kg
Features ofAutomation copper wire granulator: After the crushing processing of wire and cable, automatic mechanical separation, can completely separate the copper and plastic, and achieve the comprehensive utilization, has high economic benefit .And no dust, no secondary pollution. In addition, the device is the overall composite structure, easy to install and debug, and transport. Customer only needs to turn on the power supply to start the production, stable performance. 1. High separation efficiency can reach 99% 2. Easy to operate, very convenient 3. Save labor, only need 1-2 workers to operate 4. Price is cheap, economical and practical 5. It's professional dry separation type, no need water 6. Integration machine , simple and save space

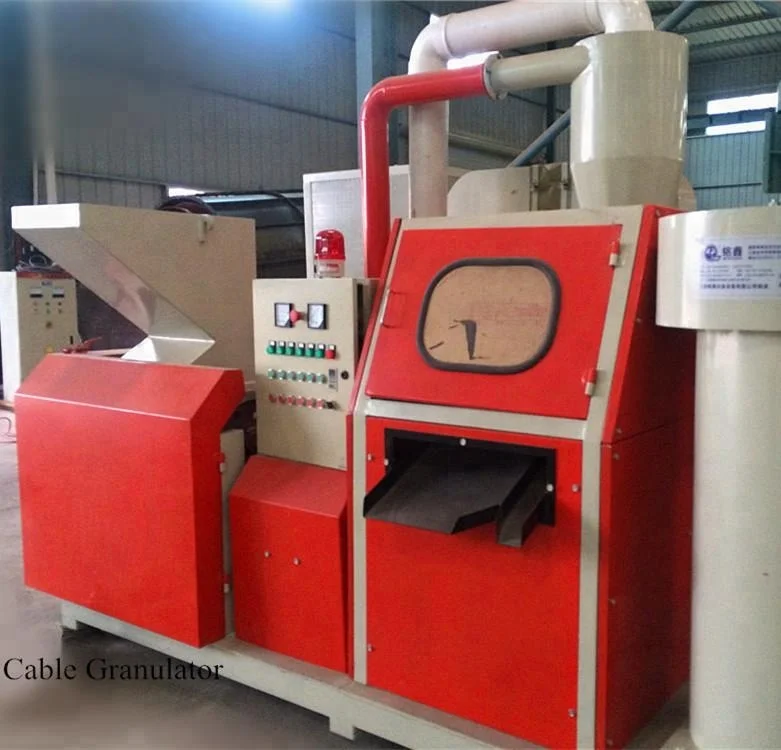

Equipment Photos

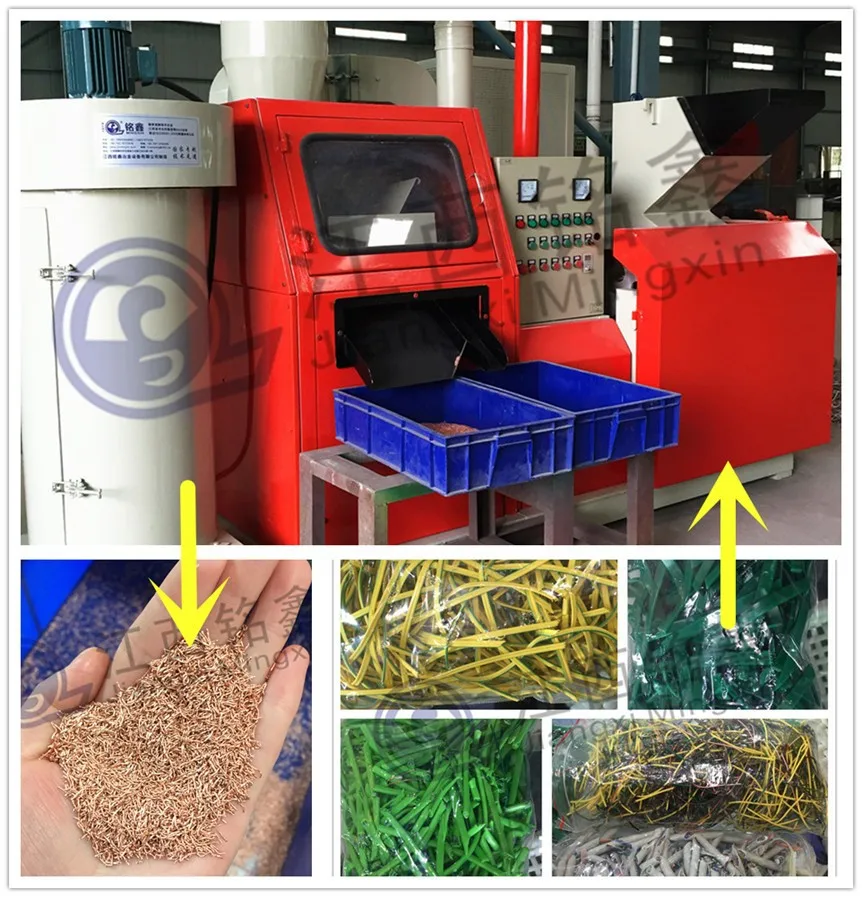

Scrap copper cable wire recycling machine is working in site.

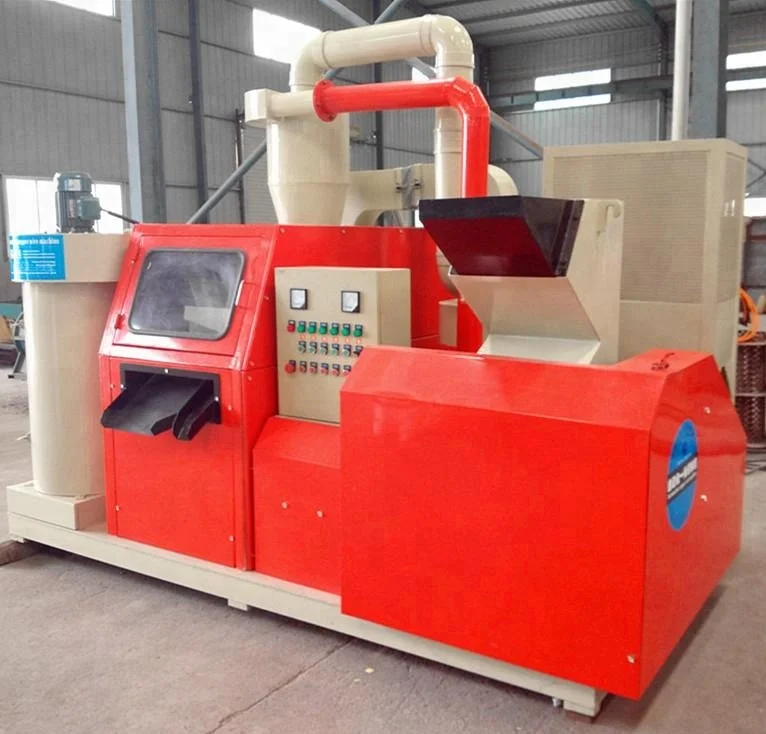

Copper cable granulator detailed parts picture:
Spare parts picture:
Export Markets:North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe Applications of the automation copper wire recycling machine:Communication cables, Civilian wires, filament wires, all single-branch wires
Equipment Video
Videos in youtu.be
Automatic Copper wire granulator
https://youtu.be/2-ufg8pU7M0
Automatic Copper wire granulator with primary crush
