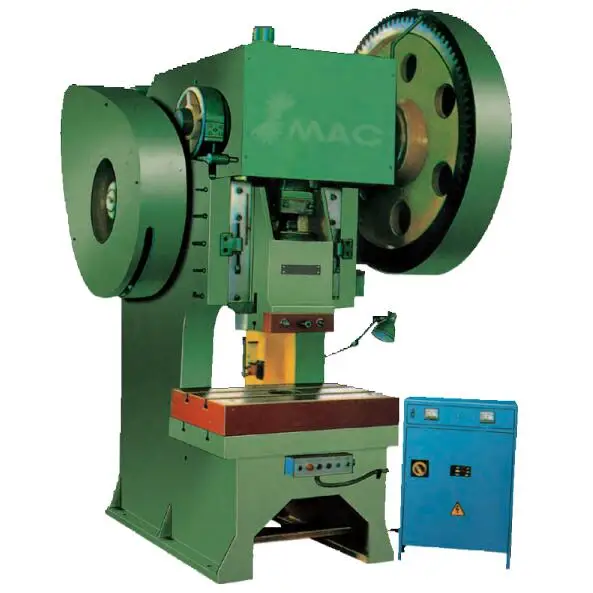

J21 63 тонны с открытым задним эксцентриковым валом металлический штамповочный силовой пресс фиксированной
- Категория: Punching Machines >>>
- Поставщик: SJR,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.74 $* | 0.37 $* |
| Aug-20-2025 | 0.0 $* | 0.38 $* |
| Jul-20-2025 | 0.86 $* | 0.12 $* |
| Jun-20-2025 | 0.26 $* | 0.95 $* |
| May-20-2025 | 0.3 $* | 0.2 $* |
| Apr-20-2025 | 0.91 $* | 0.24 $* |
| Mar-20-2025 | 0.13 $* | 0.77 $* |
| Feb-20-2025 | 0.48 $* | 0.54 $* |
| Jan-20-2025 | 0.63 $* | 0.28 $* |
Характеристики
Products Description
Features:
⭐Adopts horizontally placed crankshaft.
⭐Stroke adjustment device mounted on crankshaft.
⭐Combined dry type pneumatic friction clutch and brake.
⭐Manual shut height adjustment with scale display.
⭐MPS-100 and above adopts lifting balance device
⭐Safety Duplex valves.
⭐Control by PLC with international brand.
⭐Stroke adjustment device mounted on crankshaft.
⭐Combined dry type pneumatic friction clutch and brake.
⭐Manual shut height adjustment with scale display.
⭐MPS-100 and above adopts lifting balance device
⭐Safety Duplex valves.
⭐Control by PLC with international brand.
⭕wider range of application:drilling, boring, medium-load milling, scribing,scaling and measuring all are ok
⭕various sizes of table:three standard sizes and much more amounts of size just as your requirement

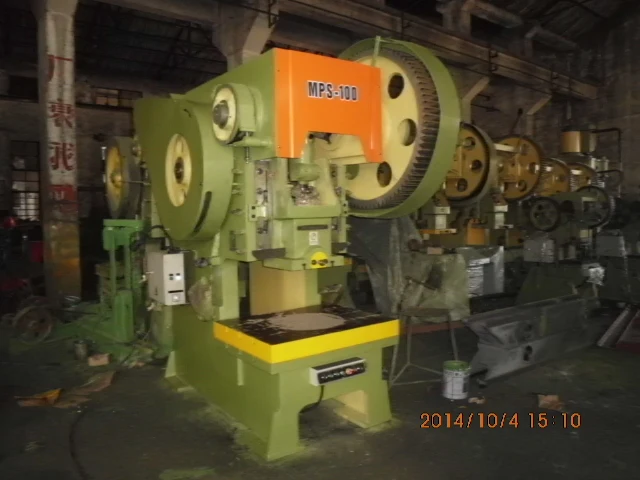

Specification | Unit | MPS-100 | MPS-125 |
Capacity | kN | 1000 | 1250 |
Nominal Force | mm | 6 | 6 |
Slide Stroke | mm | 16-140 | 16-140 |
SPM | min-1 | 40 | 40 |
Max. Die Height | mm | 320 | 320 |
Die Height Adjustment | mm | 100 | 100 |
Between Slide Center & Frame | mm | 380 | 380 |
Bolster (FB×LR) | mm | 710×1100 | 720×1200 |
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | φ260×50 | φ260×50 |
Bolster Opening(Dia.×FB×LR) | mm | 260×290 | 260×290 |
Slide Area (FB×LR) | mm | 420×560 | 420×560 |
Shank Hole (Dia.×Dpth) | mm | φ60×80 | φ60×80 |
Between Columns | mm | 630 | 620 |
Motor Power | kW | 7.5 | 11 |
Outline Size (FB×LR×H) | mm | 2200×1850 | 2200×1850 |
Net Weight | kg | 9000 | 11000 |
Specifcation
J23-6.3 | J23-10 | J23-16 | J23-25 | |||
Capacity | kN | 63 | 100 | 160 | 250 | |
Nominal Force | mm | 3 | 4 | 5 | 5 | |
Slide Stroke | mm | 35 | 60 | 55 | 80 | |
SPM | min-1 | 170 | 145 | 125 | 60 | |
Max. Die Height | mm | 110 | 130 | 160 | 180 | |
Die Height Adjustment | mm | 30 | 35 | 45 | 70 | |
Between Slide Center & Frame | mm | 110 | 130 | 160 | 210 | |
Bolster (FB×LR) | mm | 200×310 | 240×360 | 300×450 | 400×600 | |
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | Φ60 | Φ120×20 ×Φ100 | Φ100 | Φ120 | |
Bolster Thickness | mm | 40 | 50 | 40 | 70 | |
Bolster Opening (Dia.×FB×LR) | mm | Φ140×110×160 | Φ130×90×180 | Φ210×160×240 | Φ180×130 ×260 | |
Slide Area (FB×LR) | mm | 120×140 | 150×170 | 180×200 | 210×250 | |
Shank Hole (Dia.×Dpth) | mm | Φ30×55 | Φ30×55 | Φ40×60 | Φ40×70 | |
Max. Inclined Angle | ° | 30° | 25° | 25° | 25° | |
Between Columns | mm | 150 | 180 | 220 | 260 | |
Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | |
Outline Size (FB×LR×H) | mm | 780×610 ×1505 | 915×700 ×1690 | 1150×900 ×1910 | 1325×990 ×2140 | |
Net Weight | kg | 360 | 600 | 1080 | 1900 | |
Recommend Products
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
J21 63 Tons Open Back Eccentric Shaft Metal Punching Power Press Machine with Fixed Bed
