400C Лидер продаж высококачественные Многофункциональные комбинированные универсальные деревообрабатывающие станки с
- Категория: Other Woodworking Machinery >>>
- Поставщик: Longkou,Leader,Imp&,Exp,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2737.59 $* | 2874.50 $* |
| Aug-19-2025 | 2714.63 $* | 2850.84 $* |
| Jul-19-2025 | 2277.99 $* | 2391.46 $* |
| Jun-19-2025 | 2668.53 $* | 2801.42 $* |
| May-19-2025 | 2323.89 $* | 2439.25 $* |
| Apr-19-2025 | 2622.73 $* | 2753.83 $* |
| Mar-19-2025 | 2599.63 $* | 2729.21 $* |
| Feb-19-2025 | 2576.79 $* | 2705.76 $* |
| Jan-19-2025 | 2553.81 $* | 2681.92 $* |
Характеристики
Production Information
UP GRADES!
The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factoryand small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
Features:
Planer | Unit | 400C |
Working tables | mm | 400x1800 |
Cutterblock diameter | mm | 70 |
Cutterblock rotation speed | r.p.m | 5700 |
N. of knives | n° | 3 |
knives dimensions | mm | 400x20x3 |
Max table adjustement | mm | 4 |
Thicknesser | Unit | 400C |
Working table | mm | 400x760 |
Feed speed | m/1' | 7 |
Max. working height | mm | 220 |
Min. working height | mm | 4 |
Cutterblock rotation speed | r.p.m | 5700 |
Max. cutting depth | mm | 4 |
Mortiser | Unit | 400C |
Working table | mm | 250x500 |
Longitudinal stroke | mm | 205 |
Trasversal stroke | mm | 95 |
Vertical stroke | mm | 90 |
Churck | mm | 16 |
Churck rotation speed | r.p.m | 5700 |
Standard accessories | Unit | 400C |
Service wrenches | * | * |
Mortiser chuck | * | * |
Guards on mortiseur chuck | * | * |
3 pcs. planing knives | * | * |
Planer guide | * | * |
Bridge sefety hood on planer | * | * |
3-phase motor power | HP - KW | 4,0 - 3,0 |
Weight | Kg | 385 |
Optional accessories | Unit | 400C |
Single-phase motor | HP - KW | 5,5 - 4,0 |
Increasing 3-phase motor | HP - KW | 4,0 - 3,0 |
Wescott(Chuck) | mm | 16 |

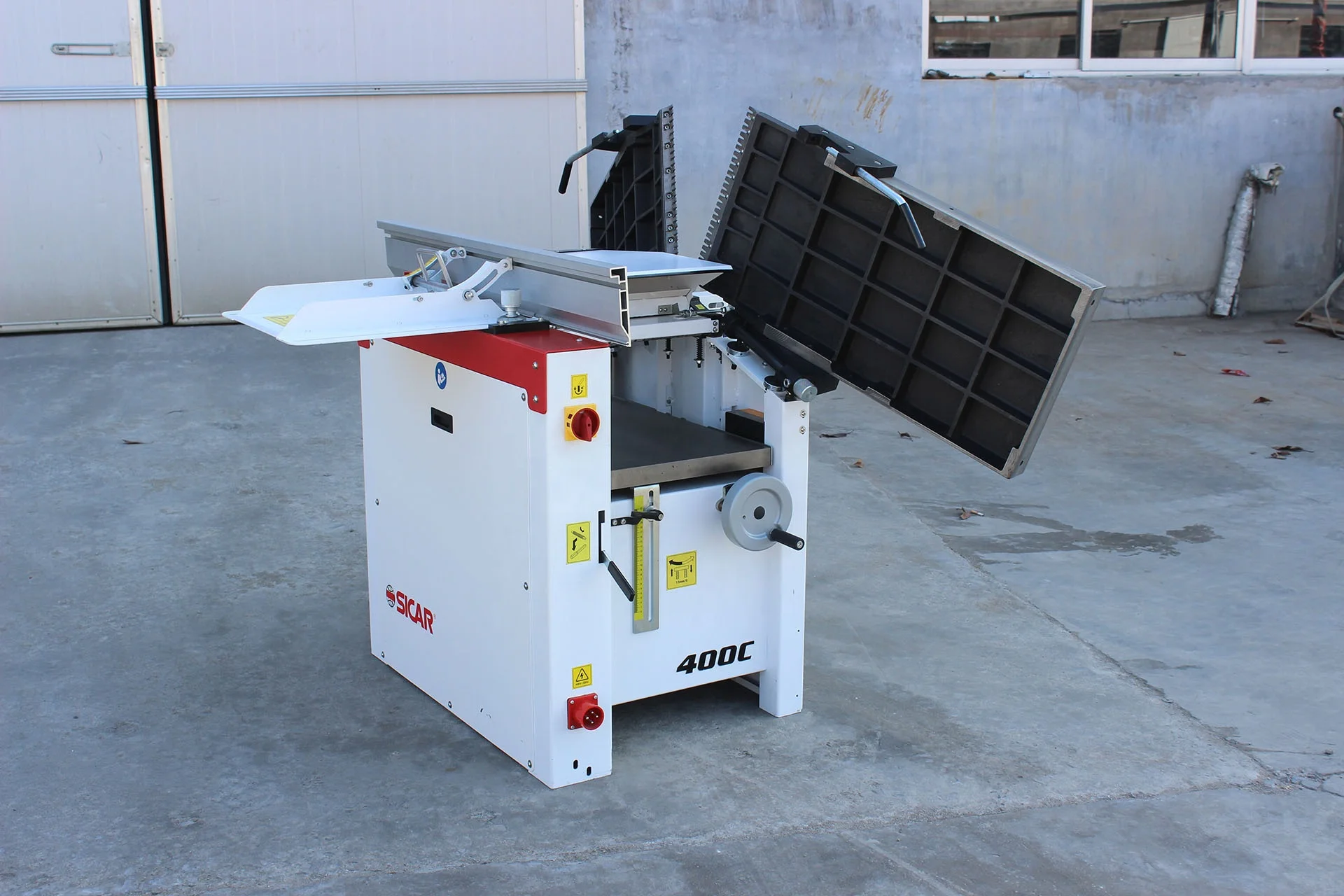

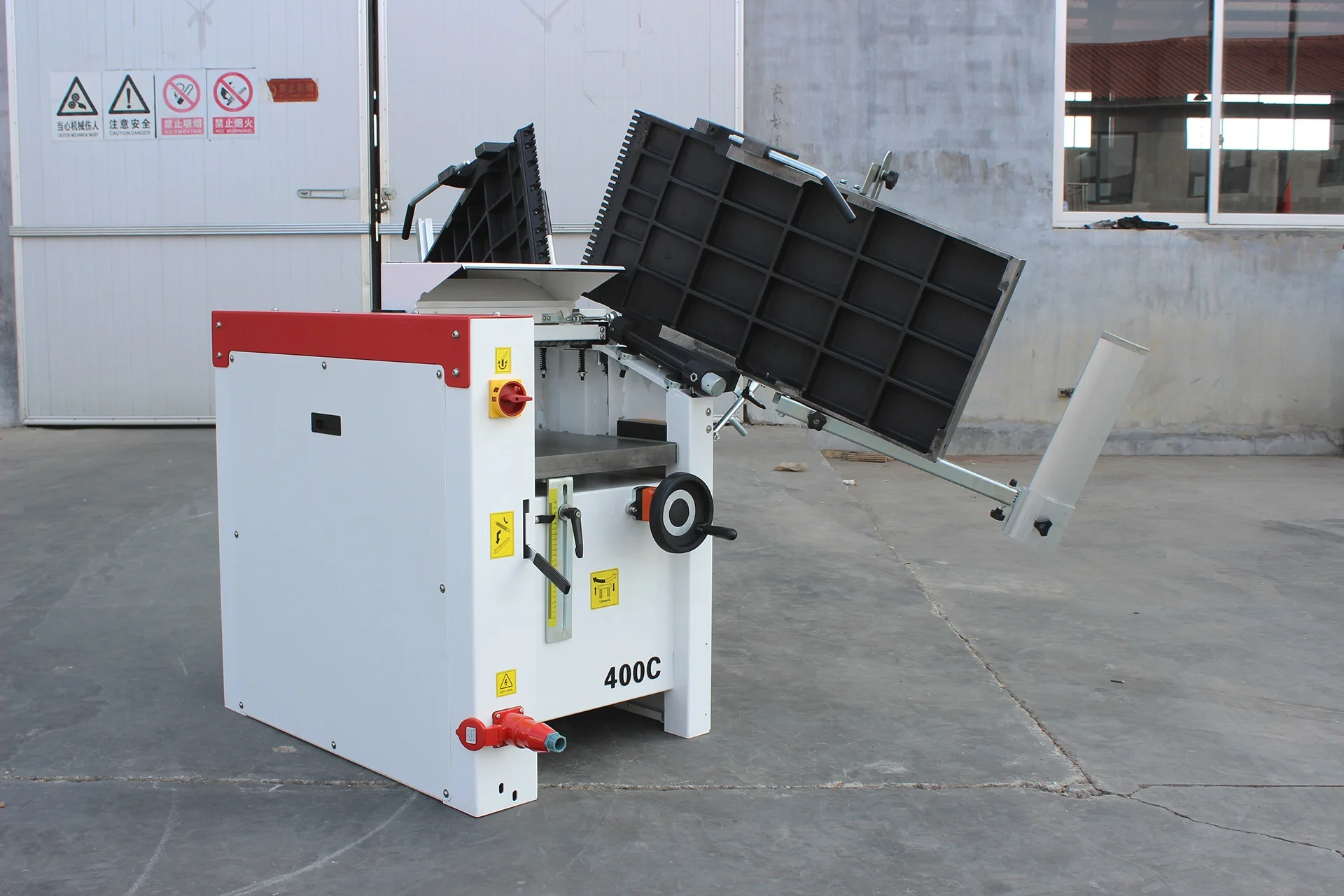

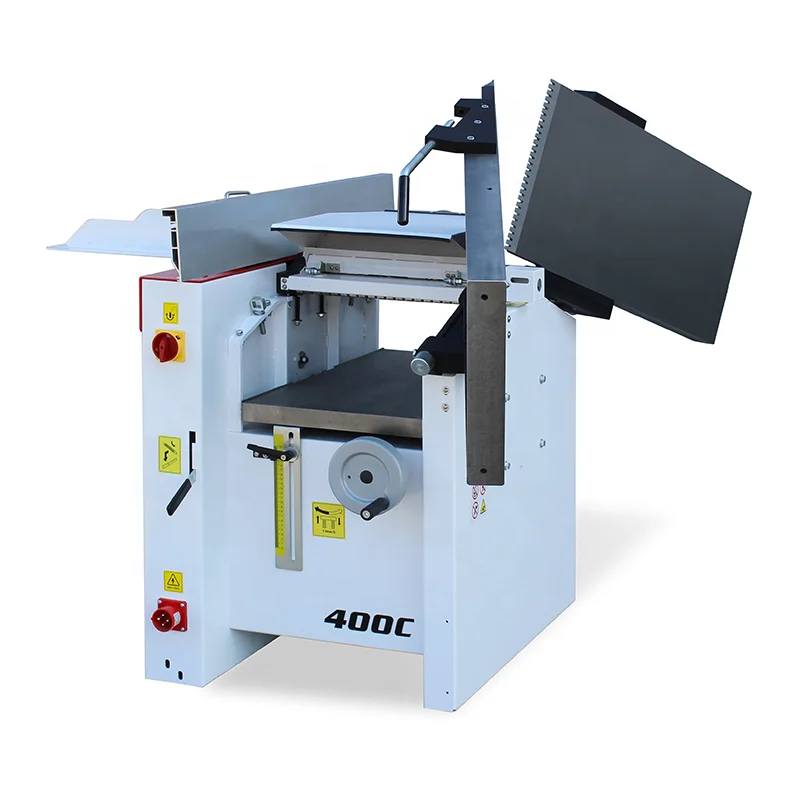

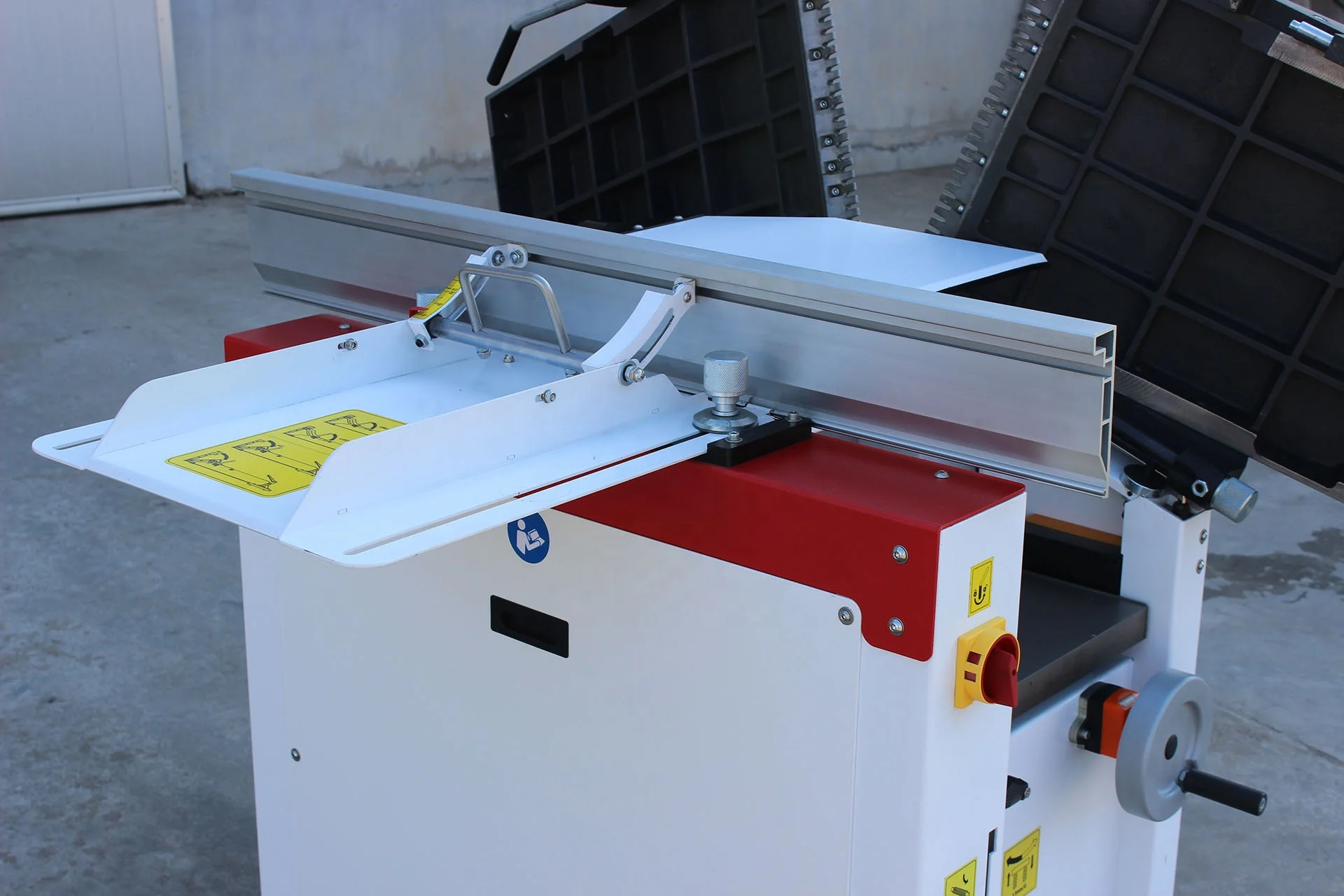

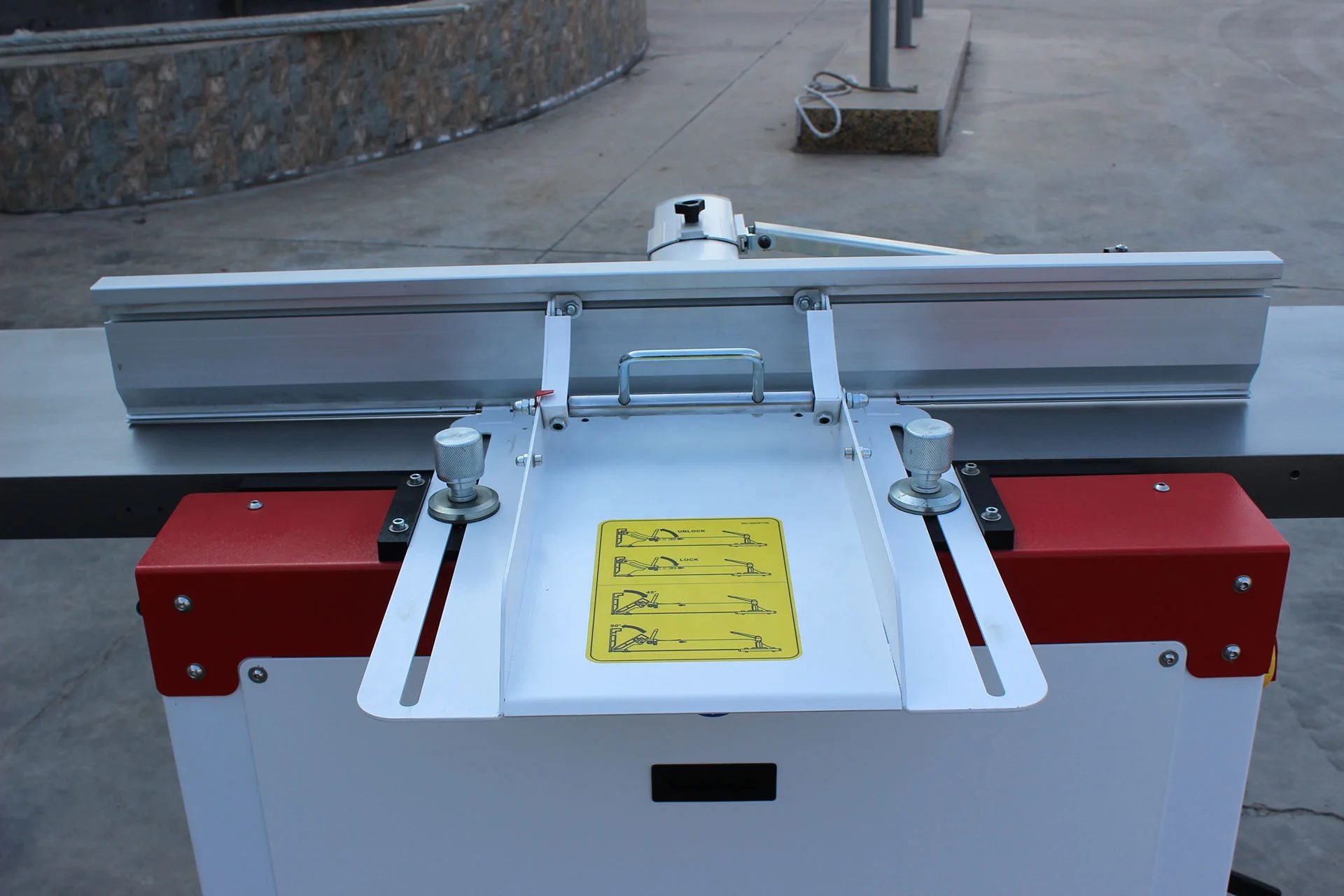

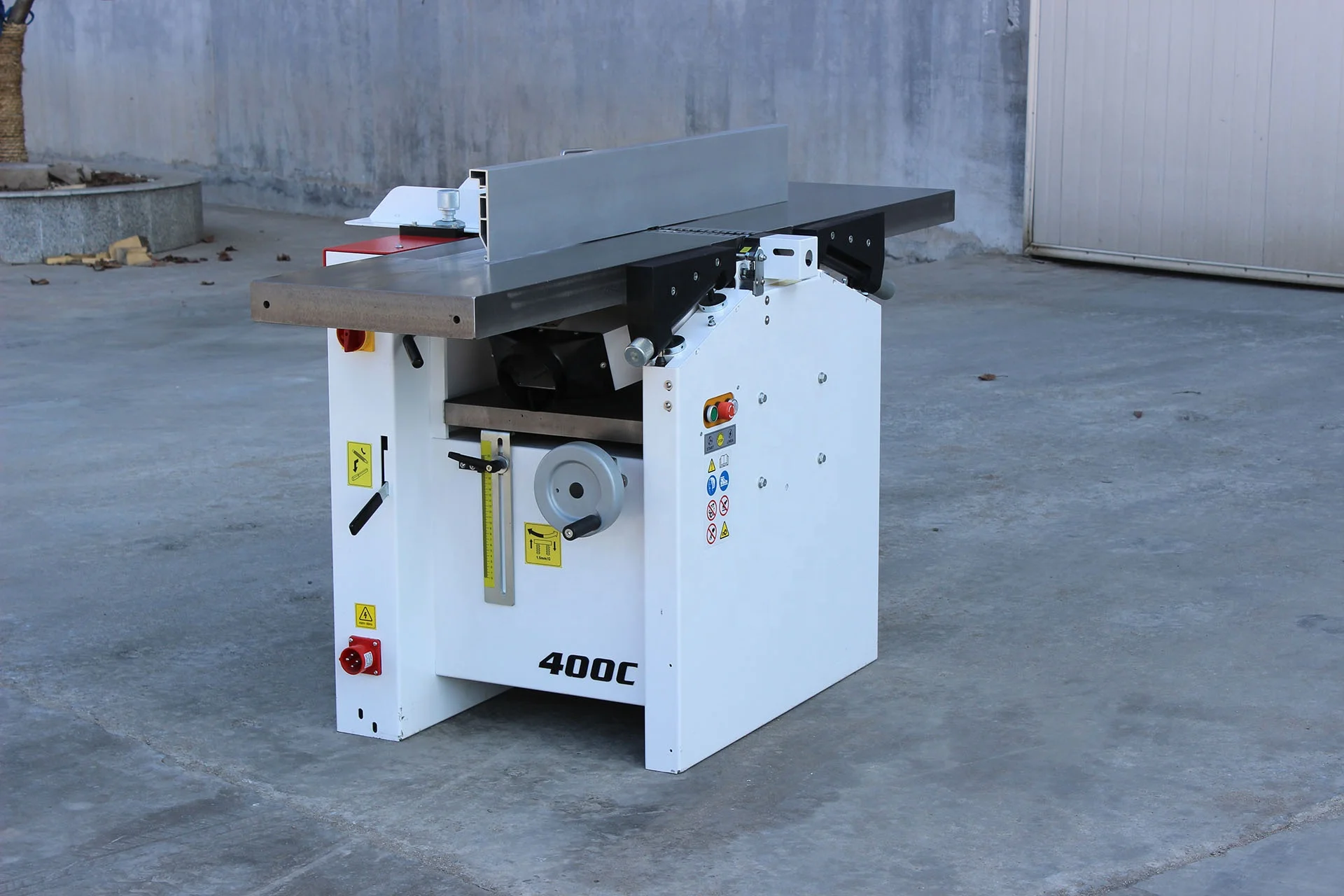

Real Live Photos
Related products:↓↓↓
Company Profile
Packing
Service
Our factory has been specialized in producing woodworking machines for over TEN years .We have very high research and development capabilities to meet the requirements of customers.
After-sale Service:
1) The machine warrant is 12 months.
2) 24 hours online support.
3) Friendly English version manual and operation video CD disc.
After-sale Service:
1) The machine warrant is 12 months.
2) 24 hours online support.
3) Friendly English version manual and operation video CD disc.
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer of combined woodworking machine and accessories.
A: We are the manufacturer of combined woodworking machine and accessories.
2. Q: Why choose us?
A: We are professional manufacturer and we have Italian engineer to design our products..
3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certification.
A: All of our products is applied with CE certification.
