Титан DE900-8 HF твитер неодимовый динамик

Титан DE900-8 HF твитер неодимовый динамик

Категория: >>>
Поставщик: Guangzhou,Skytone,Audio,Company,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.57 $*	0.1 $*
Aug-18-2025	0.23 $*	0.33 $*
Jul-18-2025	0.38 $*	0.68 $*
Jun-18-2025	0.50 $*	0.81 $*
May-18-2025	0.46 $*	0.68 $*
Apr-18-2025	0.10 $*	0.87 $*
Mar-18-2025	0.35 $*	0.37 $*
Feb-18-2025	0.59 $*	0.92 $*
Jan-18-2025	0.31 $*	0.32 $*

Характеристики

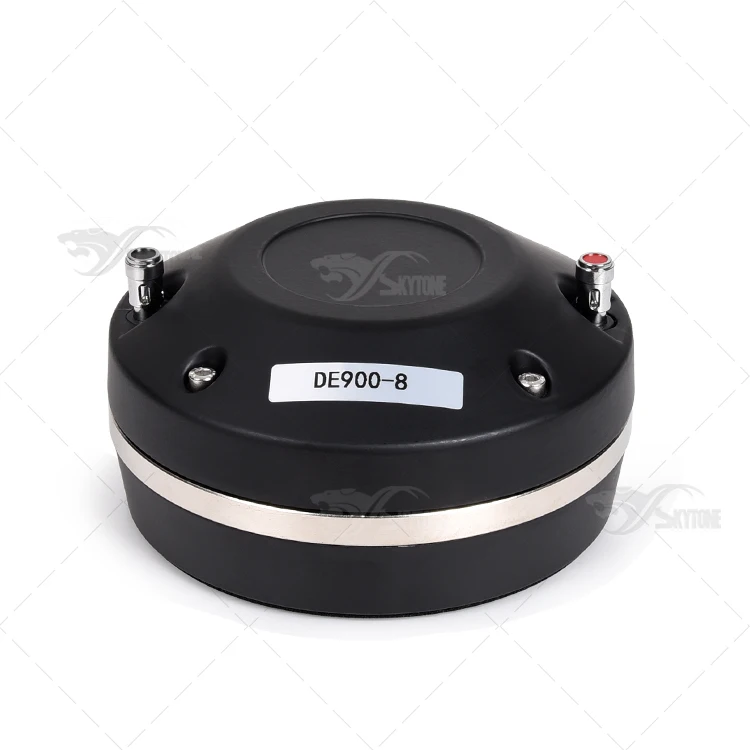

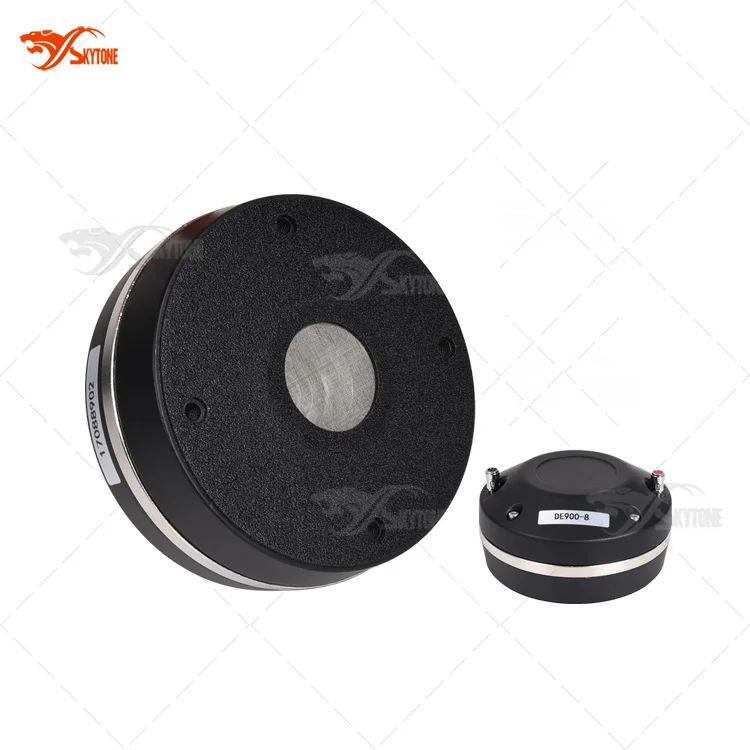

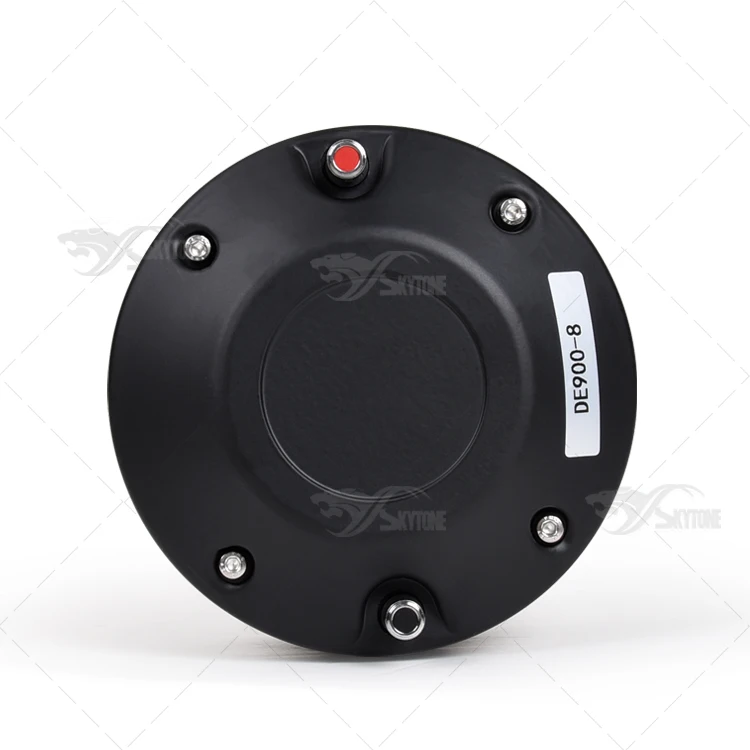

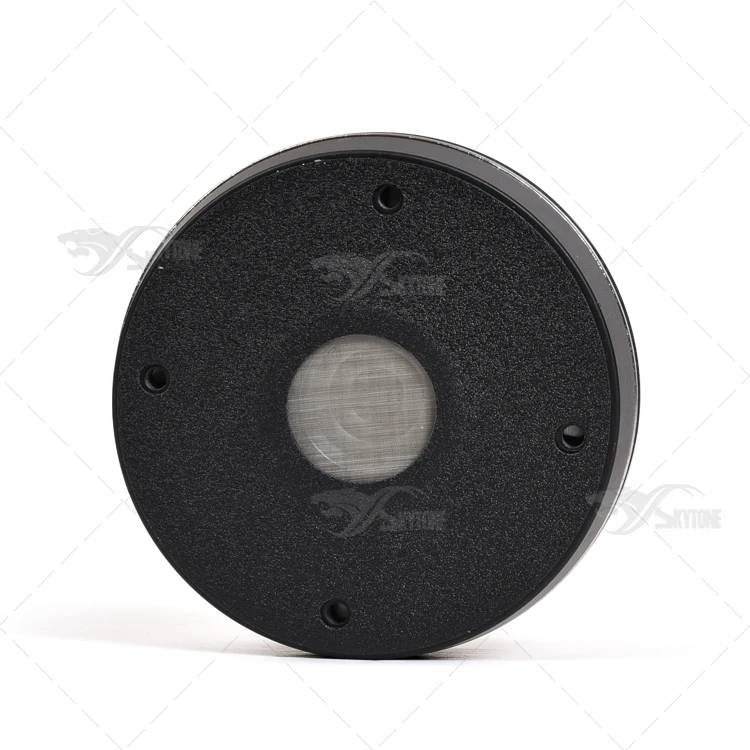

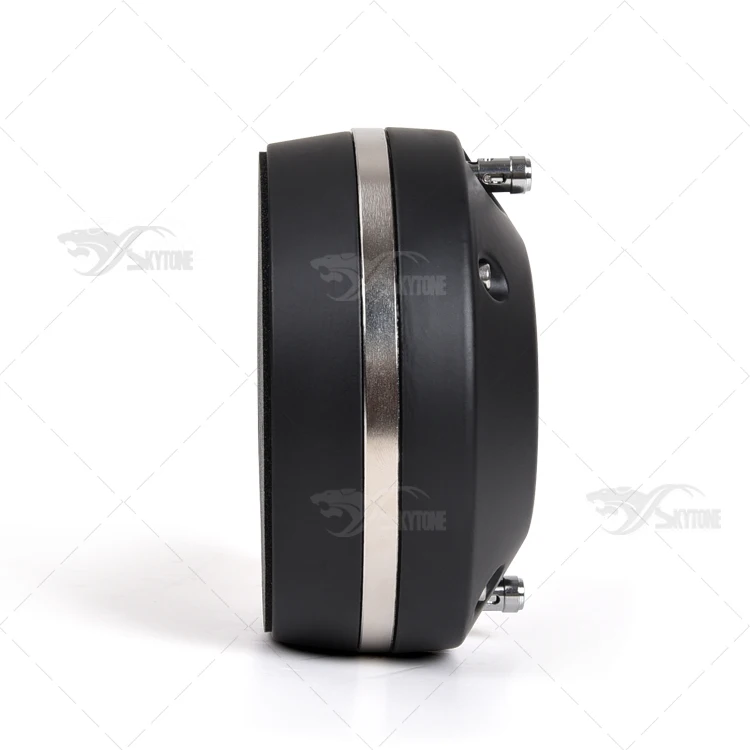

Titanium DE900-8 HF Tweeter

Neodymium Speaker Driver Unit

Product Description

Super Speaker tweeter

Neodymium speaker driver unit

HF audio speaker driver

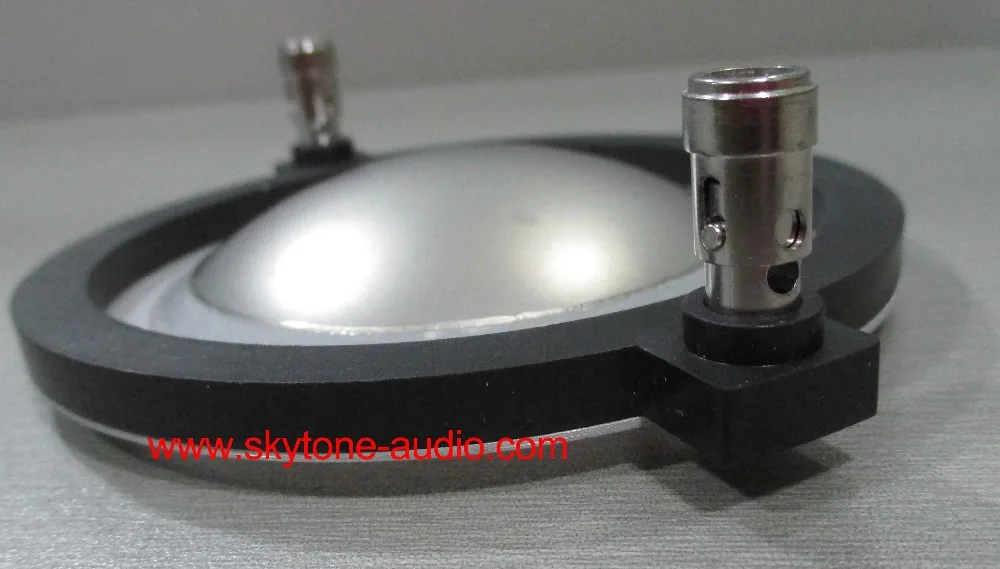

Top performance 1.4" high frequency compression driver. The particular mylar/titanium diaphragm using a 3" edgewound flat aluminium wire voice coil and a FEA computer optimized lightweight neodymium magnet assembly using a copper shorting ring produce smooth response, very high efficiency and outstanding sonic properties. This unit weights only 2.6 kg.

Features of DE900-8 HF Tweeter Neodymium Speaker Driver Unit
--lightweight Neodymium magnet
--Voice coil diameter 3.0 in (75 mm)
--Nominal power handling 80 W
--Diaphragm material Titanium
--Throat diameter 1.4 in (36 mm)

Specifications of DE900-8 HF Tweeter Neodymium Speaker Driver Unit
Throat Diameter	36 mm (1.4 in)
Nominal Impedance	8 Ω
Minimum Impedance	8.3 Ω
Power Handling	80 W (1200 -20000 Hz) Nominal
Continuous Program	160 W
Sensitivity (1W/1m)	109.5 dB
Frequency Range	0.5 - 18 kHz
Recommended Crossover	1200 Hz
Voice Coil Diameter	75 mm (3 in)
Winding Material	Aluminium
Inductance	0.14 mH
Diaphragm Material	Titanium
Flux Density	2.05 T
Mounting Information
Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter	132 mm (5.2 in)
Depth	65 mm (2.6 in)65 mm (2.6 in)
Net Weight	2.6 kg (5.7 lb)
