Product Description

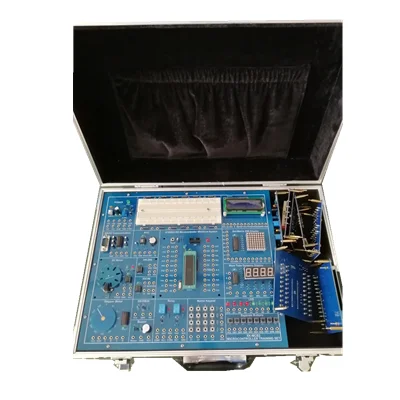

   XK-MCB2 (AVR+PIC+MCS51) Microcontroller Programmer Kit,  Microprocessor Training Kit










1.Product overview

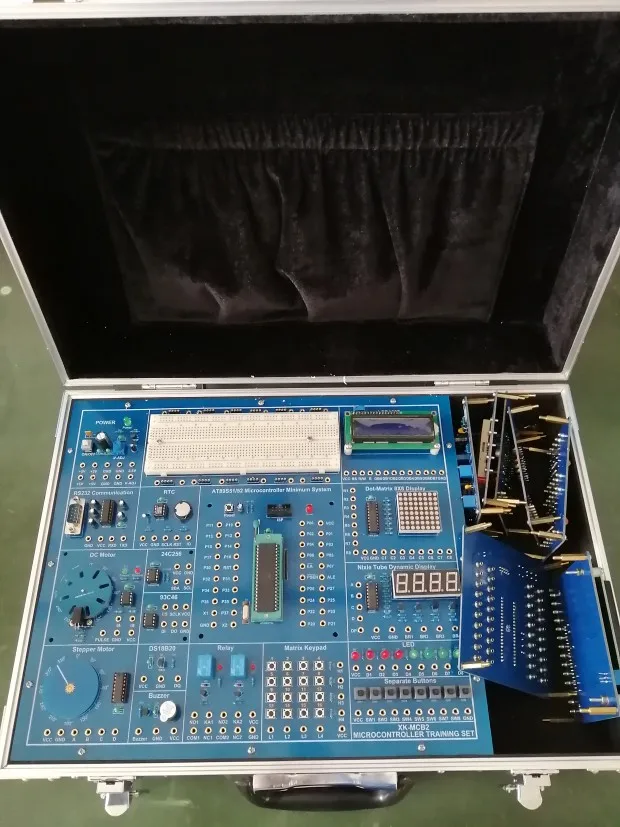

XK-MCB2 Microcontroller Training Set adopts modular design, consists of experiment box board and expansion boards. The expansion boards are convenient to carry out the extended experiment. The experiment box boards build-in power supply unit, MCS51 microcontroller minimum system , bread board and common function experiment unit. Such as: LED, nixie tube, LCD, lattice screen, stepper motor, buzzer, temperature sensor, independent buttons, logical buttons, matrix buttons and storage chips. The expansion boards contain AVR/PIC microcontroller minimum system, common function experiment unit and can be configured according to the requirements of the customer.





2.Experiment box technical index


2.1 Overall Size: 500 (L) x 340 (W) x 165mm (H); 4KG


2.2 The power supply: single-phase power supply, AC 220 V, 50/60 Hz, power ≤10VA.


2.3 With grounding protection, over-current protection, power supply indication, main power indication


2.4 Working environment: temperature: -10℃~+40℃





3. Signal Source Technology Parameter:


3.1 DC 2.5V, reference voltage source, capacity: 20mA


3.2 DC 5V voltage source, capacity: 2 A


3.3 Adjustable 0~+5V DC voltage source, capacity:100mA





4. Product main composition


This product mainly consists of experiment box, extension board and accessories.


4.1 Experiment box extension boards( can be designed according to customer’s requirement)


1)    ATMEGA16A microcontroller minimum system


2)    PIC16F877A microcontroller minimum system


3)    LCD12864


4)    Nixie tube static display extending board


5)    Traffic light extending board


6)    IC card extending board.


7)    Voice module extending board


8)    D/A and A/D conversion extending board


9)    F/V and V/F conversion extending board.










4.2 Accessories of experiment kit


1)  Power line: 1pce


2)  K2 Experiment wires: 40 pieces


3)  9 PIN serial port extension cord: 1pce


4)  USBASP AVR/51 programmer: 1pce


5)  K150 PIC programmer: 1set


6)  English manual: 1pce





5. Experiment Items


5.1 Basic experiment


1)    Flow water lights experiment


2)    Independent button input experiment


3)    4×4 matrix keyboard input experiment


4)    Relay drive experiment


5)    Temperature acquisition experiment


6)    Buzzer drive experiment


7)    8 x 8 lattice screen display experiment


8)    Dynamic digital tube display experiment


9)    Stopwatch counts down experiment


10) LCD1602 LCD display experiment


11) AT24C256 Storage experiment


12) 93C46 storage experiment


13) RS232 communication experiment


14) RTC display experiment


15) Stepper motor drive experiment


16) DC motor drive experiment


17) DC motor speed regulation and measuring experiment


5.2 Extending experiment


18) Nixie tube static display experiment


19) Traffic lights simulation experiment


20) LCD12864 lattice screen, LCD display experiment


21) IC card read & write experiment


22) D/A and A/D conversion experiment


23) F/V and V/F conversion experiment


24) Voice experiment


25) PIC16F877A control LED experiment


26) ATMEGA16A control LED experiment
