GD320 manual traffic Line Marking  Hand-push  Thermoplastic Applicator

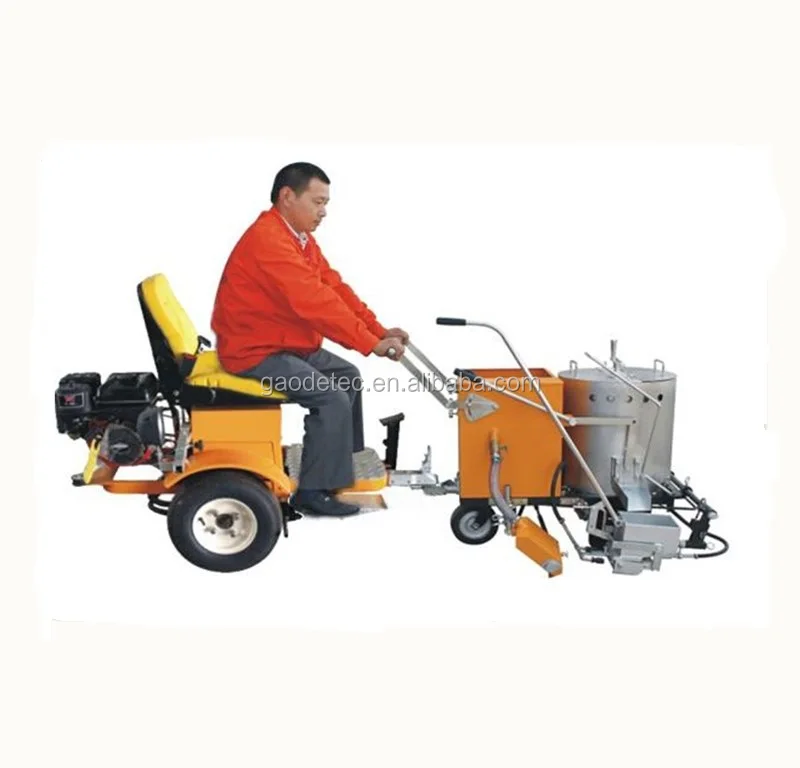

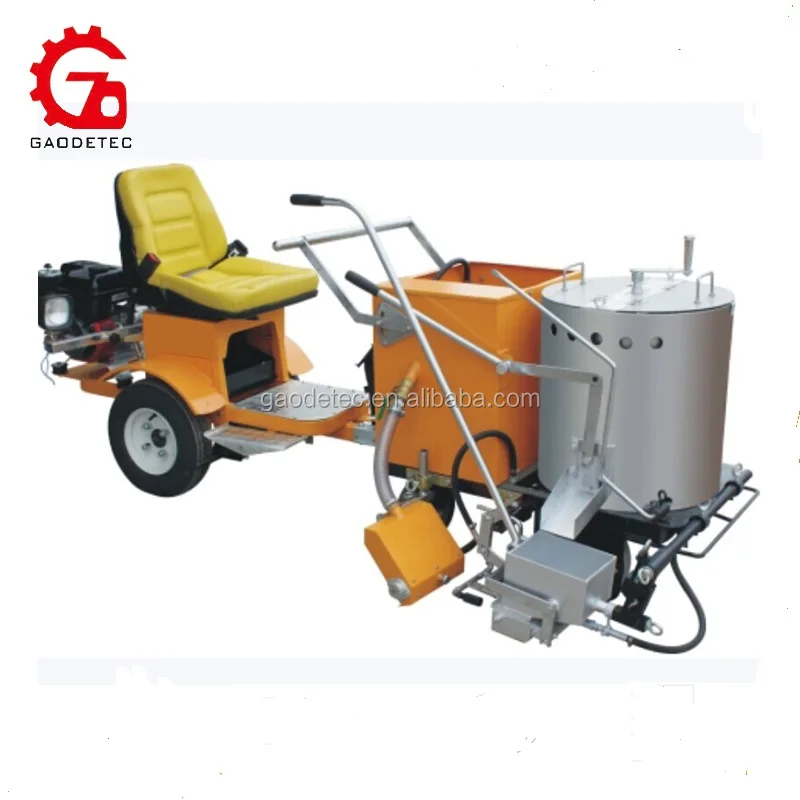

Driver / roll booster



Why walk while you can seat? Use vehicle booster connect the road marking machine, the work efficiency improve 2-3 times

Features:

1. High work efficiency
2.  Connect conveniently
3.  Has search light system, it is convenient for work in the evening.
4.  Easy Operate.
5. Application:
6. Mainly matched with hand push road marking machine





 Brief introduction:



Hand-push thermoplastic road marking machine is key equipment of hot melt index line construction, and it finishes the index line construction cooperating with thermoplastic kettle.



Hand-push thermoplastic road marking machine is mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.



GD320 ISO CE OEM Good Quality Hand-push thermoplastic road marking machine absorbs advanced technology.This machine adopts specially designed high precision alloy steel shoe  to ensure index line’s even edge, head, thickness and tidy lines.

The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.

  Main components

Our components well-made, each component are used the highest specification, each process are subject to strigent monitoring, the quality reach to international standerds.



  alloy steel shoe:

Indes line width 50mm 80mm 100mm,120,150mm,180mm,200mm,230mm,300mm,400mm,450mm, you can change shoe of different scales according to the project requirement



Technical parameter:

Coating capacity	100KG
Glass bead tank capacity	10KG
Marking width	150,80,100,120,150,180,200,230,300,400,450mm,change shoe of different scales according to the project
Marking thickness	1.0-3.0mm, adjustable
Heating temperature	180-210°C
Heating method	petroleum liquefied gas
Dimension	1320*850*100mm
Weight	135KG



GD320 ISO CE OEM Good Quality Hand-push thermoplastic road  making machine Features:



1. Light body, compact structure, nice look.

2. Lift handgrip, operator can adjust it asrequired.

3. Automatic glass bead broadcaster.

4. Speeder and shocks of bead broadcaster equipped with 2 gears which can be adjusted as required.

5. Demountable device is designed for the heating and holding tank. The reasonable design agitator solves the problem of storing used coating in the tank.

6. The adjustable pointer improves working efficiency.

7. The shoe made by high-precision steel, board scraping structure, it has good thermo stability, resistscorrosion, transformation, and can heated easily.

8. The tire is made by cast iron and imported rubber, which make the tire lighter, stronger and more durable.



  Working site

Suitable for highway,street, factories, car parks, community , airport, etc



Check and preparations before use



1, Clear the stones and impurities on the road surface keep the road clean and reach the construction requirements.



2, Add some lubricating in the shoe and clutch to keep the flexibility of switch.



3, The operator should clean the impurities in kettle and filter, check the flexibility of rotating parts carefully.



4, Check the parts screw in case of screwing off.



5, Check the liquefied gas canister, furnace, and pipeline, whether has the oil leak.



6, Adjust the ground knife; control the width between 1.5-2.5mm.



7, Prepare the dry glass bead to broadcast uniformly. Pull the clutch driving handle of glass bead box and check the clutch gear meshes.



8,  For safety, please wear operator labor protection supplies, to prevent burns.

Other type



Thermoplastic Paint Pre-heater



1) Pre-heater and thermoplastic road marking machine relationship



Thermoplastic Paint Pre-heater is always matched with thermoplastic marking machine, is main equipment for thermoplastic paint lines marking construction.





Thermoplastic Paint Pre-heater is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work.





Main technical parameter:

Item	GD800	GD1200
Dimension	1800*1500*1600mm	1900*1700*1700mm
Coating capacity	2*400L	2*600L
Hydraulic motor	BMmodel
Hydraulic oil tank capacity	70L
Structure	Frame structure, insulation is fixed between intemal bladder and ektexine
Safety facility	Flooding facility of overload is designed for it to prevent maloperation
Engine	15PS water-cooled electric start up diesel engine
Furnace	imported
Heating system	petroleum gas (50kg/jar recommended), diesel engine for option



Package in plywood case& loading into     working room
