Низкая цена струйная машина для цементного раствора бетономешалка и смешивание
- Категория: Shotcrete Machine >>>
- Поставщик: Zhengzhou,Sincola,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.41 $* | 0.81 $* |
| Aug-15-2025 | 0.89 $* | 0.71 $* |
| Jul-15-2025 | 0.69 $* | 0.44 $* |
| Jun-15-2025 | 0.83 $* | 0.1 $* |
| May-15-2025 | 0.87 $* | 0.24 $* |
| Apr-15-2025 | 0.52 $* | 0.36 $* |
| Mar-15-2025 | 0.63 $* | 0.56 $* |
| Feb-15-2025 | 0.15 $* | 0.9 $* |
| Jan-15-2025 | 0.76 $* | 0.65 $* |
Характеристики
Long term supply Dry Mix Shotcrete Machine
SPZ-3, SPZ-5, SPZ-9, Dry Mixed Shotcrete Machine On Sale
Concrete Spraying Machine
Sand, Cement, Small Stone Mixture Spraying Machine
Product Description
Shotcrete Machine from Henan Province

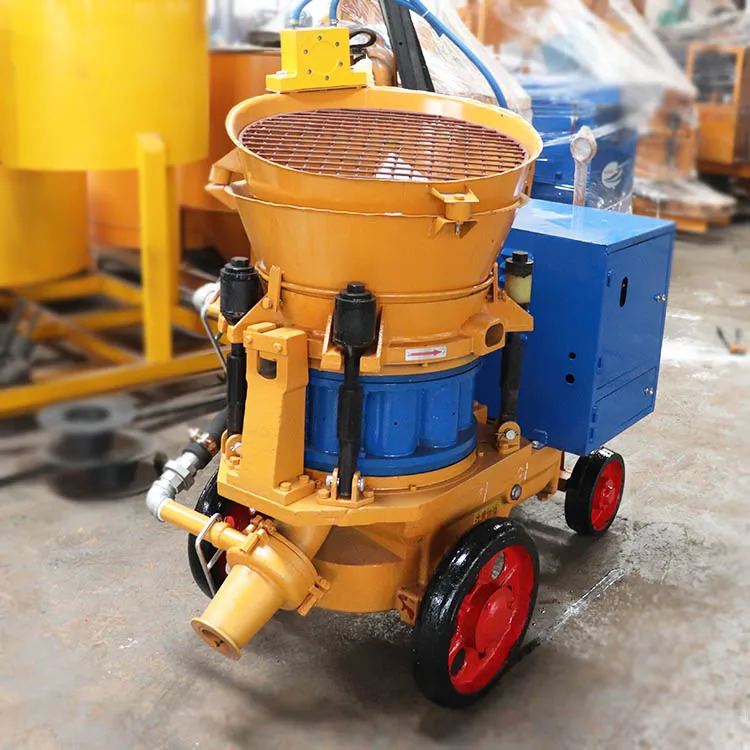

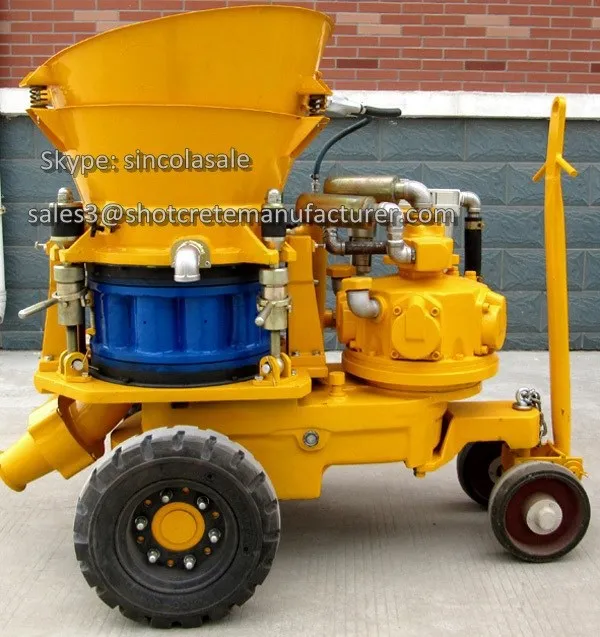

Shotcrete Machine SPZ-5
- It is mainly Efficient to spray dry mix concrete or other mortar;
- Widely employed in Construction ,such as mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower,engineering,etc.
our products shotcrete machine have been exported to a lot of countries. The spray machine is popular in our factory and selling fast.
- The dynamic system of Dry shotcrete machine have three types: Air Motor,Diesel Motor and Electric Motor.
- Gunite machines can use air pressure to convey dry material from the machine through the hose to the nozzle where water is added.
Technical Parameters
Construction Equipment: Dry Mix Concrete Shotcrete Machine
Technical parameters of SPZ-5 Shotcrete Machine:
| Driving Type | Air Motor | Electric Motor | Diesel Mortor |
| Model | SPZ-5 | SPZ-5 | SPZ-5 |
| Output (m3/h) | 5.5m3/h | 5.5 m3/h | 5.5 m3/h |
| Max.conv.dist | 200 m | 200 m | 200 m |
| Water cement ratio | < 0.4 | < 0.4 | <0.4 |
| Max.Aggregate.size | 15mm | 15mm | 15mm |
| Hose inner size | φ50 mm | φ50 mm | φ50 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 15-16 m3/min | 7-8 m3/min | 15-16 m3/min |
| Motor power | 5.5 kW(7hp) | ||
| Dimension(LxHxW) | 1350x1020x750mm | 1350x1020x750mm | 1350x1020x750mm |
| Weight | 780kg | 780kg | 780kg |
| Basic chassis | Tyre, Skid or Rail-wheel | ||
Features

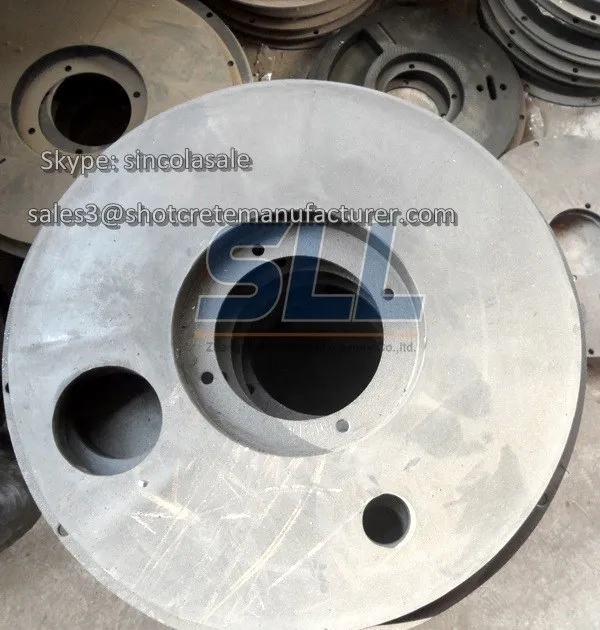

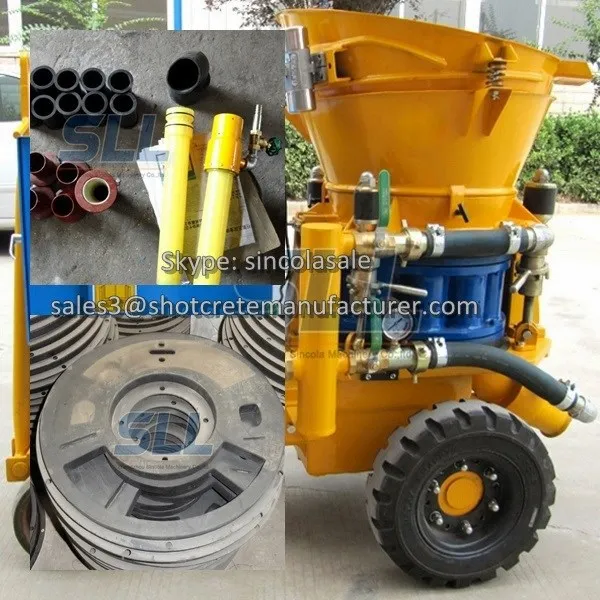

Guniting Dry Concrete & Sand Machine Spare Parts
Features of Dry Mix Gunite Shotcrete Machine
1. the shotcrete machine is high efficiencyand quality
2. Spare parts of the machine is not easy to loss,and have a long service life.
3. Operation easily and it is convenient to maintenance
4. Environmental
FAQ
FAQ:
1. How many people that need to operate the machine?
One or two workers can use it successfully.
2. How much is the output of SPZ-5 Shotcrete Machine?
Output is 5.5 m3/h, if you want a large output ,you can chooseSPZ-9, or little SPZ-3 is ok!
3. Available shipment port?
FOB SHANGHAI
FOB TIANJIN
FOB QINGDAO
4. Do you have a diesel engine shotcrete machine?
Yes, we can manufacture diesel shotcrete machine.
5. The voltage of the concrete guiting machine, 220v,or 440v, 60Hz,, can you do?
Yes, we will make the machine and machine voltage according to your requirement.
6. I want to build a swimming pool, is the shotcrete machine suitable.
Of course, our dry and wet mix shotcrete machine can meet your project completely.
More question, please contact me by following ways in time.
Contact Us
If any questions of dry and wet concrete shotcrete machine
Please contact me with thanks!
My Skype: sincolasale
...
