Оптовая продажа Лидер продаж УФ-трансформатор 220 В
- Категория: Transformers >>>
- Поставщик: Beijing,Huiyixin,Electric,Light,Sources,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 119.37 $* | 125.52 $* |
| Aug-19-2025 | 118.52 $* | 124.3 $* |
| Jul-19-2025 | 99.87 $* | 104.51 $* |
| Jun-19-2025 | 116.19 $* | 122.13 $* |
| May-19-2025 | 101.56 $* | 106.48 $* |
| Apr-19-2025 | 114.89 $* | 120.81 $* |
| Mar-19-2025 | 113.72 $* | 119.57 $* |
| Feb-19-2025 | 112.61 $* | 118.82 $* |
| Jan-19-2025 | 111.51 $* | 117.5 $* |
Характеристики

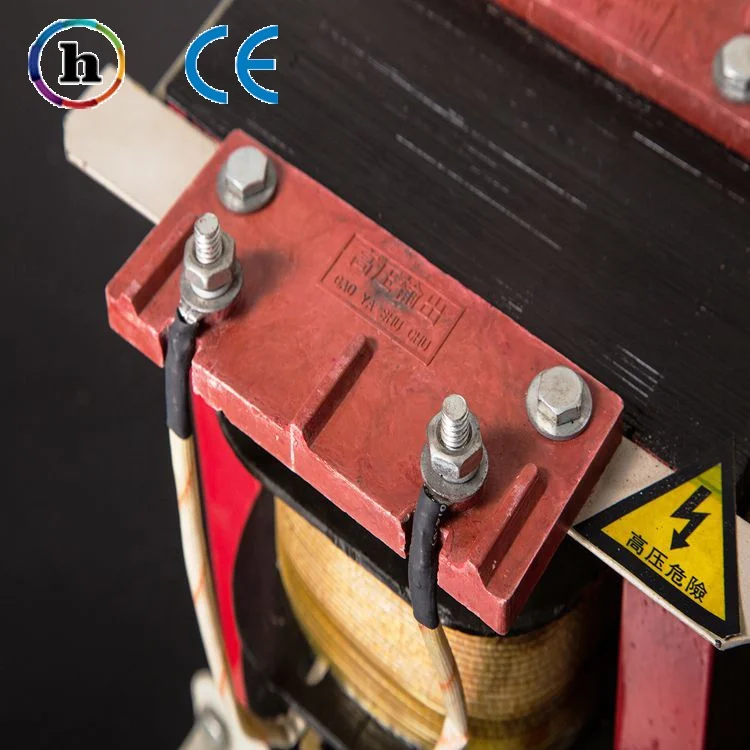

Wholesale hot sell 220v UV Transformer for UV lamp
Product Description
Product Description
Tips: The price may not the final price for your order.
Please contact us for the best price now!
Specification:
1. UV transformer is a kind of dry type transformer used in special occasion which adopts magnetic leakage and boosting principles.
2. Tube, transformer and capacitor constitute a complete matching system. The selection of transformer shall be done based on the power of UV lamp, i.e., the transformer shall have enough output voltage to ensure the full power operation of UV lamp. If the output voltage is too high, the lamp will be burn down; if the output voltage is too low, the lamp will not operate in full power which results in the inadequate output strength of ultraviolet ray.
Features:
1. UV transformer has the advantages of stable and reliable performance, high efficiency and low consumption. It is the ideal supply of UV curing system.
2. Its power ranges from 3KW to 25KW which can be freely choosed by clients. It has the features of stable performance, quick start-up, low noise, low heat and energy conservation, etc.
3. it is compatible with the imported equipment UV lamp, with vertical, horizontal type and imitating imported type.
Main Technical Parameters
Power kw | Open-circuit Voltage V | Pipe Flow A | Overall dimension mm |
3 | 700 | 5 | 330x230x230 |
4 | 670 | 6.5 | 330x240x240 |
5 | 850 | 6.5 | 380x70x240 |
5.6 | 950 | 7 | 380x280x240 |
6 | 850 | 7.5 | 380x290x240 |
6.5 | 900 | 7.5 | 400x290x250 |
7.2 | 1100 | 7 | 400x290x250 |
8-A | 1200 | 7.5 | 400x300x250 |
8-B | 1650 | 5.5 | 400x300x250 |
8-C | 950 | 8.8 | 400x300x250 |
8.4 | 950 | 9 | 410x300x250 |
9-A | 1500 | 7.6 | 410x310x260 |
9-New | 2000 | 4.6 | 410x310x260 |
9.6 | 1570 | 6.6 | 420x310x270 |
10 | 2000 | 5.5 | 420x310x270 |
10-New | 2000 | 5.5 | 440x310x270 |
11 | 1870 | 6.4 | 440x330x300 |
12 | 1800 | 7.2 | 440x340x300 |
13 | 1870 | 7.5 | 440x345x300 |
14 | 1980 | 7.5 | 450x350x330 |
15 | 2200 | 7 | 400x350x330 |
16 | 2500 | 7 | 460x350x300 |
Packaging & Shipping
Our Services
*special size or item on request
*OEM available
Packaging Details:
Company Information
Huiyixin uv in 20 years design experience of engineers, can design according to the actual needs of 250 w - 36 kw various USES uv curing lamps, input power 110 v, 220 v, 380 v, 400 v, 440 v work frequency 50 hz 60 hz, uv transformer capacitor uv lamp uv lamp fittings
FAQ
1.Q:Are you a factory or trading company?
A:We are the professional factory in China..
2. Q:How can us get some samples?
A: We are honored to offer you samples. if you need!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;SGS;CQC;UL;CPI authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by ten years.
4.Q:What is the delivery time?
A:Normally,the time is 5~25days as we can;we must do our best to do it much quickly.
For more information, pls feel free to contct us, we will offer you more information,
and the best goods, most advantage price and good service all the time
Different length can be customized
For more information, pls feel free to contact us, we will offer you more information,
and the best goods, most advantage price and good service all the time.
