FA Серии цифровой частотомер Цифровой Гц Герц метр rs-485

Описание и отзывы

Трекер стоимости

Характеристики

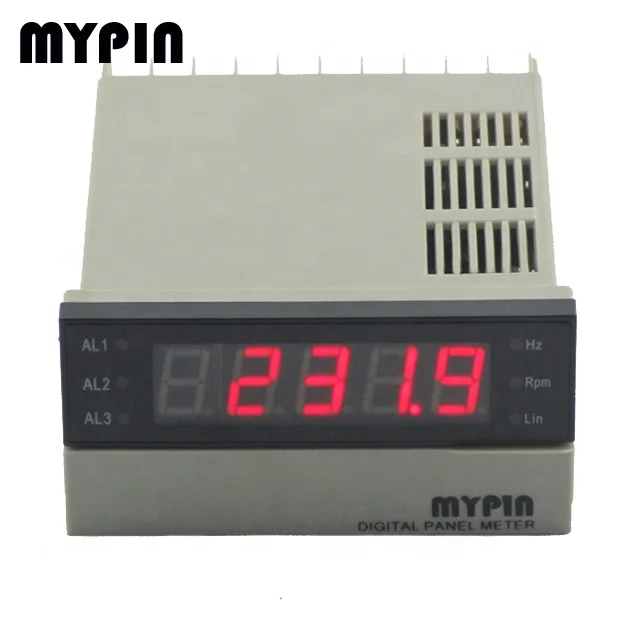

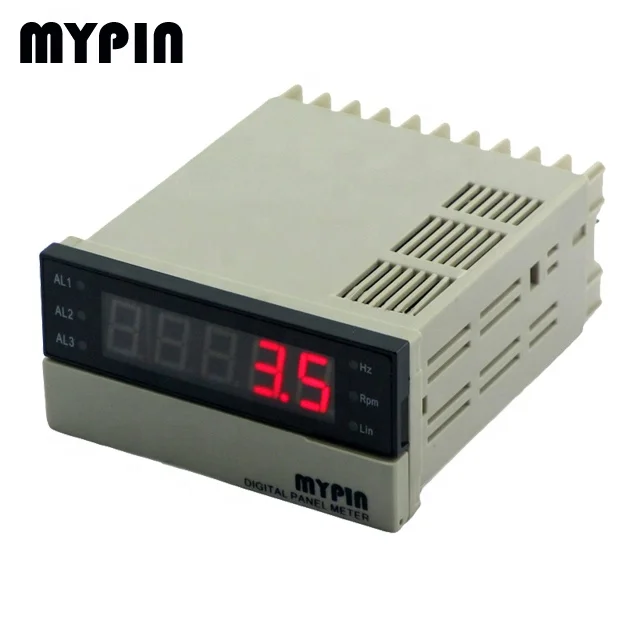

FA series digital frequency meter digital hz frequency meter Hz meter rs-485 modbus











Introduction:

1, Input: various wave form pulse signal (proximity switch,photoelectrical switch or AC

    signal, etc), contact switch, encoder, etc, used to measure power frequency (AC 0--

    600V), range: 0.01Hz--100KHz (max 100KHz), accuracy: 0.01Hz.

    Applicable to equipment for control of frequency, tacho, line-speed, level, etc; The instrument has

    several parameters setting function, easy to operate.

2, For other specialize teser for pulse width, duty cycle, etc, please indicate when ordering;

3, 4/5/6 digit display, with demical point switched automatically; Opical isolation for input and

    output,high anti-interference.

4, Output: up to 3 alarm output with various output modes selectable; high value, low

    value, intervals, etc.  analogue output 4-20mA or 0-10mA with range settable.

5, RS232 or RS485 Modbus RTU protocol, connectable with various equipment, computer or PLC

    directly.

6, Width Power supply: regular: 90-260V AC/DC, others: 12--30V AC/DC indicate when ordering.

7, Dimemsions:   FA8: 96*48*80   .

    Case class:IP65.



Illustration Code:







Specifications:

Diagram:





Application example:









1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.
