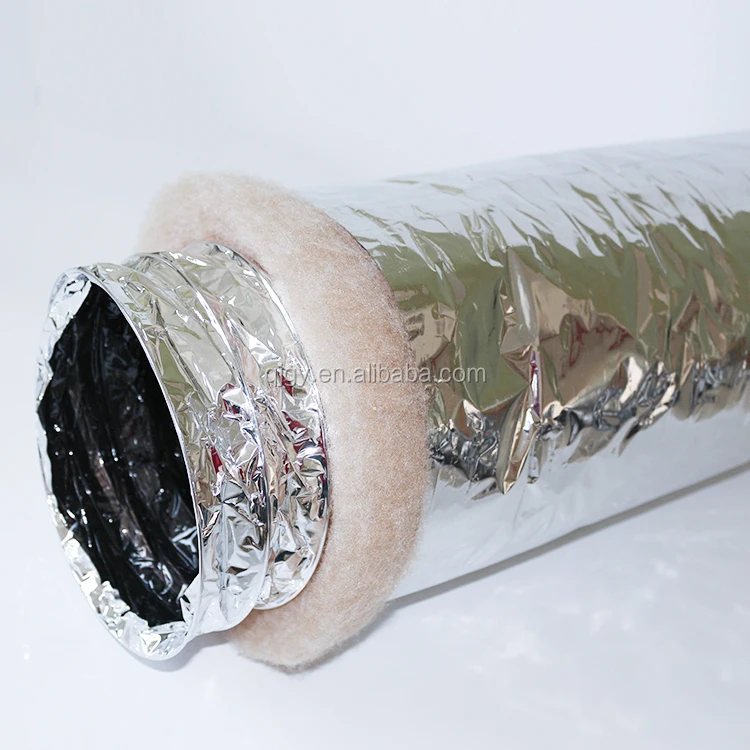

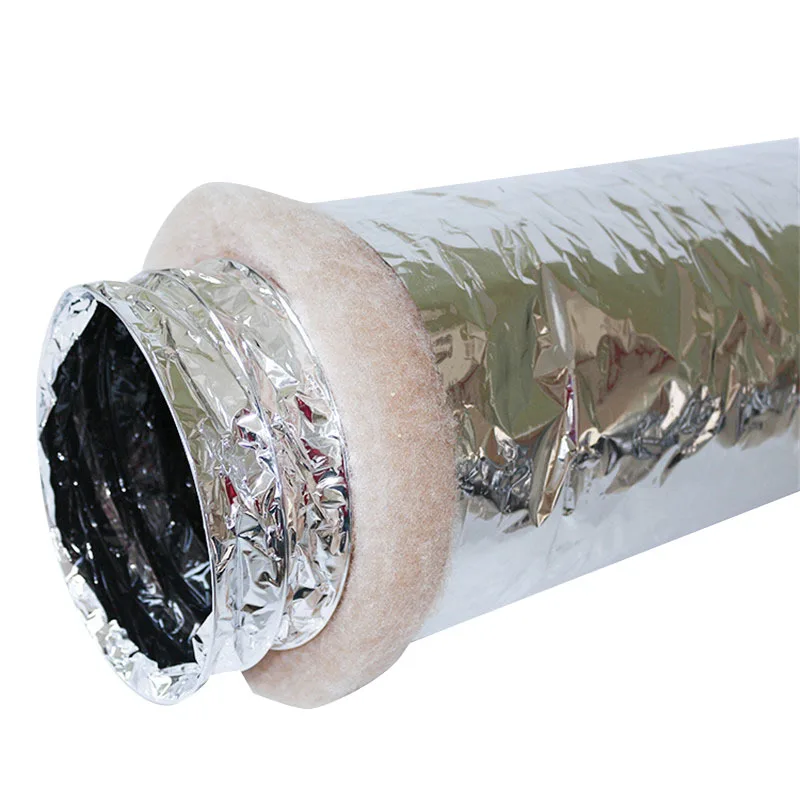

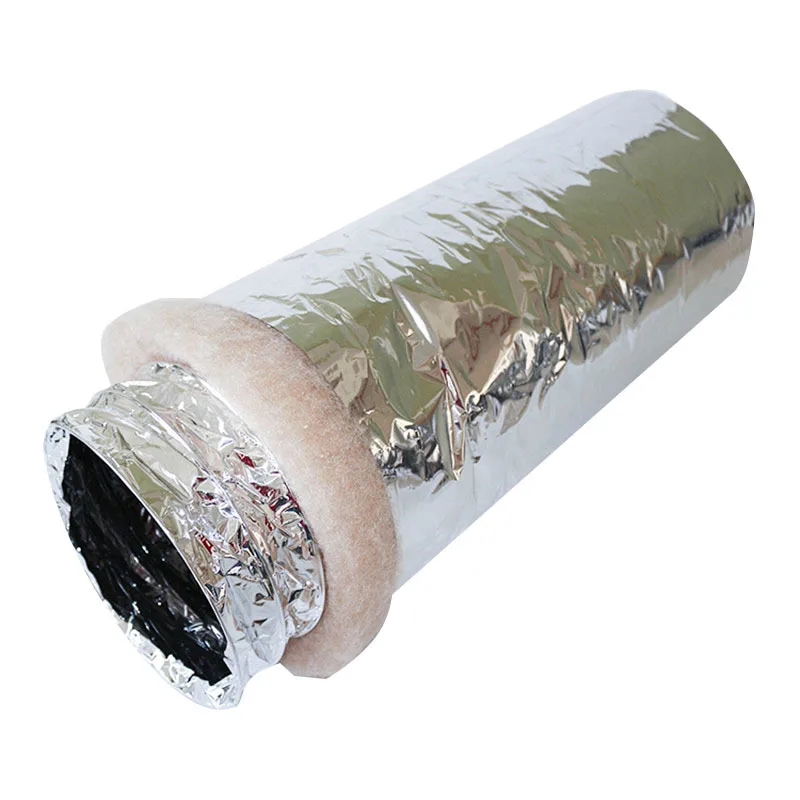

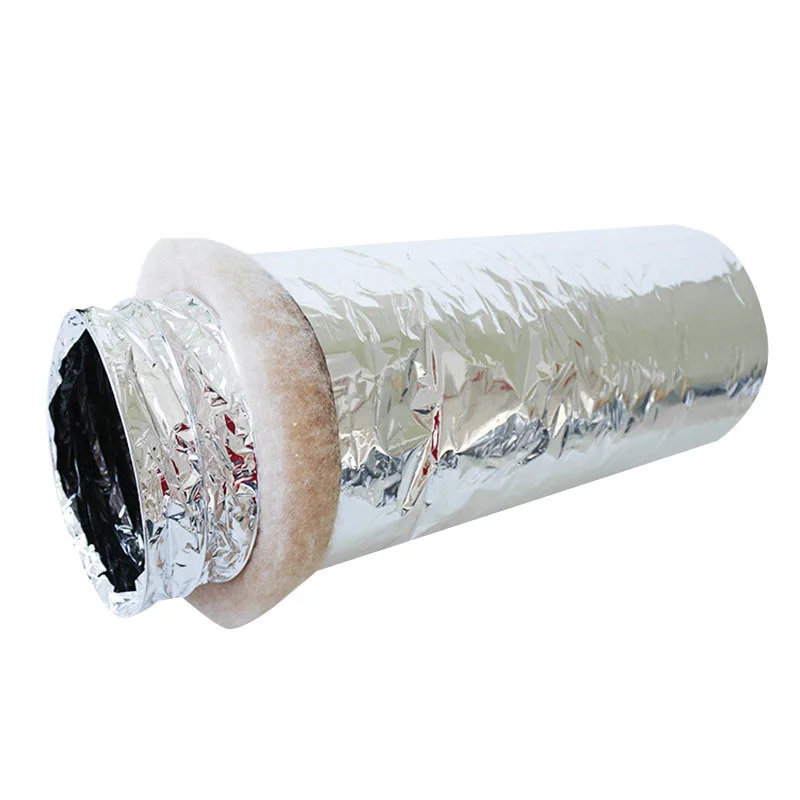

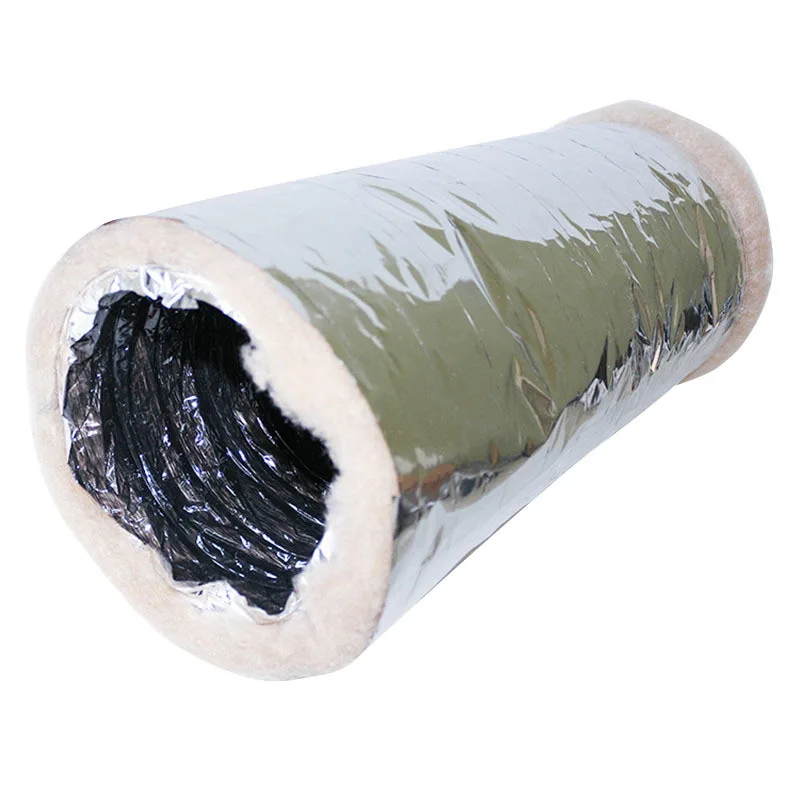

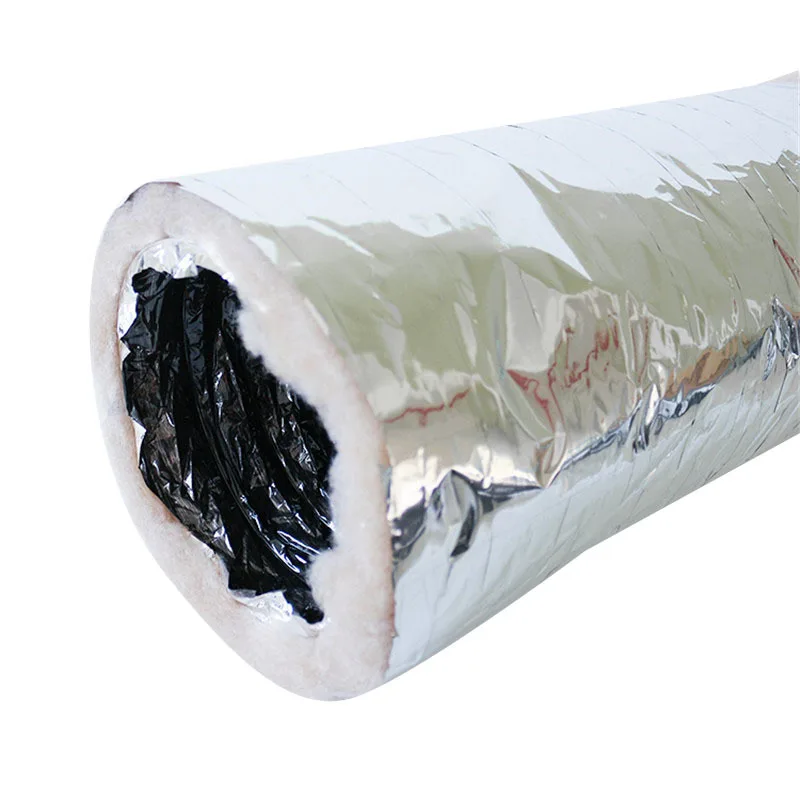

Кондиционеры для воздуховодов типа
- Категория: Home Appliance Parts >>>
- Поставщик: Shanghai,Qianjing,Ducting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.51 $* | 1.34 $* |
| Jul-15-2025 | 1.20 $* | 1.89 $* |
| Jun-15-2025 | 1.80 $* | 1.26 $* |
| May-15-2025 | 1.16 $* | 1.91 $* |
| Apr-15-2025 | 1.66 $* | 1.20 $* |
| Mar-15-2025 | 1.37 $* | 1.6 $* |
| Feb-15-2025 | 1.47 $* | 1.37 $* |
| Jan-15-2025 | 1.5 $* | 1.53 $* |
Характеристики
Production Paramenters
Product Code | XY-608 | ||||
Construction (From outside to inside) | Sleeve | VMPET | |||
Polyester | Gram Weight | 100g/m2-750g/m2 | |||
Thickness | 25mm / 30mm | ||||
Inner Duct | Material | VMPET | |||
Diameter | 50mm-650mm(2"-25") | ||||
Carbon Steel Wire Diameter | 0.6mm-2.5mm | ||||
Length | 10m(Max) | ||||
Thermal Insulation | R0.4-R3.0 | ||||
Fire Resistance | Class A2(Max) | ||||
Compress Ratio | 1 : 10 | ||||
Temperature Range | -30℃/+150℃ | ||||
Operating Pressure | 2500Pa/3000Pa | ||||
Maximum Air Velocity | 30m/s | ||||
Production Packing
Carton Measurement for packing(length 10m/pc) | ||||||||
Diamter(mm) | PVC Duct | COMBI PVC Duct | Aluminum Duct | Insulated Duct | ||||
75mm | 100*100*300mm | 100*100*900mm | 100*100*410mm | 150*152*1010mm | ||||
102mm | 125*125*300mm | 130*130*450mm | 125*125*410mm | 182*182*1010mm | ||||
125mm | 150*150*300mm | 150*150*450mm | 150*150*410mm | 200*200*1010mm | ||||
152mm | 175*175*260mm | 180*180*410mm | 175*175*370mm | 230*230*1010mm | ||||
165mm | 185*185*260mm | 190*190*410mm | 185*185*370mm | 240*240*1010mm | ||||
203mm | 225*225*260mm | 230*230*410mm | 225*225*370mm | 280*280*1010mm | ||||
254mm | 275*275*260mm | 280*280*410mm | 275*275*370mm | 330*330*1010mm | ||||
305mm | 325*325*260mm | 330*330*410mm | 325*325*370mm | 380*380*1010mm | ||||
315mm | 340*340*260mm | 340*340*410mm | 340*340*370mm | 390*390*1010mm | ||||
355mm | 375*375*260mm | 380*380*410mm | 375*375*370mm | 430*430*1010mm | ||||
405mm | 425*425*260mm | 430*430*410mm | 425*425*370mm | 480*480*1010mm | ||||
455mm | 475*475*260mm | 480*480*410mm | 475*475*370mm | 530*530*1010mm | ||||
505mm | 520*520*260mm | 530*530*410mm | 520*520*370mm | 580*580*1010mm | ||||
555mm | 575*575*260mm | 580*580*410mm | 575*575*370mm | 630*630*1010mm | ||||
