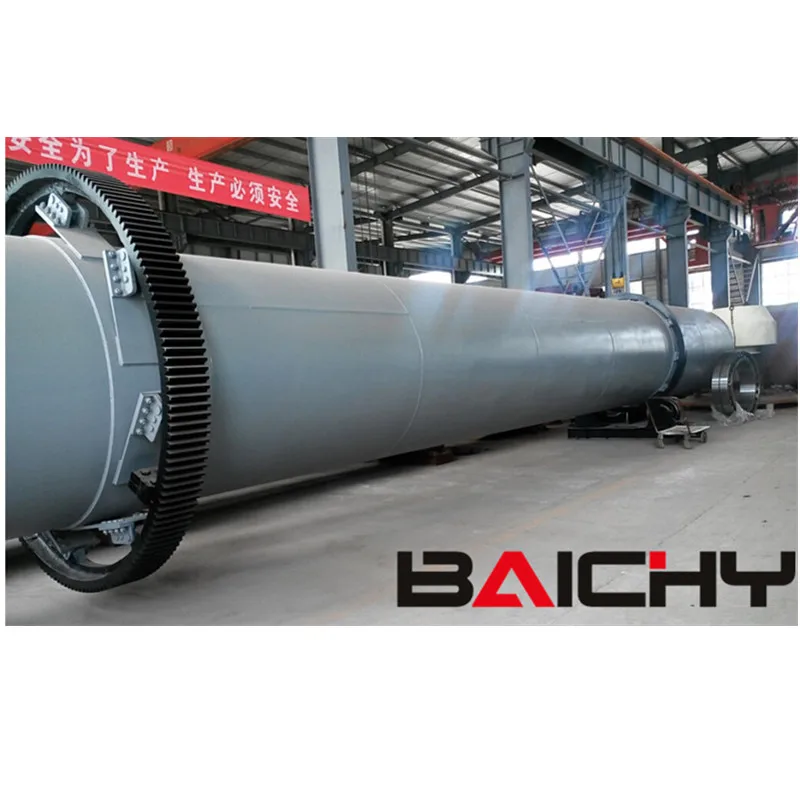

 rotary kiln girth gear



The rotary kiln produced has advanced structure. It can effectively improve preheating effect with its low resistance vertical preheater. After the limestone is preheated, the feeding decomposition rate can reach 20%-25%, thus can directly make use of 10-15mm fine fraction limestone.The reliable airtight two-ends combination squama make the air leakage factor under 10%. The usage of compound refractory reduces radiation loss.Rotary kiln belongs to building material equipment, which can be divided into cement kiln,metallurgy chemical kiln and lime kiln according to different materials.







Structures of  rotary kiln girth gear :
The rotary kiln mainly consists of kiln body, loading device, burning device, unloading device, electronic appliance, dust collector, etc. Different lime kilns have different structures. Their process flow are almost same.But the equipment value has big distinction, of course the results are different.






Features of rotary kiln girth gear:
1.Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.
2.Catch wheel : including two kinds mechanical wheel and hydraulic pressure.
3.Gears:single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable , energy-saving, and efficient.
4.Cylinder tyre bolster: lower bolster has three types: fixed , zoom and floating. The structure is simple ,replacement is convenient and won’t hurt cylinder.
5.Kiln head hood: including stationary type and flexible type.







Technical Data of rotary kiln girth gear:



Model	Diameter (m)	Length(m)	Slope(%)	Capacity(t/h)	Speed (r/min)	Motor Power(kw)	Weight(T)	Note
φ1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	----
φ1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	----
φ1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	----
φ1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	----
φ2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1	----
φ2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	----
φ2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	----
φ2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	----
φ2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	----
φ2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	----
φ2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Decomposition Outside kiln
φ3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	----
φ3.0×48	3	48	3.5	25.6-29.3	0.6-3.48	100	237	Decomposition Outside kiln
φ3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310	----
φ3.2×50	3.2	50	4	40.5-42	0.6-3	125	278	Decomposition Outside kiln

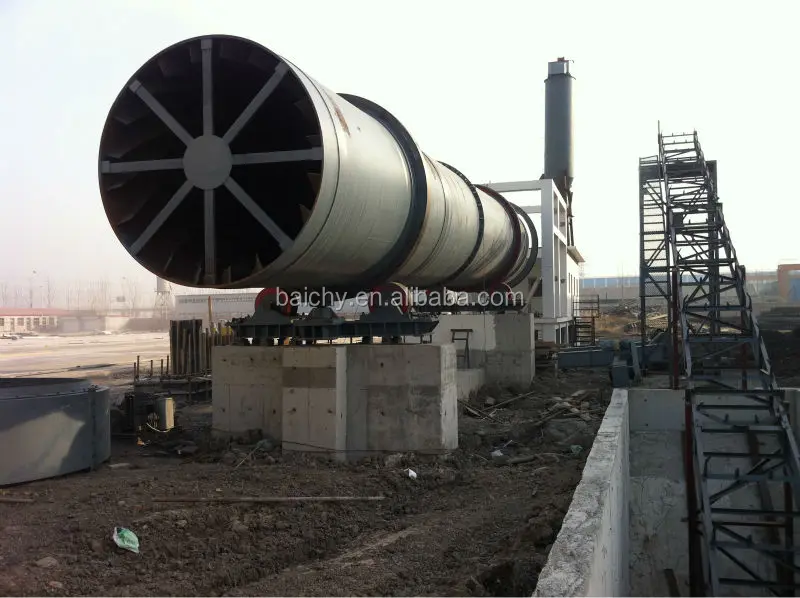

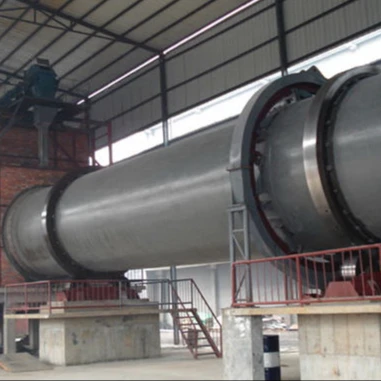

The Worksite of rotary kiln girth gear:
