Детали системы ОВКВ трубка из алюминиевой фольги для
- Категория: >>>
- Поставщик: Shanghai,Qianjing,Ducting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.17 $* | 0.6 $* |
| Aug-19-2025 | 0.37 $* | 0.10 $* |
| Jul-19-2025 | 0.31 $* | 0.64 $* |
| Jun-19-2025 | 0.27 $* | 0.77 $* |
| May-19-2025 | 0.47 $* | 0.76 $* |
| Apr-19-2025 | 0.67 $* | 0.67 $* |
| Mar-19-2025 | 0.93 $* | 0.38 $* |
| Feb-19-2025 | 0.28 $* | 0.41 $* |
| Jan-19-2025 | 0.54 $* | 0.49 $* |
Характеристики
Production Paramenters
Product Code | XY-101/102 | ||||||
Construction | 1/2 Aluminum Foil + 1 PET | ||||||
Color | Silver | ||||||
Available Diameter | 40mm-650mm(1.5"-25") | ||||||
Carbon Steel Wire Diameter | 0.6mm-2.5mm | ||||||
Standard Length | 10m(Max) | ||||||
Thickness | 0.025mm/0.032mm | ||||||
Fire Resistance | Class A2(Max) | ||||||
Compress Ratio | 1:25 | ||||||
Temperature Range | -30℃/+150℃ | ||||||
Operating Pressure | 2500Pa/3000Pa | ||||||
Maximum Air Velocity | 30m/s | ||||||
Duct Diameter | Steel Wire Dia. (mm) | Steel Wire Spacing (mm) | Carton Size for 10meters(mm) | ||||
Inch | mm | ||||||
3” | 75 | 0.8 | 20 | 90*90*720 | |||
4" | 102 | 0.9 | 30 | 125*125*390 | |||
5" | 125 | 0.9 | 30 | 145*145*390 | |||
6" | 152 | 1 | 37 | 175*175*370 | |||
6.5" | 165 | 1 | 37 | 185*185*370 | |||
7" | 180 | 1.1 | 40 | 205*205*370 | |||
8" | 203 | 1.1 | 40 | 225*225*360 | |||
10" | 254 | 1.2 | 45 | 275*275*360 | |||
12" | 305 | 1.2 | 45 | 325*325*360 | |||
12.5" | 315 | 1.2 | 45 | 335*335*360 | |||
14" | 355 | 1.2 | 45 | 375*375*360 | |||
16" | 405 | 1.2 | 45 | 425*425*360 | |||
18" | 455 | 1.2 | 45 | 475*475*360 | |||
20" | 505 | 1.2 | 45 | 520*520*360 | |||
Products Description

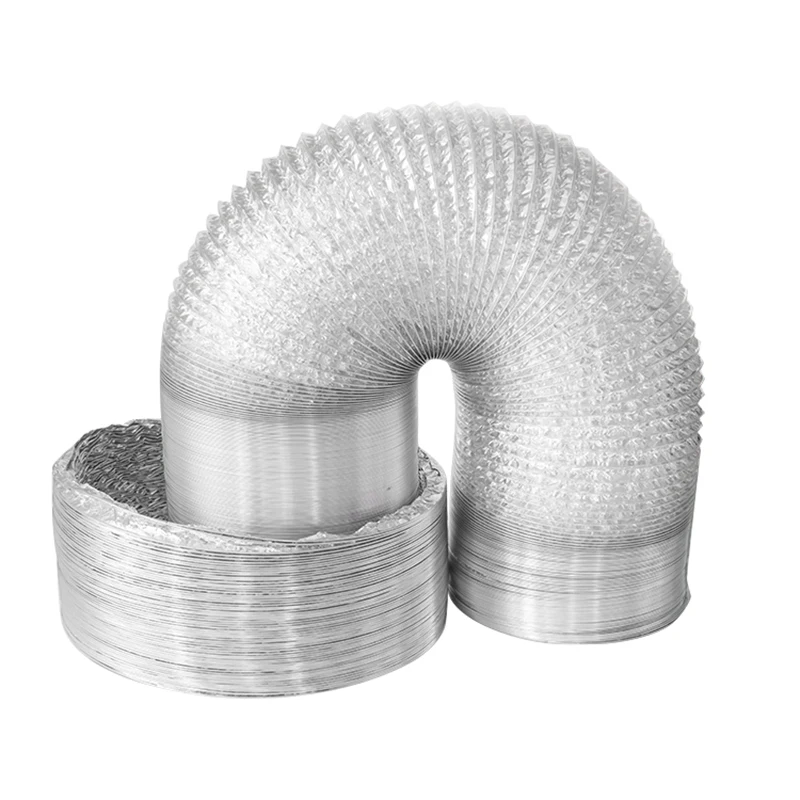

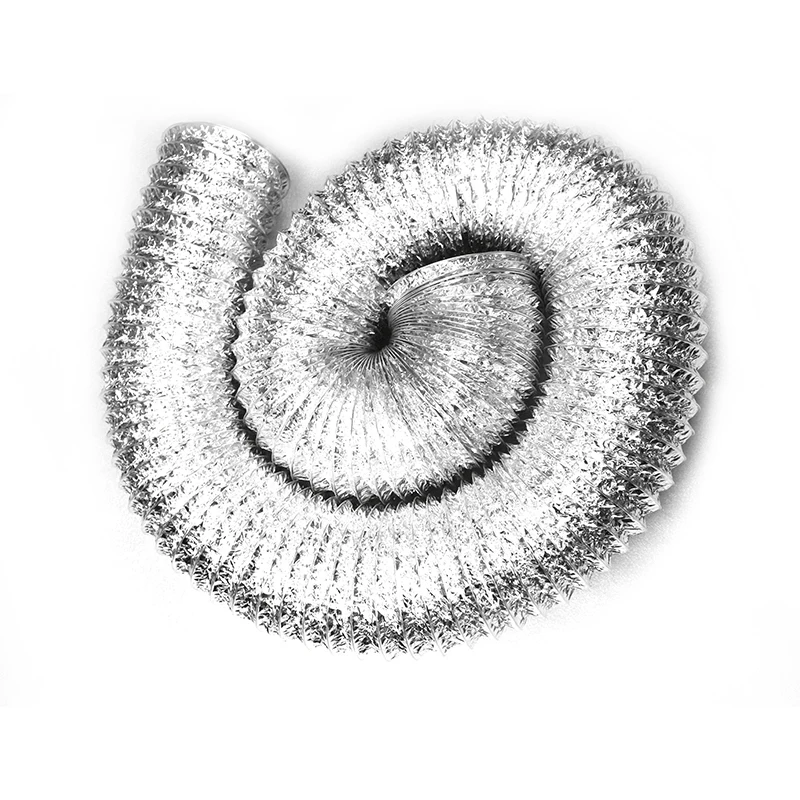

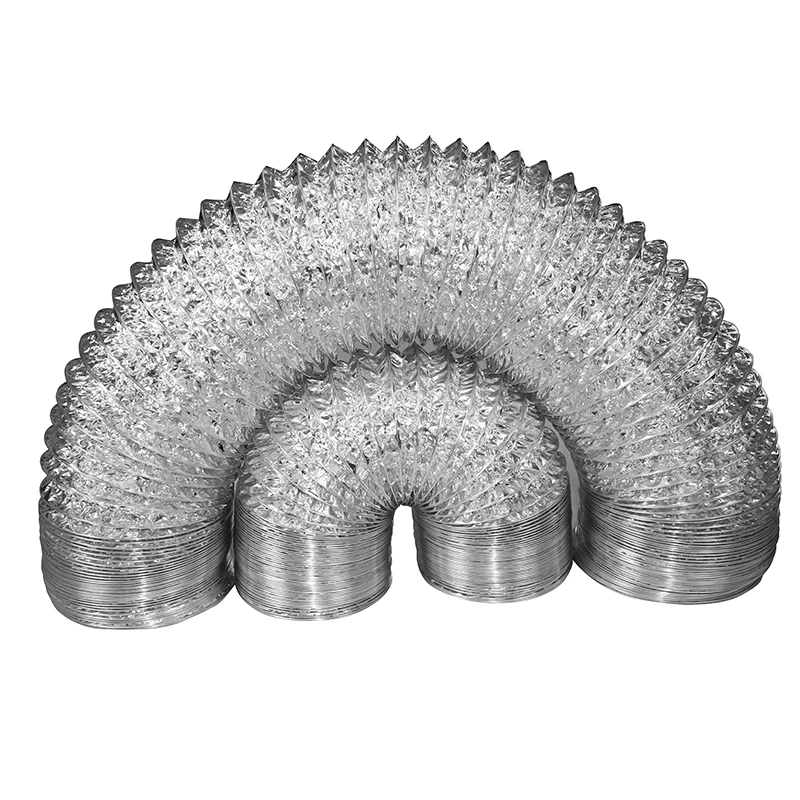

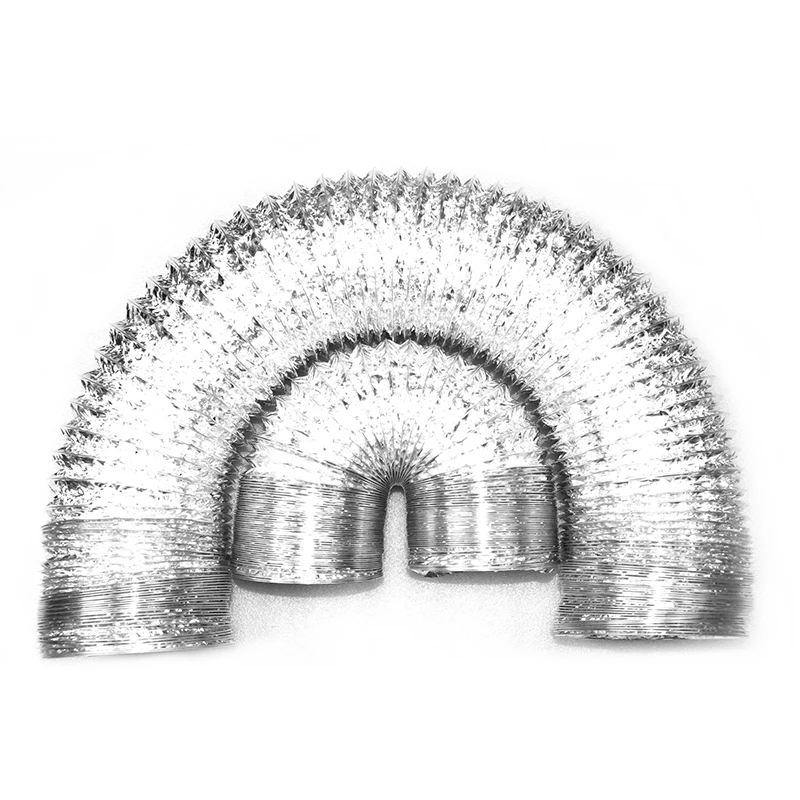

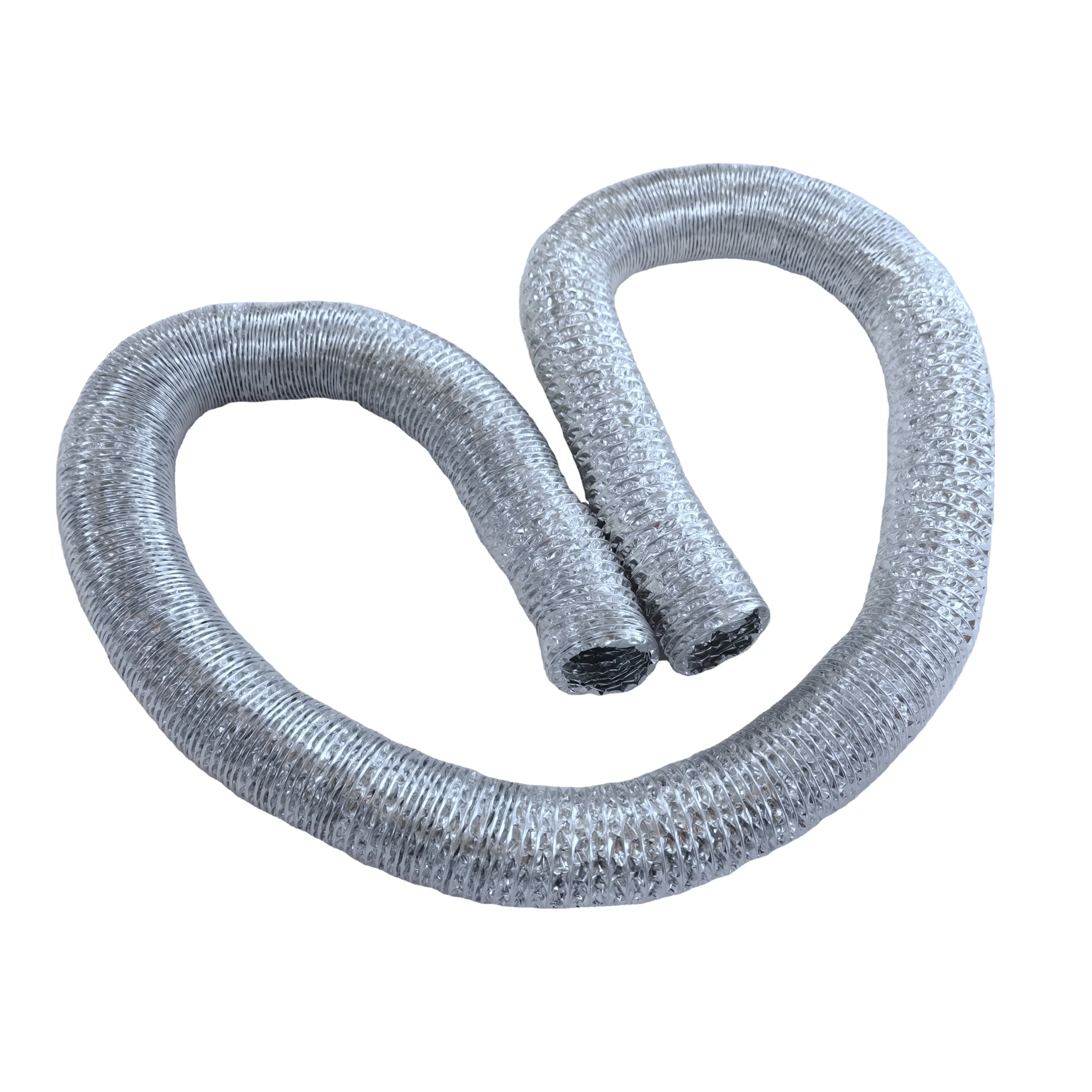

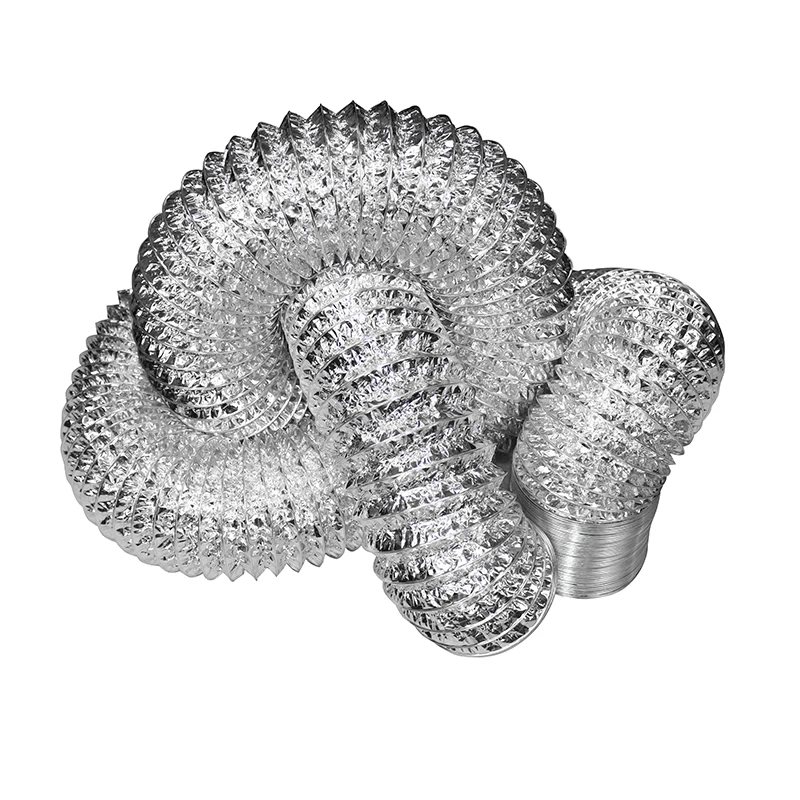

Aluminum Flexible Duct:
1.Single layer aluminum duct is made of 6.5μm aluminum foil+15μm PET,double layers aluminum duct is made of 6.5μm aluminum foil+15μm PET+6.5μm aluminum.2.No need special tools for cutting and it is easy to connect to ducting.
3.In case of fire no toxic gas are emitted, excellent resistance to chemicals.
4.The product has been successfully tested for fire resistance.
5.The product has been successfully tested for pressure.
6.Can be bent in any direction(Small bending radius).
7.Standard length is 10 meters or as customized request.
8.Sapce saving, compress rate 25:1.
9.Easy installation with long service life. Ideal for using in general purpose exhaust applications.
