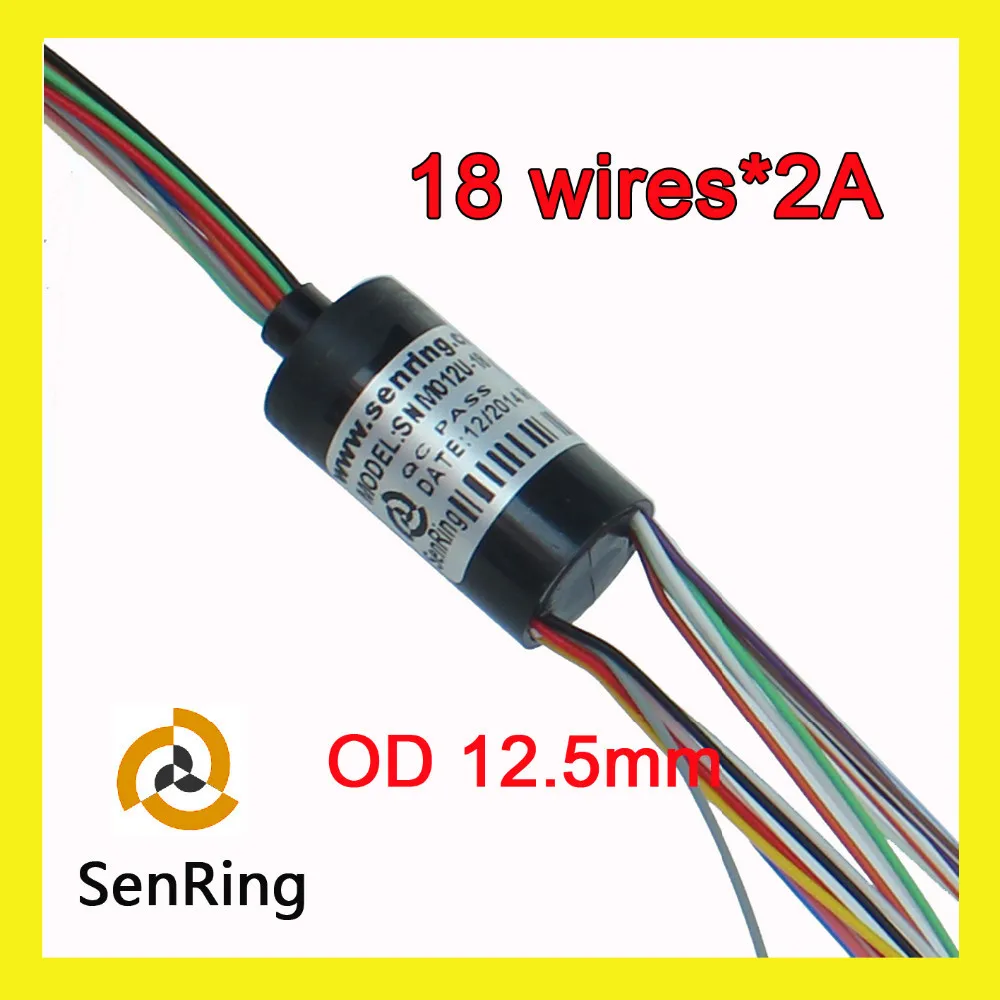

U-образное скользящее кольцо для капсул без фланца 18 проводов на 2 а с внешним диаметром 12 5
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Senring,Electronics,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.28 $* | 0.70 $* |
| Aug-18-2025 | 0.75 $* | 0.64 $* |
| Jul-18-2025 | 0.72 $* | 0.73 $* |
| Jun-18-2025 | 0.78 $* | 0.81 $* |
| May-18-2025 | 0.26 $* | 0.70 $* |
| Apr-18-2025 | 0.73 $* | 0.91 $* |
| Mar-18-2025 | 0.23 $* | 0.91 $* |
| Feb-18-2025 | 0.82 $* | 0.36 $* |
| Jan-18-2025 | 0.61 $* | 0.82 $* |
Характеристики
The SNM012U-18, with 18 wires and compact 12.5mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
SNM012U-18 Dimensions
SNM012U-18 Specifications
- Contact Material
Gold alloy brush,Gold plated rings
- Current Rating
2A, per ring, maximum
- Number of Circuits
18
- Operating Speed
200 rpm* continuous
- Housing Material
Engineering Plastics
- Lead Wire
UL Teflon® Awg28,color-coded, silver-plated
- Lead Lengths
250mm
- Voltage
210 VDC / 240 VAC
- Operating Temp.
-40°C to 80°C
- Torque
Approx. ≤0.36 g·m (for reference )
- Dielectric Strength
≥600V@50Hz between each circuit
- Insulation Resistance
600MΩ@ 300VDC
- Noise
15 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm
- Resistance to pull
Radial 2KG,Axial 0.5KG
- Protection
IP51
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.
Description
Benefits
- Smooth running
- Low torque
- Compact dimemsions
- Quick shippments
Lead Wire Color Code
| Circuit No. | 1 | 2 | 3 | 4 | 5 | 5 |
| Color | BLK | RED | YEL | GRN | BLU | WIT |
| Circuit No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | BLK | RED | YEL | GRN | BLU | WIT |
| 6 circuits/per group, groups with tags | ||||||
Type Application
| CCTV pan / tilt camera mounts | Electrical test equipment |
| Manufacturing and process control equipment | Medical equipment |
| Robotics | rotary index tables |
| Miniature cable reels | Laboratory equipment |
