Древесно-полимерного композита wpc гранулирования

Категория: Пластиковые грануляторы >>>
Поставщик: Qingdao,Hegu,Wood-Plastic,Machinery,Co.,Ltd.

Цена:42 000,00 $ - 45 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	49980.13 $*	52479.79 $*
Aug-15-2025	49560.58 $*	52038.54 $*
Jul-15-2025	41580.94 $*	43659.56 $*
Jun-15-2025	48720.61 $*	51156.63 $*
May-15-2025	42420.14 $*	44541.2 $*
Apr-15-2025	47880.27 $*	50274.41 $*
Mar-15-2025	47460.9 $*	49833.67 $*
Feb-15-2025	47040.78 $*	49392.11 $*
Jan-15-2025	46620.13 $*	48951.91 $*

Характеристики

Product Description

wpc granules production line/ wood plastic wpc granulator/ wpc granulation line

The raw material is recycled plastic, Wood Powder,CaCo3 and chemicals, the ratio as bellow:

Item	Material name	Mixing Ratio
01	Recycled PP/PE plastic	25-30 kgs
02	wood powder	50-70 kgs
03	CaCo3	0-10 kgs
04	Chemical additives	around 5 kgs

wpc granules production line/ wood plastic wpc granulator/ wpc granulation line

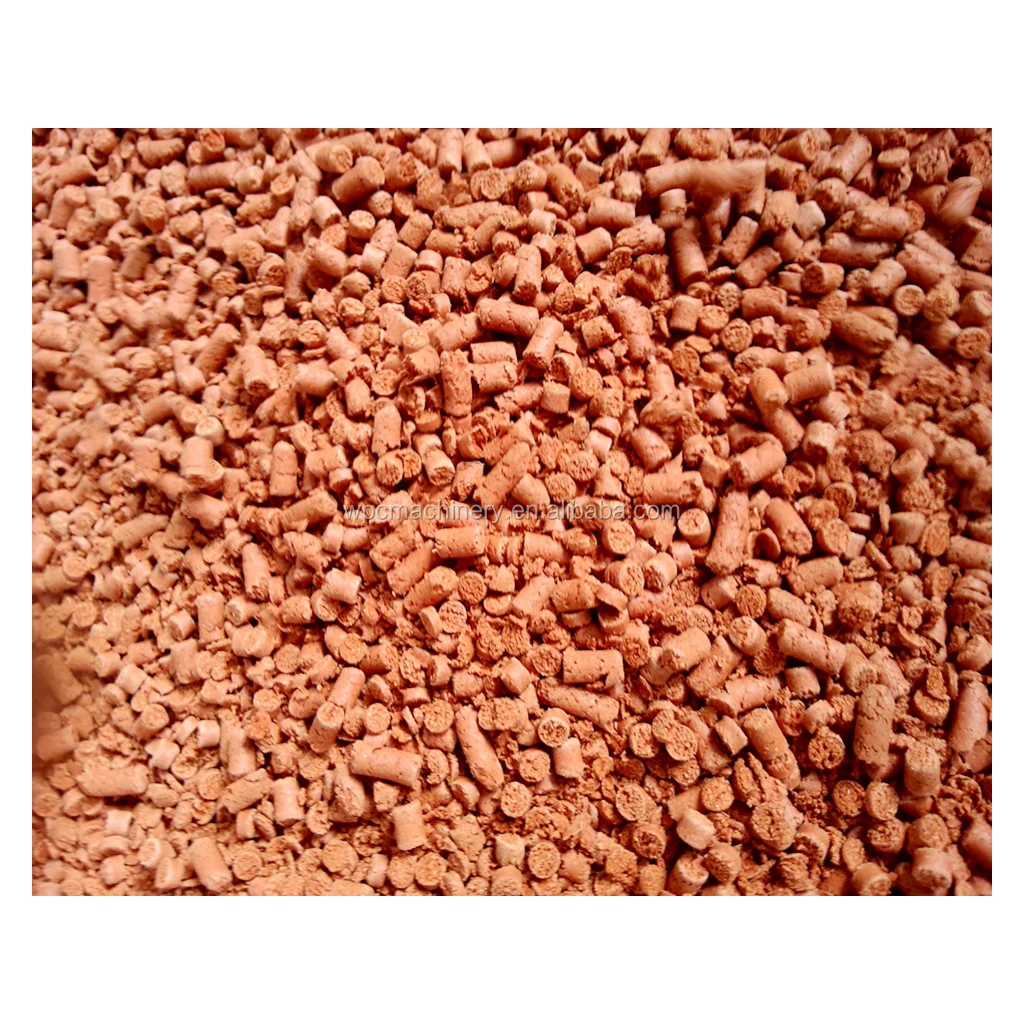

This WPC granulation machine uses recycled PP/PE plastic and wood powder as raw material to make WPC granules, the WPC granules can be used or making WPC profiles, such as WPC decking, WPC wall cladding, WPC Post, WPC fence...

Detailed Images

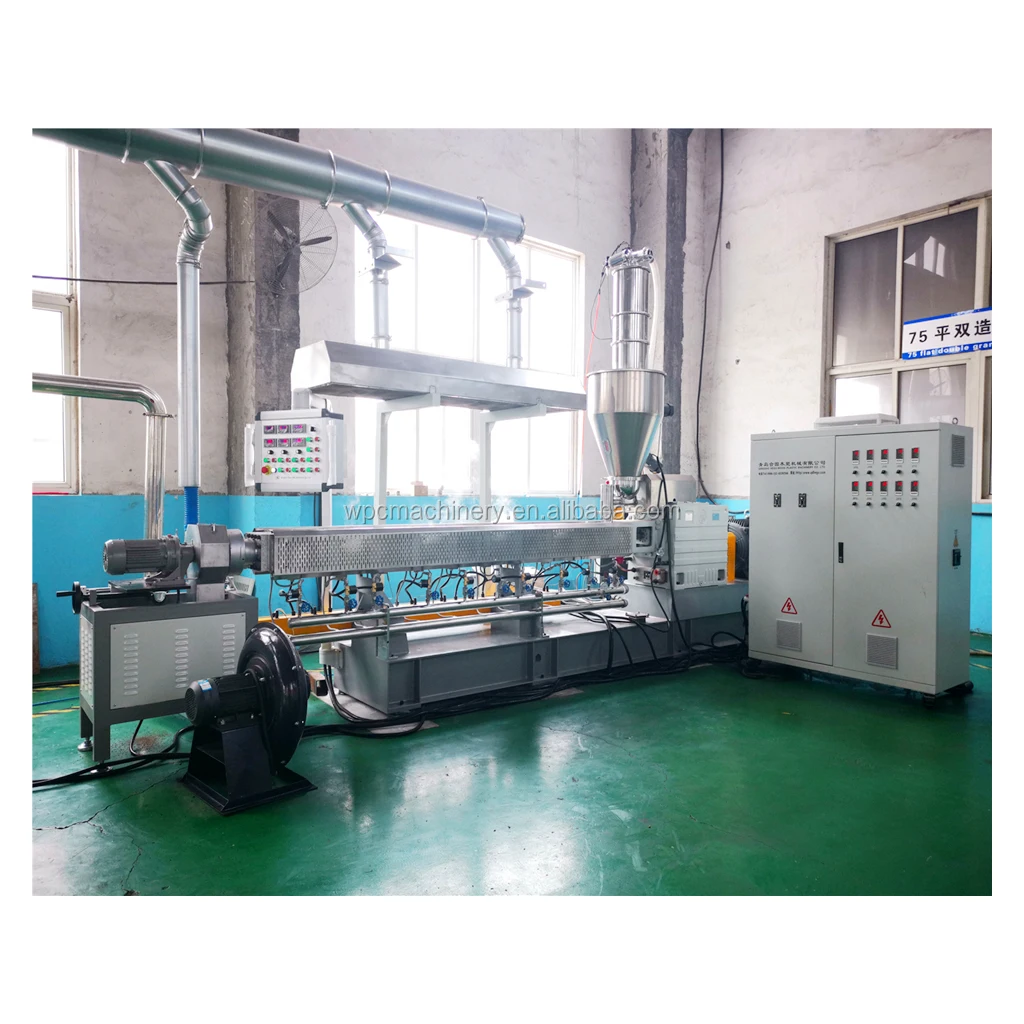

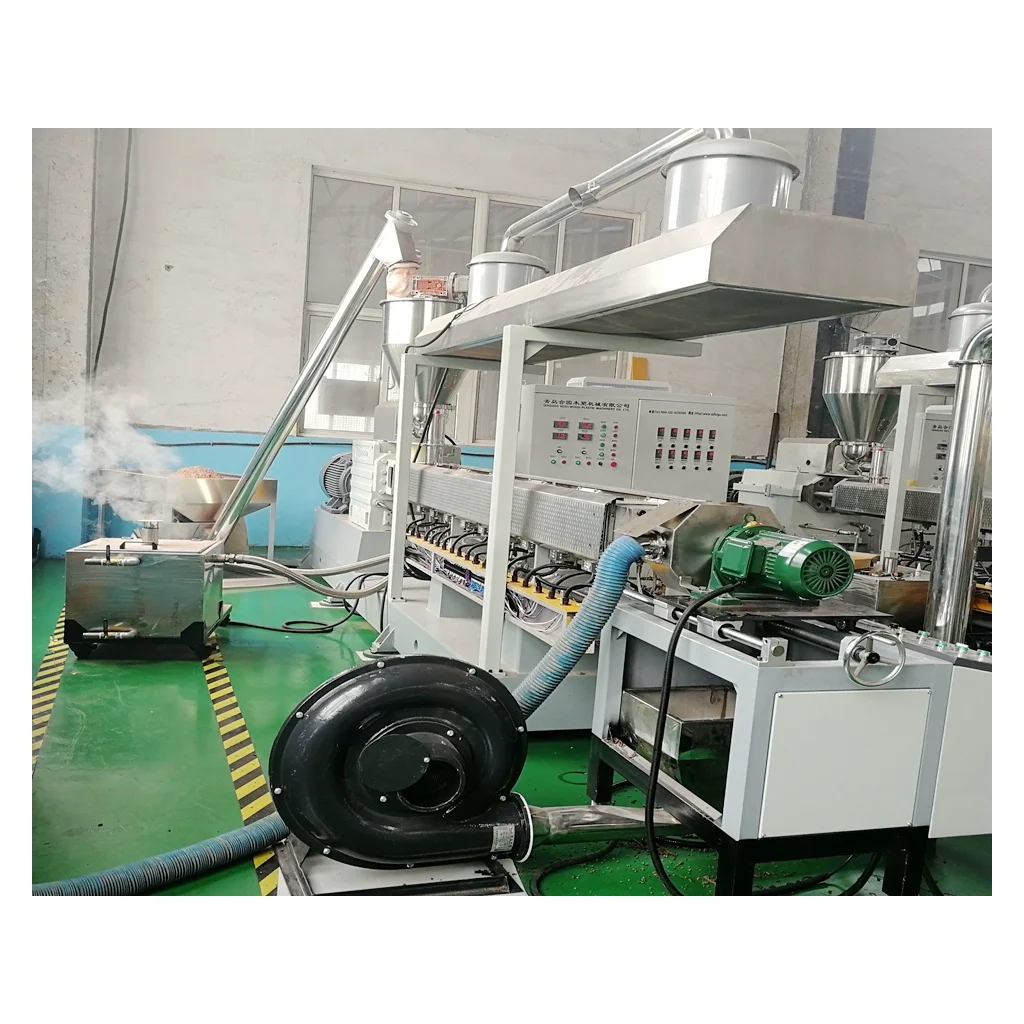

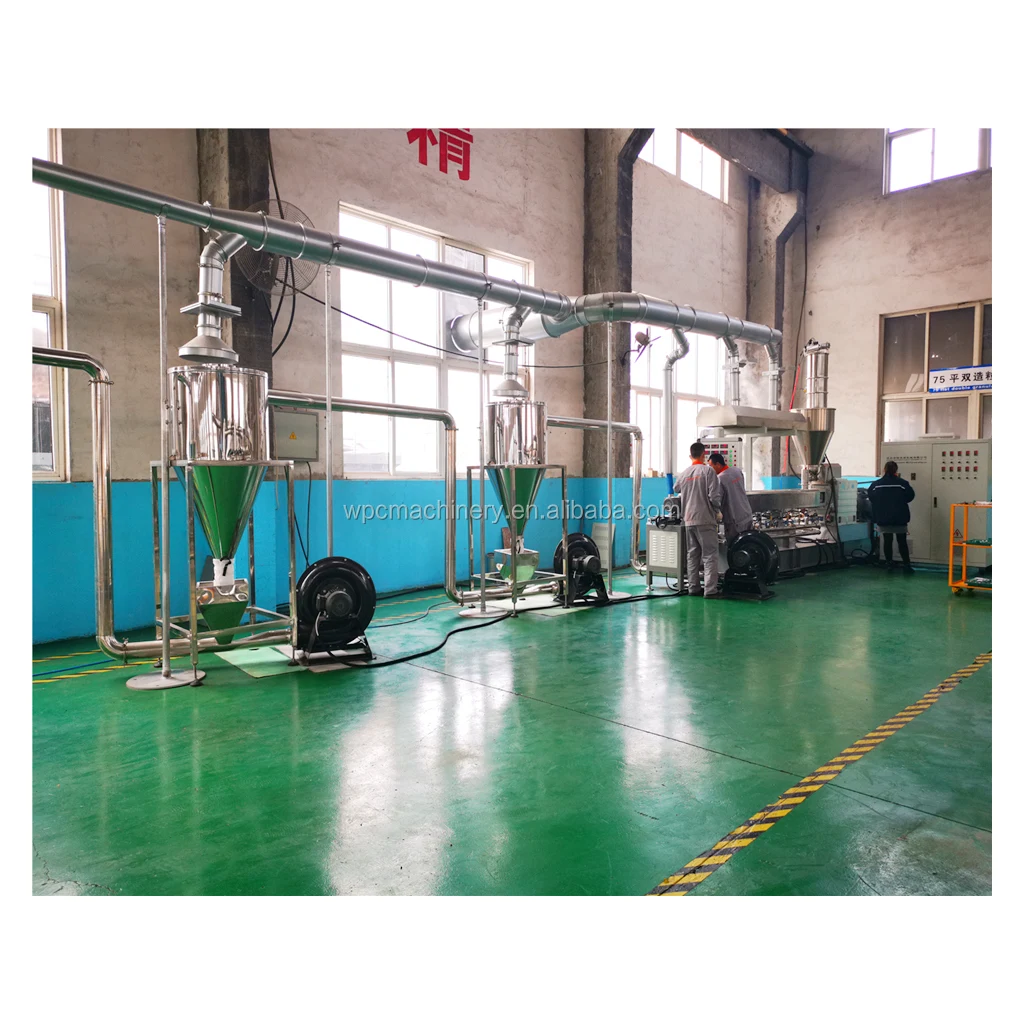

Equipment list for WPC granulation machine

Equipment for WPC granulation machine	Quantity
Auto feeder	One set
Parallel double screw extruder	One set
Granulation die head	One set

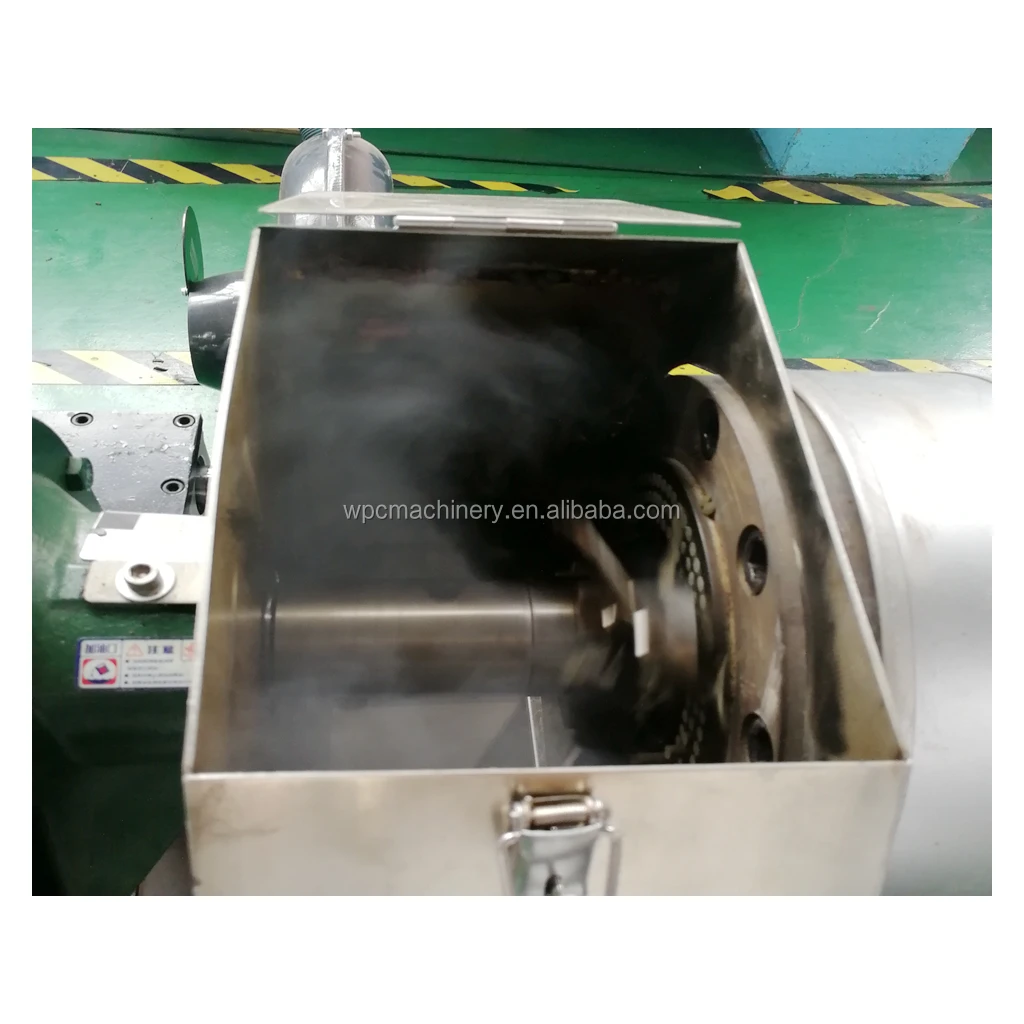

Granules cutting or crushing device	One set

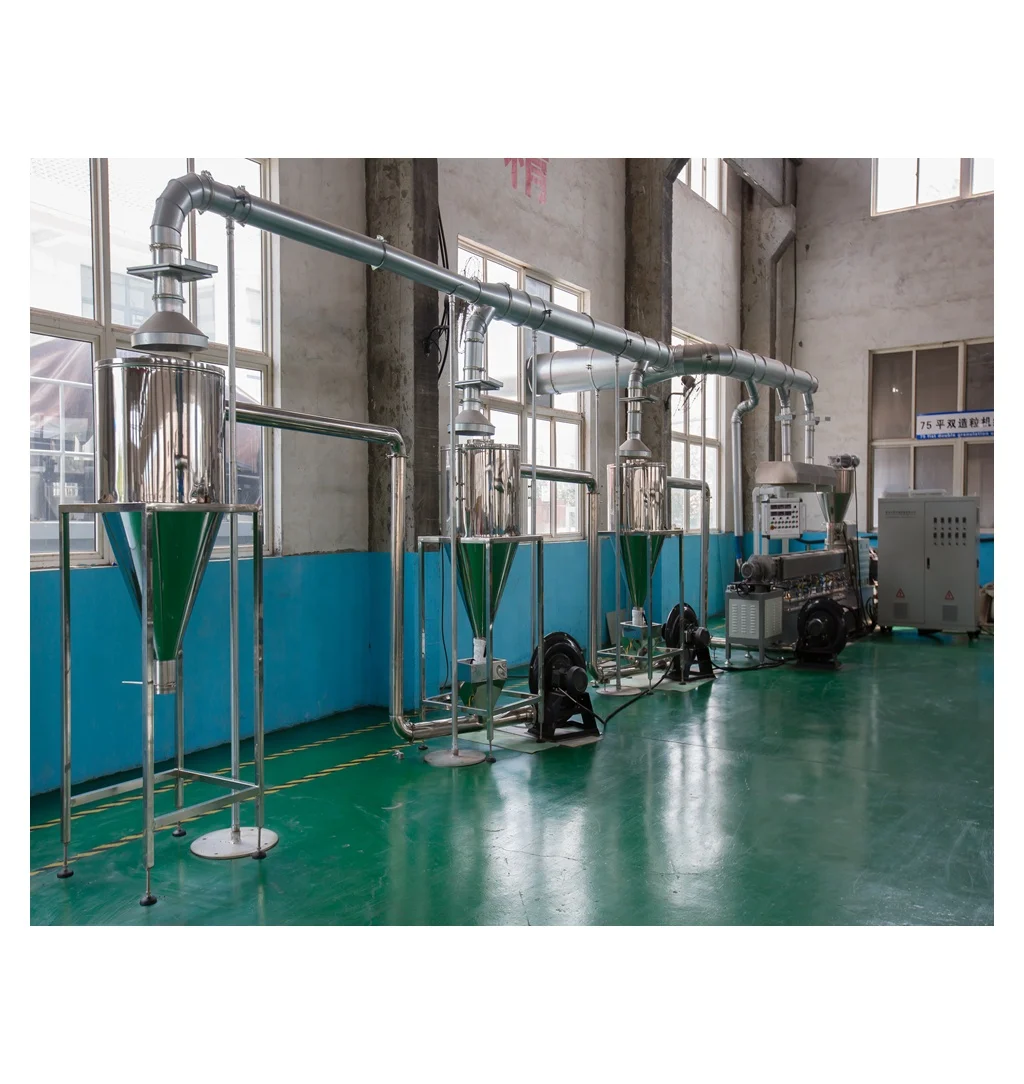

First step air cooling machine	One set
Second step air cooling device	One set
Third step air cooling device	One set

Feeding machine

The Material should be mixed by mixing machine according to our formula.

the mixed material shall be put into a auto feeding tank, and then feeded to the extruder.

Extruder

Extruder type: Parallel double screw extruder,we equip high capacity extruder with specially designed screw and barrel for WPC
granulation machine, it can work for 20-30% recycled PP/PE and 60-70% wood powder composition

Screw and barrel

we equip parallel double screw for WPC granulation machine.
the L/D of the screw is 40:1 to ensure the WPC material will have enough time to be plastizition and composited together.
We use special structure and material for barrel to ensure long time using life. our WPC granulation screw and barrel can be used
for more than one year for continously production

Moisture exhuasting system

This WPC granlation machine designed with good moisture exhuasting system to taking out the moisture in the material,there is 4
holes on the barrel for moisture out,
and there is a suction system on top for taking away the moisture

Smoking collection device

When the material come out from the die head, the moisture and smoking may come out from the die head, we equip good suction
system for taking away the moisture and smoking at die head,
