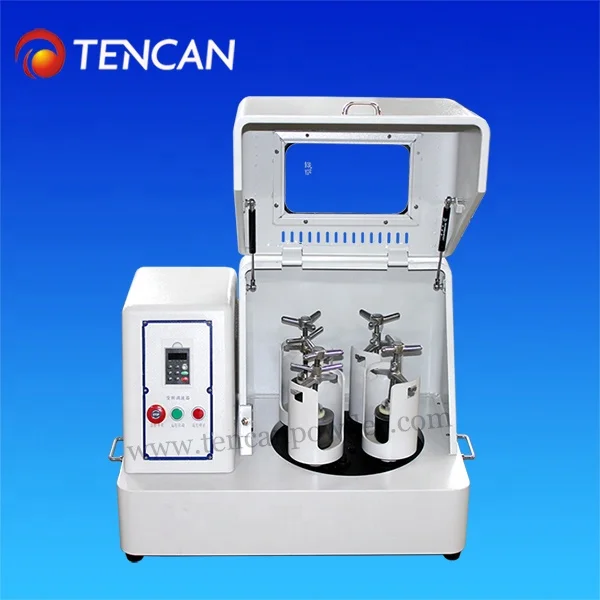

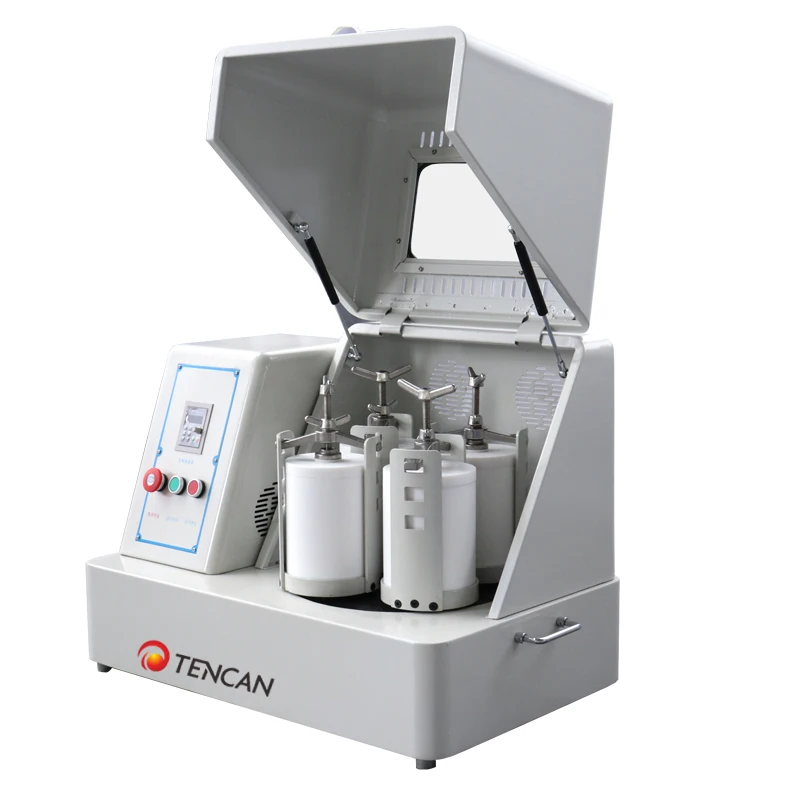

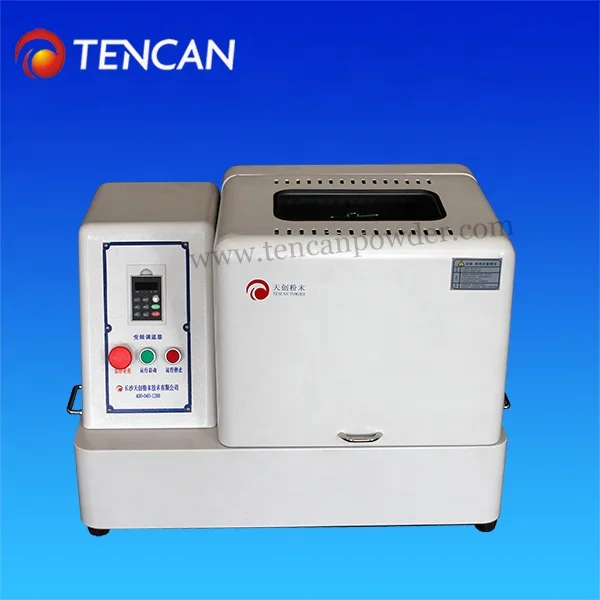

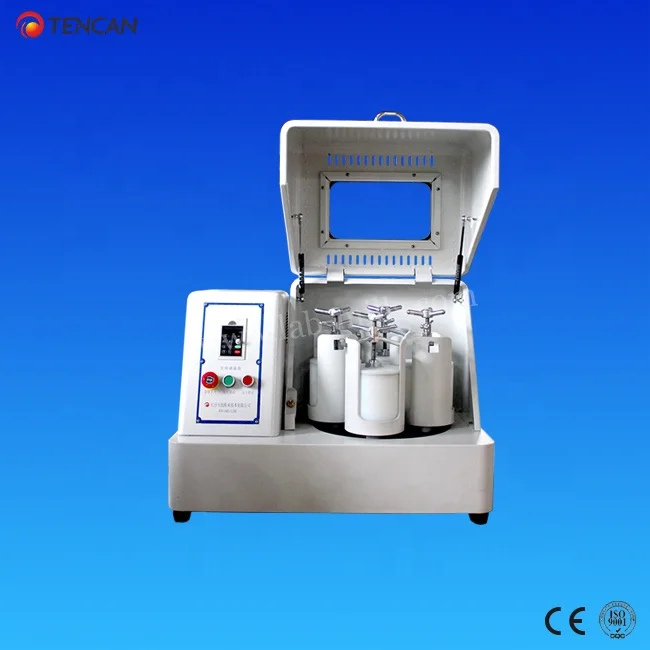

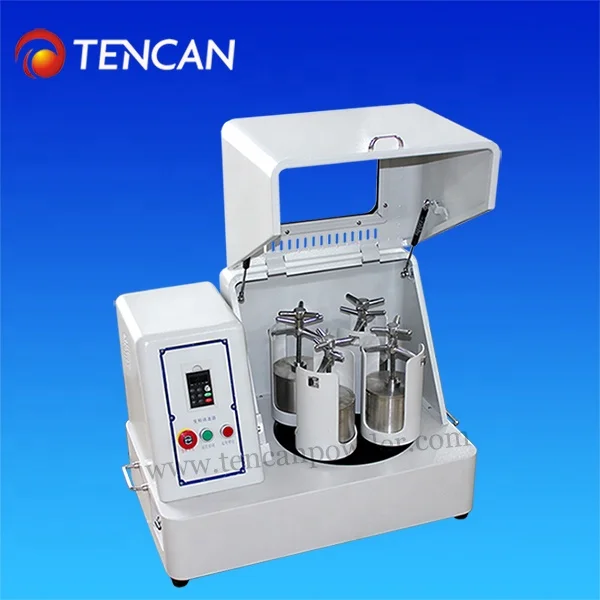

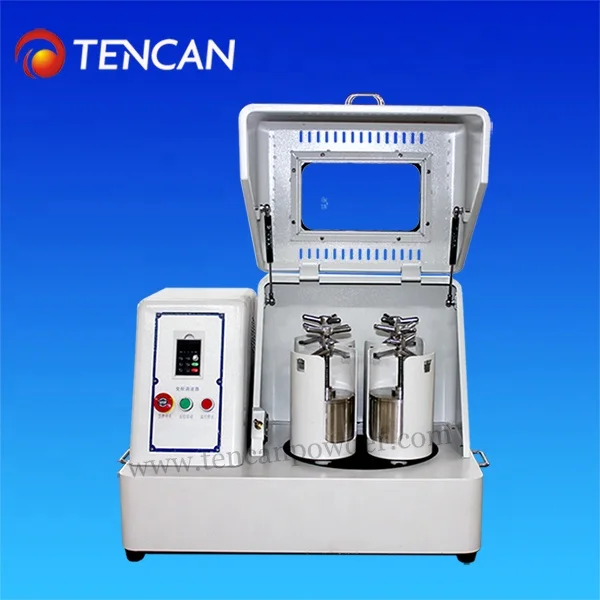

China Tencan XQM-4(T) micron powder grinding programmable & touch screen planetary ball mill





1.About us

Changsha Tencan Powder Technology Co., ltd is founded in 2006. It is located in Xingsha Town, Changsha City of Hunan Province, China.

Our factory is a supplier of manufacturing planetary ball mill, roll ball mil, stirring machine,mixer machine, vibration ball mill, vacuum glove box, mill tank, ball media.

Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc are our regular customers, giving high praise for our machines for their long using life with less mechanical failure.

With the sustained business conception of  "credit is the basis, quality is the first ", we gain the high trust from customers.

A first-class enterprises goal ----- brand, do first-class enterprises, and take Group operations, to the international development.



2.Factory Overview







3.Laboratory  Planetary Ball Mill Technicial Parameters:



  Laboratory powder mill introduction:



 Tencan planetary ball mill has the advantages as small volume, high efficiency, low noise and functional features , which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples





Our machine has four ball mill jars in a turnplate. The ball mill jars rotate with the turnplate when the turnplate rotates. And under the gear drive, the planetary ball mill jars do planetary motion  by central axis drive. The high speed movement of the milling media ball in the jar produces impact, shear, grinding force which can grind and mix the sample.





  Laboratory powder mill technical features:



• Stable revolving speed of the gear transmission ensure the consistency and repeatability of the experience.


• Four different size, different material samples can be produced at the same time.


• The speed can be adjusted as per the experience result. The frequency converter has undervoltage and over-current protection function to protect the motor.


• The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, timing and untiming operation.


• Our planetary ball mill is functional which has low barycenter, stable performance, compact structure, easy operation, reliable safety, low noise, low wastage.


• Safety switch is installed to avoid machine run when the  cover open




Ball mill jar volume	0.05L-5L/pc, totally 0.2L-20L
Feeding particle size	soft ≤10mm, other material ≤3mm
Discharge particle size	Min. As 0.1um
Speed ratio (revolution: rotation)	1:2 (20-200L productive planetary ball mill can be 1:1.5)
Rotating speed	0-870rpm( normal), 0-1400rpm (high-speed)
Speed regulation	stepless speed regulation, 0.2rpm
Program control	Our ball mill adopts high-tech microcomputer chip control,it can runs by set up the forward and inversion alternately repeatedly program(0-999 min) and forward, pause, inversion, pause, forward (0-999 min) alternating operation program, especially suitable for cooling or intermittent operation.
Max. Continuous working time (full load)	72 hours( timer 0-9999h)
Motor power	main power is 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3KW, 4KW as per the model and ball mill loading weight. The motor is made by pure cupper.
Ball mill environments	Vacuum, inert gas, low temperature, high temperature



6.Quality warranty & service promise for laboratory planetary ball mill

7.Laboratory Planetary Ball Mill Certificate

ISO9001 Quality Management System Certificate





CE Certificate
