CB класс 63a 2P автоматический переключатель ATS 60A для домашнего использования лучший
- Категория: Другие переключатели >>>
- Поставщик: Siqi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 22.20 $* | 22.67 $* |
| Jul-19-2025 | 18.82 $* | 18.66 $* |
| Jun-19-2025 | 21.13 $* | 21.25 $* |
| May-19-2025 | 21.38 $* | 21.32 $* |
| Apr-19-2025 | 17.67 $* | 17.62 $* |
| Mar-19-2025 | 21.25 $* | 21.54 $* |
| Feb-19-2025 | 21.89 $* | 21.39 $* |
| Jan-19-2025 | 20.78 $* | 20.60 $* |
Характеристики
Products Description

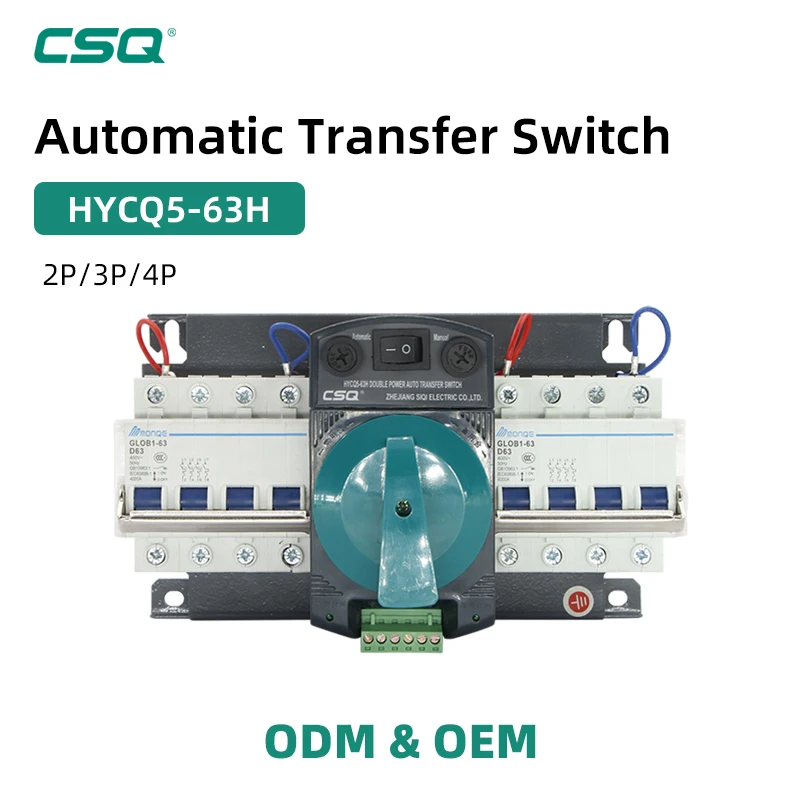

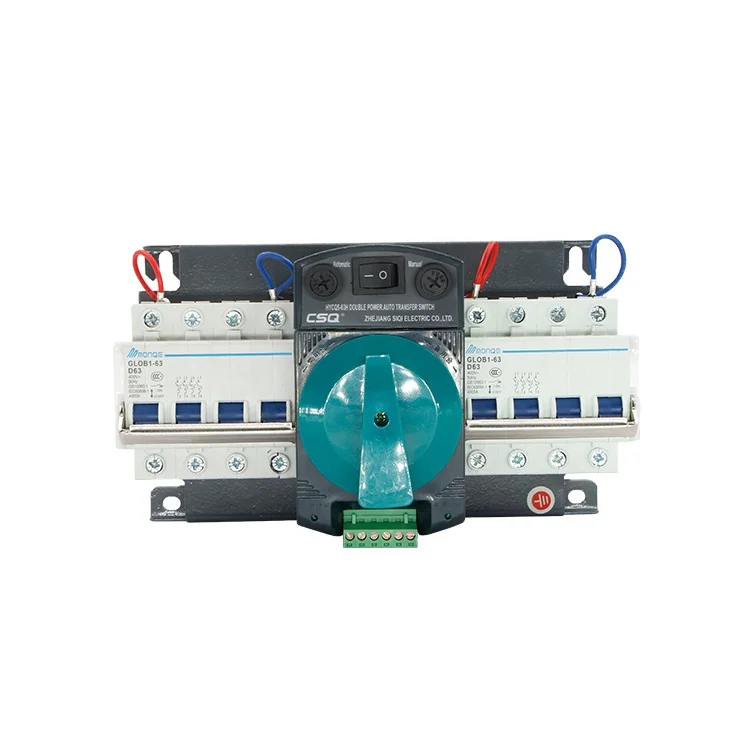

HYCQ5-63H is terminal type automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11

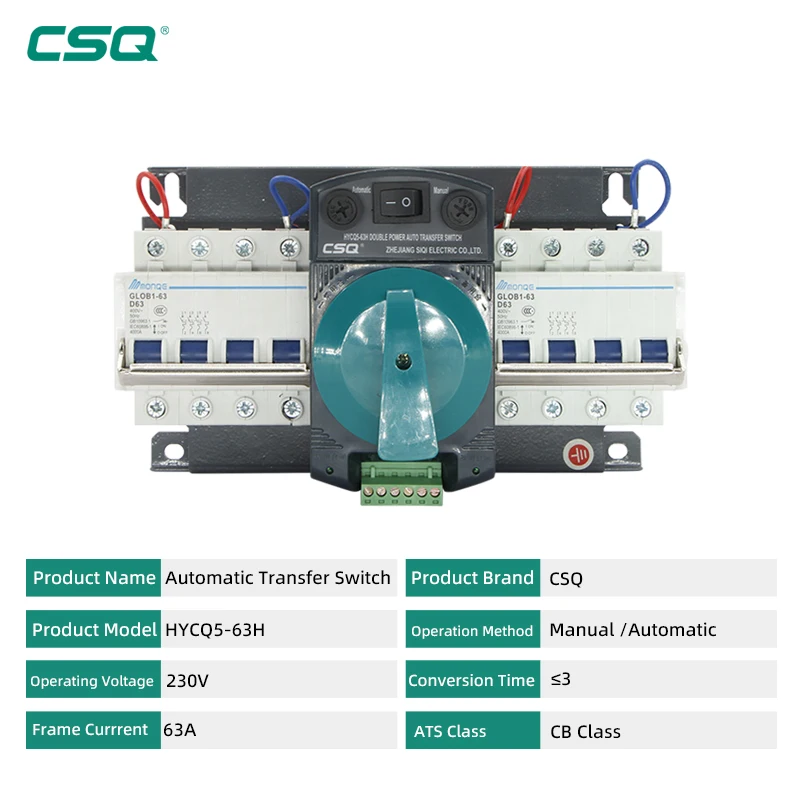

Product Paramenters
Current | 16A | 20A | 32A | 40A | 63A | ||||
Rated insulation voltage Ui | 690V | ||||||||
Rated impaction withstand voltage Uimp | 8KV | ||||||||
Rated working voltage Ue | AC380V | ||||||||
Rated working current Ie | 16A | 20A | 32A | 40A | 63A | ||||
Load character | AC33iB | ||||||||
Rated making capacity | 10Ie | ||||||||
Rated breaking capacity | 8Ie | ||||||||
Rated limting short-circuit current | 50KA | ||||||||
Rated short time withstand current Ie | 7KA | ||||||||
Change-over time | 1S | ||||||||
Voltage of control power supply | AC220V | ||||||||
Energy consumption of the motor | 40W | ||||||||
Weight Kg | 3 | 3 | 3 | 3 | 3 | ||||
Recommend Products
Company Profile
About CSQ
Siqi Technology Co.,Ltd is a high-tech enterprise specializing in research and development, production, sales and services of automatic transfer switch, miniature circuit breaker, molded case circuit breaker and switch disconnector, load break switch, power meter, contactor, which is located in Yueqing city, the global capital of low-voltage electrical appliances.
Factory introduction
Exhibition
Certifications
FAQ
1. How long is your products warranty?
A1: The warranty period of our products is 24 months.
2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.
3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.
4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.
5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.
6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
A1: The warranty period of our products is 24 months.
2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.
3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.
4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.
5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.
6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
