High speed 200-216.5L steel drum production line or packaging line or steel barrel making machine



Short introduction:controlled by PLC,hydraulic drive

Main technics: a)Beading height:≤14mm b)Drum height:894-905(mm) c)Hydraulic system pressure:8Mpa d)Air pressure:0.1Mpa e)Machine size:3700x700x1600(mm),

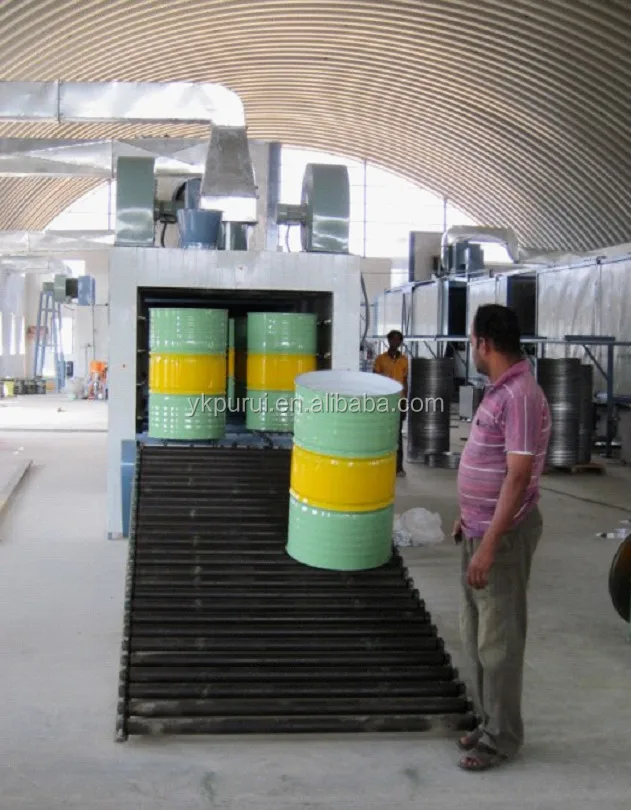

• Steel-drum production line (5pcs/min)

Features: This series of drum-production equipment is designed and developed on the basis of domestic mature models. It is easy to operate and maintenance cost is low.
Applicable manufacturer: This series of equipment is suitable for medium and small-scaled drum-production enterprise or chemical, food and drinks plants with annual consumption 100,000~600,000 pieces of drums.





• Workshop Plan

Workshop Height: ≥6 M



• Workshop Foundation and Related Accessory Establishment

1. Water: Recycled cooling water. Water entrance temperature<32oC, Water out temperature<40oC,

Pressure: 0.1-0.45Mpa,runoff :20m3/h.2" Self-Suction pump:1unit.

2. Power:Voltage 380V,Frequency:50Hz

3. Transformer Capacity≥650KVA

4. Water Consumption:0.2Kg/Pc

5. Air Compressor:Pressure: 0.6Mpa,runoff: 10m3/min.

6. Gas Storage Tank:4 pcs,Capacity:0.6 M /Unit Pressure:1MPa







•  Technical Specification of Equipment

Conveying Way:Step-advancing shift conveyor

Production Line Control Method:Automatic or Manual, multi machines or single machine working method.
