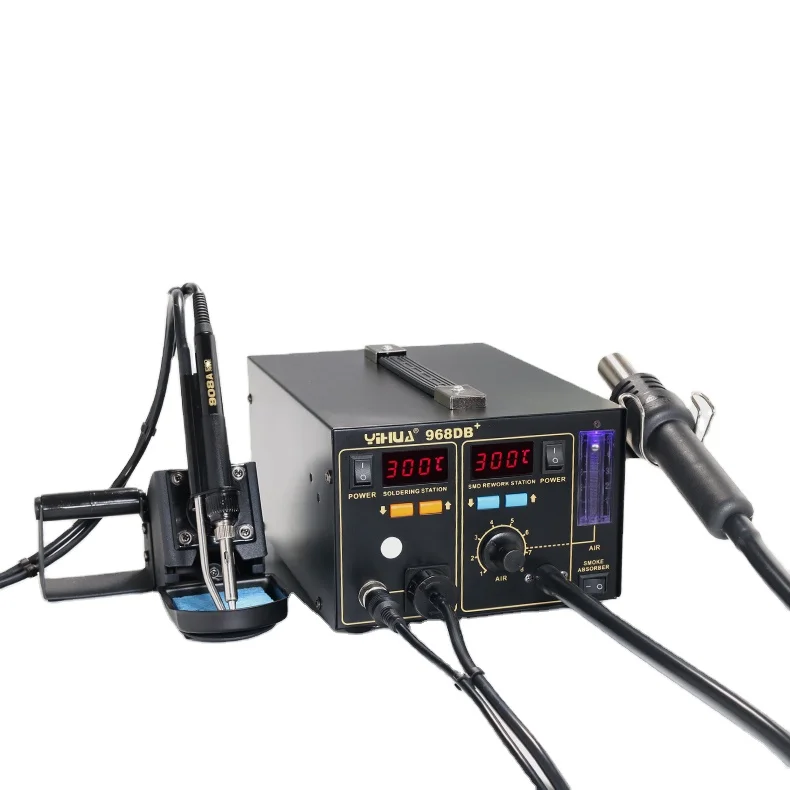

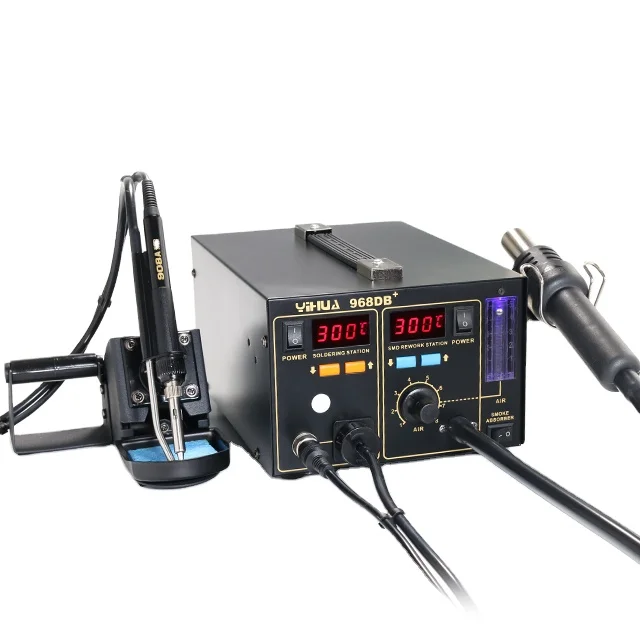

YIHUA 968DB+ 3in 1 BGA rework station with smoke absorber



Features:

1, Temperature controlled part of the master core technologies, use the  PID program of high-speed 100ms cycle real time tracking of the air guns outlet temperature and the temperature of the iron tips, and real-time

correction! High stability of   temperature.

2. PID rapid correction of the high speed 100ms temperature, high energy efficiency conversion ,

at a constant temperature state power consumption  much lower than similar machines, more energy-efficient!

3. Very intuitive wind speed ball dynamic indicates the air pump airflow.

4. Air gun handle lines with high temperature silicone line (soldering tips of 300 degrees touch silicone line 30s

without damage), stainless steel tube, latest technology ceramic skeleton heater, stability and reliability high!

5.It has Celsius / Fahrenheit temperature display function, an according to the custom to choose

6. Iron handle line also use the high temperature silicone cable, the heating element use Imported heater,

high-power, fast temperature compensation, except for general solder joint desoldering

also particularly suitable for de-soldering crude terminal, solder joints, miscellaneous difficult solder joints.

7. Soldering iron has smoke absorbed function. Smoke generated by soldering iron was immediately sucked

away, after a dust-sheet absorption, filtration, this function is to achieve air purification effect,

to bring users healthy, environmentally friendly work environment, no longer have to worry about the smoke

produced for the use of soldering iron.

8. If you need product can be equipped with a vacuum suction pen, when need to use a vacuum suction pen

to draw the IC, unplug the soldering iron suction tube from the soldering iron interface at suction tube connected to the vacuum pen, vacuum suction pen to draw IC.

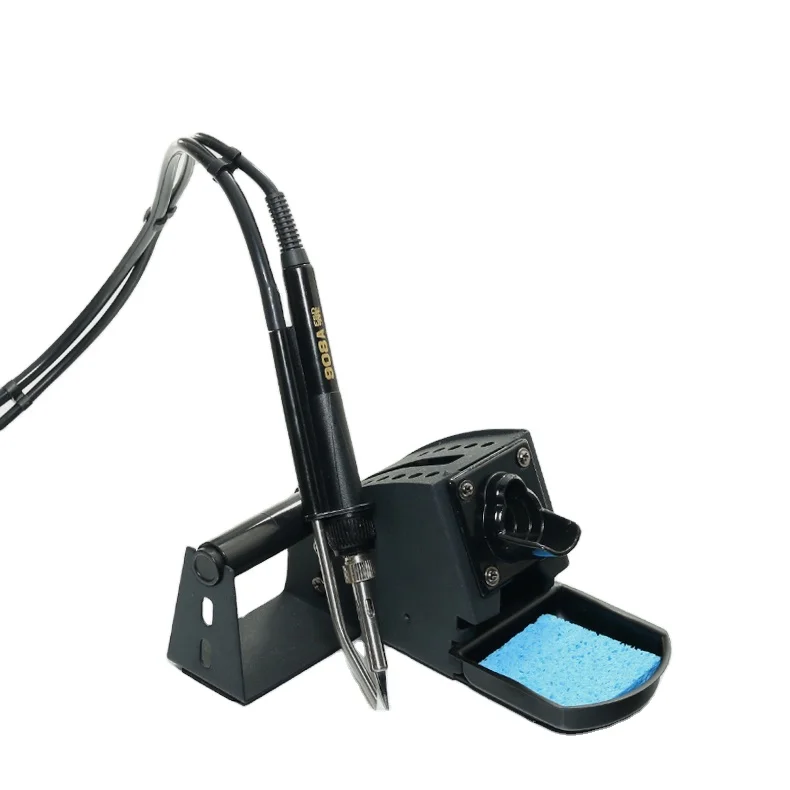

9. The iron holder is ferroalloy holder, bottom sponge fixed , the seat of the iron holder with solder wire fixed

axis, use more convenient.

10. The machine part of the device has a self-test function, the whole intelligent over-temperature, short circuit, open circuit, overload, fault indication and protection functions

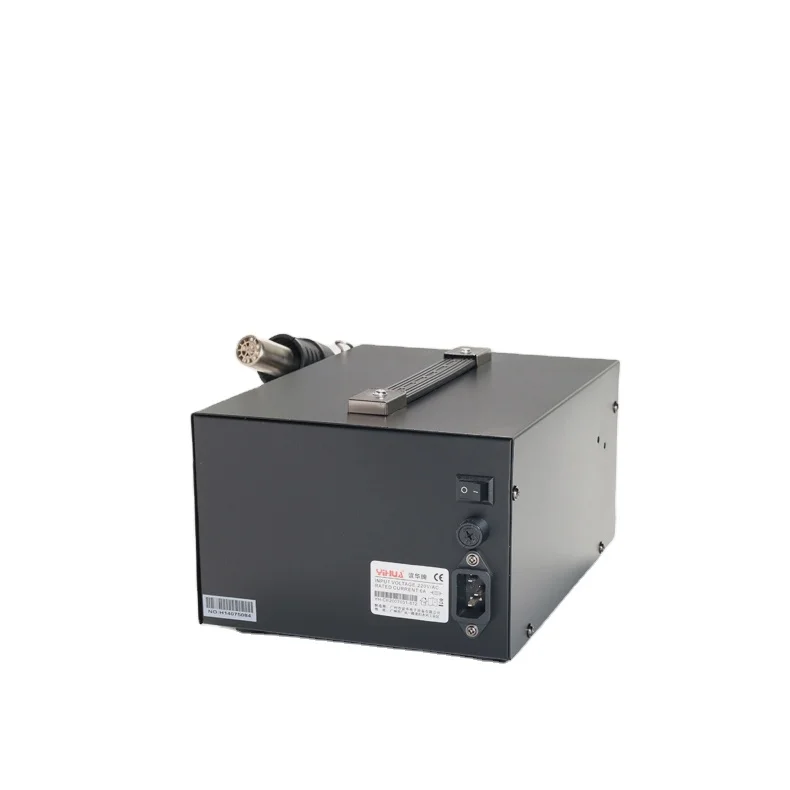

11. The machine behind the whole device power switch, long time no use, turn off the main switch, power

saving , and more secure.







Technical Data:

parameters
Rated voltage		AC 220V±10%  50Hz
power		670W
300°CThe thermostat power of (high-speed PID programmable energy saving)		250W±10%
Working environment		0~40°C relative humidity<80%
Storage environment		-20~80°C  relative humidity<80%
Body size		255*188*125mm
Weight		4.83KG
Parts parameters	Hot air rework		Soldering iron
Work voltage	AC 220V±10%  50Hz		AC 26V±10%  50Hz
Output power	550W		75W
Temperature range	100°C~480°C		200°C~480°C
Airflow type	Diaphragm pump spiral wind		---
Air Flow	28L/min(MAX)		---
Temperature Stability	±1°C (Static)		±1°C (Static)
Display Type	LED display		LED display
Temperature correction type	The PID digital program proofreading		The PID digital program proofreading
PID Temperature correction cycle	rapidly 20ms		high-speed 100ms
Heating elements	Ceramic skeleton heater		Imported  heater
Tip ground impedance	---		<2Ω
Tip of ground voltage	---		<2mV







Applications

1.Industrial production of electronic products assembly

2.Scientific research departments for product development

3.Repair industry for electronic product repair

4.Enterprises electrician soldering operation

5.Electronic technology enthusiasts electronics assembly

6.Students of various Colleges Electrical Skills Training

7.Suitable for a various kind of soldering or de-soldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMD,

etc.(especially mobile phone's cable).

8.Shrinking, Paint drying, adhesive removal, thawing, warming, Plastic welding.







What's in the box
* main unit + gun + power cord

* guide

* soldering iron

* soldering iron holder +gun frame+test leadest cable

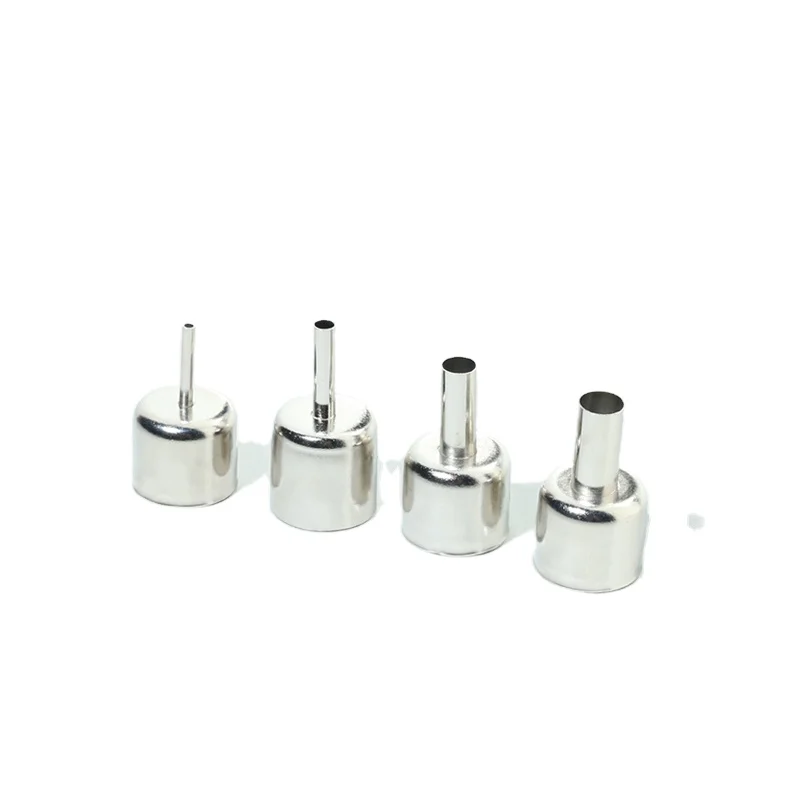

* 4 nozzles





These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units
