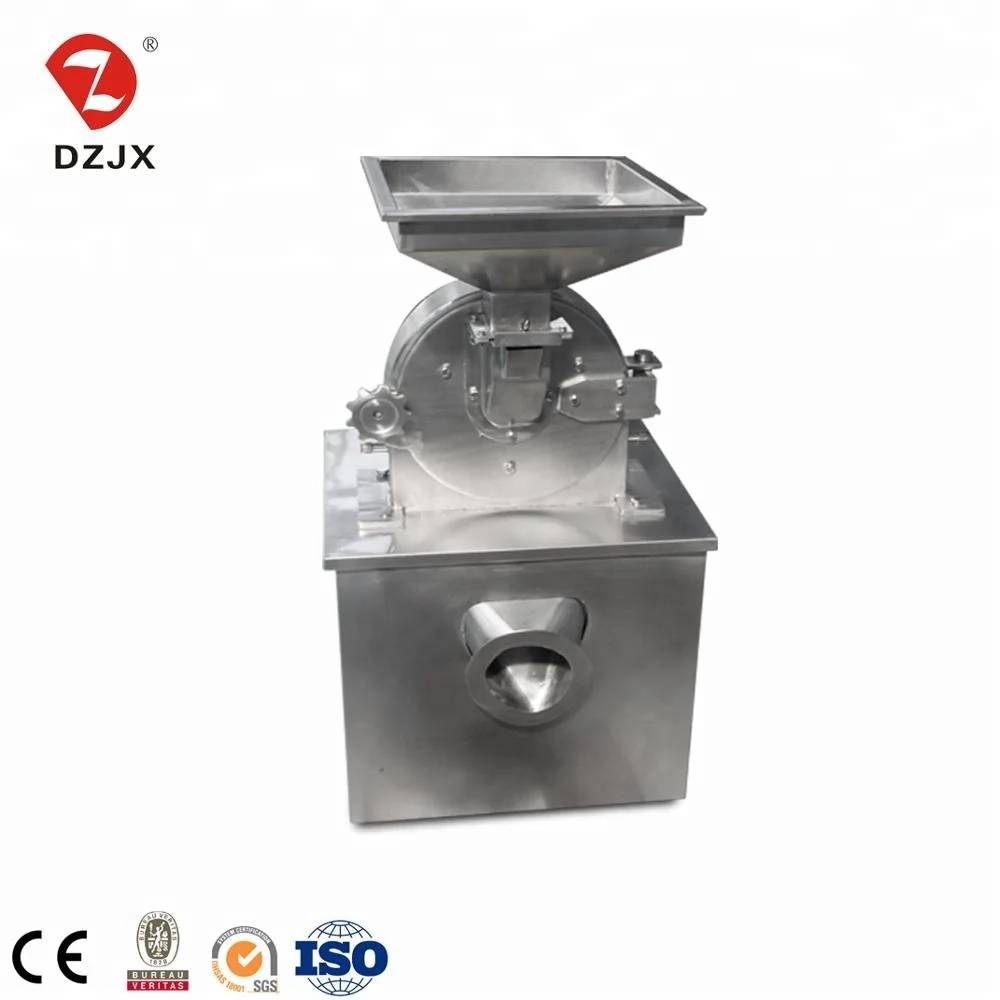

Булавочная мельница из нержавеющей стали и машина для измельчения с
- Категория: Шлифовальное оборудование >>>
- Поставщик: Xinxiang,Dongzhen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2975.72 $* | 3124.4 $* |
| Aug-18-2025 | 2950.56 $* | 3098.16 $* |
| Jul-18-2025 | 2475.55 $* | 2599.36 $* |
| Jun-18-2025 | 2900.13 $* | 3045.24 $* |
| May-18-2025 | 2525.48 $* | 2651.78 $* |
| Apr-18-2025 | 2850.64 $* | 2993.54 $* |
| Mar-18-2025 | 2825.58 $* | 2966.56 $* |
| Feb-18-2025 | 2800.62 $* | 2940.97 $* |
| Jan-18-2025 | 2775.44 $* | 2914.18 $* |
Характеристики
Products Description

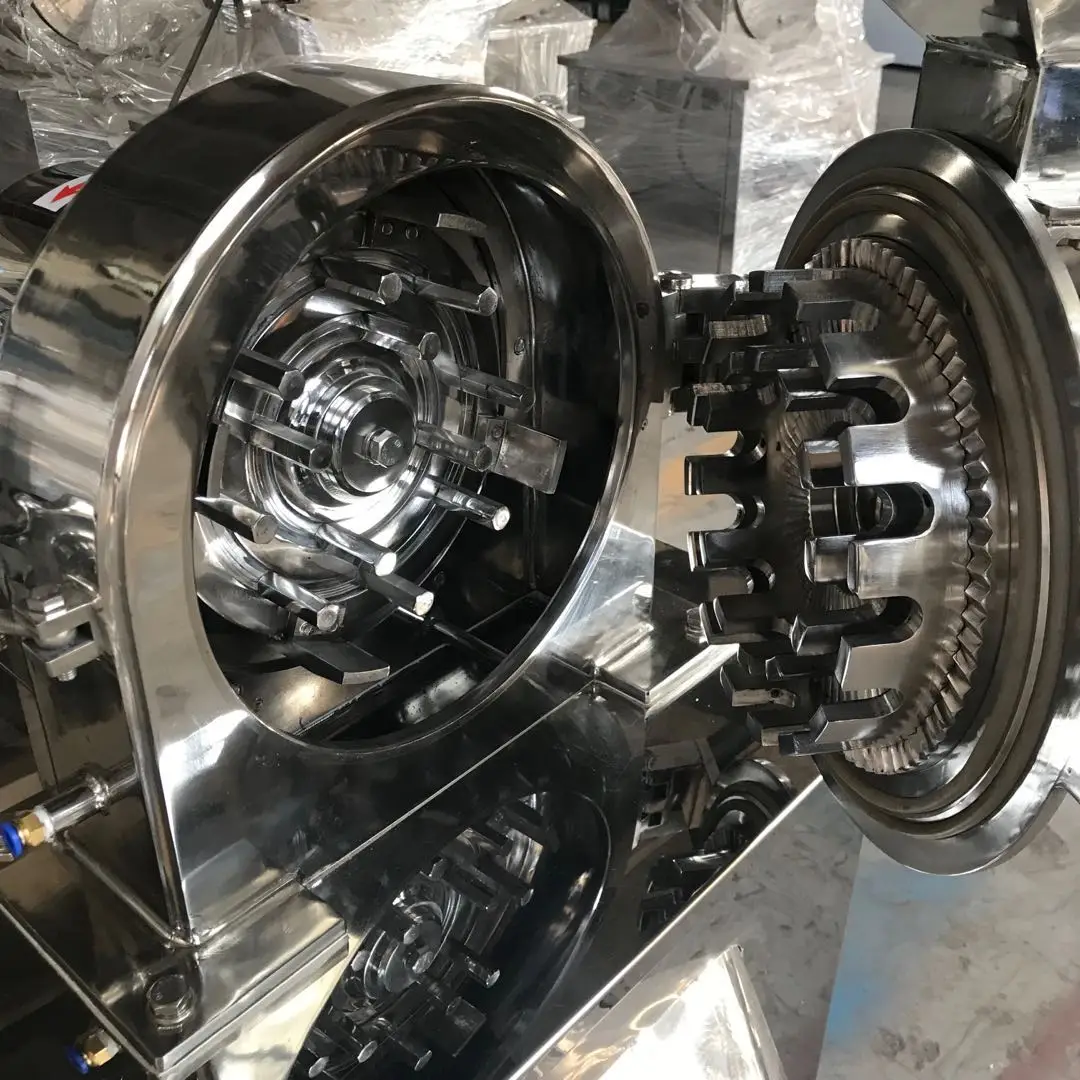

It makes use of the high-speed relative motion between the movable gear disc and the fixed gear disc, the material can be crushed through tooth impact, friction and impact between the materials. The crushed material is automatically entered into the trapping bag by the action of rotating centrifugal force, and the dust is filtered and recovered by the vacuum box through the cloth bag. The dust from the cloth bag in the concentrating case is collected in the dust absorption case. The machine is designed according to GMP standard .
The crusher mill machine is widely used in pharmaceutical, food, chemical, it can crush various of material. The machine is made up of feeding material part and crush part, and dust collect part. Its coniguration is very briefness, all the parts which contact the material are made of stainless steel.
Product details
Hammer type is better on little hard material like stone. If grinding grain cost a longer time.
Air cooling type grind and discharge quickly, and not easy heat temparature in grind chamber.
Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.

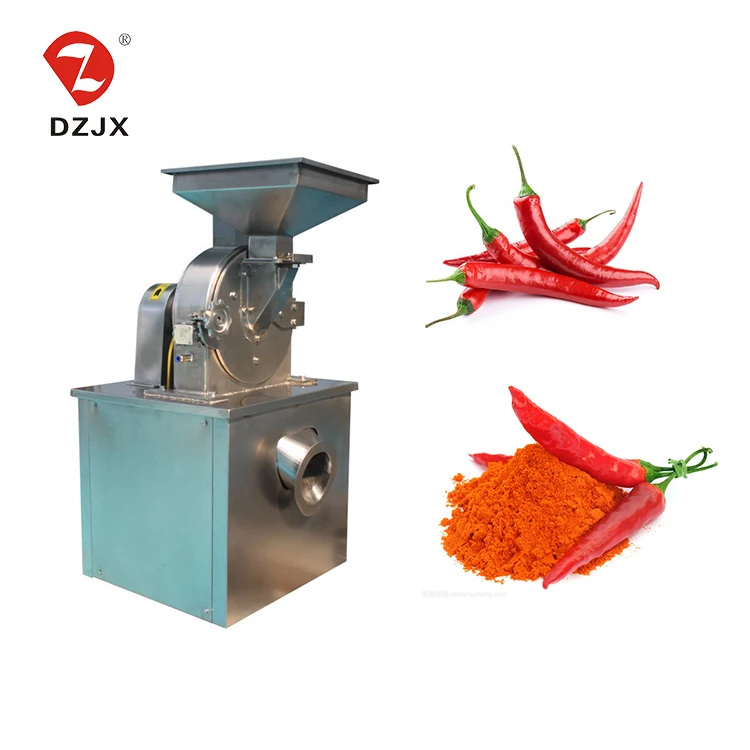

Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
Air cooling type grind and discharge quickly, and not easy heat temparature in grind chamber.
Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.
Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
Inlet
Outlet
Screen mesh
Ventilation opening
Lock
Cold water pipe

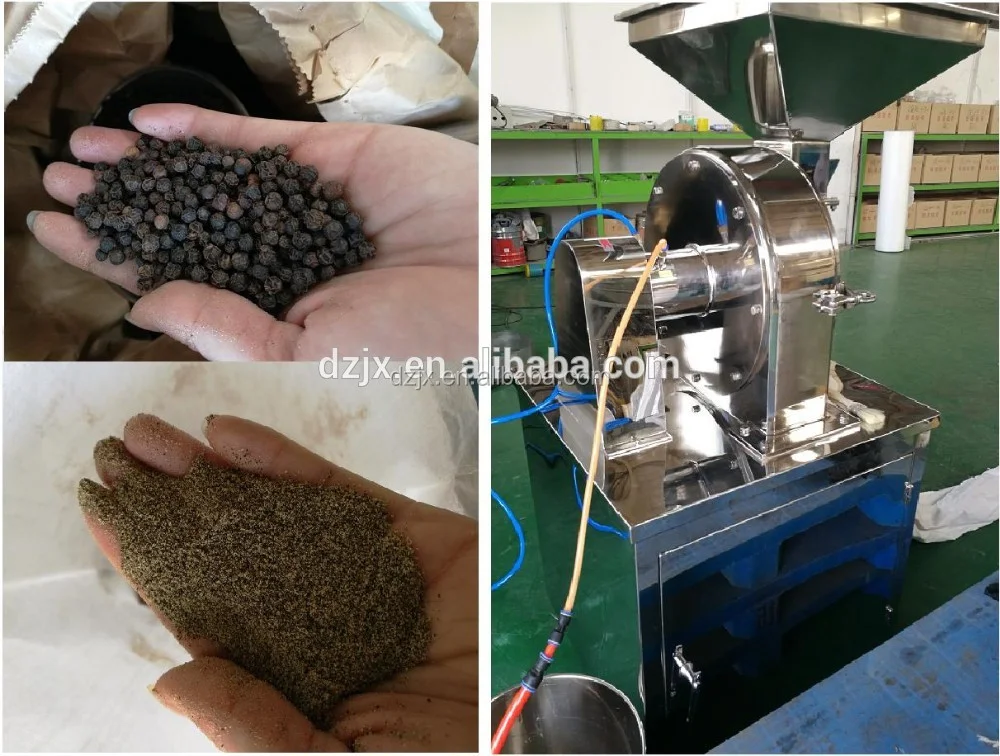

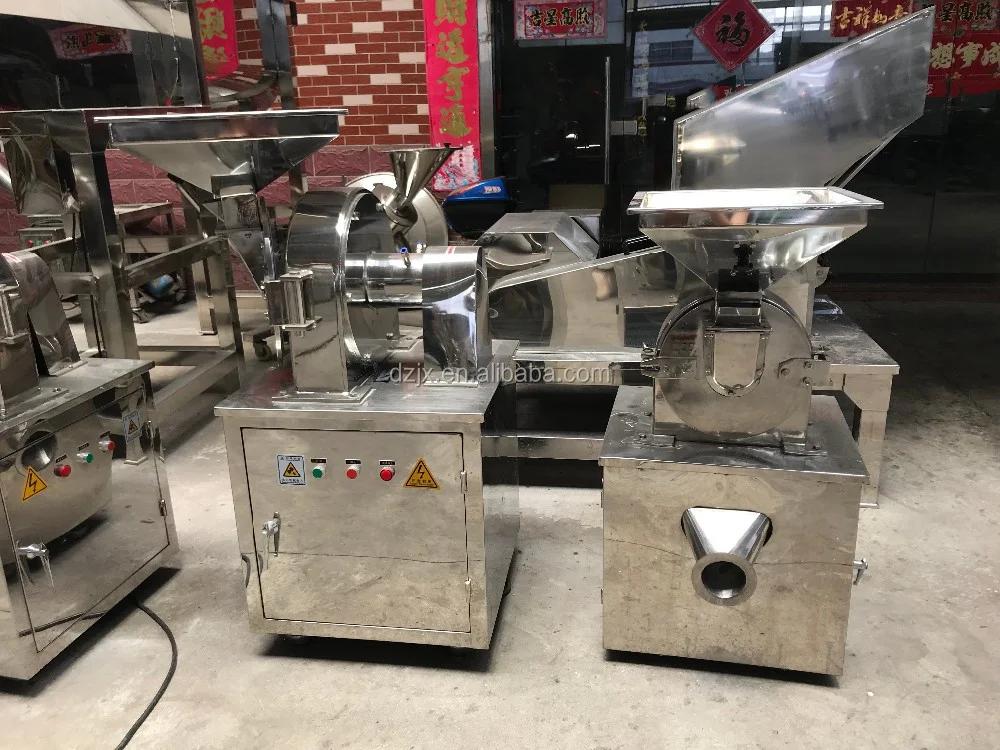

Products Show
Application
The crusher mill machine is widely used in pharmaceutical, food, chemical, it can crush various of material.
Technical Parameter
Model | DZ20 | DZ30 | DZ40 | DZ50 | DZ80 |
Capacity(kg/h) | 20-50 | 30-300 | 40-400 | 80-500 | 200-1000 |
Speed(r/min) | 4500 | 3800 | 3400 | 2900 | 2200 |
Feed size(mm) | <6 | <10 | <12 | <12 | <15 |
Crush size(mm) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Power(kw) | 4 | 5.5 | 7.5 | 11 | 37 |
Weight(kg) | 150 | 250 | 280 | 350 | 600 |
Dimensions(mm) | 670*670*1120 | 700*700*1340 | 750*820*1400 | 840*860*1550 | 2400*1100*2000 |
Packing & Delivery
About us
Related Products
FAQ
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity
distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage &Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the
damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity
distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage &Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the
damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
