Китай (материк) волочения проволоки паровой котел для металлургической

Описание и отзывы

Трекер стоимости

Характеристики

   •         The furnace pipe uses water pipe tubular,vertical three pass;

   •         Fire extends from the top down with long flame and full combustion;

   •         It can reduce heat loss in boiler and shutdown,improving thermal efficiency;

   •         Quick start  can realize temperature and pressure rise quickly.

   •         Forced circulation, full combustion, reducing NOx emissions;

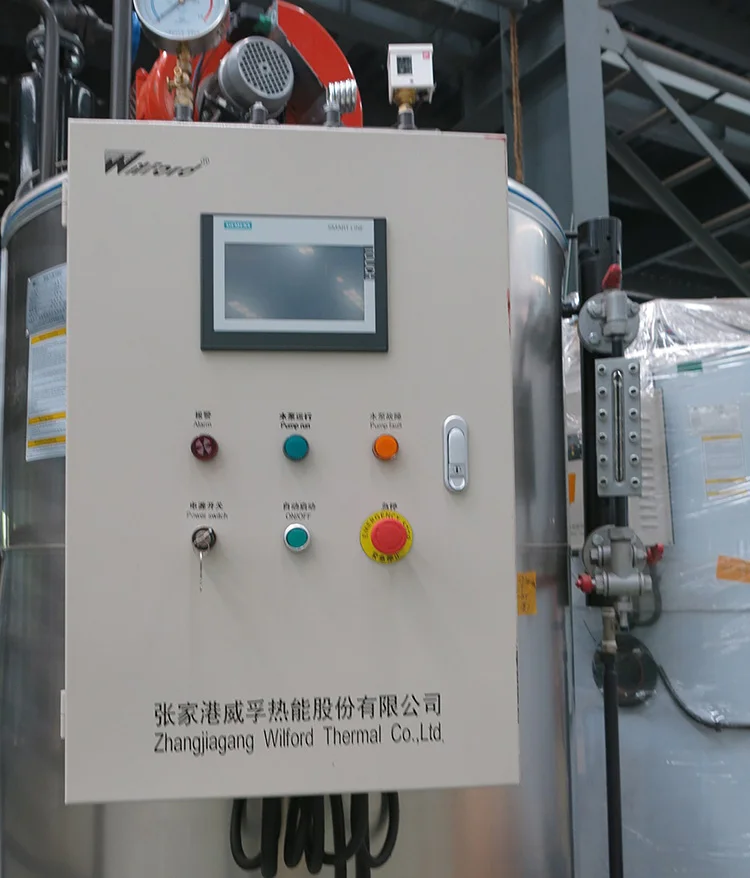

   •         With multiple chain protection for water level, steam pressure, overheating

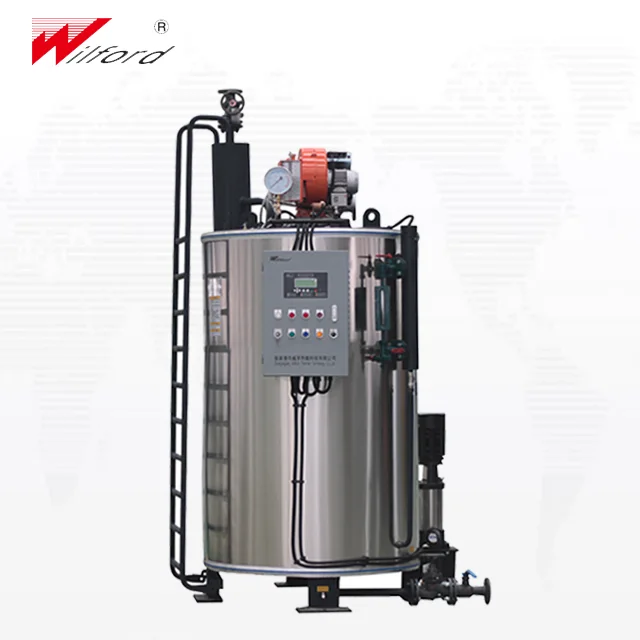

   •         The vertical structure is compact , which saves space and easy for installation.



Model			LSS0.5-0.7-Y.Q	LSS1-1.0-Y.Q	LSS1.5-1.0-Y.Q	LSS2.0-1.0-Y.Q
Item		unit
Rated evaporation		kg/h	500	1000	1500	2000
Rated working pressure		Mpa	0.7/1.25	1/1.25	1/1.25	1/1.25
Staturated steam temperature		℃	170/193	184/193	184/193	184/193
Feed water temperature		℃	20	20	20	20
Weight		T	1.8/2.2	2.4/3.8	4.9/5.6	5.7/6.5
Water capacity		L	1680	2450	3500	3200
fuelconsumption	diesel oil	Kg/h	34.7	68.6	102.7	137.7
	natural gas	Nm3/h	44.3	85.4	128	170.2
	LPG	L/h	69	133.1	199.5	265.2
main steam valve      a		mm	40	50	65	65
safety valve              b		mm	40	40	40×2	40×2
water inlet               c		mm	25	25	40	40

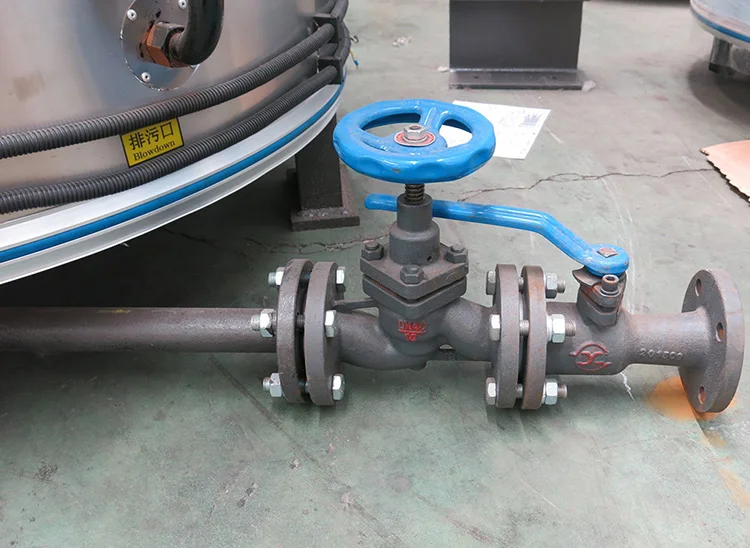

drain valve               d		mm	40	40	40	40
chimney                  e		mm	250	300	300	350
Overall size	L	mm	1830	1750	2000	2200
	W	mm	1780	1750	2000	2200
	H	mm	2650	2900	3370	3370
	H1	mm	2100	2570	3030	3030







  Our factory eatablished in 1998, is specialized in the production of oil,gas, electric heating steam boilers,hot water boilers, biomass-fired boiler and other energy saving and enviromental-protective equipment, which is a licensed B-class boiler manufacture with the US.ASME factory authentication and ISO9000:2008 quality system certification.
