Беспроводной динамометр Dyna-link 1t 2t 3t 5t 10t 20t 50t 200t 100

DIMENSIONS(Dimensions shown are nominal and subject to tolerances)

WEIGHTS

Profile:

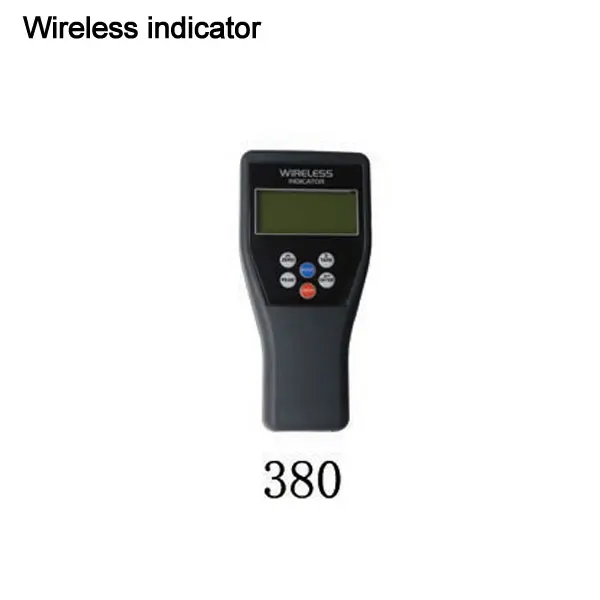

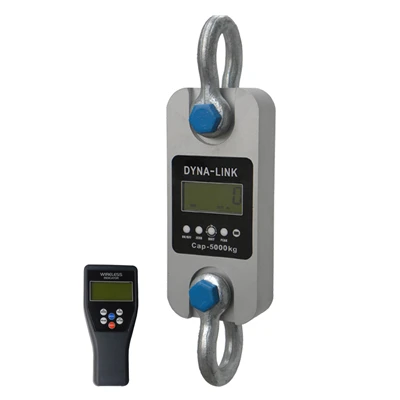

DL-W3 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, DL-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator 380.

Body protection: Aluminum and alloy steel capacities are powder coated.

Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.

Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)

Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.

Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.

Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).

Set-Point:Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.

Package: Packed with carry case, easy to bring.

Indicator key:4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.

Main technical data:

100 ton wireless dynamometer | 100 ton wireless dynamometer | 100 ton wireless dynamometer | 100 ton wireless dynamometer | 100 ton wireless dynamometer |
