Машина для производства гранул из древесины и корма животных на биомассе с дизельным

Описание и отзывы

Трекер стоимости

Характеристики

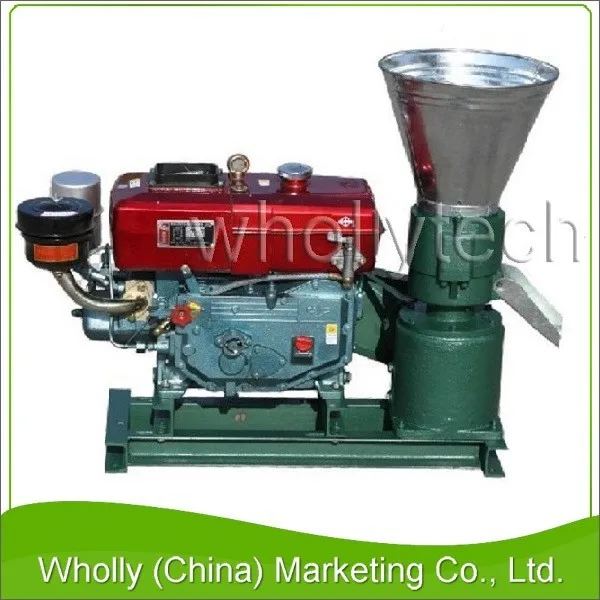

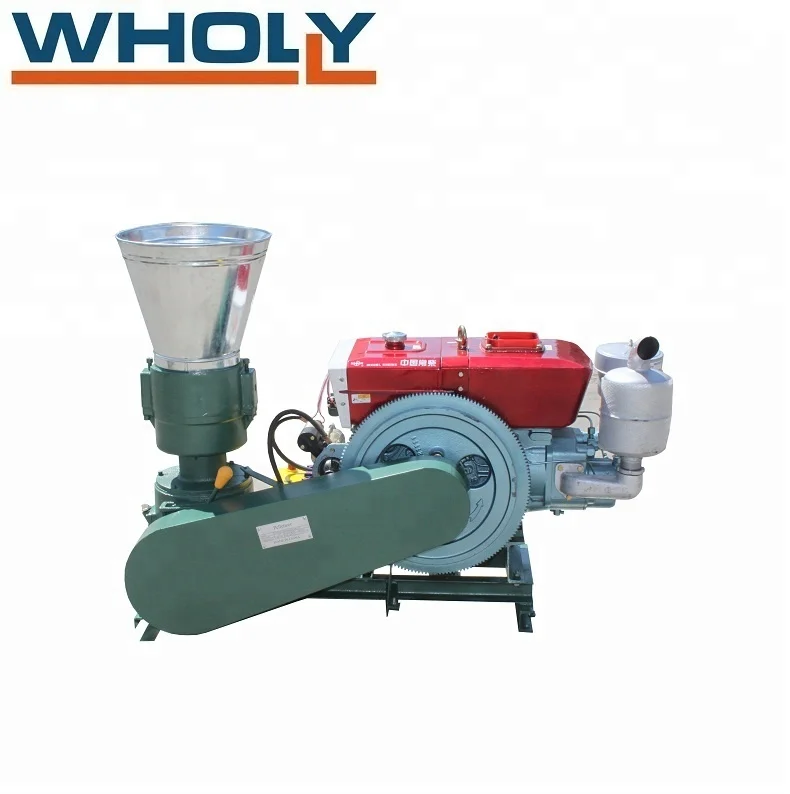

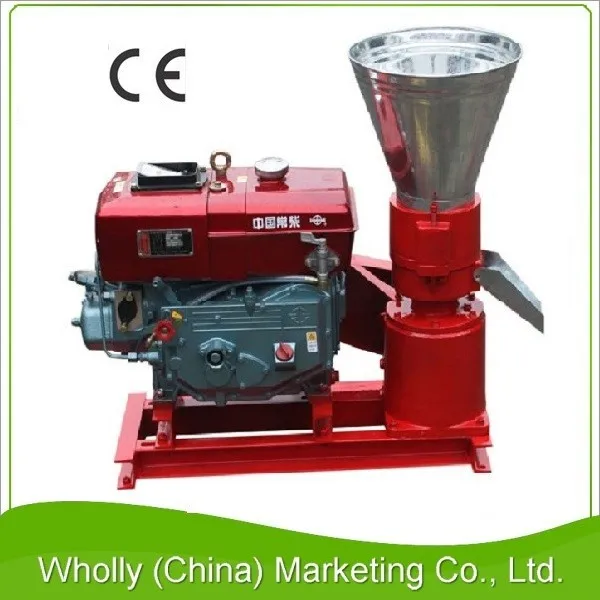

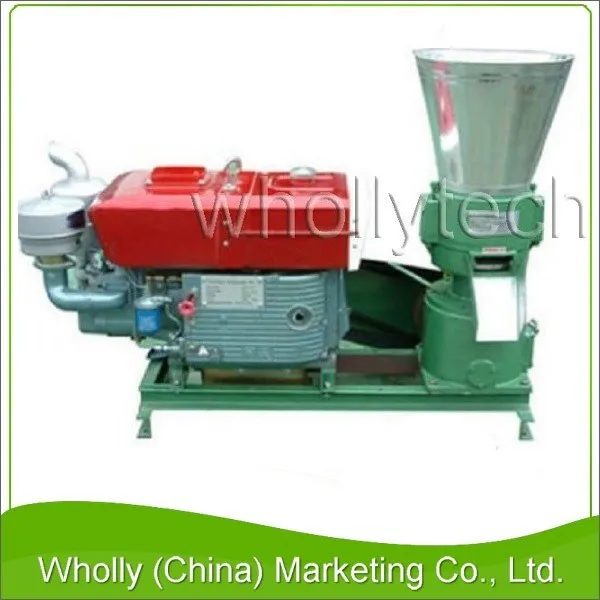

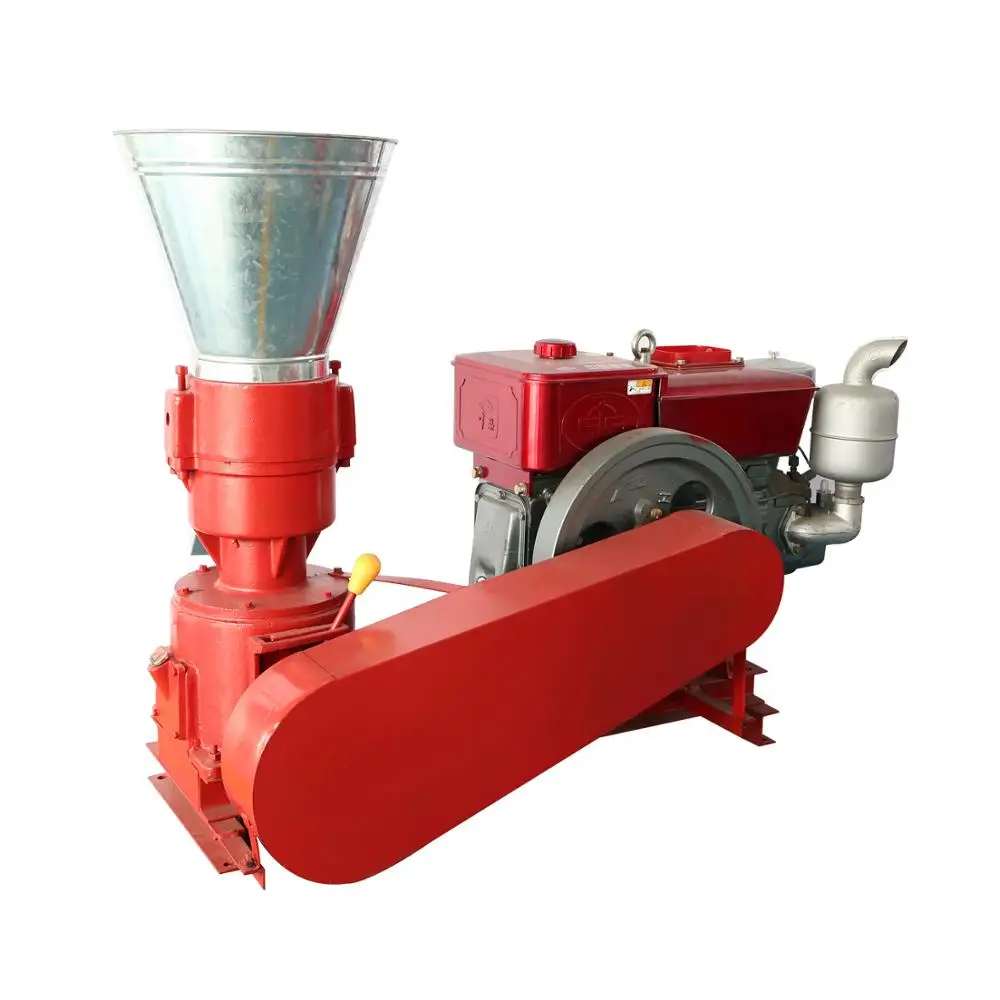

Biomass Wood and Animal Feed Pellet Mill Machine with Diesel Engine







1 This series machine can be powered by both diesel engine and e-motor.
2 We adopt the new design of direct connection of motor shaft and he main shaft that overcome the loose defect of belt connecting as long time using.



These pellet machines are the new designed products of our company and the main parts of the pellet machinery system.



Mini pellet machine description:



1. Mini pellet machine can make all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feed.



2. You can use all of the sawdust as raw materials: Paddy straw, sunflower stalk, forestry wastes, wood chips, chemical and many other wastes or solid power material.



3. WKL120 and WKL150 are the smaller types.



4. All of our pellet mills have passed CE certificate, which all parts can meet EU standard.



Animal animal feed pellet machine is mainly used to make feed pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.The key parts are made of alloy steel that make it very strong and malleable.Now our machines have been exported to Western Europe,North America,Southern Europe,Eastern Europe Asia Africa and so on.



Biomass energy wood pellet mill machine is used for pressing material such as grain,firewood,stalk,tree branches,wood meal,fruit hull,palm and tailing of cotton plant,and widely used for recycle of livestock farms,biomass fuel plant,power plant,wood processing plant,fertilizer plant,chemical plant,food plant and cotton plant.



Model	Power	Die Diameter	Die Hole Specification	Saw Dust Capacity	Feed Capacity	Packing Size(cm)
WKL120A	8HP	120mm	2.5-10mm	40-60kg/h	60-100kg/h	87*44*73
WKL150A	7.5HP	150mm	2.5-10mm	50-90kg/h	90-120kg/h	76*42*71
WKL150A	8HP	150mm	2.5-10mm	50-90kg/h	90-120kg/h	87*44*73
WKL200A	15HP	200mm	2.5-10mm	110-140kg/h	200-300kg/h	118*56*95
WKL230A	22HP	230mm	2.5-10mm	150-190kg/h	300-400kg/h	118*56*95
WKL260A	35HP	260mm	2.5-10mm	220-280kg/h	400-600kg/h	184*70*116
WKL300A	55HP	300mm	2.5-10mm	280-320kg/h	600-800kg/h	207*62*126
WKL360A	55HP	360mm	2.5-10mm	300-380kg/h	700-900kg/h	227*62*126
WKL400A	55HP	400mm	2.5-10mm	400-550kg/h	900-1100kg/h	227*62*126







Model	Power	Voltage/50Hz	Die Diameter	Die Hole Specification	Saw Dust Capacity	Feed Capacity	Packing Size(cm)
WKL120B	3kw	380V	120mm	2.5-10mm	40-60kg/h	60-100kg/h	75*32*65
WKL150B	4kw	380V	150mm	2.5-10mm	50-90kg/h	90-120kg/h	75*35*65
WKL200B	7.5kw	380V	200mm	2.5-10mm	110-140kg/h	200-300kg/h	100*43*95
WKL230B	11kw	380V	230mm	2.5-10mm	150-190kg/h	300-400kg/h	114*47*97
