12-дюймовый AIS класса B транспондер GPS навигатор для ДВД; Персонаж «Алоис» морской

Описание и отзывы

Трекер стоимости

Характеристики

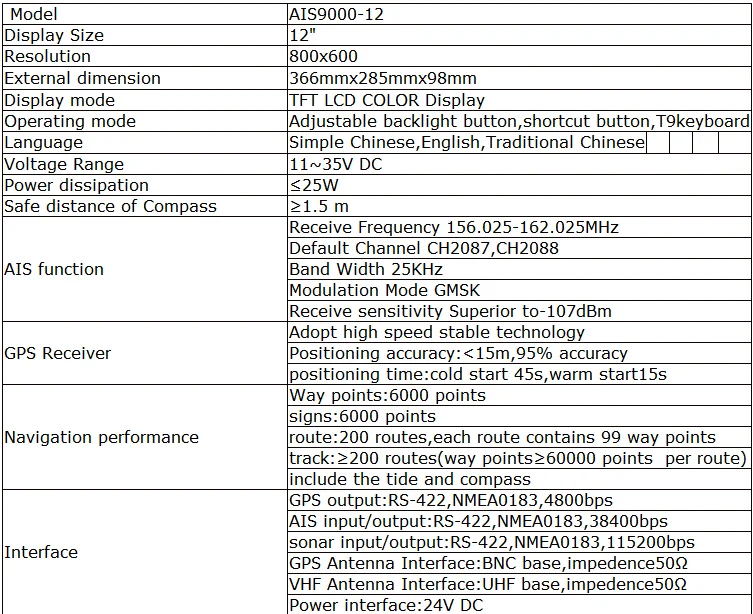

Model			AIS9000-12
Display Size			12"
Resolution			800x600
External dimension			366mmx285mmx98mm
Display mode			TFT LCD COLOR Display
Operating mode			Adjustable backlight button,shortcut button,T9keyboard
Language			Simple Chinese,English,Traditional Chinese
Voltage Range			11~35V DC
Power dissipation			≤25W
Safe distance of Compass			≥1.5 m
AIS function			Receive Frequency 156.025-162.025MHz
			Default Channel CH2087,CH2088
			Band Width 25KHz
			Modulation Mode GMSK
			Receive sensitivity Superior to-107dBm
GPS Receiver			Adopt high speed stable technology
			Positioning accuracy:<15m,95% accuracy
			positioning time:cold start 45s,warm start15s
Navigation performance			Way points:6000 points
			signs:6000 points
			route:200 routes,each route contains 99 way points
			track:≥200 routes(way points≥60000 points  per route)
			include the tide and compass

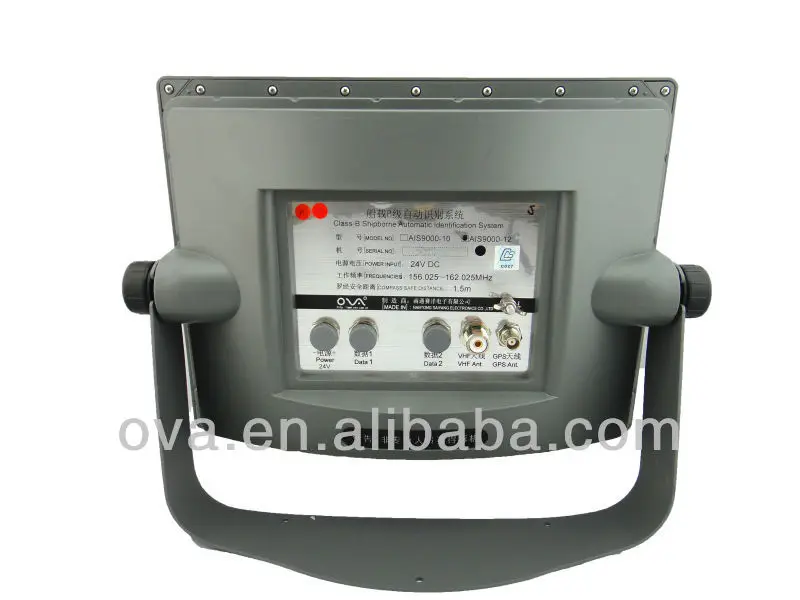

Interface			GPS output:RS-422,NMEA0183,4800bps
			AIS input/output:RS-422,NMEA0183,38400bps
			sonar input/output:RS-422,NMEA0183,115200bps
			GPS Antenna Interface:BNC base,impedence50Ω
			VHF Antenna Interface:UHF base,impedence50Ω
			Power interface:24V DC
Environment			Temperature -15°C~50°C
			Protection Level IP44
Certification			CCS certification



1. Built-in high sensitivity GPS receiver board with accurate positioning, adopting advanced and independent R&D technology of high stable navigational speed and course.

2. GPS, Chart, Tide Compass, etc, Internal AIS, can be connected with echo sounder, fish finder and wireless AIS fishing net buoy, Flash quick start technology, stable performance.

3. Autonomous access the AIS wireless network after power on, T9 numeric keypad and shortcut keys, supports pinyin and stroke Chinese character input, comfortable usage.

4. Aerospace-grade, all time professional true-colour TFT LCD. suitable for navigation in the sun and at night.
5. Rapidly update by external SD card that is fully supported the system, chart and the update of the extended functions.

6. CERTIFICATED of Marine Product(Class-B) by China Classification Society(CCS): Comply to AIS Class- B shipborne equipment standard (IEC 62287-1).

7. Certified by Register of Fishing Vessel of The People's Republic of China.





Q: Where is your company located? How can I visit it?
A: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.

Q: How can I get the sample?
A: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.

Q: What's the lead time?
A:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.

Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.

Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.

Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.

Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
