200 m Depth for water well drilling machine / Portable crawler water well drilling rig

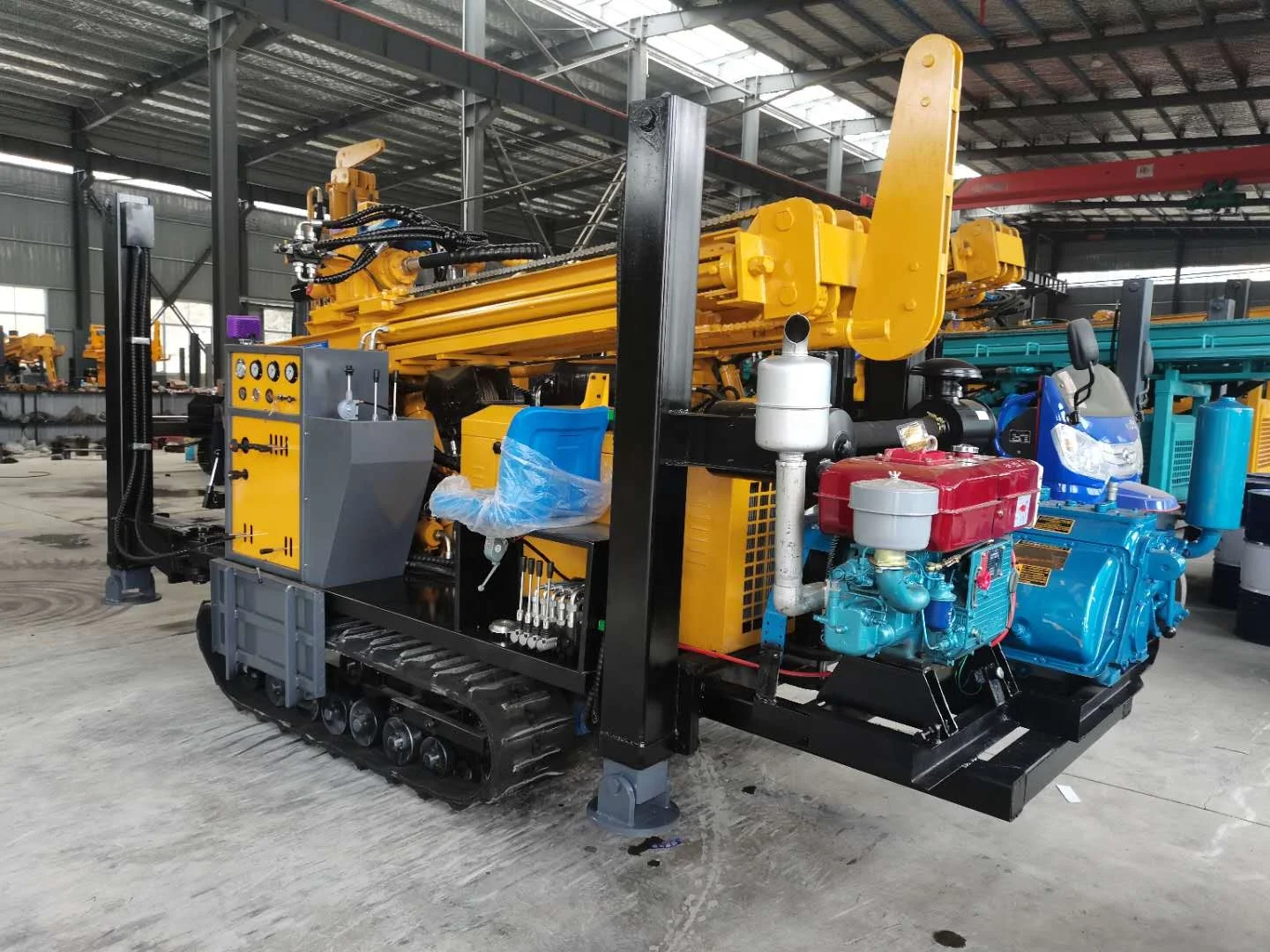

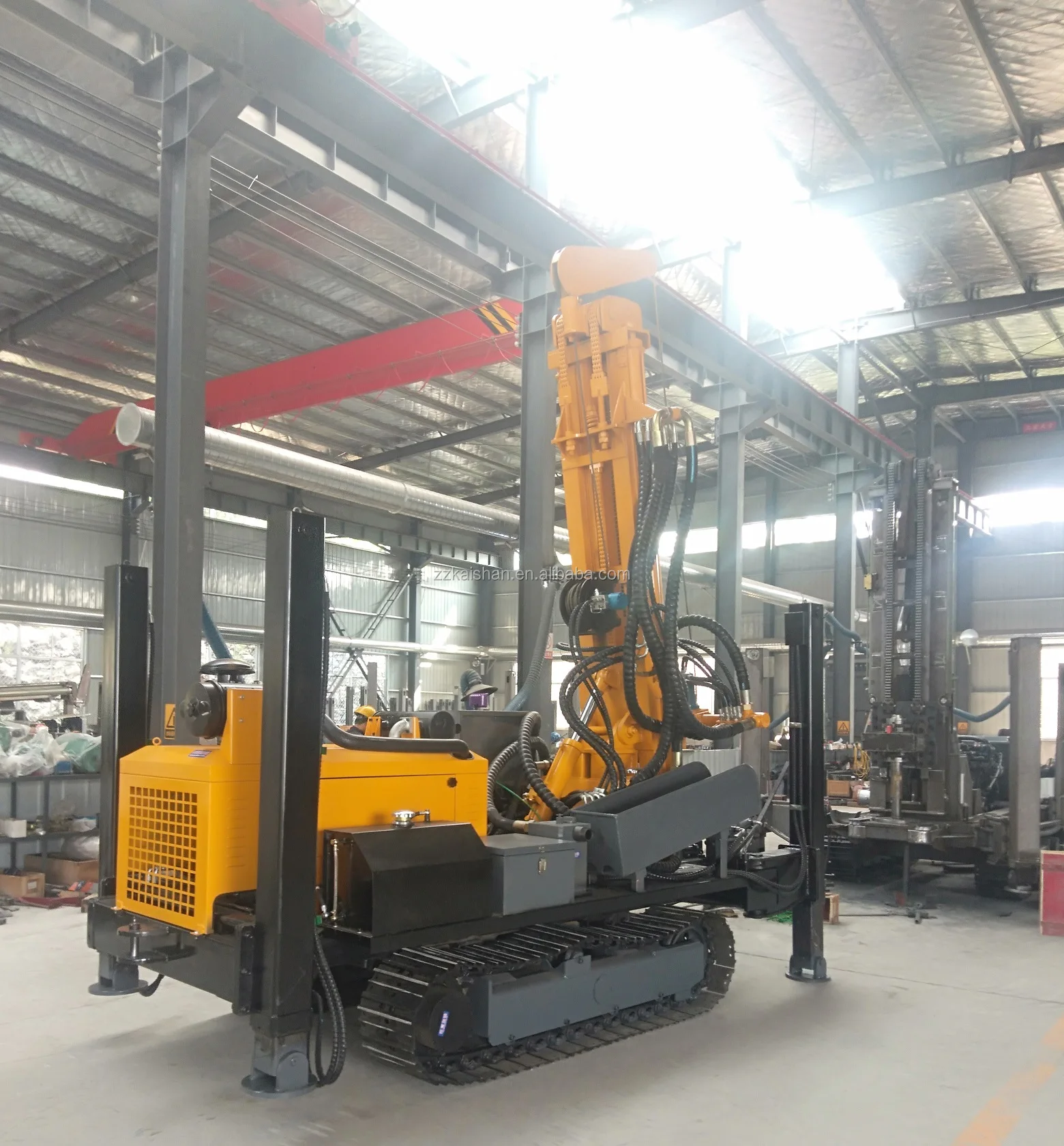

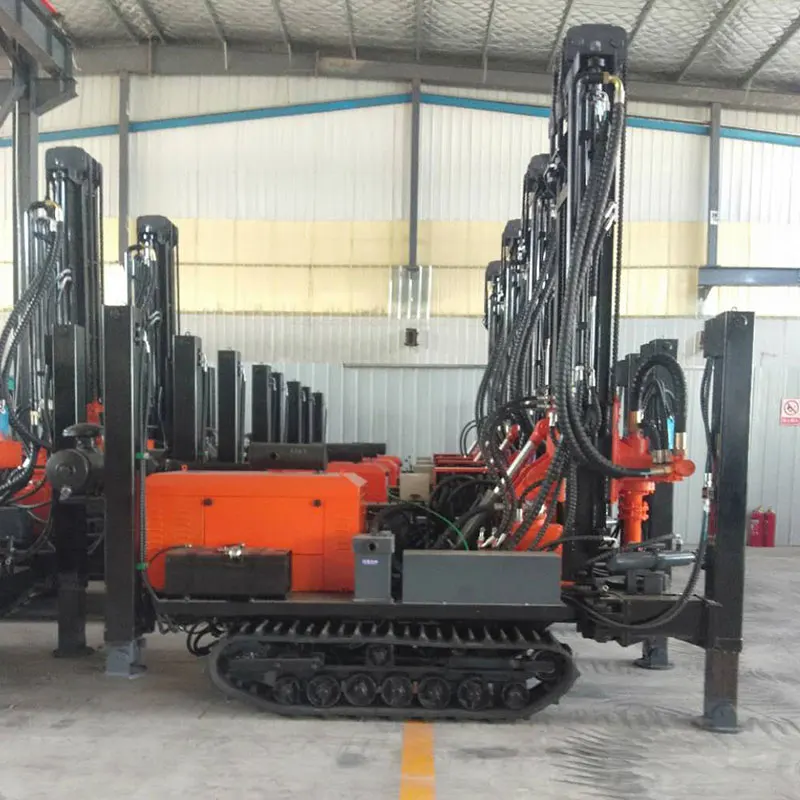

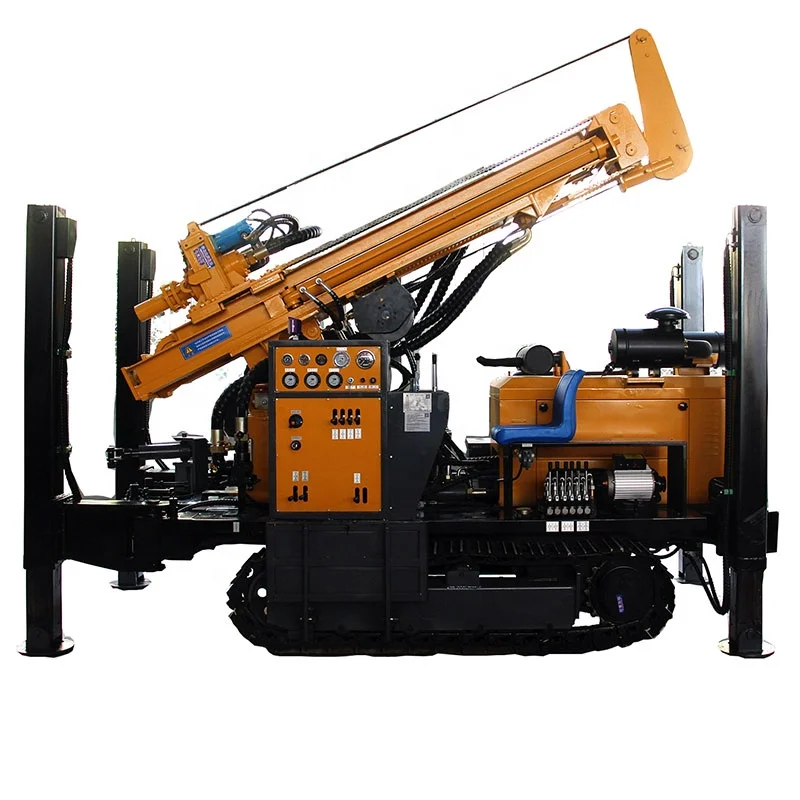

Pictures:







Descriptions of 200 m Depth for water well drilling machine / Portable crawler water well drilling rig for sale



1-Characters of Best Price KW10 used water well drilling machine/Portable crawler (truck mounted)water well drilling rig for sale

1-Double-motor powerful rotating system

2-High torque large aperture

3-Centralized operating system

4-Double oil -cylinder push system

5-Safe & stable travelling system



2-Function and Application of 200 m Depth for water well drilling machine / Portable crawler water well drilling rig for sale



It is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole, especially for the water wellof the mountains and rock terrian project.



The rig could drill in the different stratum, drilling up to 254mm in diameter.



Independent module design, allows drilling rig could be loaded on a truck to increase its mobility. The two steps of rotating and pushing speed to meet the soil and rock different, combination need.



Modular locator can be adjusted to replace the positioning plate according to the different types of drill pipe and the hammer to ensure centering accurate and reliable positioning. The winch institutions facilitate the lifting of drill pipe and shock, and reduce intensity.





Model	KW200
Max drill depth	200m
Dill diameter	Φ140--305 mm
Working pressure	17-30bar
Air consumption	17-30m³/min
Drill pipe length	3m
Drill pipe diameter	Φ102 ,φ89 ,φ76mm
Propeller shaft tension	0-3.5T
lifting force	18T
Torque	5000-6500N.m
Rotation speed	50-70r/min
Model  motor diesel	YUCHAI
Diesel motor	70KW/2600rpm
Velocity of displacement	0-2.5 Km/h
Climbing capacity	30°
Weight	5500kgs
Dimension	3800×1700×2350mm
Use	Complicated geological conditions: Rock, mud, sand etc.
Punch mode	Higher hydraulic rotation and propulsion, DTH drilling or mud pumping
Drill hammer	6", 8", 10" etc
Tool	Winch, Welding machines.
Recommended air compressor	KSZJ 29/23,no wheel





Working site of 200 m Depth for water well drilling machine / Portable crawler water well drilling rig
