Характеристики



Products Description

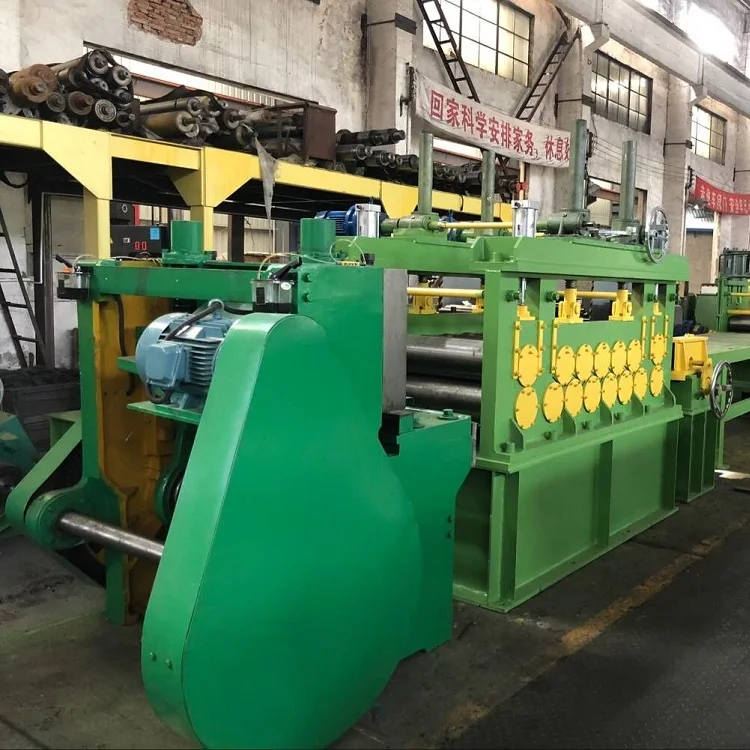

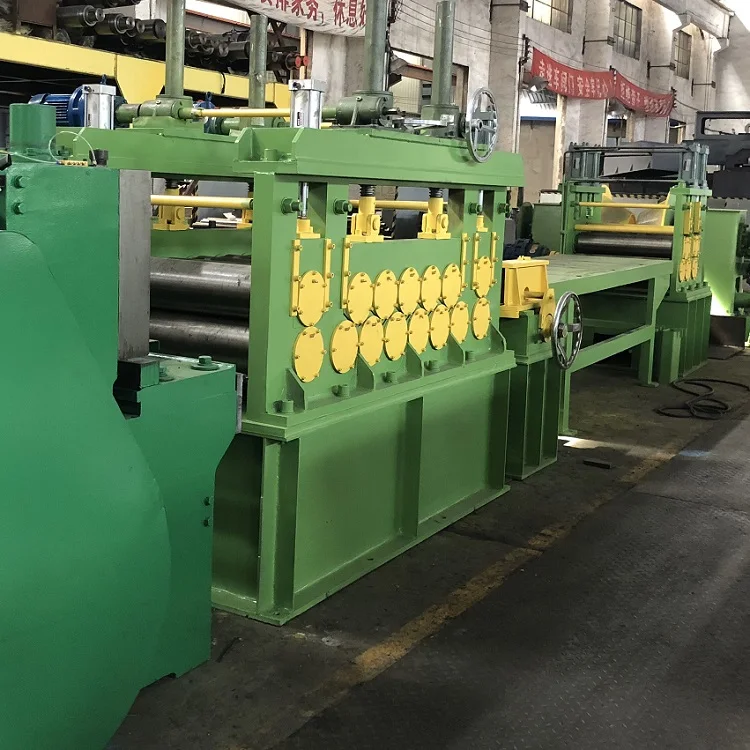

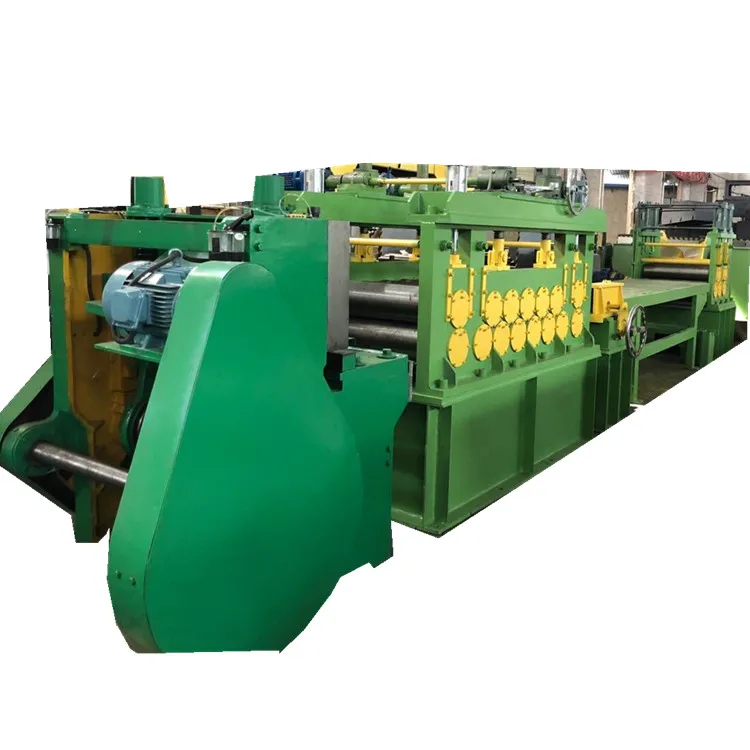

Cut to length line of steel coil and cross cutting machine
Cut to length line of steel coil and cross cutting machine is a complete line to cut the steel sheets from the steel coils. With the PLC , it can cut various size you need.
It can cut cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc.

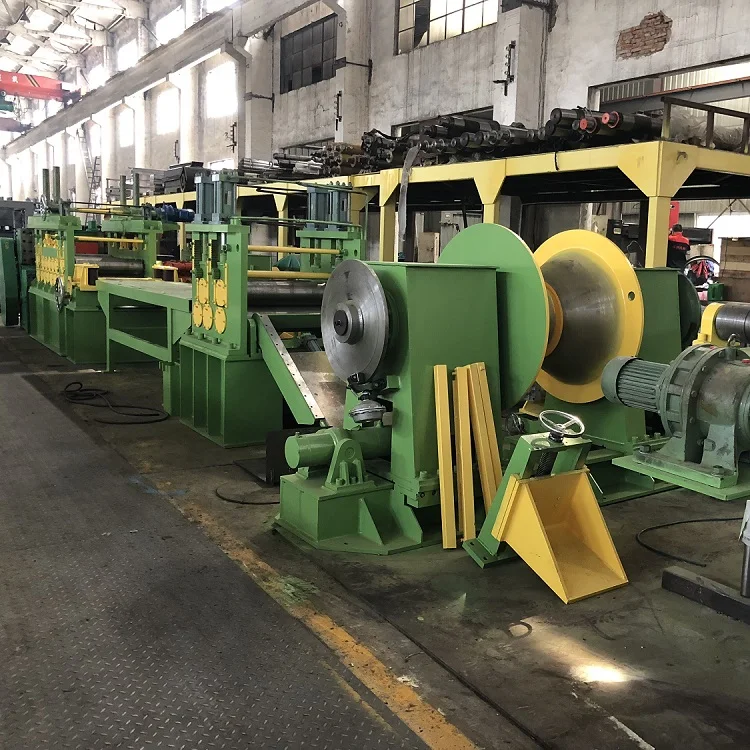

It is a heavy and strong production line for narrow but thick material which is used to cut thick steel coils. It is composed of the entry coil car, decoiler, press and pinch and pre-leveling device, straightening machine, cutter, Pneumatic stacker.






Product Paramenters


No.
Item
Parameters
1.
Application
Hot rolled steel
2.
Thickness
4-12mm
3.
Width
100-600mm
4.
Coil weight
20T
5.
Coil ID
500-800mm
6.
Length precision
±1.5mm
7.
Diagonal precision
±2mm
8.
Cut length
500-12000mm
9.
Line speed
0-25m/min
10.
Control model
PLC control


Model
Thickness(mm)
Width(mm)
Line speed(m/min)
Coil weight (Tons)
JPX-6X1600
2-6
600-1600
0-30
15 、20
JPX-6X2000
2-6
900-2000
0-30
15 、20
JPX-8X2000
3-8
900-2000
0-30
15 、20
JPX-10X2000
4-10
900-2000
0-25
15 、20
JPX-12X2000
5-12
900-2000
0-25
25、30
JPX-12X2200
5-12
900-2000
0-25
25、30、35
JPX-16X2000
6-16
900-2000
0-20
25、30、35
JPX-20X2500
10-20
900-2000
0-20
25、30、35 、40
JPX-25X2500
12-25
1000-2500
0-20
25、30、35 、40


Details Images

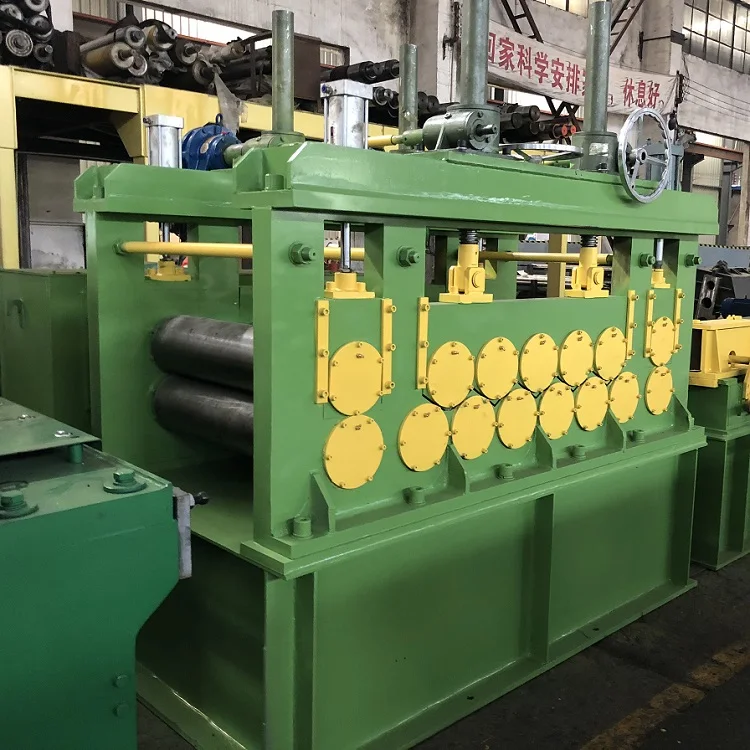

Straightening machine
1. Straightening machine or leveling machine is the important parts . It will influence the flatness of the final sheets.

2. It is designed with 11 pieces leveling roller and 2 groups of back-up roller design to ensure the leveling quality

3. The upper rollers can be lift up and down by motor as per different thickness


Pneumatic stacker
1. It is designed with the on-ground stacker design which can receive the long sheets, like 12m length or 16m length. We can customized the length as per customer's specific requirements.

2. On both sides, it is equipped with the pneumatic piling device which can pile the sheets in good order, so that can make it convenient to  packing the sheets in bundles.



Cutter
1.  Cutter is designed with the mechanical design which is strong enough to cut the thick material.

2. As per different customer's specific requirements, we can design the specific thickness and width cutter.

3. Cooperate with encoder to do the fix length cutting possible.


Manufacturing Technique




Wuxi Bangzhou Machinery Manufacturing Co.,Ltd has the abundant technical strength, professional production capacity to make us as one of the leading enterprises in the industry in product design and development.

We have seveal independent working area,fine machineing area, welding area, aeesmbly area and so on . All department is equipped with 1 or 2 testing technicians to guarantee the machine with high precision.

All the machines are managed and tested all-round before delivery to guarantee them in best condition when they are handed over to the customers.



Company Profile


Wuxi Bangzhou Machinery Manufacturing Co.,Ltd Located in Wuxi city, is a company specialized in steel coil slitting line, cut to length line, flat bar straightening and chamfering machine, and other steel coil cutting machines.

We gained the great reputation all over the world in the field of steel slitting line and cut to length line.

Welcome to your inquiry, we will do the best we can to build the machine you want!


Factory:Over 8000 square meter area.  All the design, produce and assembly will be finished here.
Warehouse : Over 2000 quare meter space. Mainly used to store the ready machines .
Office building: domestic and internation sales department, designing department, management department.


Certifications




Customer Photos




Exhibition




FAQ
(1) What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and rich experienced..
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 4 lines per month

(2) Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any
problem , contract us and we will solve for you.

(3) How to visit your company?
Our factory is located in Wuxi city, near SHANGHAI. So there are two ways to our factory.
One is by flight, directly to Wuxi Airport.
Another is by high speed train to WUXI EAST station.
We will pick you up at the train station or airport.

(4) What information you need to prepare the quotation:
1. coil thickness(min-max)
2. coil width(min-max)
3. what kind of your material
4. weight of your coils(max)
6. how many tons you need per day or per month
