Алюминиевые профильные двери и оборудование для

Категория: Линия поперечной резки >>>
Поставщик: Jinan,Hengdi,Machinery,Co.,Ltd.

Цена:3 200,00 $ - 3 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	3808.22 $*	3998.26 $*
Aug-20-2025	3776.1 $*	3965.14 $*
Jul-20-2025	3168.96 $*	3326.29 $*
Jun-20-2025	3712.46 $*	3898.24 $*
May-20-2025	3232.27 $*	3394.95 $*
Apr-20-2025	3648.24 $*	3830.21 $*
Mar-20-2025	3616.92 $*	3797.83 $*
Feb-20-2025	3584.48 $*	3763.52 $*
Jan-20-2025	3552.53 $*	3730.95 $*

Характеристики

Product Description

SHZ4-120 x 4500

Product Application

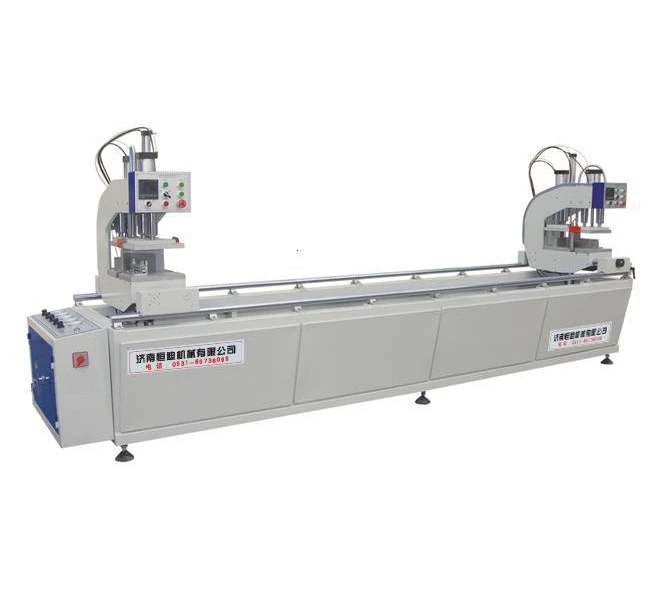

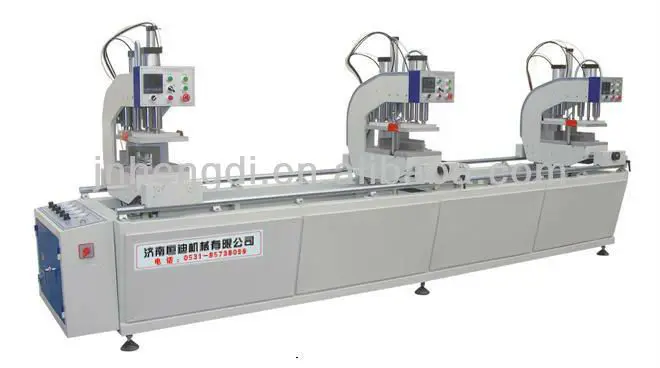

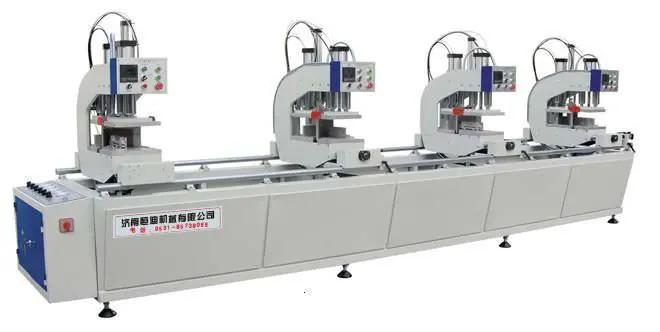

This machine is the production of plastic doors and Windows of main equipment, which can
realize four, three, two, one point, Ting, the cross in Ting, different Angle welding, four head can work together at the same
time, also can respectively the combination or single work alone. No oil lubrication bearing the CM motion pair, high accuracy,especially the control part USES the import original PLC machine so the reliability is greatly increased.

DimensionsInput voltage of	380 V / 220 V frequency 50 Hz
The input power	4.5 Kw
Working pressure	0.4 ~ 0.6 MPa
Gas consumption	200 L/min
Welding profiles	400 ~ 4500 mm length
Welding profiles	20 to 120 mm height
Shape dimension	5300 x 950 x 1700 mm
