1100 оборудование для производства
- Категория: Building Material Machinery >>>
- Поставщик: Botou,Haide,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 16660.85 $* | 17493.45 $* |
| Aug-19-2025 | 16520.25 $* | 17346.11 $* |
| Jul-19-2025 | 13860.42 $* | 14553.41 $* |
| Jun-19-2025 | 16240.12 $* | 17052.12 $* |
| May-19-2025 | 14140.8 $* | 14847.54 $* |
| Apr-19-2025 | 15960.8 $* | 16758.71 $* |
| Mar-19-2025 | 15820.73 $* | 16611.26 $* |
| Feb-19-2025 | 15680.54 $* | 16464.69 $* |
| Jan-19-2025 | 15540.39 $* | 16317.37 $* |
Характеристики

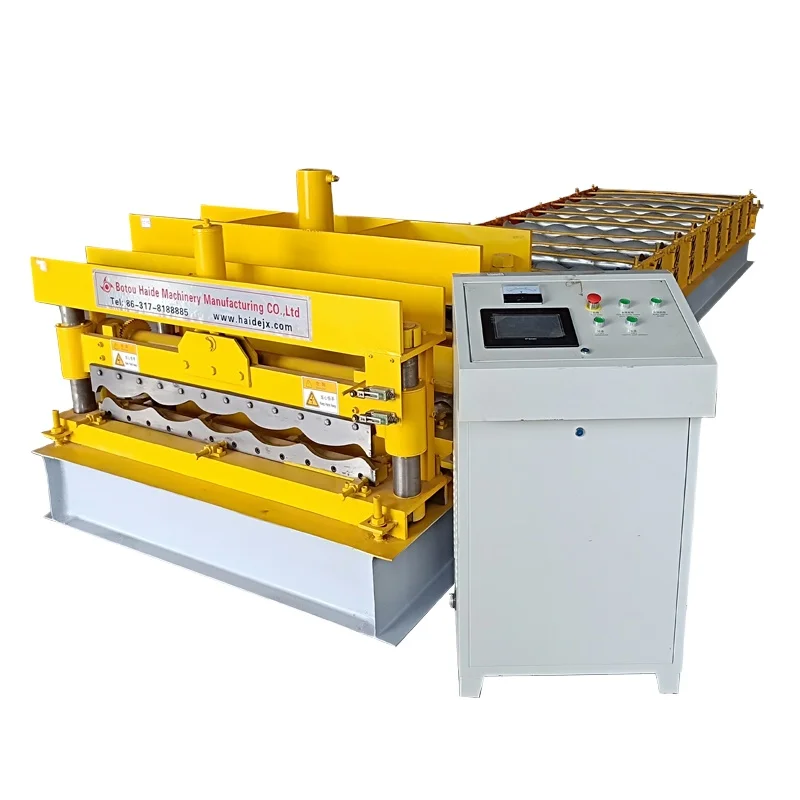

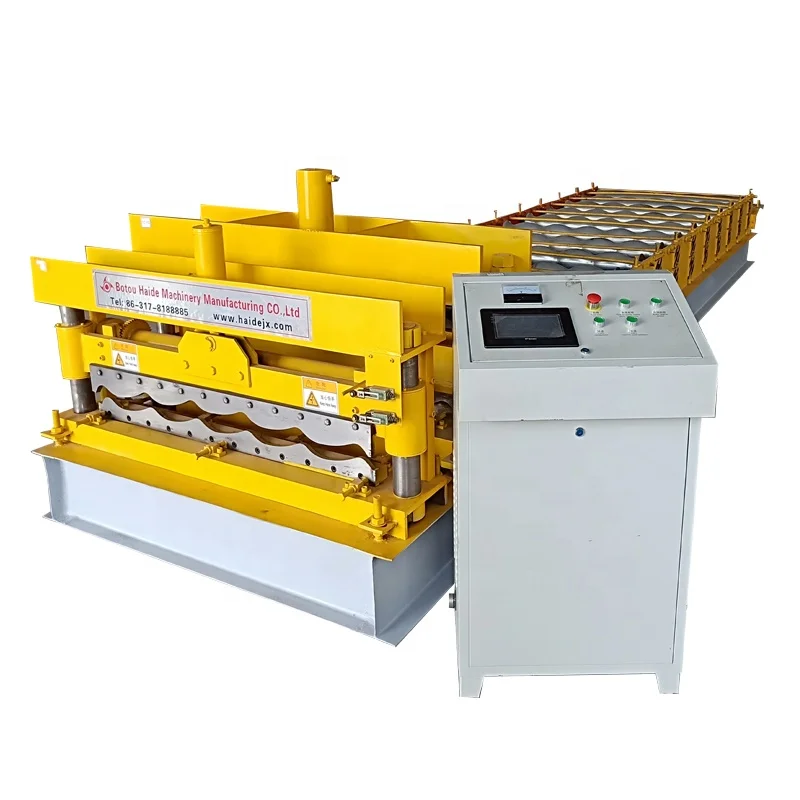

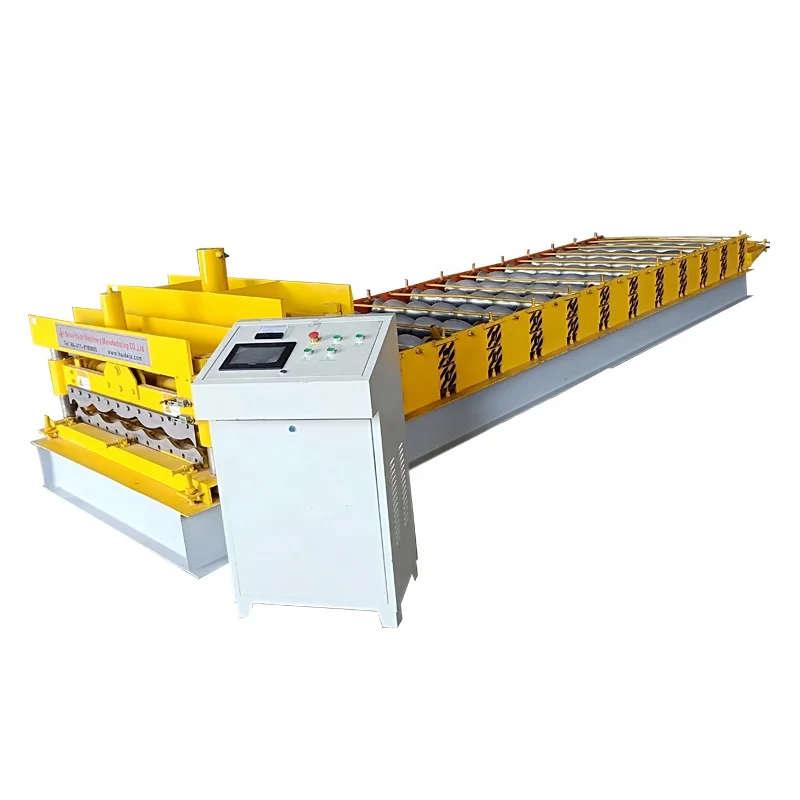

1100 Roof tile making machinery
Parameters:
1 Material spec:colored steel sheet, galvanized steel sheet
2 Thickness of coil sheet: 0.5-0.6mm
3 Main motor power: 4kw
4 Forming speed: 80m/hour
5 Hydraulic station power: 4kw
6 Quntity of stands: 12rows
7. Voltage:380v 3 phase 60Hz or at buyer’s requirement
Product Line:
Components of Machine and Main Description | ||
| Components of Machine | Main Description |
1. | Uncoiler(different type) Simple uncoiler; upgrade uncoiler; auto decoiler with car | 1. loading capacity:5000kgs 2. main power:4kw 3. coil width:1250mm |
2. | Feeding Section with guide | Easily for the raw material entry |
3. | Main forming machine | Forming the panel according your requirement |
4. | PLC control system | Automatically control the quantity of sheet, cutting length. |
5. | hydraulic press and Cutting blade | press and Cutting the panel automatically |
6. | Set off table |
1 or without if it's fall-down type |
7. | Coverage | Put on chain to escape damage to workers |
Pictures

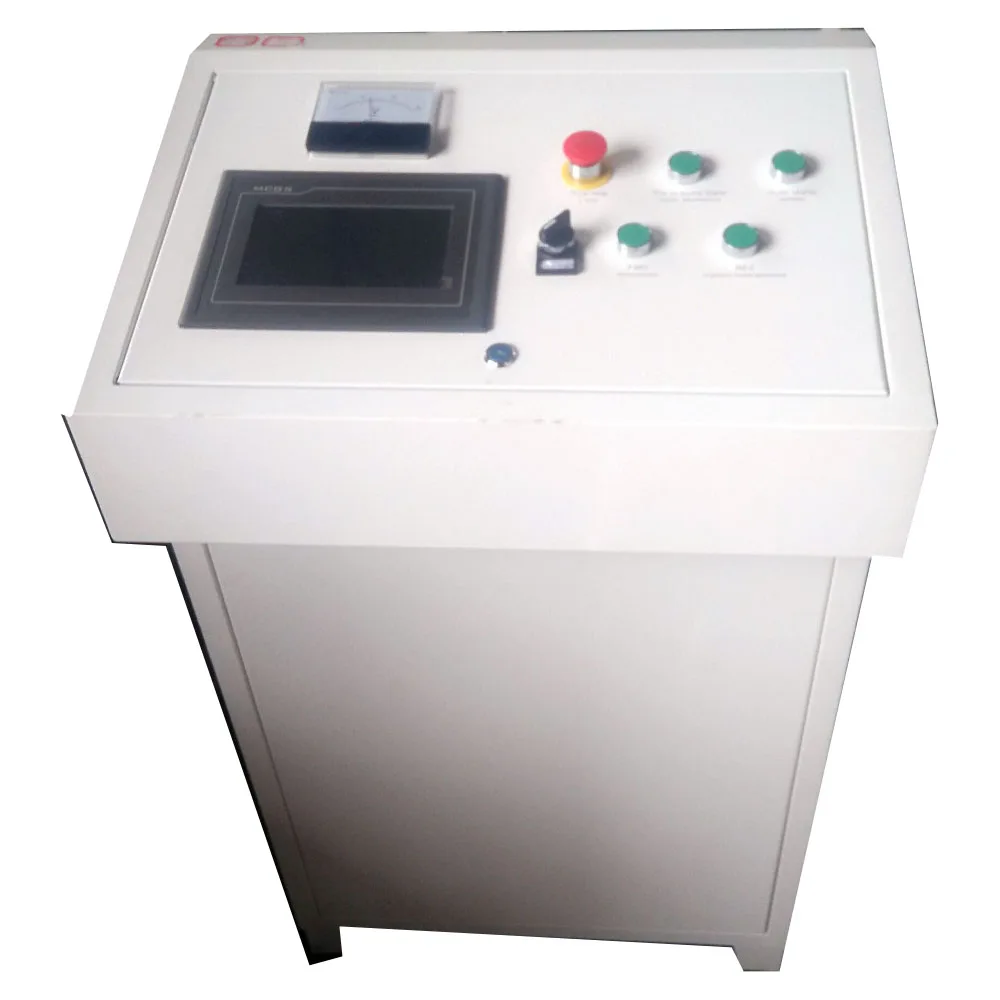

Decoiler-machine-electronic box-hydraulic station
Clients Visiting
Company Information
Botou Haide Machinery Manufacture Co.,Ltd was established in 1996.
Our products include: Glazed Tile Roll Forming Machine, Ridge Cap Roll Forming Machine,Roof Gutter Roll Forming Machine, Color Steel Roll Forming Machine, Russian Standard Steel Roll Forming Machine, Joint-hidden Roll Forming Machine, Downspout Forming Machine, C/Z Purlin Roll Forming Machine, Deck Floor Roll Forming Machine, Highway Guardrail Roll Forming Machine, Wind-Proof and Dust Control Plate Roll Forming Machine, Roller Shutter Door Roll Forming Machine, Stone Coated Roof Tile Production Line, Long-Span No Grider Roll Forming Machine, car panel,container panel, Storage Rack and Stand Column, Photovoltaic Supporter, Cable Tray Roll Forming Machine, Sandwich Panel Production Line, 3D Decorative Panel Machine, Advertisement Gusset Plate Machine and Bending &Cutting Machine & Decoiler, etc.
