1 Breif Introduction



• Ringlock scaffolding, also called Modular Scaffolding and Multidirectional Scaffolding, the junction enables quick and easy connection of load bearing items as well as reinforcing parts to each other with an enormous rigidity.


• Ringlock scaffolding is the new generation product of cuplock sacffolding.The buckle part is a disc which diameter 133mm,and thickness 10mm. Scaffold vertical is a tube of D48*3.5mm which material is Q235/Q345B. On the vertical welded many discs at specific distance ,there is 8 holes on the disc,used to jonit the posts. On the bottom of vertical post is a base collar used to connect the scaffolding and the ground. Ledger is made by a tube with two wedge welded on the ends separately

2. Ringlock Scaffolding Components Specification Table:

Component Picture	Component Name	Component Sizes	Finishing	Unit weight (kg/pc)
	Hollow Screw Base Jack	38mmx4mmx600mm, base plate: 150mmx150mmx6mm	Hot Dip Galvanized	3.86
	Base Collar	234mm	Hot Dip galvanized	1.74
	Vertical Standard W/ Spigot	48.3mmx3.2mmx500mm	Hot Dip Galvanized	3.20
	Vertical Standard W/ Spigot	48.3mmx3.2mmx1000mm	Hot Dip Galvanized	5.70
	Vertical Standard W/ Spigot	48.3mmx3.2mmx1500mm	Hot Dip Galvanized	8.20
	Vertical Standard W/Spigot	48.3mmx3.2mmx2000mm	Hot Dip Galvanized	10.50
	Vertical Standard W/Spigot	48.3mmx3.2mmx2500mm	Hot Dip Galvanized	13.2
	Vertical Standard W/Spigot	48.3mmx3.2mmx3000mm	Hot Dip Galvanized	15.4
	Vertical Standard W/ Spigot	48.3mmx3.2mmx4000mm	Hot Dip Galvanized	20.30
	Ringlock Ledger	48.3mmx3.2mmx730mm	Hot Dip Galvanized	3.45
	Ringlock Ledger	48.3mmx3.2mmx1090mm	Hot Dip Galvanized	4.78
	Ringlock Ledger	48.3mmx3.2mmx1400mm	Hot Dip Galvanized	5.96
	Ringlock Ledger	48.3mmx3.2mmx1570mm	Hot Dip Galvanized	6.62
	Ringlock Ledger	48.3mmx3.2mmx2070mm	Hot Dip Galvanized	8.50
	Ringlock Ledger	48.3mmx3.2mmx2570mm	Hot Dip Galvanized	10.39
	Ringlock Ledger	48.3mmx3.2mmx3070mm	Hot Dip Galvanized	12.28
	Ringlock Ledger	48.3mmx3.2mmx4140mm	Hot Dip Galvanized	16.70
	U Ledger	730mm	Hot Dip Galvanized	3.60
	U Ledger	1090mm	Hot Dip Galvanized	7.27
	Diagonal  Brace (48.3mmx2.5mm)	2000mmx730mm	Hot Dip Galvanized	8.03
		2000mmx1090mm	Hot Dip Galvanized	8.41
		2000mmx1400mm	Hot Dip Galvanized	8.85
		2000mmx1570mm	Hot Dip Galvanized	9.42
		2000mmx2070mm	Hot Dip Galvanized	10.10
		2000mmx2570mm	Hot Dip Galvanized	11.20
		2000mmx3070mm	Hot Dip Galvanized	12.38
	Steel Plank with Pressed O Hook	3070mmx320mmx76mmx1.5mm	Pre-galvanized	21.33
	Steel Plank with Pressed O Hook	2570mmx320mmx76mmx1.5mm	Pre-galvanized	18.28
	Steel Plank with Pressed O Hook	2070mmx320mmx76mmx1.5mm	Pre-galvanized	15.25
	Steel Plank with Pressed O Hook	1570mmx320mmx76mmx1.5mm	Pre-galvanized	12.18
	Steel Plank with Pressed O Hook	1400mmx320mmx76mmx1.5mm	Pre-galvanized	10.50
	Steel Plank with Pressed O Hook	1090mmx320mmx76mmx1.5mm	Pre-galvanized	8.58
	Steel Plank	730mmx320mmx76mmx1.5mm	Pre-galvanized	6.41
	Steel Plank with U Hook	3070mmx320mmx76mmx1.5mm	Pre-galvanized	22.10
	Steel Plank with U Hook	2570mmx320mmx76mmx1.5mm	Pre-galvanized	18.10
	Steel Plank with U Hook	2070mmx320mmx76mmx1.5mm	Pre-galvanized	14.30
	Steel Plank with U Hook	1570mmx320mmx76mmx1.5mm	Pre-galvanized	11.27
	Steel Plank with U Hook	1400mmx320mmx76mmx1.5mm	Pre-galvanized	11.05
	Steel Plank with U Hook	1090mmx320mmx76mmx1.5mm	Pre-galvanized	8.17
	Steel Plank with U Hook	730mmx320mmx76mmx1.5mm	Pre-galvanised	5.70
	Aluminum Alloy Stair	3070mmx2000mm	N/A	36
	Aluminium Alloy Stair	2570mmx2000mm	N/A	30
	Aluminum Alloy Stair	2070mmx2000mm	N/A	26
	Plywood Access Plank with Ladder	3070mmx610mm	N/A	28
	Plywood Access Plank with Ladder	2570mmx610mm	N/A	24.50
	Plywood Access Plank with Ladder	2070mmx610mm	N/A	21.50

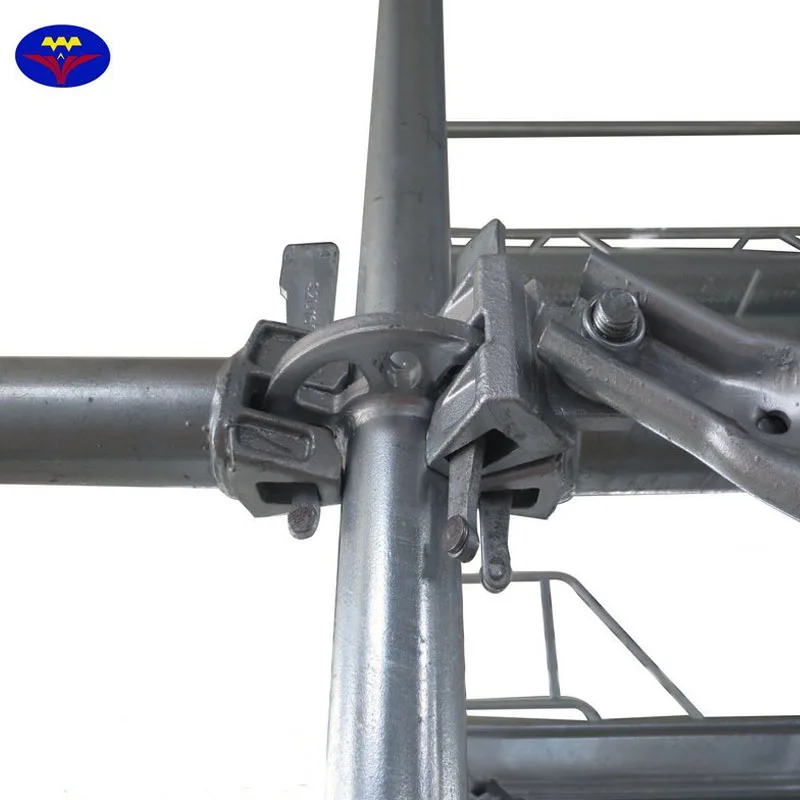

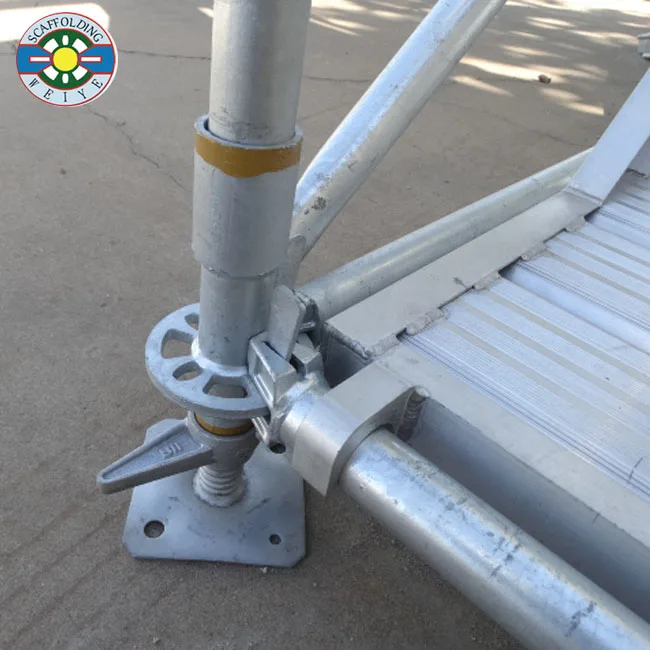

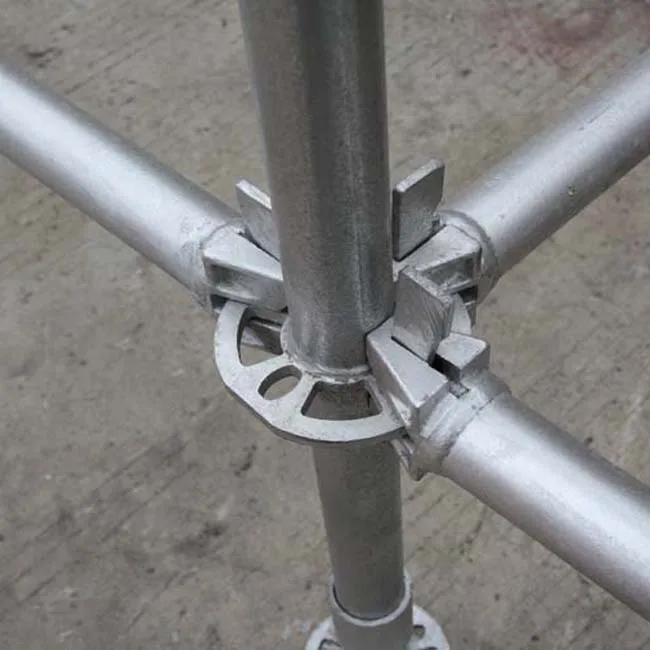

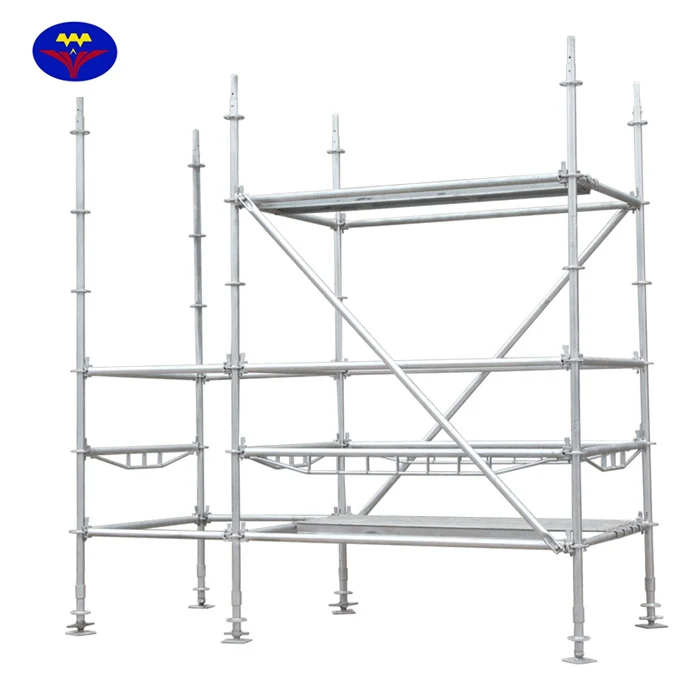

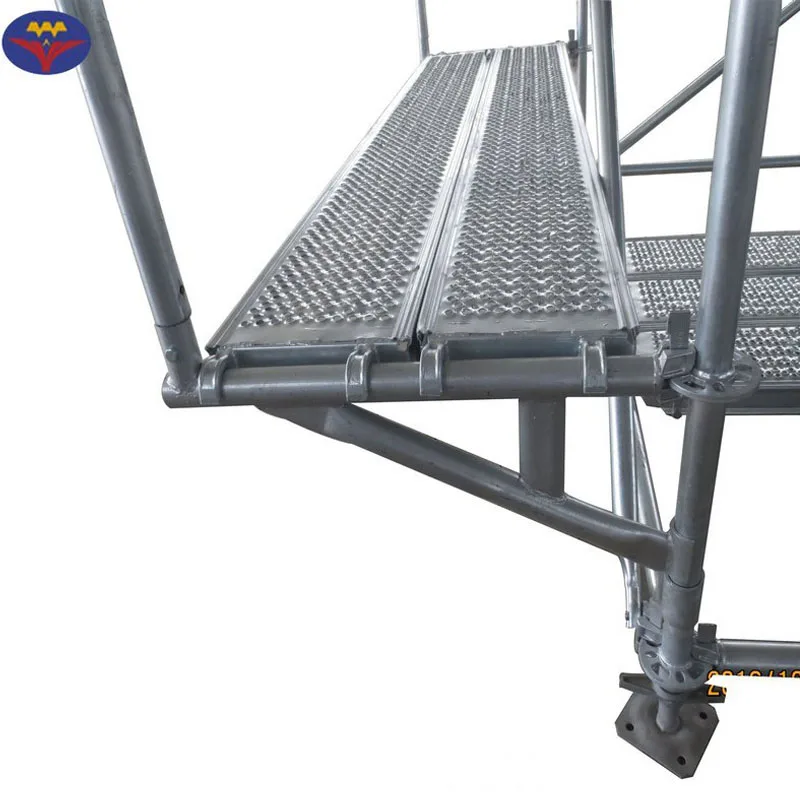

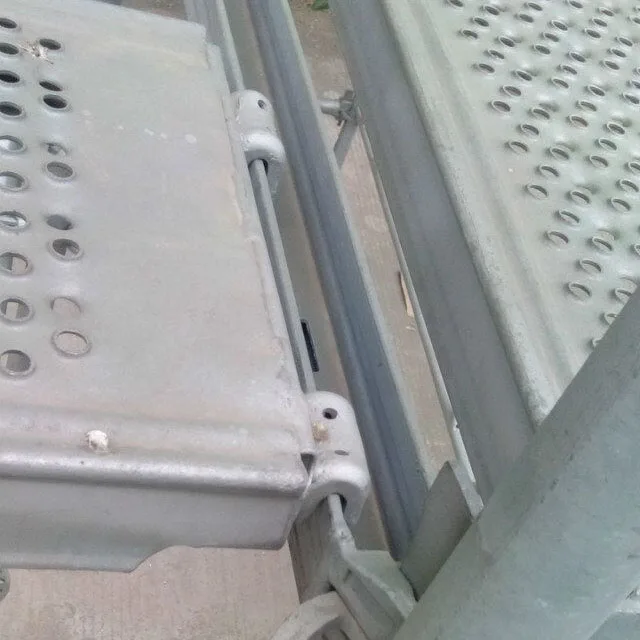

Product Photos:




 Automatic Welding and Robot Welding Photos:



 SGS Test Report:





4.Company Profile:



Rizhao Weiye Tools Co.,Ltd. is a leading manufacturer of system scaffoldings and accessories, couplers, shoring props, fences, ladders, frames, pipes, steel trays, and other related products in Rizhao City, Shandong, China.



We have been in the business for more than 25 years, and all our products are BS 1139 and EN 74 certified, the quality is the best. Our products are very popular in European countries, Australia, North America, Mid-east countries, and South East Asia and some African countries, etc.



Currently, we have well-trained workers of more than 300, advanced forging lines of 8 and many other advanced equipment. We are also capable of tooling designing, performance testing, new products researching and developing. We have two factories taking up to 160000 square meters. With years of development, we can reach a production capacity of more than 20 containers per month. We are growing all the time.



We have our own zinc plating and powder coating workshops and cast steel/cast iron part processing workshop, which enable fastest delivery and most consistent quality of the products.



5.Our main products are as follows



1. System scaffolding:

nclude: Kwikstage system scaffolding and accessories; Ringlock system scaffolding and accessories; Cuplock system scaffolding and accessories; Haki system scaffolding and accessories.



2. Couplers/Clamps:

We can manufacture all kinds of drop forged or pressed couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.



3. Frames

Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.



4. Shoring Props

Quality shoring props of different specifications can be manufactured in our factory.



5. Planks/ Toe Board:

Both aluminum and steel planks can be manufactured in our factory.



6. Others

We can also manufacture casting parts, fences, ladders, steel trays/stillages and other related products that are needed in the erection of scaffolding.
