Water heating element

1)     Transflux type. Water flows in the hole of the heating element and the water could be heated by the heating element.

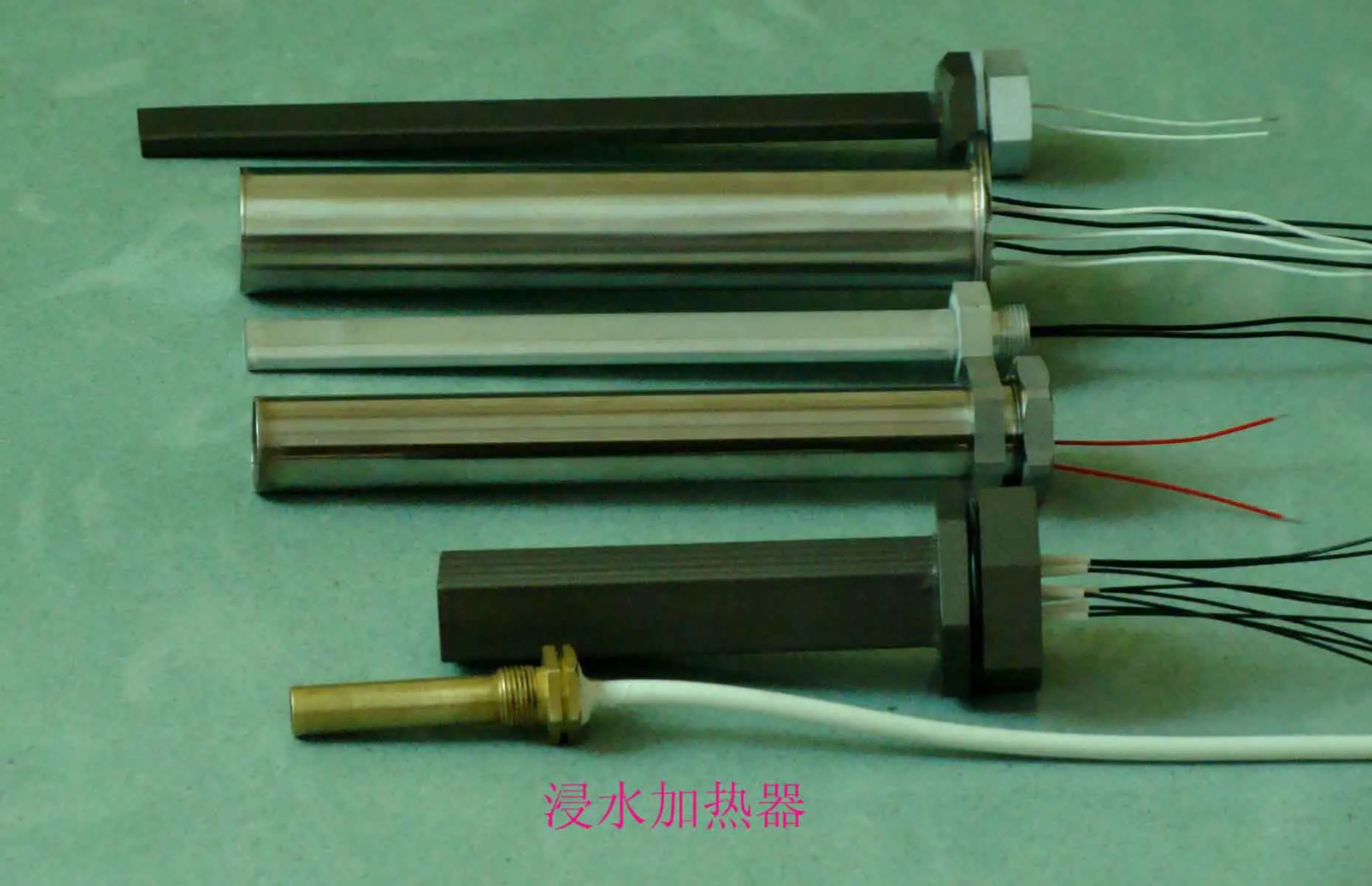

2) Immerging type. The heating element is immerged in a water container, and the water could be heated by the heating element.

3) Underside type. The heating element can be put under a water container, and the water could be heated by the heating element.

4) Surrounding pipe type. The heating element can be surrounded out of the metal water pipe and the water in pipe could be heated.

The above types can be consist of materials below:

1) Aluminium shell or pipe, it is not good in resistance to corrosion. Anti-corrosion coating could be betterin resistance to corrosion.
2) Brass or copper shell or pipe, it is good in resistance to corrosion. But it costs higher.
3) Ceramic shell, it’s good in resistance to corrosion. But its heating power could not be very large.
4) Stainless steel shell or pipe, it’s very excellence for preventing corrosion, and meets food safe standard. But it costs higher and has bigger bulk.

5) Titanium shell, it’s very good in corrosion resistance, but the cost is quite high.



3. Some samples of uses.

PTC water heater could be used for shower, footbath, washing hand, vegetable and dish, drink warmer and boiler, fermenter, tea warmer, coffee wamer, milk warmer, vapor generator, sauna bath.

They could be used in heating diesel oil, gasoline or other liquid. Using PTC as a heating element could prevent the oil burning, it’s safer.



4. Notice in appliance.

PTC as a heating element, it fits for high safety, long life-time, slap-up product. In some situations, it’s low cost and convenient.

The electric power of PTC water heater changes with the temperature of water. The higher is the temperature of water, the smaller is the power.

Using higher switch temperature PTC can get higher power, 220~270Cswitch temperature PTC is selected usually. But if the switch temperature is too high, the reliable will reduce.



4. Current products.



Transflux water heating element.

Shape	Total length /mm	Width /mm	Height /mm	Inner diameter of pipe	Applied voltage /V	Surface temperature in air /C	Power in 25C water /W
Aluminum pipe	150	21.5	23.5	Φ13	220	260	400
Aluminum pipe	200	21.5	25	Φ13	220	260	1200
Aluminum pipe	200	33	48	Φ26	220	240	1500
Aluminum pipe	400	39	39	Φ16.5	220	260	9000
Aluminum pipe	200	48	48	Φ15	220	260	4500
Stainless steel pipe	250	35.5	35.5	Φ15	220	260	1800
copper pipe	400	35.5	35.5	Φ15	220	260	3200
Multi-pipe assembly	300	200	65	Φ26	220	260	12000

Notice:
1) Applied voltage could be 12~36V, 100~380V.
2) The length could be selected properly by customer, larger power could be made with longer pipe.
3) The connected terminal, diameter, shape, could be selected by customer.
4) The surface temperature without water, could be between 50~260C, the higher is this temperature, the larger is the power.
5) The temperature of out-water could be affected by the power of PTC, flux of water, heating dispersion..
6) For preventing corrosion, other pipe, such as, stainless steel, copper, brass, titanium, monel, could be selectted. The inner of aluminium pipe can be nickel plating.
