Высокопрочная Поверхностная шлифовальная
- Категория: Шлифовальный станок >>>
- Поставщик: Zhengzhou,Timeway,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.4 $* | 0.35 $* |
| Aug-16-2025 | 0.38 $* | 0.22 $* |
| Jul-16-2025 | 0.89 $* | 0.36 $* |
| Jun-16-2025 | 0.47 $* | 0.18 $* |
| May-16-2025 | 0.52 $* | 0.40 $* |
| Apr-16-2025 | 0.94 $* | 0.46 $* |
| Mar-16-2025 | 0.78 $* | 0.56 $* |
| Feb-16-2025 | 0.45 $* | 0.34 $* |
| Jan-16-2025 | 0.30 $* | 0.32 $* |
Характеристики

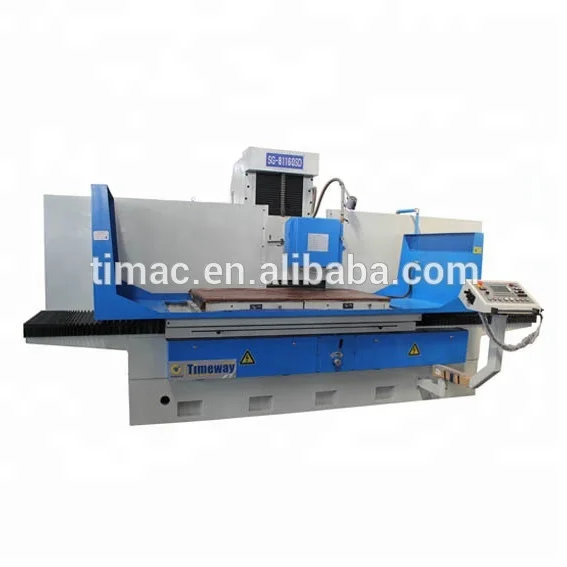

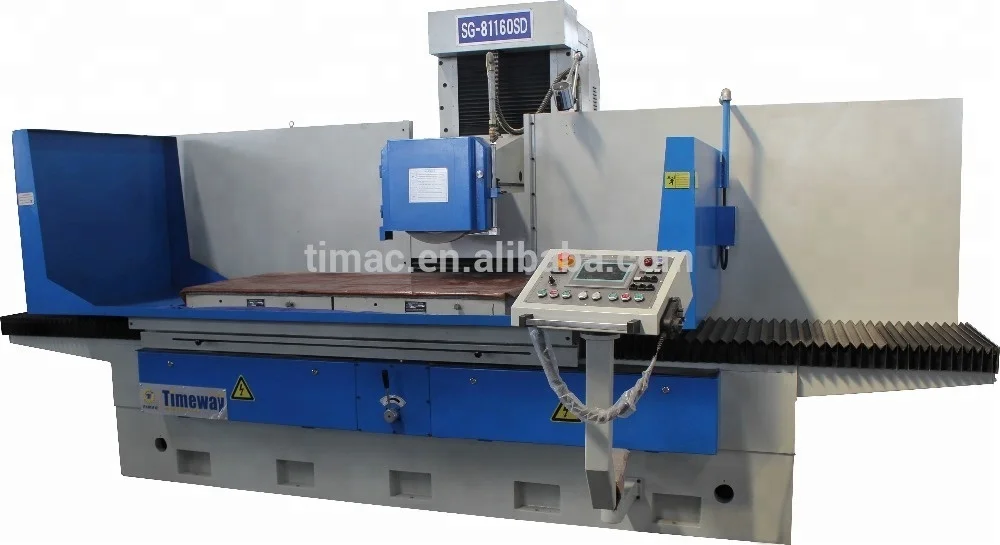

Products Description
* Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable power for precision grinding.
* With auto. center lubrication unit.
* With auto. center lubrication unit.
* Very easy to set auto ground program include rough, finish, and spark-out stroke.
* Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing.
* The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
* MPG is equipped for Y&Z axis(spindle elevating and cross feed), the operating position is free, it is so easy to control the machine.
* The machine is standard equipped with SIEMENS 7" LCD-TFT colourful touchable screen. Built in program of our engineers' genius philosophy makes the operation very simple and convenient for the operators.
* The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
* Well designed external hydraulic unit, with high power oil pump and precision elec-magnetic valve set, stand equipped with cooling fan. The whole system supply great smoothly power for fine ground.
Specification | Unit | SG-60125FR | SG-60160FR | SG-60220FR | SG-60600FR |
Table size | mm | 630x1250 | 630x1600 | 630x2200 | 630x6000 |
Grinding area | mm | 600x1250 | 600x1600 | 600x2200 | 600x6000 |
Distance from spindle to table | mm | 600 | 600 | 600 | 600 |
Electro magnetic chuck size (pcs.) | mm | 600x1000x1 | 600x800x2 | 600x1000x2 | 600x1000x6 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 | 5-25 |
Cross intermittent feed rate | mm/str | 0-30 | 0-30 | 0-30 | 0-30 |
Cross continuous feed speed | mm/min | 0-600 | 0-600 | 0-600 | 0-600 |
Cross feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 |
Vertical intermittent feed rate | mm/str | 0.005/0.01/0.02/0.03/0.04 | 0.005/0.01/0.02/0.03/0.04 | 0.005/0.01/0.02/0.03/0.04 | 0.005/0.01/0.02/0.03/0.04 |
Vertical continuous feed speed | mm/min | 0-300 | 0-300 | 0-300 | 0-300 |
Vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 |
Grinding wheel size | mm | Φ355x(20-50)xΦ127 | Φ355x(20-50)xΦ127 | Φ355x(20-50)xΦ127 | Φ355x(20-50)xΦ127 |
Main motor power | kw | 7.5 | 7.5 | 11 | 11 |
Package dimensions (LxWxH) | mm | 4340x2300x2500 | 5100x2300x2500 | 6580x2300x2500 | |
Machine weight | kg | 6500 | 7000 | 8000 |

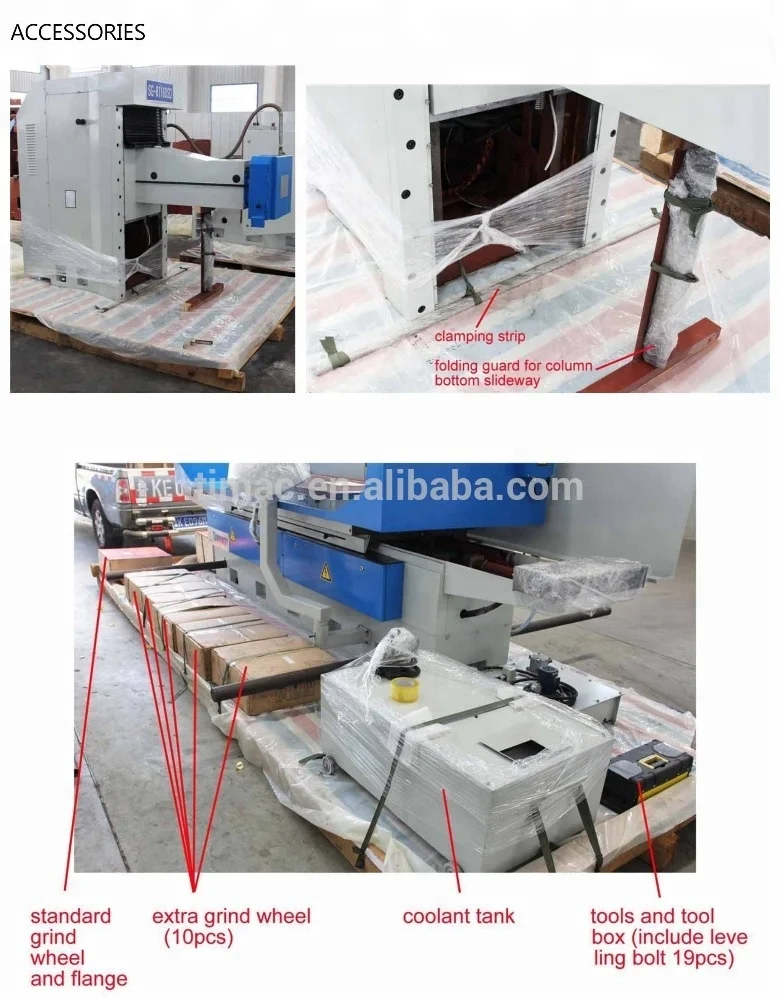

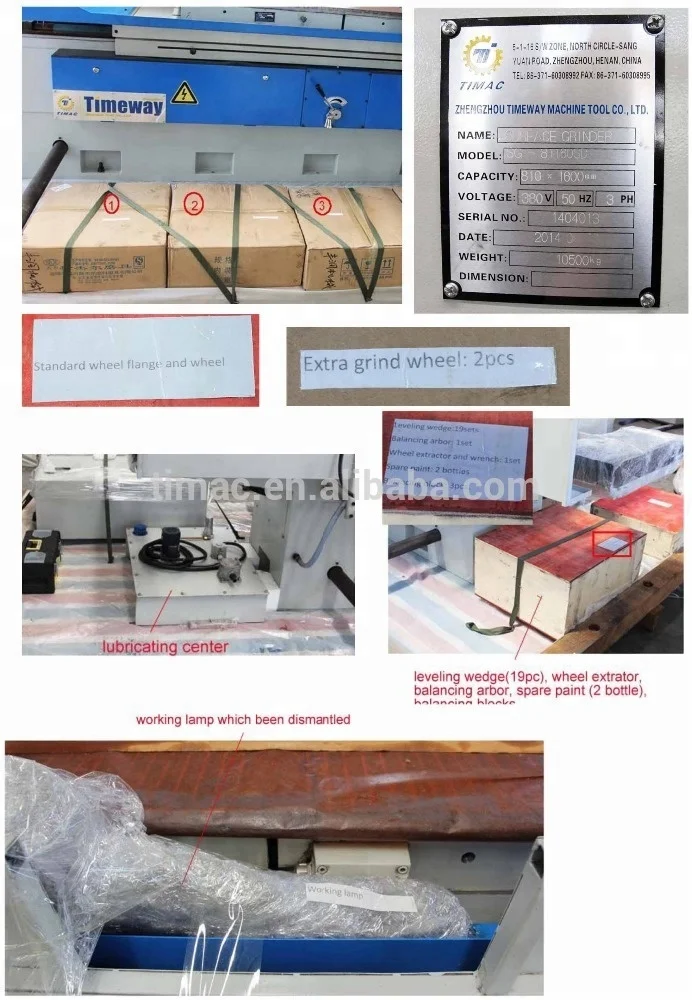

- LC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
