AFC60G 60 мм 110 в 230 поперечный потоковый
- Категория: Поперечно-проточные вентиляторы >>>
- Поставщик: ACTIVA,INC.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.56 $* | 0.65 $* |
| Aug-15-2025 | 0.21 $* | 0.71 $* |
| Jul-15-2025 | 0.47 $* | 0.44 $* |
| Jun-15-2025 | 0.59 $* | 0.57 $* |
| May-15-2025 | 0.15 $* | 0.64 $* |
| Apr-15-2025 | 0.48 $* | 0.22 $* |
| Mar-15-2025 | 0.51 $* | 0.21 $* |
| Feb-15-2025 | 0.51 $* | 0.91 $* |
| Jan-15-2025 | 0.37 $* | 0.79 $* |
Характеристики
Product Description

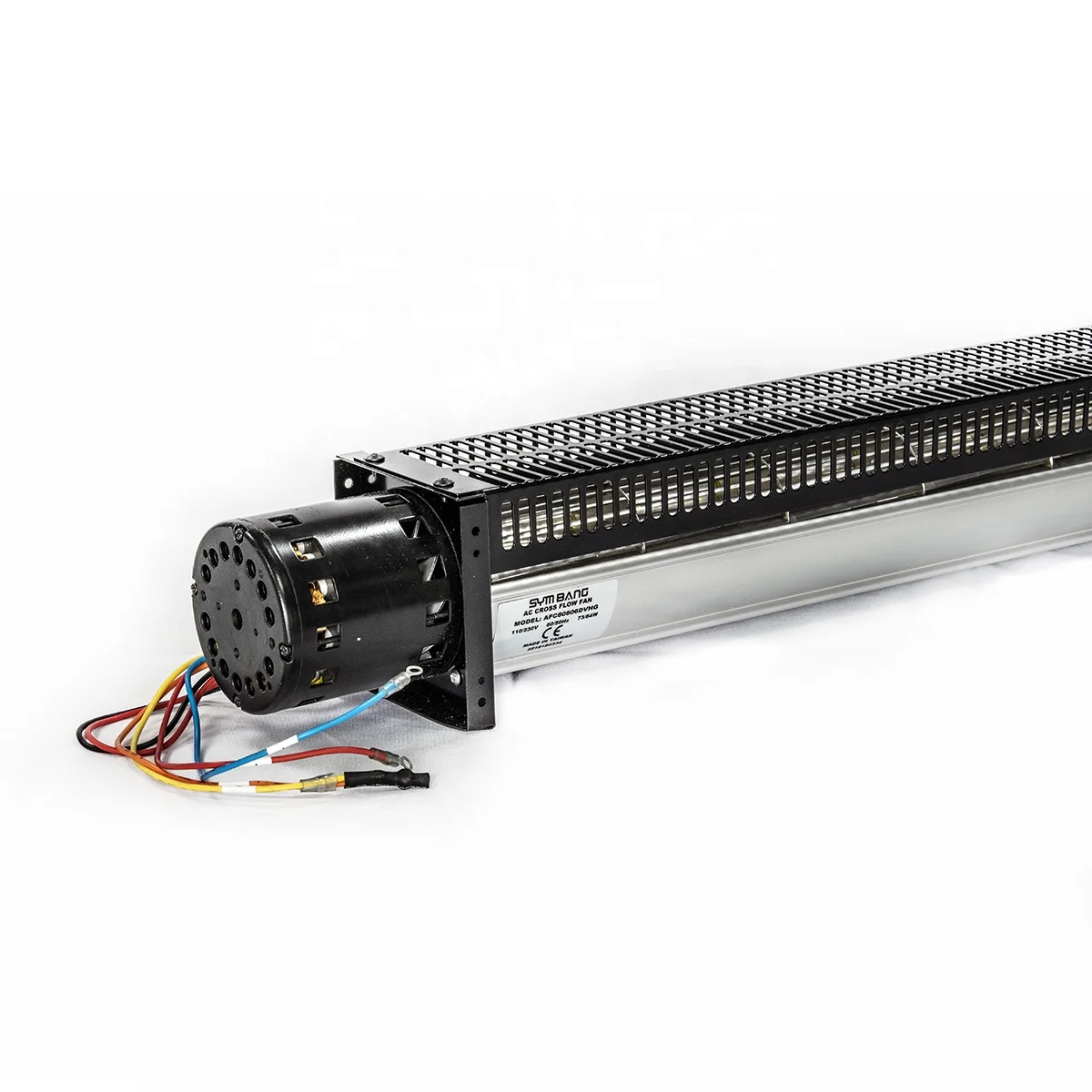

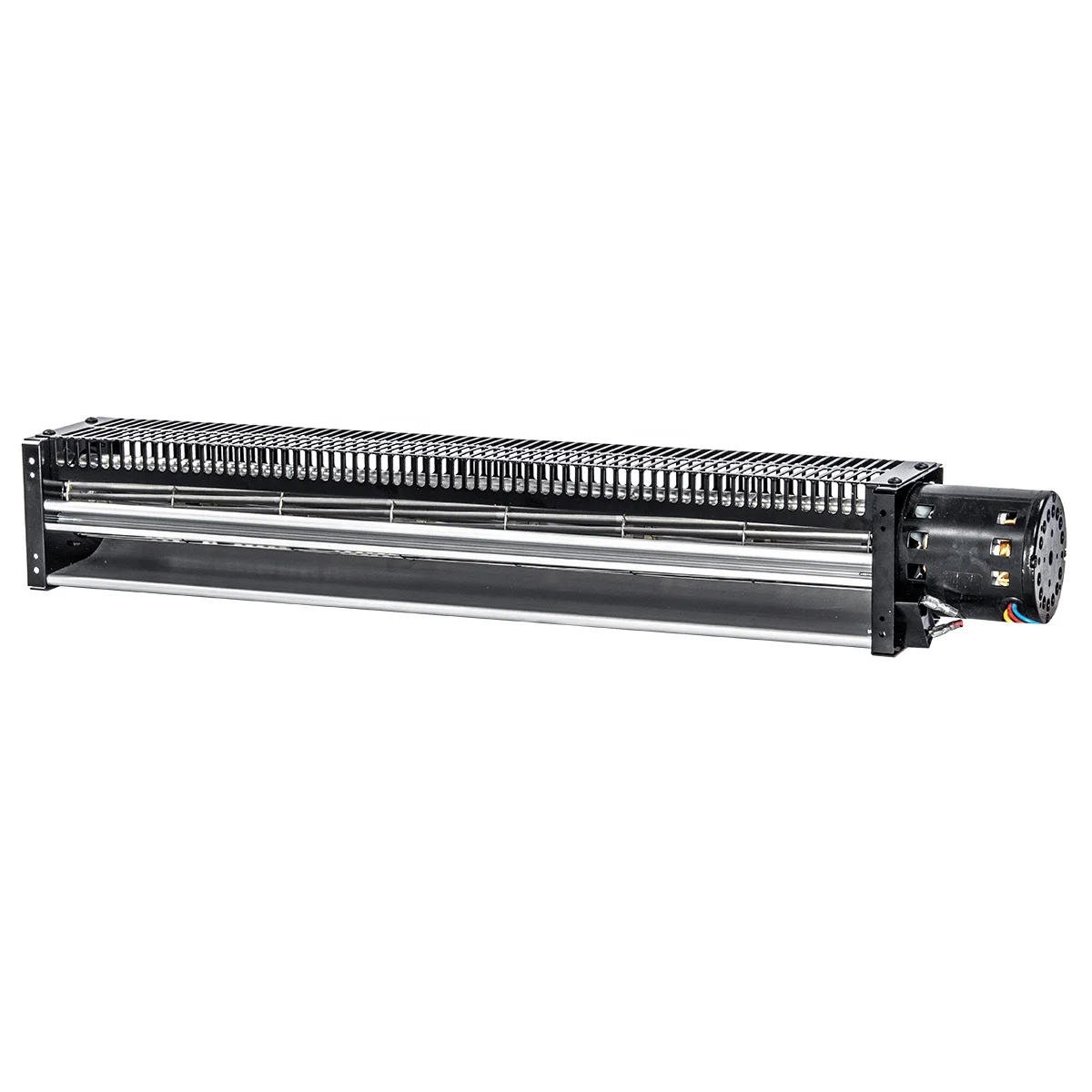

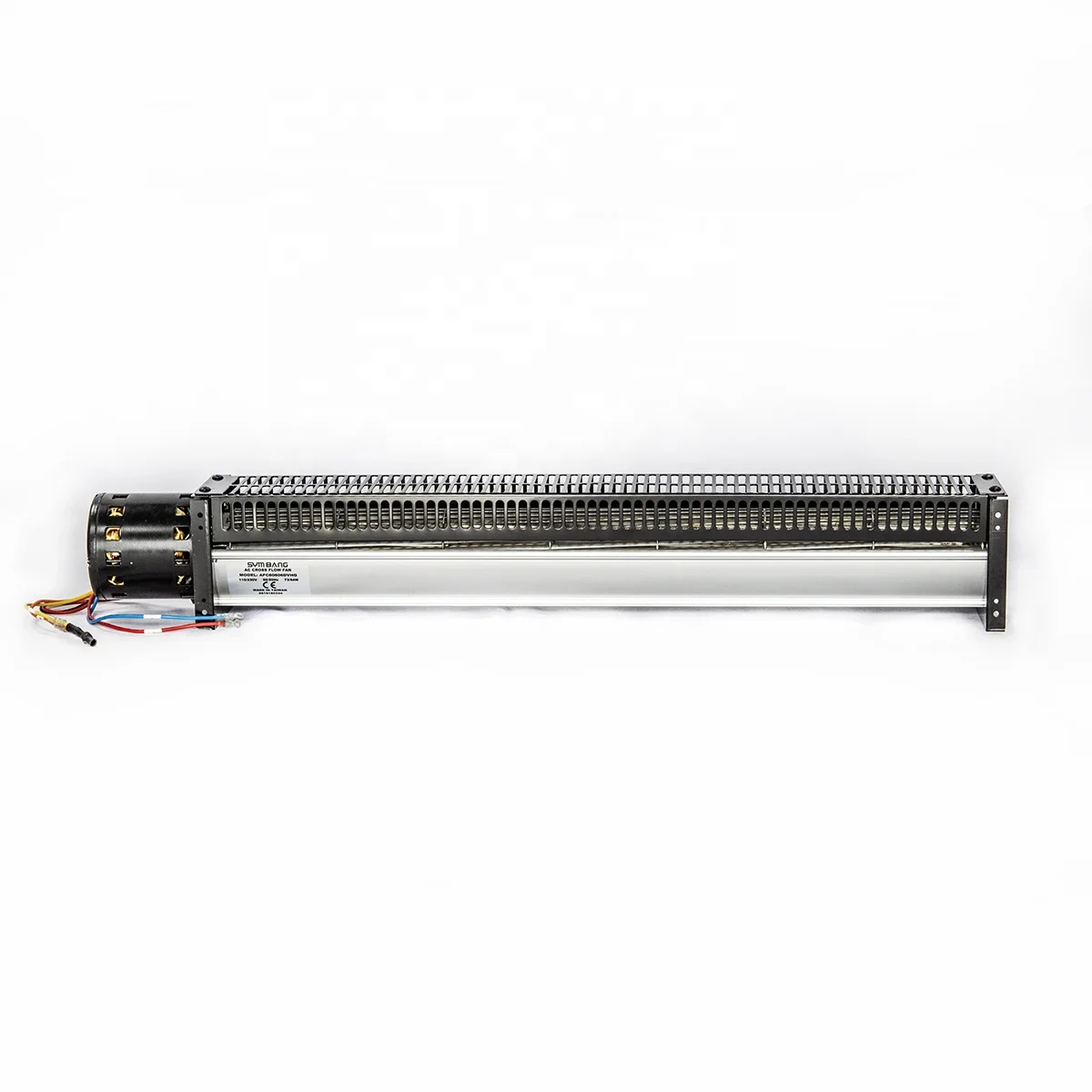

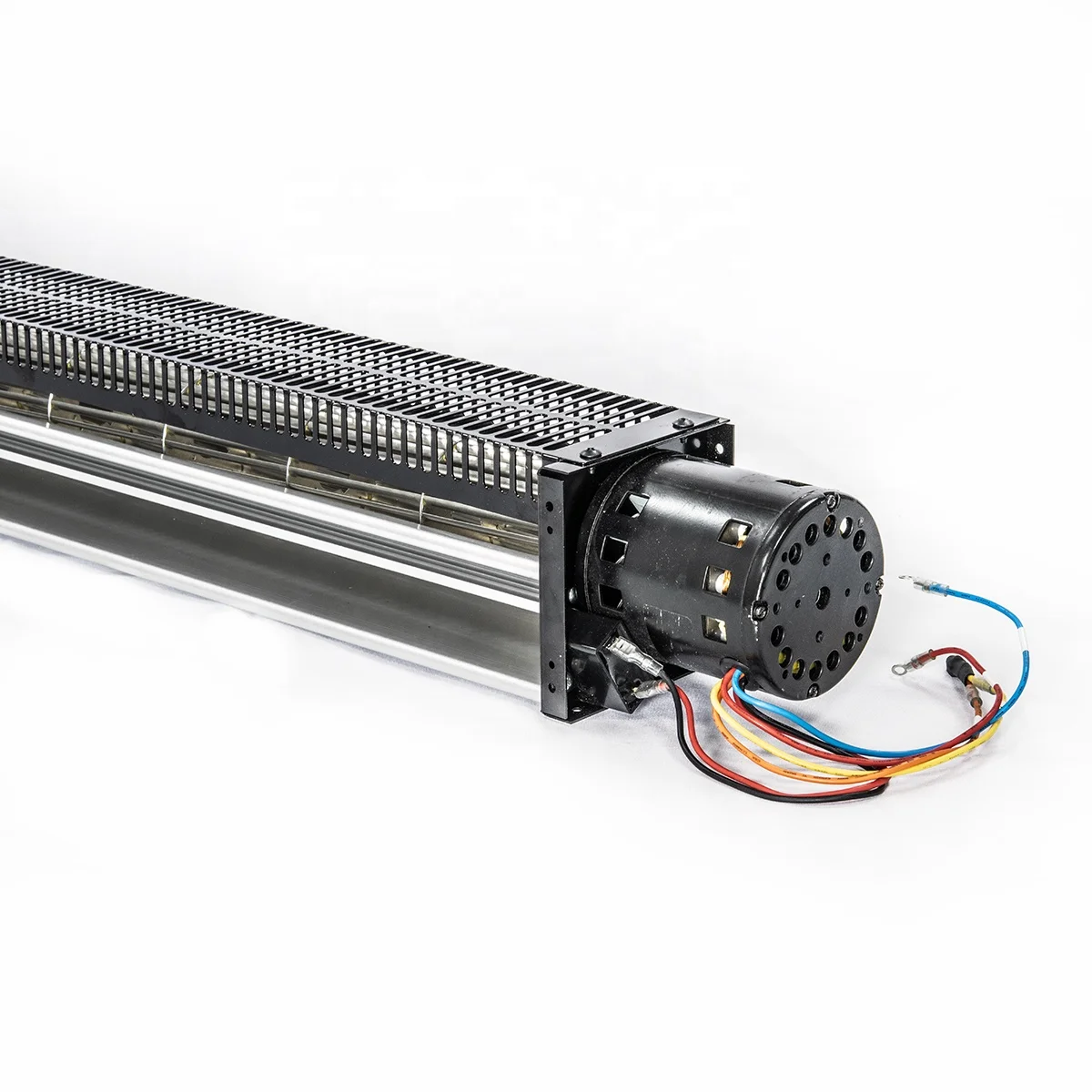

AFC60G 60mm 110v 230v Cross Flow Fan
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum,Ø60mm |
| BEARING | Ball |
| INSULATION | Class A |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING VOLTAGE RANGE | 85 VAC to 125 VAC for 115V Type |
| 185 VAC to 245 VAC for 230V Type | |
| DIELECTRIC STRENGTH | 1,500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| SAFETY | Thermally Protected |
| MOTOR TYPE | Capacitor Motor |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
Model No. | RATED | FREQUENCY | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | (Hz) | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | ||||
| AFC60426DVHG | 110 | 50/60 | 0.42/0.56 | 45/62 | 2600/2800 | 0.24/0.28 | 6/7.2 | 300/354 | 8.5/10 | 55/57 |
| AFC60426DVHG | 220 | 50/60 | 0.22/0.29 | 47/64 | 2600/2800 | 0.24/0.28 | 6/7.2 | 300/354 | 8.5/10 | 55/57 |
| AFC60426DVHG | 230 | 50 | 0.22 | 49 | 2700 | 0.26 | 6.5 | 318 | 9 | 56 |
| AFC60426V2LG | 230 | 50 | 0.11 | 26 | 1700 | 0.06 | 1.5 | 177 | 5 | 34 |
| AFC60606DVHG | 110 | 60 | 0.67 | 73 | 2000 | 0.24 | 6 | 354 | 10 | 51 |
| AFC60606DVHG | 230 | 50 | 0.28 | 64 | 2300 | 0.2 | 5 | 424 | 12 | 54 |
| AFC60606V2LG | 230 | 50 | 0.11 | 26 | 1400 | 0.06 | 1.5 | 283 | 8 | 37 |
Company Information
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
Our factory :
Our certificate:
