Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Пластиковая машина для выдувного формования поддонов
- Категория: Extrusion Blow Molding Machines >>>
- Поставщик: Weifang,Xinhengda,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.38 $* | 0.93 $* |
| Aug-19-2025 | 0.39 $* | 0.1 $* |
| Jul-19-2025 | 0.85 $* | 0.13 $* |
| Jun-19-2025 | 0.97 $* | 0.6 $* |
| May-19-2025 | 0.92 $* | 0.82 $* |
| Apr-19-2025 | 0.19 $* | 0.60 $* |
| Mar-19-2025 | 0.61 $* | 0.16 $* |
| Feb-19-2025 | 0.57 $* | 0.19 $* |
| Jan-19-2025 | 0.23 $* | 0.91 $* |
Характеристики
Blow Molding process
Professtional Service

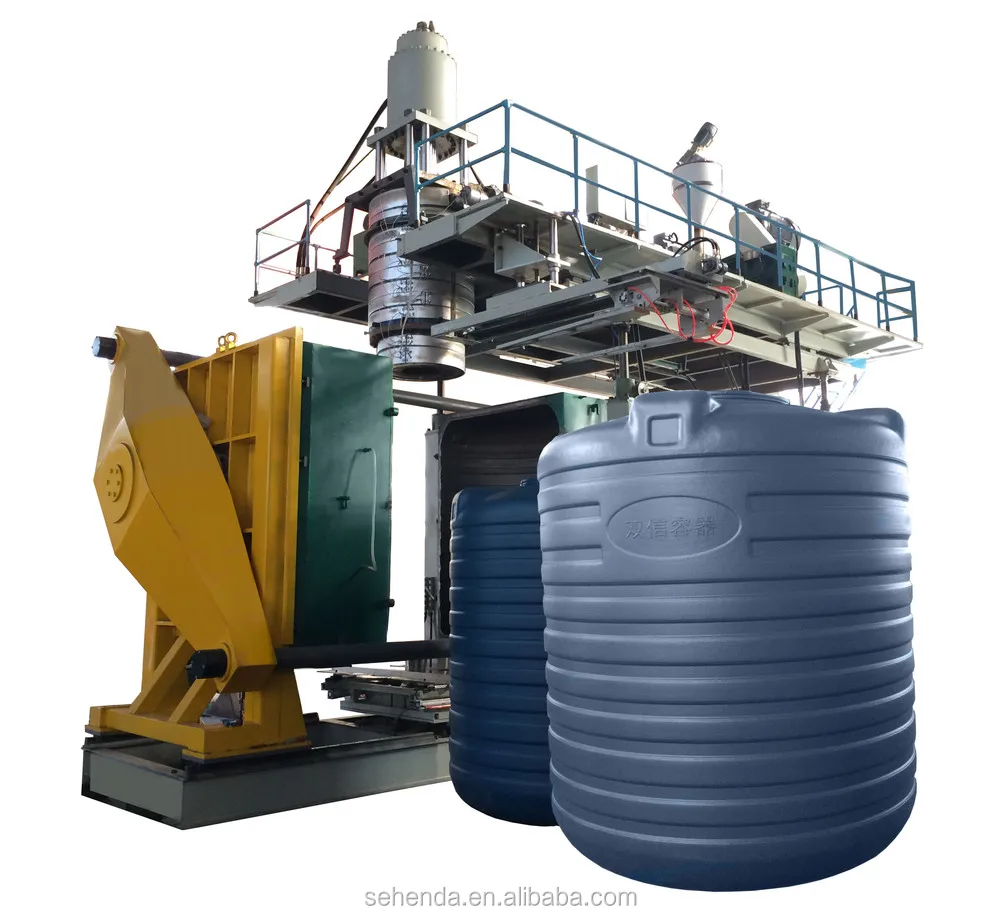

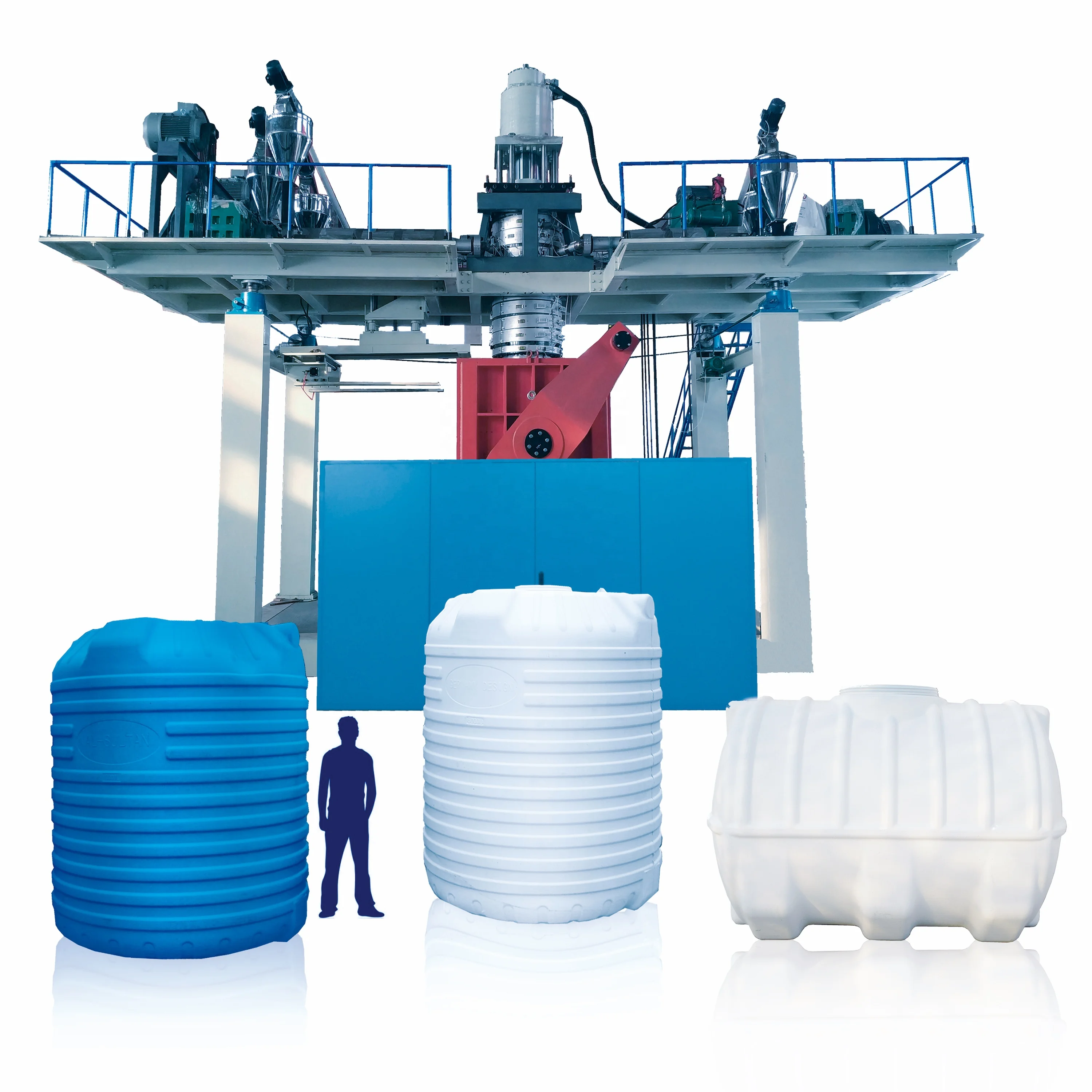

SKJ5000L water tank blow moulding machine
| Specifications | Single Layer | Double layers | Three layers |
| Max container capacity | 5000L | 5000L | 5000L |
| Machine weight(TON) | 50 | 58 | 80 |
| Machine size(L*W*h) | 14*4.8*8 | 14*4.8*8 | 14*5*8 |
| Total Power(KW) | 372.5 | 478.5 | 600.5 |
| Average energy consumption | 260 | 330 | 380 |
| Extruder unit | |||
| Screw Diameter | 150 | 130/130 | 120/120/120 |
| Screw Ratio L/D | 30/1 | 30/1 | 30/1 |
| Screw and barrel materials | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA |
| Max Output(kg/h) | 500 | >600 | >650 |
| Driving motor(KW) | 160 | 110/110 | 90/90/90 |
| Temperature Control | 10 | 16 | 24 |
| Heating power(KW) | 50 | 76 | 108 |
| Clamping Unit | |||
| Structure | Double rod | Double rod | Double rod |
| Platen opening stroke(MM) | 1600-4000 | 1600-4000 | 1600-4000 |
| Template size(MM) | 2300-2500 | 2300-2500 | 2300-2500 |
| Clamping force(KN) | 2500 | 2500 | 2500 |
| Die head | |||
| Die head material | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA |
| Accumulator capacity(L) | 220 | 220 | 200 |
| Die core size(MM) | 400-800 | 400-800 | 400-800 |
| Heating power(KW) | 100 | 120 | 160 |
| Temperature Control | 5 | 6 | 6 |
| Parison thickness adjust | MOOG | MOOG | MOOG |
| Hydraulic system | |||
| Main oil pump motor power | 55KW | 55KW | 55KW |
| Servo oil pump motor power | 7.5KW | 7.5KW | 7.5KW |
| Auxiliary parameters | |||
| Air compressor | |||
| Output(m³/min) | 5 | 5 | 5 |
| Air pressure(Mpa) | 1.2 | 1.2 | 1.2 |
| Air tank(m³) | >6 | >6 | >6 |

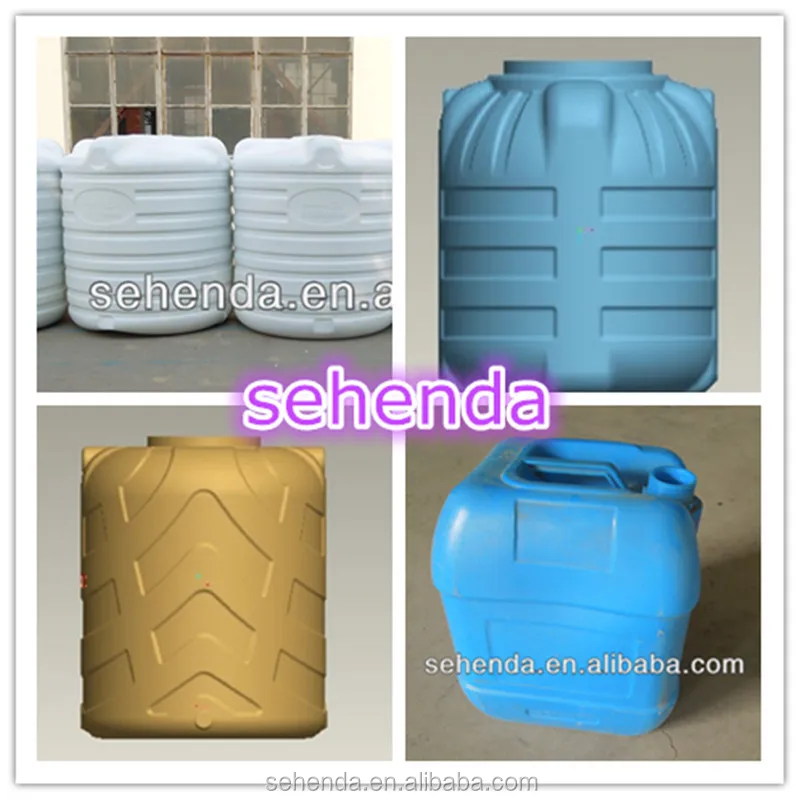

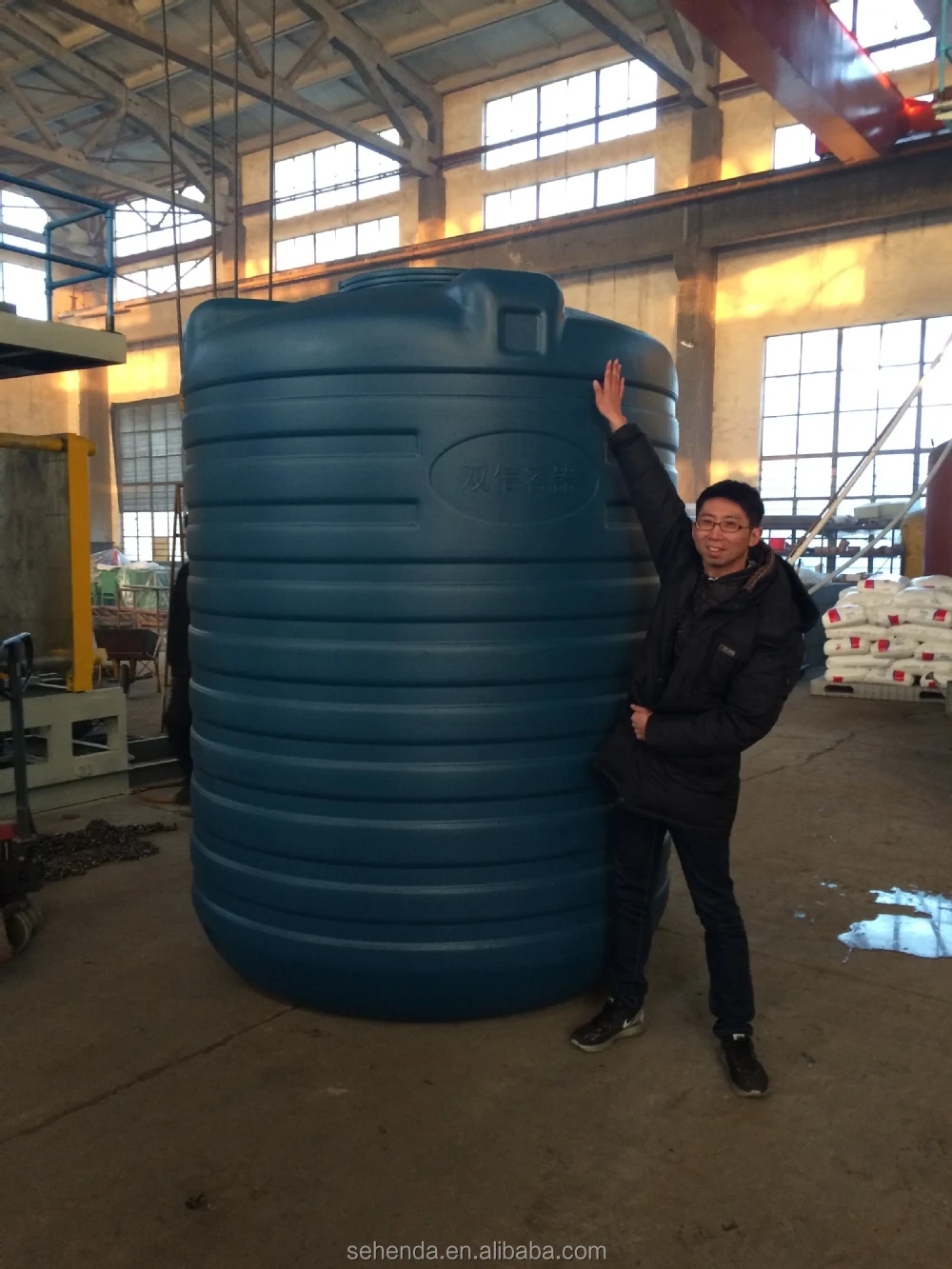

1. Appliction: For PE or HDPE 1-4 layers water tank from 500L-5000L.

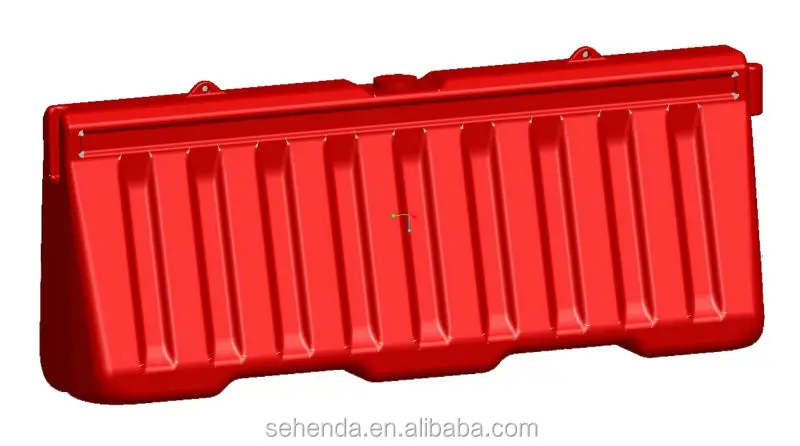

also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Mainpower: 380V electric power and 2 workers are enough for the whole production line, even both are female, and two weeks training are free of charge.
3. Output: 6-9 pcs for 1000L 3 layer tank per hour, with weight 42kg, also the weight and thickness can be adjusted by 100% Moog wall thickness control system from 1mm to 10 mm.
4. Training: Our engineer and interpretor will be your factory to train your workes for 2 weekes
5. Certificate: CE, ISO9001:2008.
6. Main Markets: Asia, South Amereica,India and Indonesia, etc.
