750 подача гофрированного кровельного листа, формовочная машина
US $14500-$15000
Сборная бетонная плита машина для сборных бетонных домов/экструдер с большой пролетной полым
- Категория: Board Making Machinery >>>
- Поставщик: Dezhou,Haitian,Electromechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.85 $* | 0.64 $* |
| Aug-18-2025 | 0.42 $* | 0.97 $* |
| Jul-18-2025 | 0.51 $* | 0.52 $* |
| Jun-18-2025 | 0.92 $* | 0.74 $* |
| May-18-2025 | 0.21 $* | 0.69 $* |
| Apr-18-2025 | 0.35 $* | 0.70 $* |
| Mar-18-2025 | 0.19 $* | 0.78 $* |
| Feb-18-2025 | 0.20 $* | 0.48 $* |
| Jan-18-2025 | 0.62 $* | 0.25 $* |
Характеристики
prefab concrete houses precast concrete slab machine
concrete floor slab making machine precast concrete unit
1. fast speed 1.4m/min
2. easy operation&maintenance, long service life
3. high strenth with steel wires inside
4. ISO9001&CE certified

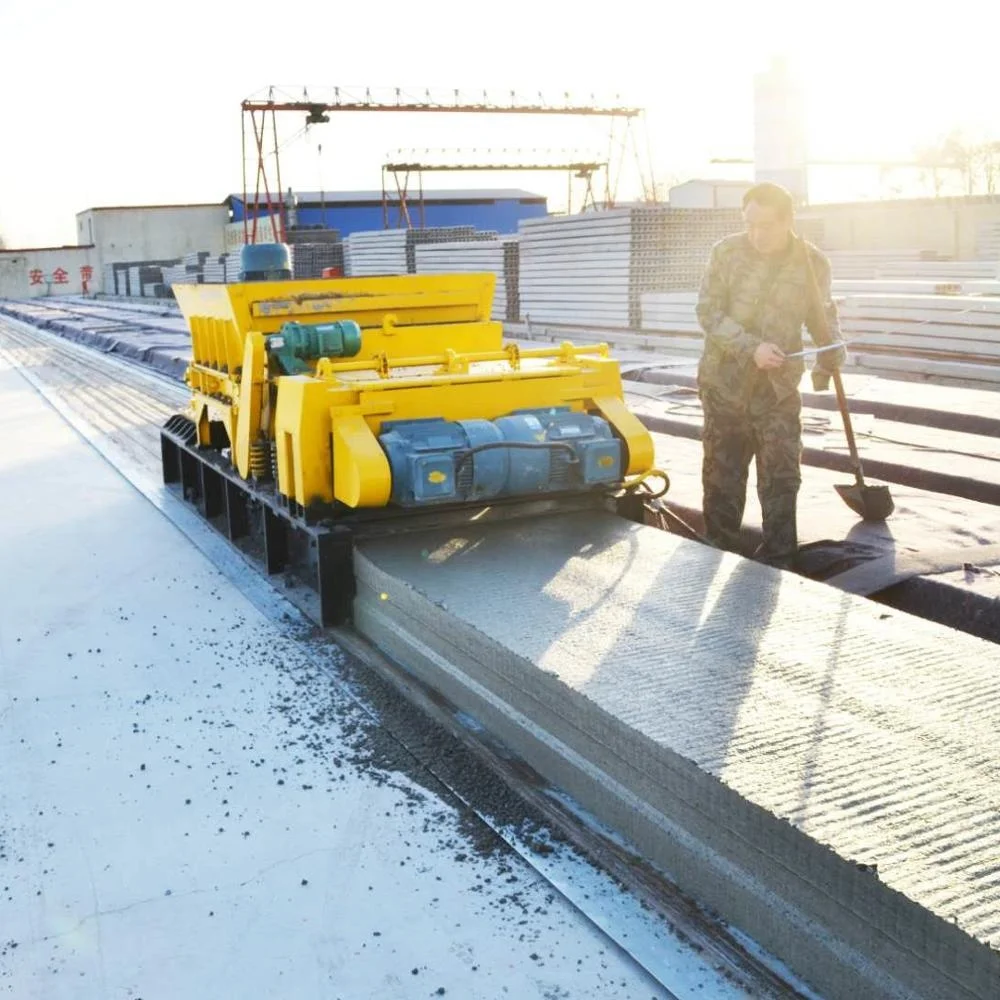

The hollow core slab machine works on the concrete flat platform powered by the motor. The incompact materials are pushed into the forming place by the speed reducing convening and the slider’s repeatedly moving on straight, then the materials push each other to air out.

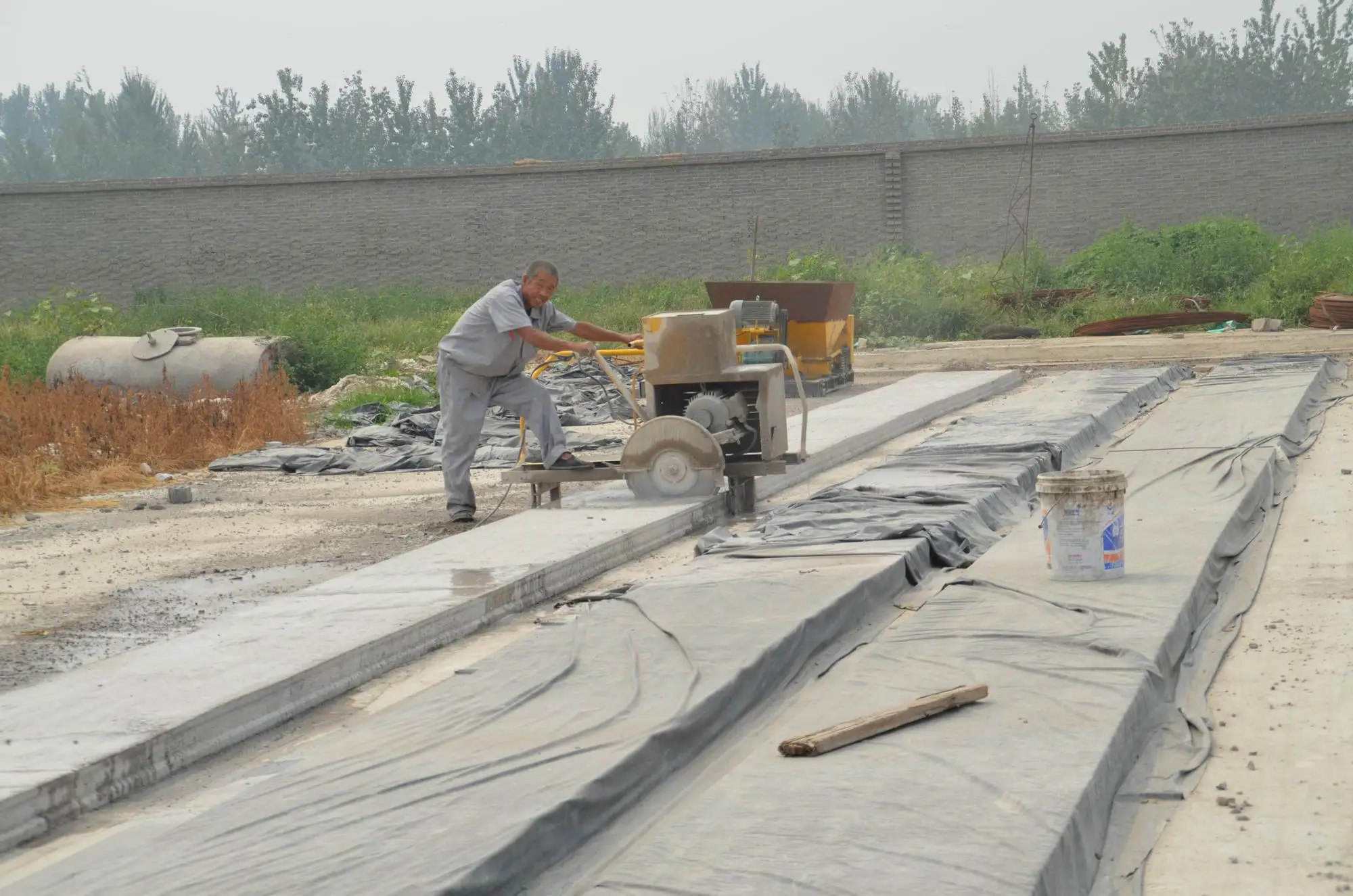

The continuously working of vibration plate will highly classify the concrete. At the same time, the reaction of pushing materials by slider will move the whole machine go along with the steel wire overcoming the frictional resistance. The concrete slab is forming during the process behind the machine. After maintenance of a few days, it can be cut in to concrete slabs.
Models:
Hollow Core Concrete slab Machine | Motor Power (kw) | Vibrator power (kw) | Forming speed (m/min) | Holes no. | Dia. Of holes |
TW50X500 | 3 | 0.8 | 1.2-1.4 | 8 | Φ25 |
TW50X500 +80X500 | 4.0 | 1.5 | 1.2-1.4 | 6 | Φ25 (Φ42) |
TW60X500 +80X500 | 4.0 | 1.5 | 1.2-1.4 | 7 | Φ25 (Φ42) |
TW90X600 | 4.0 | 2.2 | 1.2-1.4 | 6 | Φ50 |
TW100X600 | 4.0 | 2.2 | 1.2-1.4 | 6 | Φ60 |
TW120X600 | 5.5 | 3.0 | 1.2-1.4 | 5 | Φ76 |
TW120X900 | 7.5 | 3.0 | 1.2-1.4 | 8 | Φ76 |
TW120X1200 | 7.5 | 3.0 | 1.2-1.4 | 11 | Φ76 |
TW180X600 | 7.5 | 3.0 | 1.2-1.4 | 3 | Φ130 |
TW180X900 | 7.5 | 3.0 | 1.2-1.4 | 5 | Φ130 |

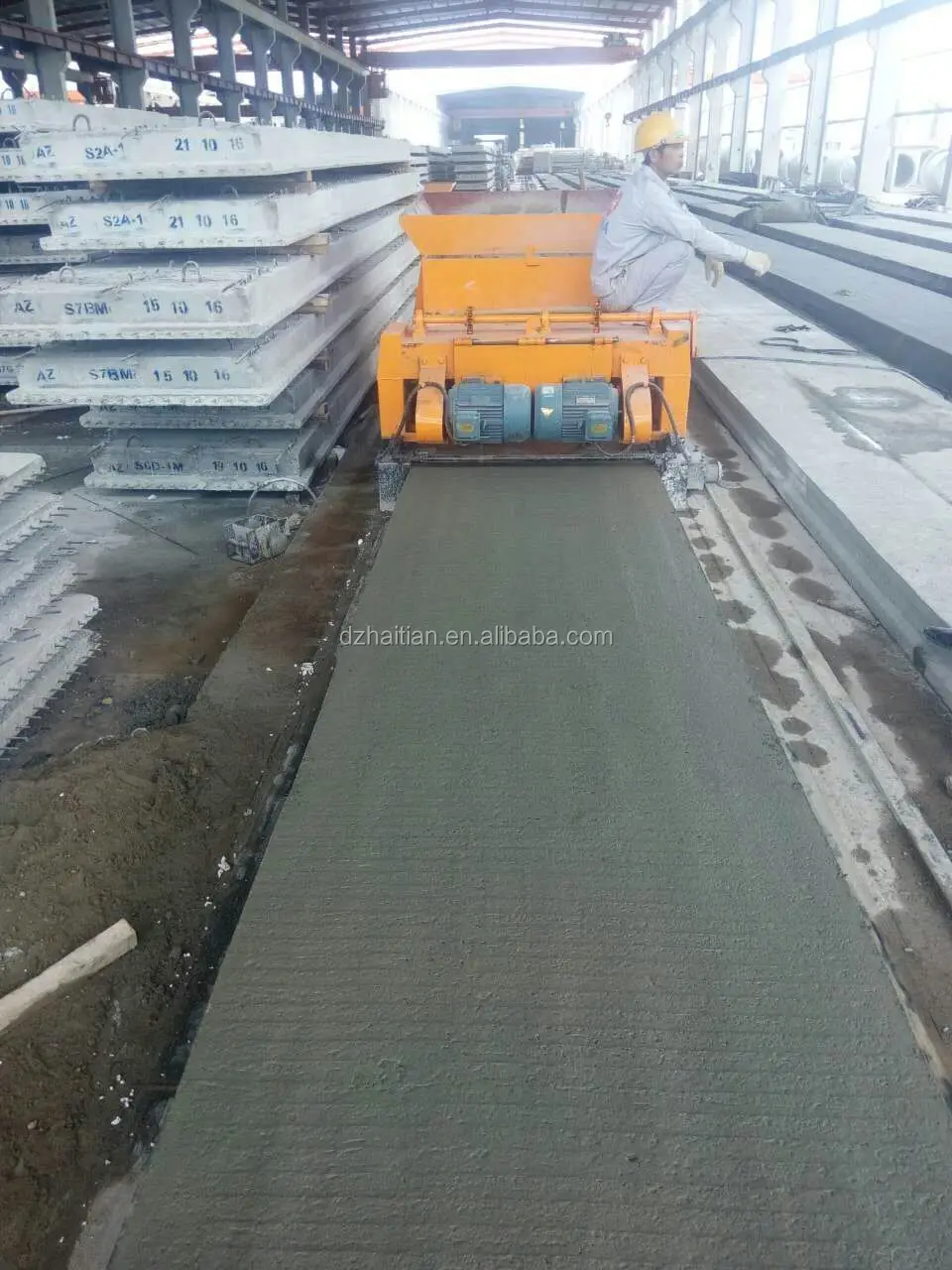

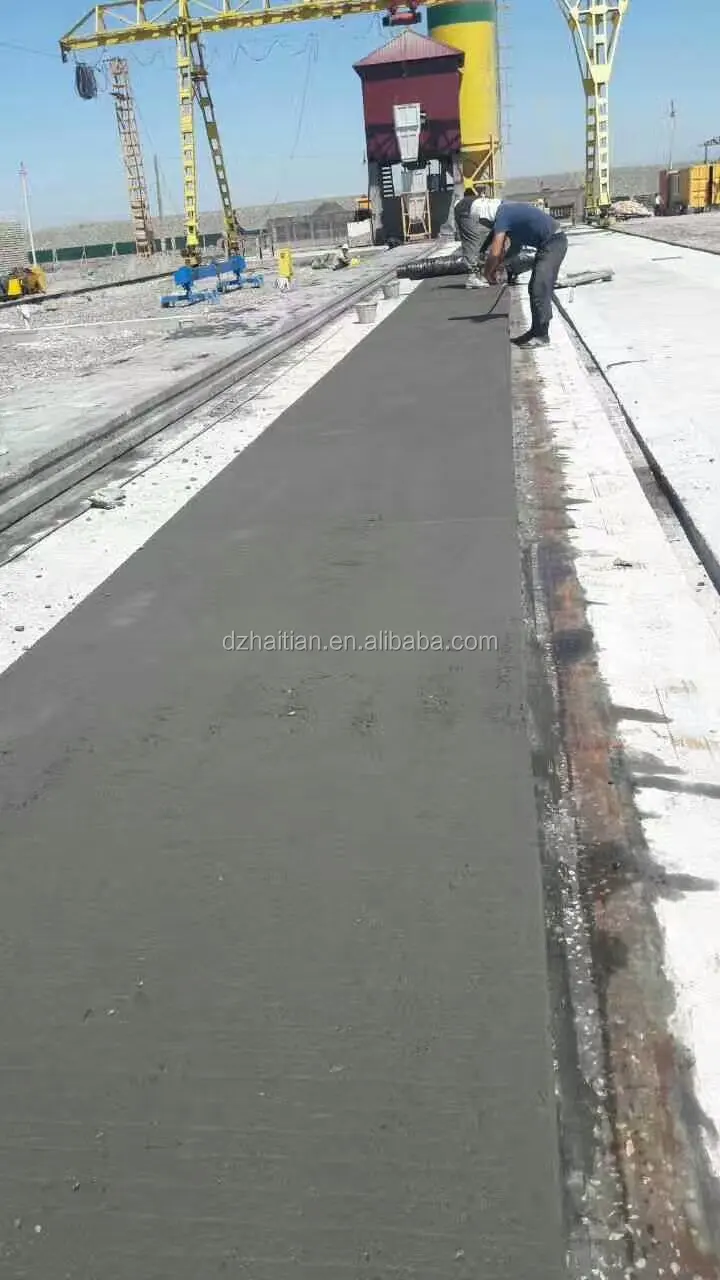

Production site

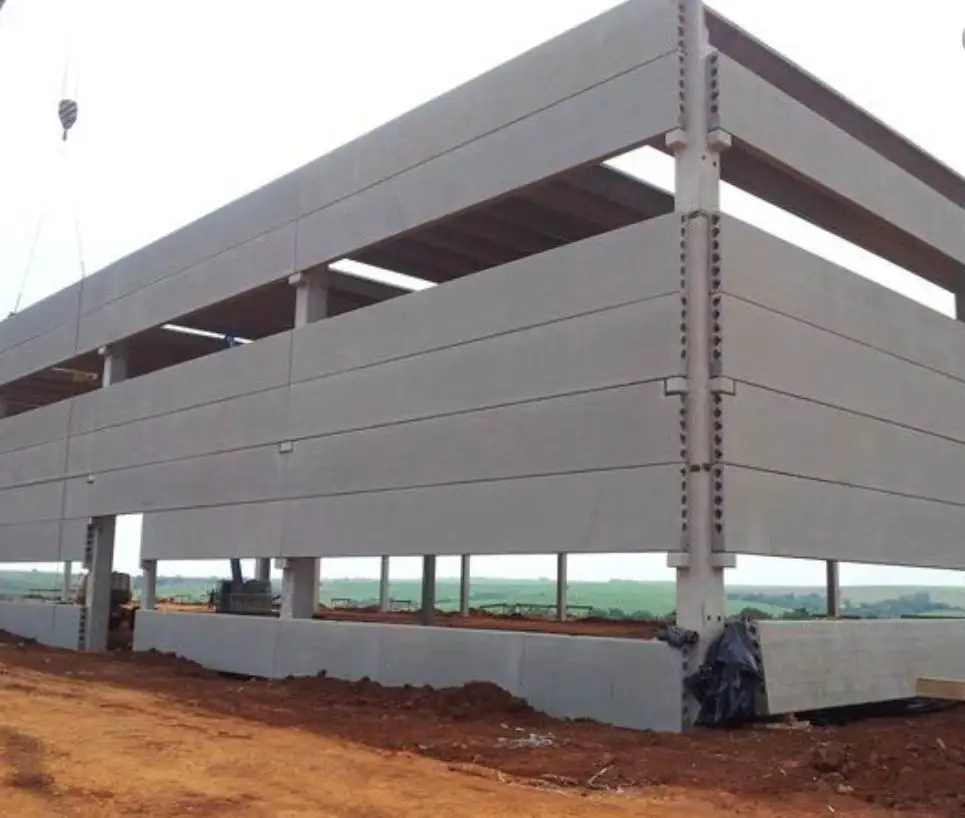

Engineering cases
This is an industrialized way of construction with advantanges of:
1.High capacity - enabling the realization of massive projects
2.Factory-made products mean consistent high quality
3.Shorter construction time - less than half of conventional cast in-situ construction
4.Independent of adverse weather conditions
5.Continuing erection in winter time up to -20°C
6.Quality surveillance system.
It offers the customer the performance to fulfill all requirements :
1)Opportunities for good architecture
2)Fire resistant material
3)Healthy buildings
4)Reduced energy consumption through the ability to store heat in the concrete mass
5)Environmentally friendly way of building, with optimum use of materials, recycling of waste products, less noise and When to dust, etc.
6)Cost-effective solutions.

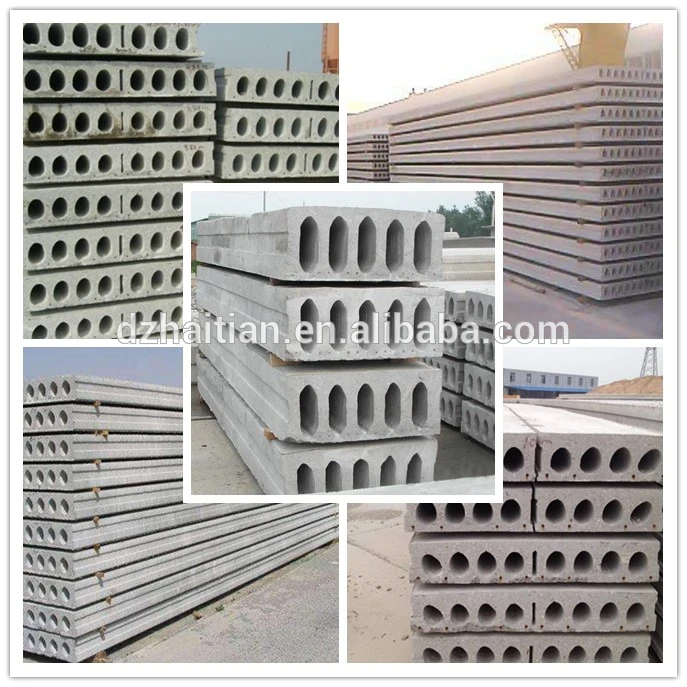

The precast/prestressed concrete hollow core slabs can be used as the floor in the buildings. They are stout with many steels inside. They have become to the best and economical choice of the factories that produce high strength hollow core slabs for workshop, school, hospital, shopping mall, office building, warehouse and residence.
Buyer Feedback
Company Information
Dezhou Haitian was founded in 1997. We have obtained 20 China national patents, products approved ISO9001:2008 certificate, CE certificate and EU Customs Union CU-TR certificate. For the past several years Haitian has been rated "AAA grade quality and integrity of Chinese brands". We are also the Vice President Enterprises of “China National Precast Concrete and Cement Products Association”
Our main products:
1. HTSF Multi-functional Slipformer hollow core slab production line
2. Precast concrete Moulds (tilt table mould, staircase mould, beam column mould, box culvert mould etc)
3. GLY/TW series Pushing vibration type hollow core slab machine
4. Precast fence post machine
5. Precast concrete beam/lintel machine (concrete t beam/H beam machine)
6. Precast concrete boundary wall panel machine
7. Hectec Automatic Extruder hollow core wall panel production line
8.HLJ Vertical type CLC Wall Panel Molding Machine
9. HFJ Automatic EPS sandwich wall panel machine10.Precast prestressed concrete ribbed slab(half slab) production line
Welcome to visit our plant!
(contact whatsapp:0086 15253103786)
