Характеристики

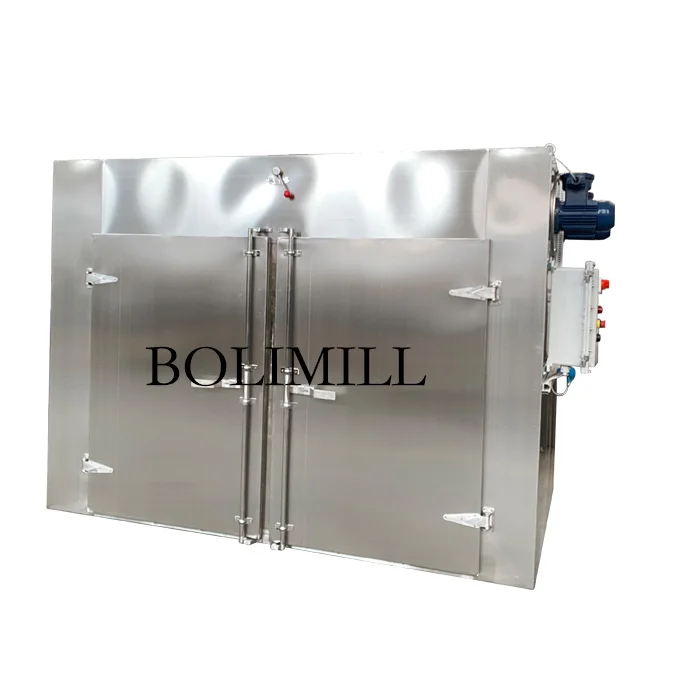

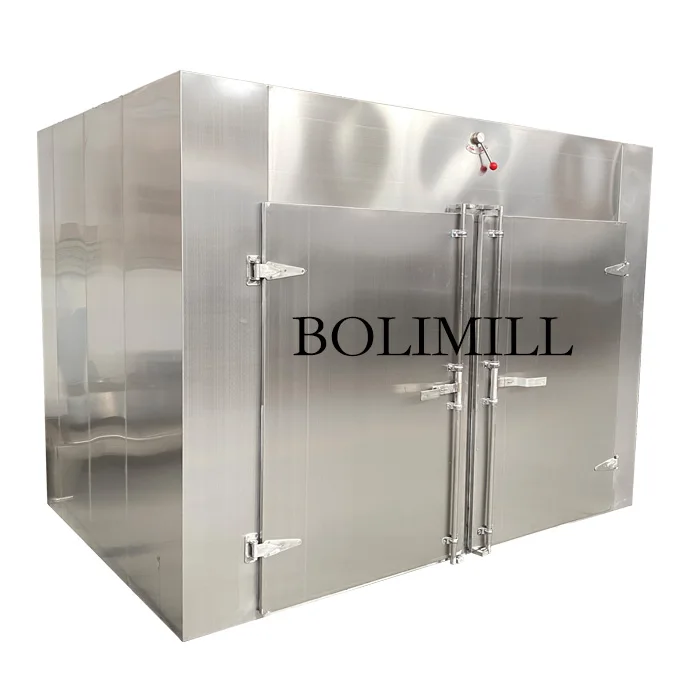

Hot Air Circulating Dryer Oven
Instruction
1. The temperatures to be used: steam heating 50-140°C, Max.150°C
2. Electric infrared heating: 50-350
3. Commonly used steam pressure 0.2-08Mpa(2-8kg/cm2)
4. If the electrical heating and type one, the calculation is 15kw,and the practical use is 5-8kw/h
5. The special requirements should be indicated at the time of order.
6. The use temperatures more than 140°Cand less than 60°C, should be inducted at the time of order.
7. The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchangeable.The baking plate dimensions: 460*640*45mm , heating method: steam, electricity, infrared.
Features
1. controlling cabinet equipped with button(touch screen optional), easily operation and prolongs service life.
2. most hot air is circulated in the chamber which ensures high heating efficiency and saves energy.
3. Forced ventilation used, adjustable air distributing board in the chamber makes evenly drying of materials.
4. the machine is low noisy, smooth operated, temperature auto controlled and easy for maintenance.
5. widely applied. Suitable for versatile materials and is universal drying machine.
6. Initial and medium effective filter can be added in the air inlet and outlet as requested by custermer.
![Hot air oven dryer (1).jpg]()
Main Usage:
This machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemical, foodstuff, light industry, heavy industry, etc.
Specialty:
Great part of hot wind is circulated in the oven with high thermal efficiency, less energy consumption. The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly. The whole machine runs in stable condition, low noise, self-control temperature, easy installing and maintaining, and wide application.
Technical Data:
Model | JB-B-I |
Dry amount each (kg) | 120 |
Motor power (kw) Induced draft fan power (kw) | 15 1.5 |
Steam expend (kg/h) | 20 |
Heat dispelling area (m3) Wind (m3/h) Diff.in up&down temp (°C) | 2 3450 ±2 |
Collo-cate tray | 48 |
Overall size (L*W*H)(mm) | 200*1200*2200 |
Weight (kg) | 15 |
Attention:
1, One tray could bear about 3 KG food material.
2, This machine has 48ray
3, All material is SUS304.
Model | JB-B-II |
Dry amount each (kg) | 240 |
Motor power (kw) Induced draft fan power (kw) | 30 1.5 |
Steam expend (kg/h) | 45 |
Heat dispelling area (m3) Wind (m3/h) Diff.in up&down temp (°C) | 40 6900 ±2 |
Collo-cate tray | 96 |
Overall size (L*W*H)(mm) | 2300*2210*2200 |
Weight (kg) | 1800 |
Attention:
1, One tray could bear about 3 KG food material.
2, This machine has 96 tray
3, All material is SUS304.
Model | JB-B-III |
Dry amount each (kg) | 360 |
Motor power (kw) Induced draft fan power (kw) | 45 1.5 |
Steam expend (kg/h) | 70 |
Heat dispelling area (m3) Wind (m3/h) Diff.in up&down temp (°C) | 80 10350 ±2 |
Collo-cate tray | 144 |
Overall size (L*W*H)(mm) | 3300*2210*2200 |
Weight (kg) | 2200 |
Attention:
1, One tray could bear about 3 KG food material.
2, This machine has 144 tray
3, All material is SUS304.
Our service
Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history of more than 10 years.
And our factory’s history is more than 15 years.
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc
FAQ:
If you want to send inquriy to me about Stainless steel Hot Air Circulating Dryer Oven from China, could you please tell me?
1) What material you want to dry? what is the size of feed material ?
2) What capacity you expect by dryer machine? (kg/h)
3) What is the moisture content of the raw material and the finished product you need?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
