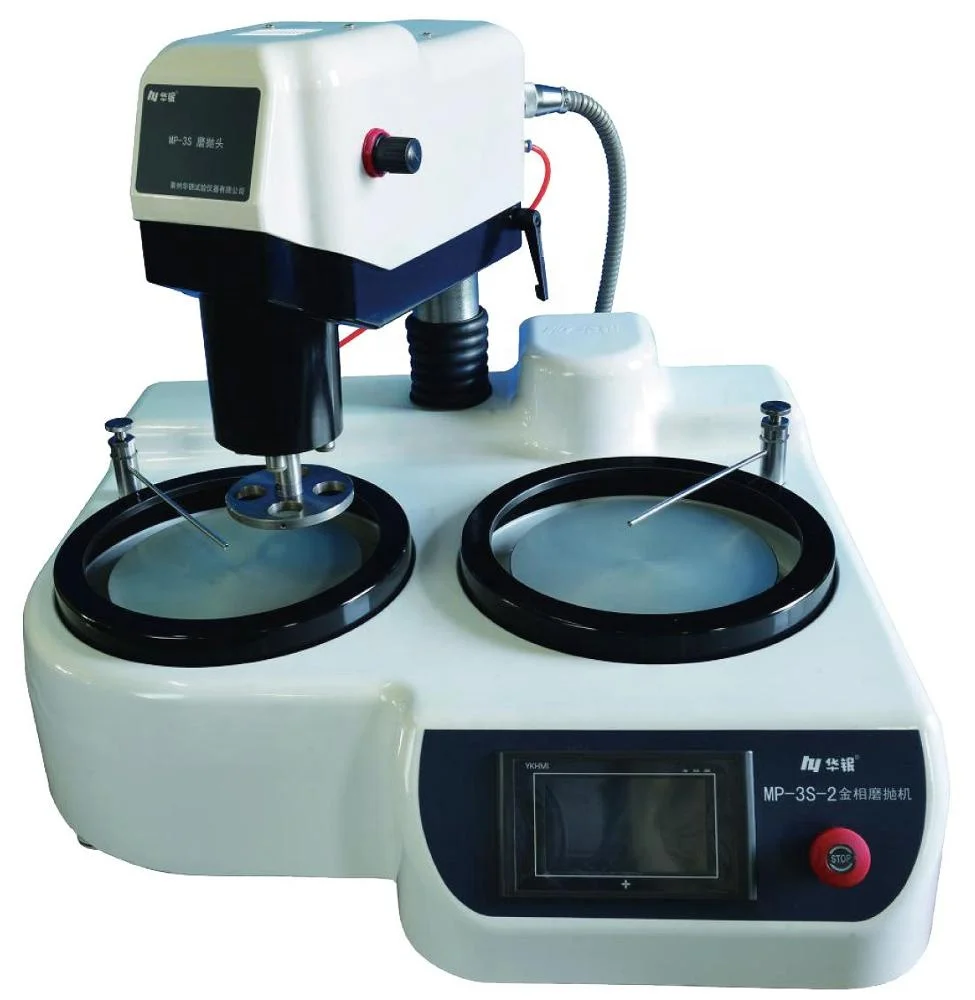

MODEL MP-3S-2 AUTOMATIC

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE



Model MP-3S-2 automatic grinding & polishing machine features advanced sample preparation functions. It adopts touch screen and integrated controlling system, which makes the process of sample preparation controllable. The grinding and polishing disc is available for bidirectional rotation, the rotating speed is adjustable at will within the regulated range. This machine is able to grind and polish up to 6 samples at the same time, or to process only one sample singly. The working parameters such as sample preparing pressure, working time etc. can be displayed on LCD, which makes it much more convenient and intuitive for customer to operate.This machine is suitable to proceed rough grinding, fine grinding, rough polishing and fine polishing to for specimen preparation. It is the ideal sample preparation equipment to be used in enterprises, scientific researching institutes and laboratories in colleges and universities.



Technical Specification



Model	MP-3S-2
Grinding & polishing disc diameter	Φ230mm (or 250mm optional)
Rotating speed of working disc	50-1000 r/min
Rotating speed of polishing head	5-100 r/min
Loading force range	5-60 N
Sample preparing time	0-9999 s
Sample diameter	φ30mm (or customize)
Sample preparing quantity	4 pcs. (or customize)
Air source	0.6-0.8 MPa
Input power	1100W
Power supply	220V, 50Hz, single-phase
Dimensions	760mm*680mm*635mm
Net weight	70kg
