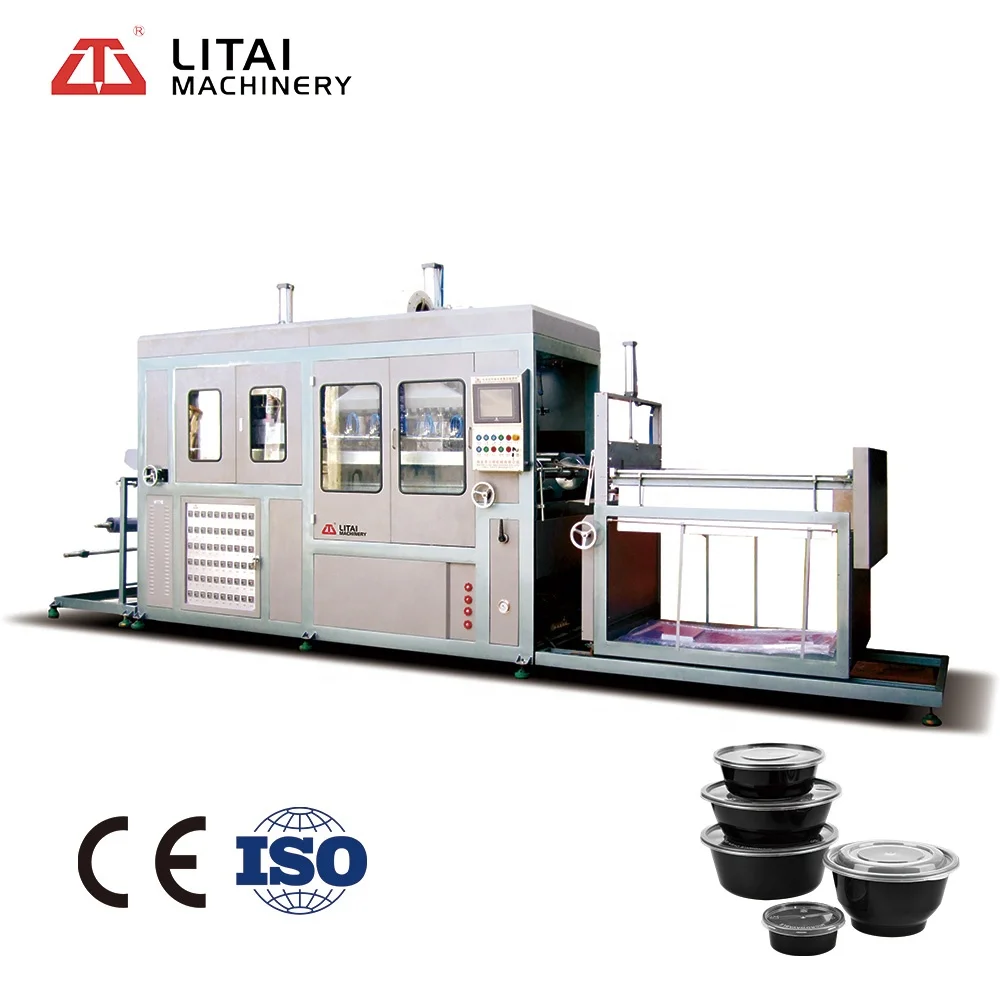

Полностью автоматическая вакуумная формовка ПВХ ПЭТ пластиковая машина для производства лотков яиц/Термоформовочная
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Ruian,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 29750.53 $* | 31238.25 $* |
| Aug-18-2025 | 29500.57 $* | 30975.35 $* |
| Jul-18-2025 | 24750.19 $* | 25988.8 $* |
| Jun-18-2025 | 29000.98 $* | 30450.31 $* |
| May-18-2025 | 25250.77 $* | 26513.90 $* |
| Apr-18-2025 | 28500.64 $* | 29925.31 $* |
| Mar-18-2025 | 28250.29 $* | 29663.68 $* |
| Feb-18-2025 | 28000.88 $* | 29400.42 $* |
| Jan-18-2025 | 27750.22 $* | 29138.63 $* |
Характеристики
Product Paramenters
Model | TX-720C |
Forming Size | W: 420-720mm /L: 760-1220mm |
Cooling System | Blower*2 / Sprayer*10 |
Vacuum Pump | 100m³/hr. (4hp) |
Rated Power | 40Kw |
Working Speed | 200-600 times/hour |
Power Supply | AC 380V/50Hz, Three phrases, Four wires |
Dimension | L6500xW1300xH2500mm |
Weight | About 2.5T |
MAIN ELECTRICAL COMPONENTS | ||
Vacuum Pump | Rietschle, Germany | |
PLC | Delta, Taiwan | |
Touch Screen | WeinView, Taiwan | |
Cylinder | Zhicheng, Joint Venture / Air TAC, Taiwan | |
Middle Relay | IDEC, Japan | |
Travel Switch | OMRON, Japan | |
Proximity Switch | OMRON, Japan | |
Servo Motor | Yaskawa, Japan | |
Option Switch / AC Contactor / Circuit Breaker | Schneider, France | |
Filter | CKD, Japan | |
Solenoid Valve | SMC, Japan / Jinqi, Taiwan | |
Products Description
APPLICATION

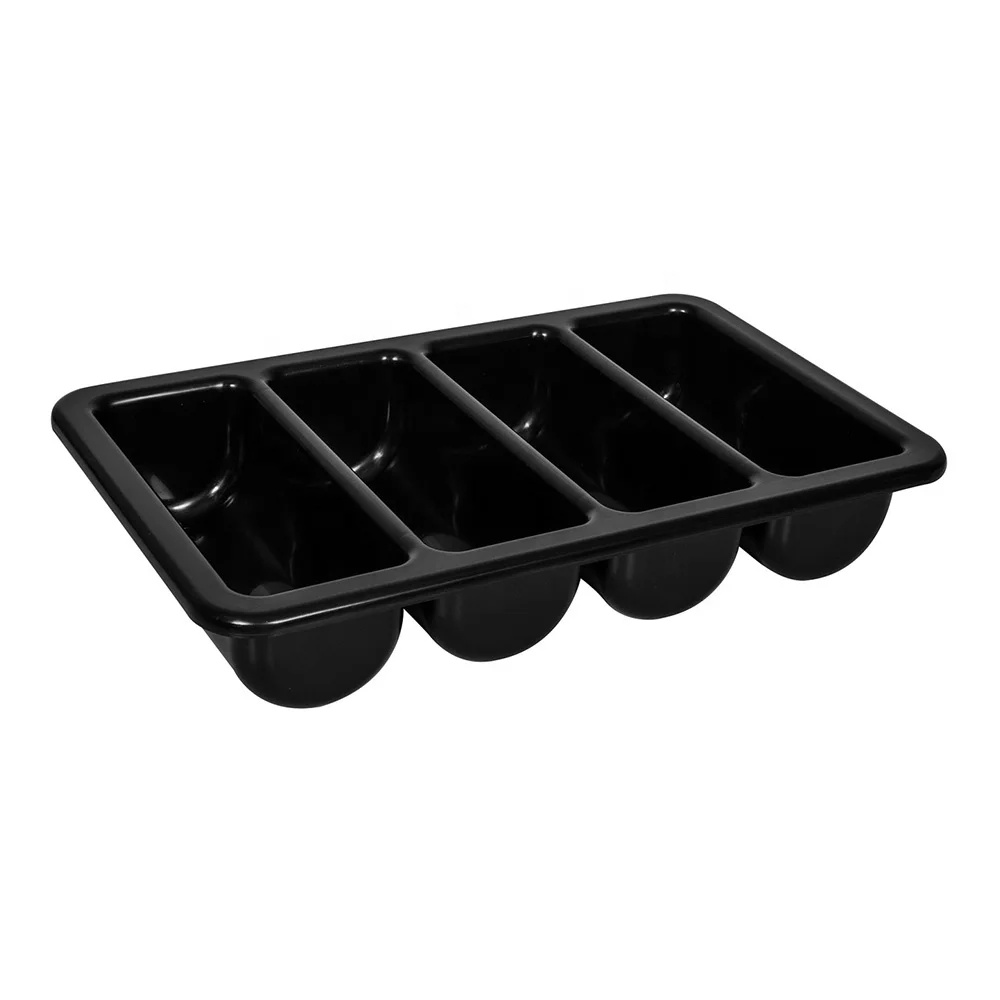

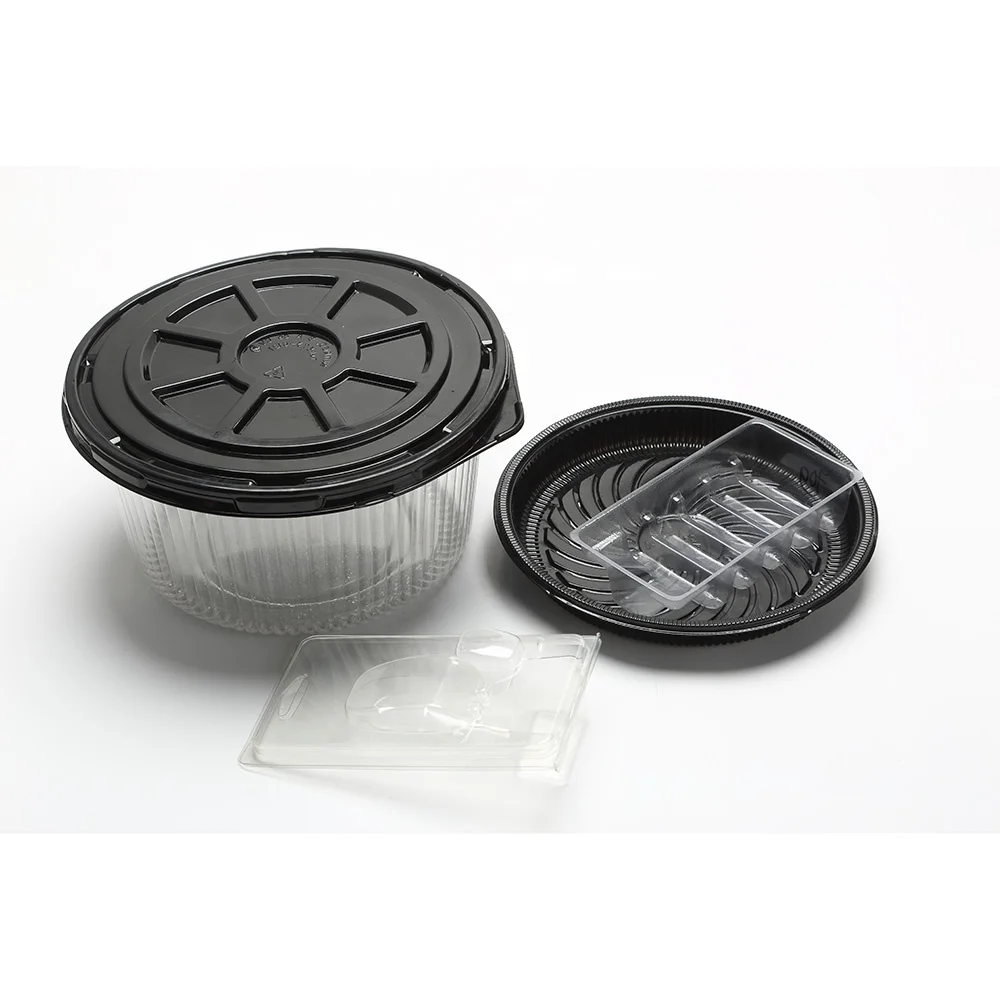

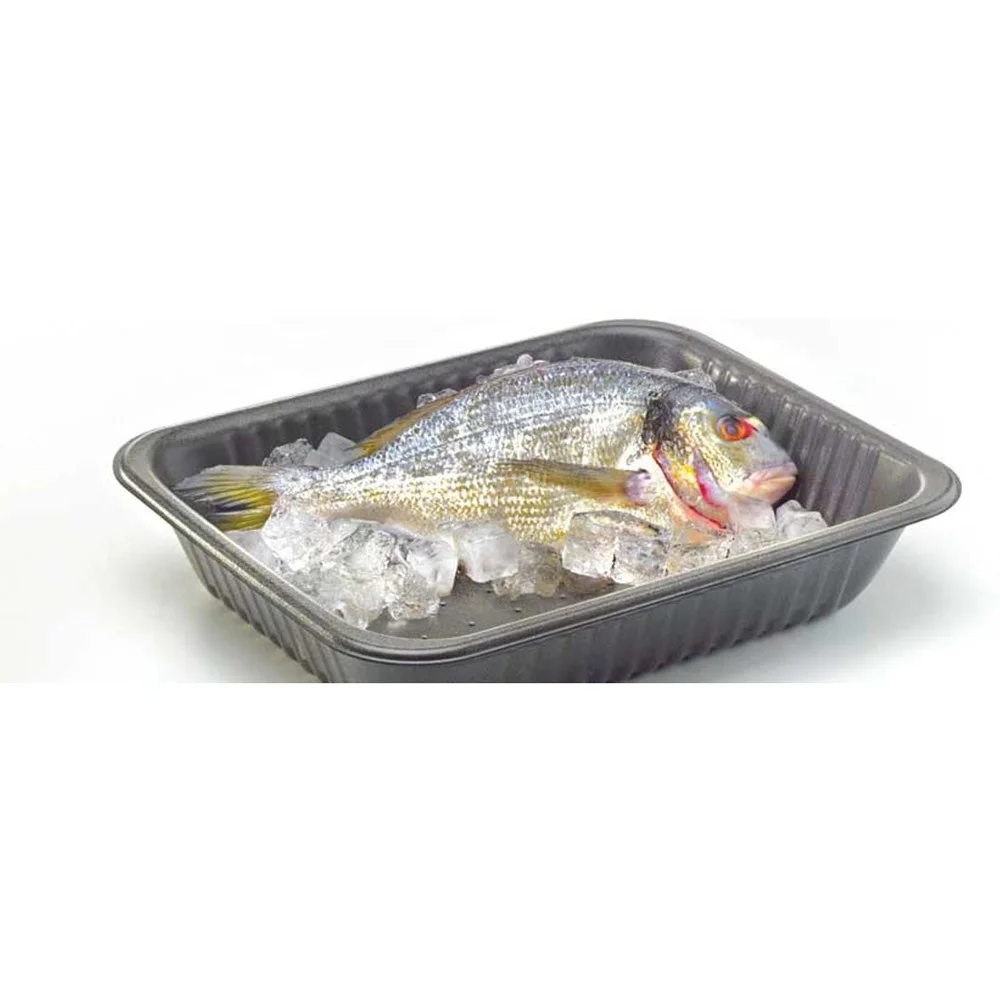

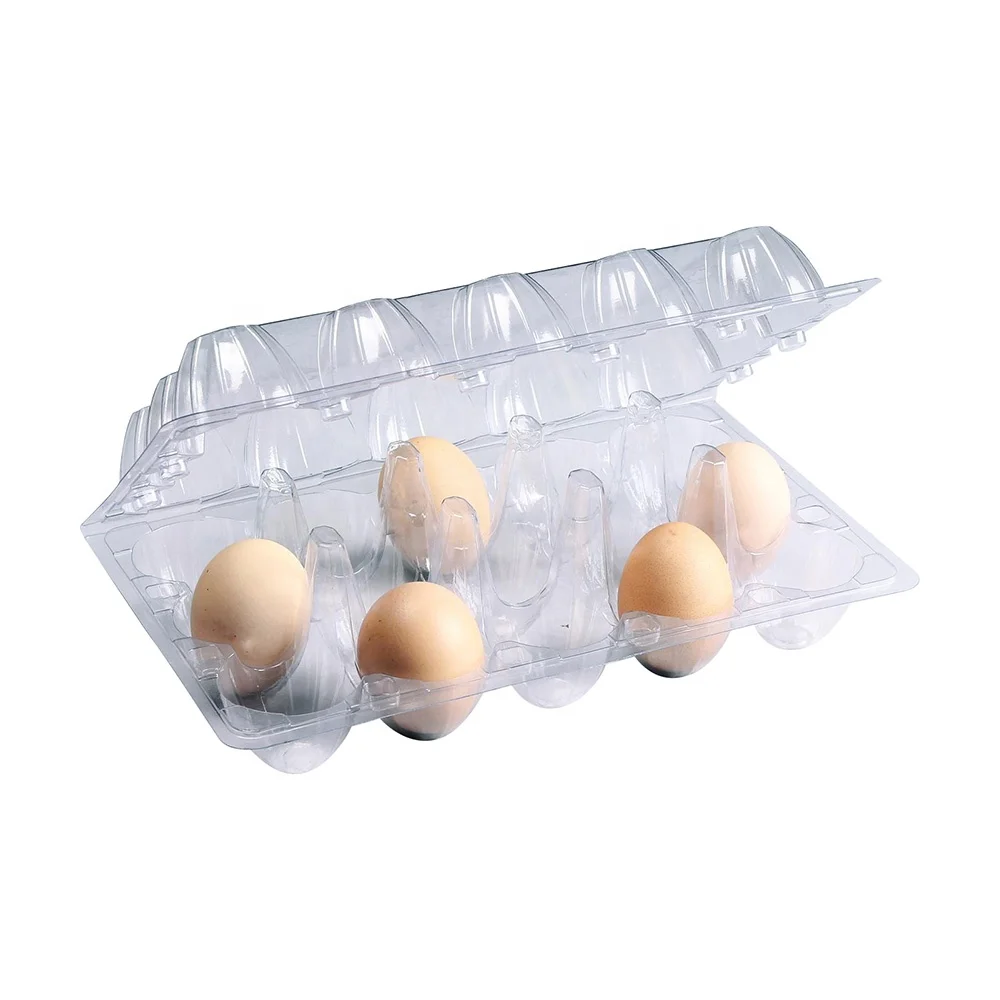

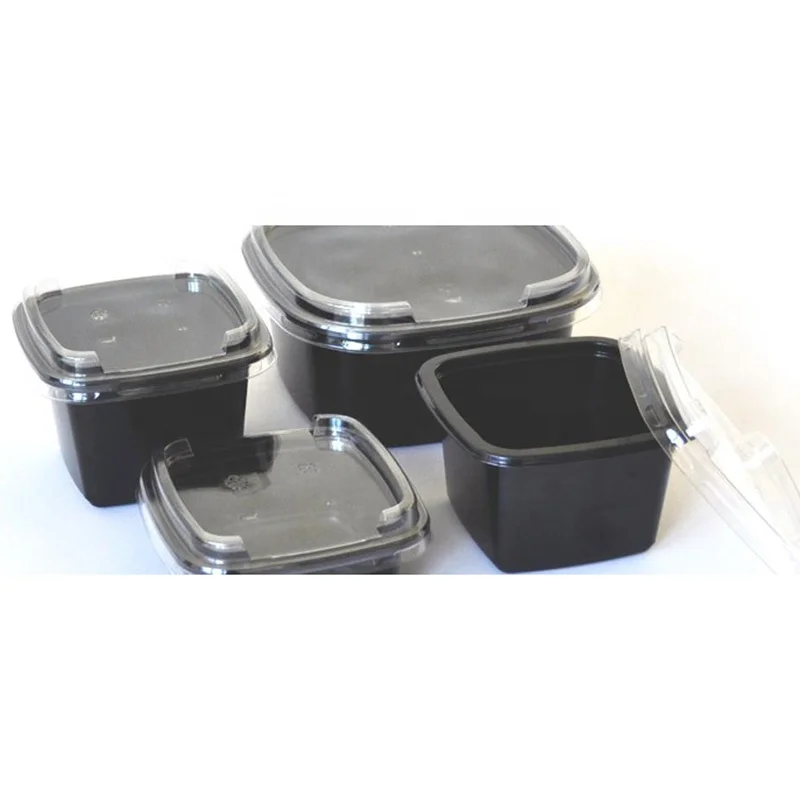

This machine finished products are widely used in sealing and packing toys, hardware, cosmetics, electronic products (such as batteries, electronic components and so on), foodstuff (such as fruit pallets, snack boxes, biscuit boxes, food dishes, trays and so on), medicines, etc. It is suitable for PVC, PE, PET, PP, PS and HIPS plastic sheet.
Sheet feeding controlled by servo motor.
Touch screen / PLC (DELTA), more reliable.
Vacuum Pump made in Germany - Rietschle
Gas circuit adopts copper tube, aging proof, and durable.
Special alloy orbit, small friction coefficient, stretch steadier and faster.
Automatic feeding frame, driven by motor save time and effort.
Company Profile
About us
Rui‘’An Litai Machinery Co., Ltd. (formerly named as Rui'an Litai Factory which was established in 2000) is a professional manufacturer of a full complete production line of full-automatic plastic thermoforming machine, cup thermoforming machine, cup printing machine, sheet extruder, plastic vacuum forming machine, packing machine, plastic machine and other industrial machinery.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Certifications
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 13months calculated from the date of shipment from our factory.During warranty period,
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
