Напольная стойка pdu 19
- Категория: Футляры для электронных приборов >>>
- Поставщик: Ningbo,Lucktech,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 357.11 $* | 375.72 $* |
| Aug-17-2025 | 354.41 $* | 372.36 $* |
| Jul-17-2025 | 297.55 $* | 312.60 $* |
| Jun-17-2025 | 348.95 $* | 365.88 $* |
| May-17-2025 | 303.30 $* | 318.83 $* |
| Apr-17-2025 | 342.8 $* | 359.15 $* |
| Mar-17-2025 | 339.70 $* | 356.18 $* |
| Feb-17-2025 | 336.65 $* | 353.3 $* |
| Jan-17-2025 | 333.26 $* | 350.13 $* |
Характеристики
Product Description

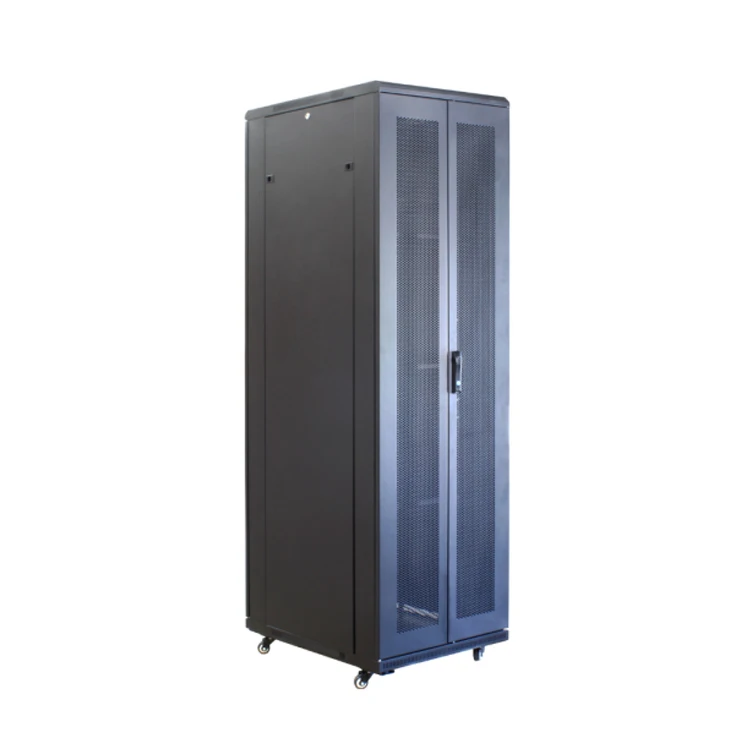

floor standing computer server networking cabinet
Exquisite design with precise craftsmanship;
Welded steel frame for front and back part, can be flat packing, easy to transfer;
Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree;
Vented rear door with hexagonal holes;
Removable side panel with latch, easy to install, optional lock;
Adjustable feet and castors sre available simultaneously;
Cable entry on the top, adjustable cable entrance at the bottom with panel;
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and back;
Efficient baying kit of cabinet, Earthing kit
Optional plinth to fix cabinet on the floor; under base cable entry;
Various optional accessories for common using;
Unassembled packing, about 2/5 of original volume, save container space;
Welded steel frame for front and back part, can be flat packing, easy to transfer;
Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree;
Vented rear door with hexagonal holes;
Removable side panel with latch, easy to install, optional lock;
Adjustable feet and castors sre available simultaneously;
Cable entry on the top, adjustable cable entrance at the bottom with panel;
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and back;
Efficient baying kit of cabinet, Earthing kit
Optional plinth to fix cabinet on the floor; under base cable entry;
Various optional accessories for common using;
Unassembled packing, about 2/5 of original volume, save container space;
Product Paramenters
Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART 7, ETSI Standard
Material:
SPCC quality cold rolled steel
Others: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm; Mounting angle: 1.5mm; other: 1.2mm
Loading Capacity:
Static loading: 800kg (on the adjustable feet)
Degree of protection:
IP20
Surface finish:
Degreaseing, Pickling, Phosphating, Powder Coated
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART 7, ETSI Standard
Material:
SPCC quality cold rolled steel
Others: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm; Mounting angle: 1.5mm; other: 1.2mm
Loading Capacity:
Static loading: 800kg (on the adjustable feet)
Degree of protection:
IP20
Surface finish:
Degreaseing, Pickling, Phosphating, Powder Coated
No. Component Name | Quantity | Unit | Material Specification | Surface Finish | Note | ||
1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.2 | Powder Coated | - | |
2 | Fan Unit | 1 | set | SPCC cold rolled steel T1.2 | Powder Coated | RING | |
3 | Steel Frame | 2 | pc | SPCC cold rolled steel T1.2 | Powder Coated | - | |
4 | Tempered Front Door | 1 | pc | SPCC cold rolled steel T1.2 | Powder Coated | Single open | |
5 | Steel Rear Door without holes | 1 | pc | SPCC cold rolled steel T1.2 | Powder Coated | Single open | |
6 | Bottom Panel | 1 | pc | SPCC cold rolled steel T1.2 | Powder Coated | ||
7 | Mounting Angle | 6 | pc | SPCC cold rolled steel T1.5 | Powder Coated | 4pcs for below 32u | |
8 | Mounting profile | 4 | pc | SPCC cold rolled steel T2.0 | Powder Coated | --- | |
9 | Side Panel | 2 | PC | SPCC cold rolled steel T1.2 | Powder Coated | --- | |
10 | Handle lock for front door | 1 | pc | --- | Galvanization | With 2 keys | |
11 | Little round lock for rear door | 1 | pc | --- | Galvanization | With 2 keys | |
12 | Castor | 4 | pc | --- | --- | --- | |

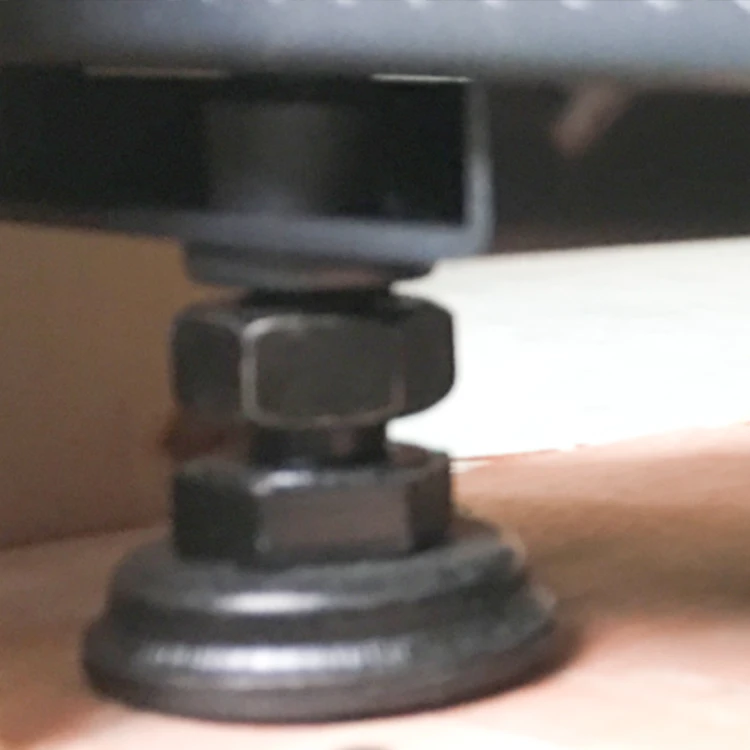

13 | M10 adjustable feet | 4 | pc | --- | --- | --- | |

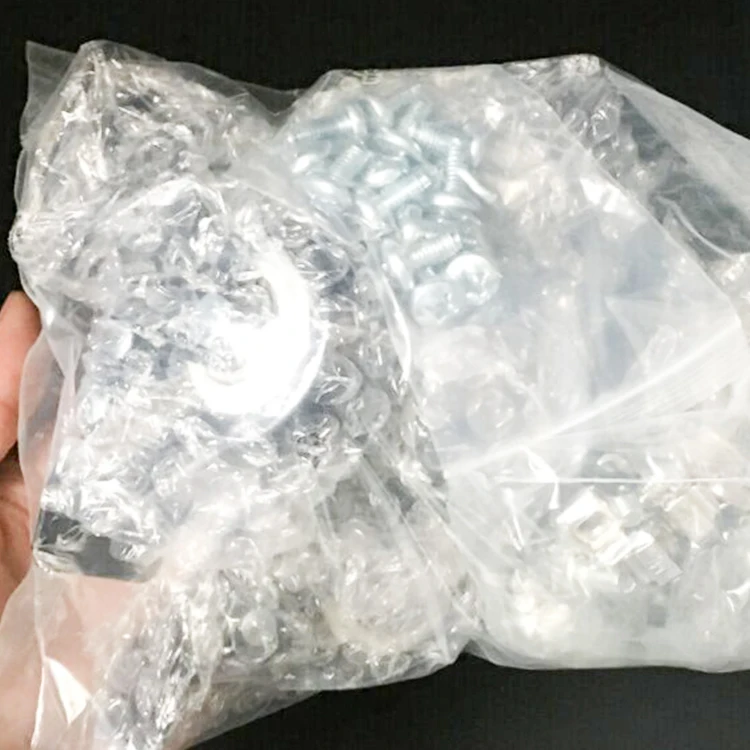

14 | M6 B-head screw and M6 square nut | 20 | PC | Steel | Color Zinc Coated | --- | |
15 | Allen Wrench | 1 | pc | Steel | Black | --- | |
16 | Spacer fonly for 800mm width) | 12 | pc | SPCC cold rolled steel T1.2 | Powder Coated | Only for 800mm | |
17 | Vertical cable manager (800mm width) | 2 | pc | SPCC cold rolled steel T0.8 | Powder Coated | Only for 800mm | |
Door Type
Color Of Cabinet Body
Model Information
Model No. | Capacity(U) | Width × Depth(mm) | Model No. | Capacity(U) | Width × Depth(mm) |
LK-SC-JA6618 | 18 | 600 × 600 | LK-SC-JA6637 | 37 | 600 × 600 |
LK-SC-JA6818 | 600 × 800 | LK-SC-JA6837 | 600 × 800 | ||
LK-SC-JA6918 | 600 × 900 | LK-SC-JA6937 | 600 × 900 | ||
LK-SC-JA6018 | 600 × 1000 | LK-SC-JA6037 | 600 × 1000 | ||
LK-SC-JA6622 | 22 | 600 × 600 | LK-SC-JA6642 | 42 | 600 × 600 |
LK-SC-JA6822 | 600 × 800 | LK-SC-JA6842 | 600 × 800 | ||
LK-SC-JA6922 | 600 × 900 | LK-SC-JA6042 | 600 × 1000 | ||
LK-SC-JA6022 | 600 × 1000 | LK-SC-JA6242 | 600 × 1200 | ||
LK-SC-JA6627 | 27 | 600 × 600 | LK-SC-JA6645 | 45 | 600 × 600 |
LK-SC-JA6827 | 600 × 800 | LK-SC-JA6845 | 600 × 800 | ||
LK-SC-JA6927 | 600 × 900 | LK-SC-JA6045 | 600 × 1000 | ||
LK-SC-JA6027 | 600 × 1000 | LK-SC-JA6245 | 600 × 1200 | ||
LK-SC-JA6632 | 32 | 600 × 600 | LK-SC-JA6647 | 47 | 600 × 600 |
LK-SC-JA6832 | 600 × 800 | LK-SC-JA6847 | 600 × 800 | ||
LK-SC-JA6932 | 600 × 900 | LK-SC-JA6047 | 600 × 1000 | ||
LK-SC-JA6032 | 600 × 1000 | LK-SC-JA6247 | 600 × 1200 |
Model No. | Capacity(U) | Width × Depth(mm) | Model No. | Capacity(U) | Width × Depth(mm) |
LK-SC-JA8618 | 18 | 800 × 600 | LK-SC-JA8637 | 37 | 600 × 600 |
LK-SC-JA8818 | 800 × 800 | LK-SC-JA8837 | 600 × 800 | ||
LK-SC-JA8918 | 800 × 900 | LK-SC-JA8937 | 600 × 900 | ||
LK-SC-JA8018 | 800 × 1000 | LK-SC-JA8037 | 600 × 1000 | ||
LK-SC-JA8622 | 22 | 800 × 600 | LK-SC-JA8642 | 42 | 600 × 600 |
LK-SC-JA8822 | 800 × 800 | LK-SC-JA8842 | 600 × 800 | ||
LK-SC-JA8922 | 800 × 900 | LK-SC-JA8042 | 600 × 1000 | ||
LK-SC-JA8022 | 800 × 1000 | LK-SC-JA8242 | 600 × 1200 | ||
LK-SC-JA8627 | 27 | 800 × 600 | LK-SC-JA8645 | 45 | 600 × 600 |
LK-SC-JA8827 | 800 × 800 | LK-SC-JA8845 | 600 × 800 | ||
LK-SC-JA8927 | 800 × 900 | LK-SC-JA8045 | 600 × 1000 | ||
LK-SC-JA8027 | 800 × 1000 | LK-SC-JA8245 | 600 × 1200 | ||
LK-SC-JA8632 | 32 | 800 × 600 | LK-SC-JA8647 | 47 | 600 × 600 |
LK-SC-JA8832 | 800 × 800 | LK-SC-JA8847 | 600 × 800 | ||
LK-SC-JA8932 | 800 × 900 | LK-SC-JA8047 | 600 × 1000 | ||
LK-SC-JA8032 | 800 × 1000 | LK-SC-JA8247 | 600 × 1200 |

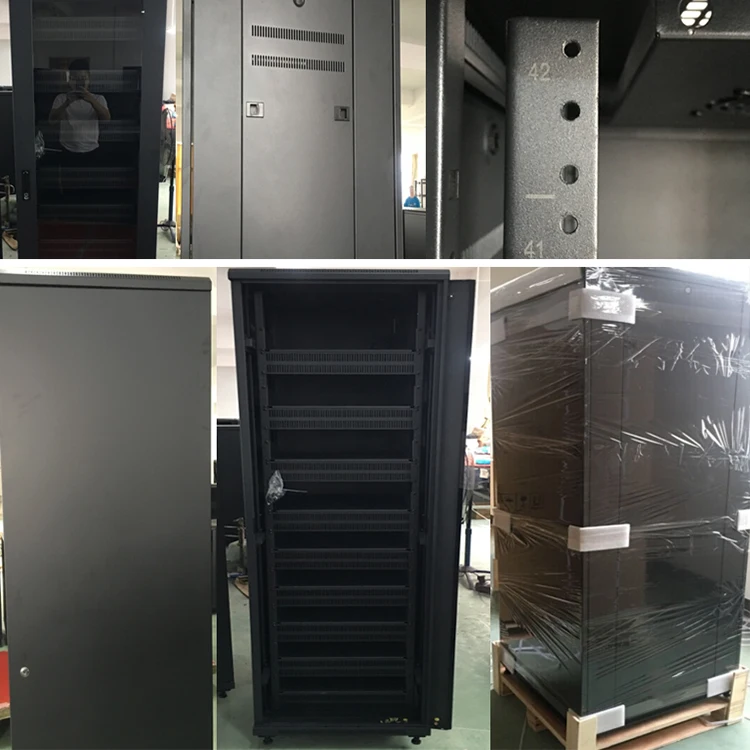

Production Process
Product packaging
FAQ
Q: Is Lucktech a manufacturer or trading company?
A: Lucktech has its own invested factory, and also do some trading for the items we do not produce. We are competitive even for
the trading items, as we have a strong sourcing team who concern about quality.
Q: What's the normal lead time?
A: For different items, we have different lead time, normally it is 15-35 days.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
Q: Do you have CPR compliance for the cables?
A: Yes, now we get through the CPR Testing.
Q: What is your payment terms?
A: T/T, sight L/C, Western Union, Paypal.
Q: Do you have the OEM service?
A: Yes, we can accept the OEM, any legal information can be printed on the product.
A: Lucktech has its own invested factory, and also do some trading for the items we do not produce. We are competitive even for
the trading items, as we have a strong sourcing team who concern about quality.
Q: What's the normal lead time?
A: For different items, we have different lead time, normally it is 15-35 days.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
Q: Do you have CPR compliance for the cables?
A: Yes, now we get through the CPR Testing.
Q: What is your payment terms?
A: T/T, sight L/C, Western Union, Paypal.
Q: Do you have the OEM service?
A: Yes, we can accept the OEM, any legal information can be printed on the product.
