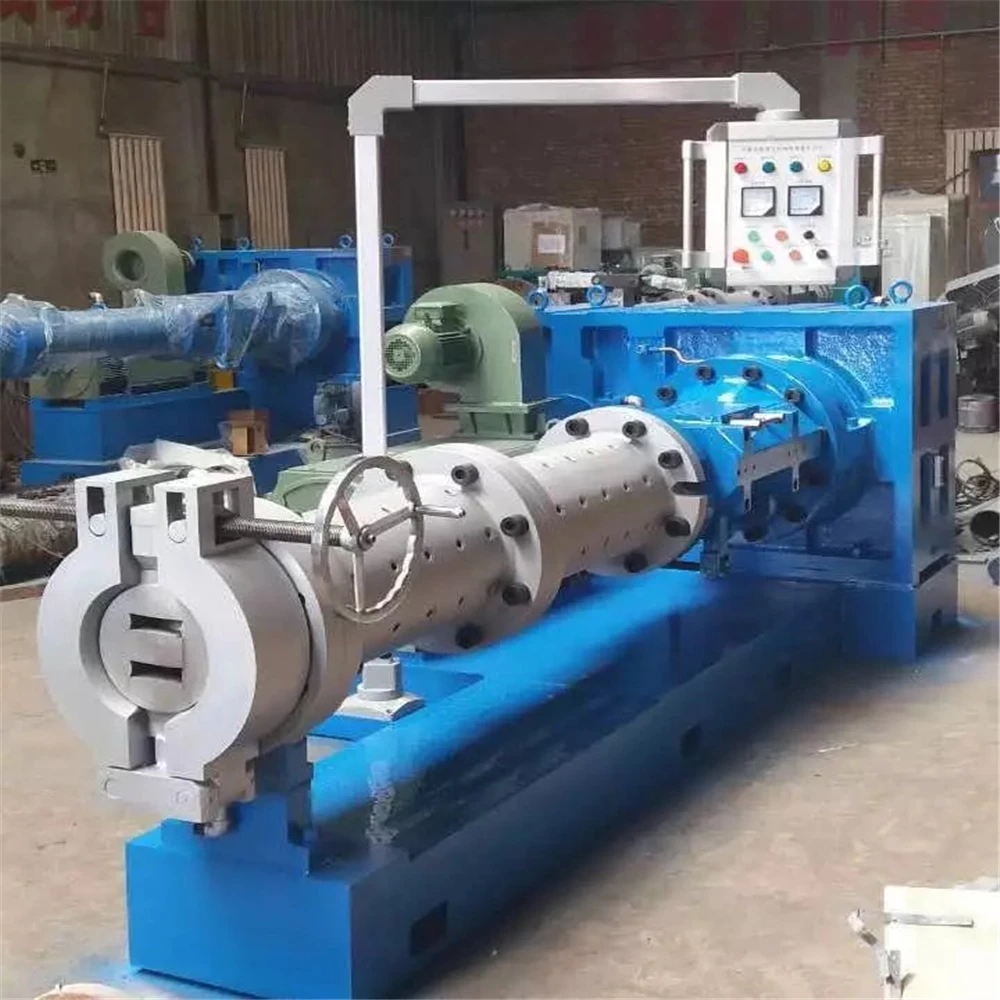

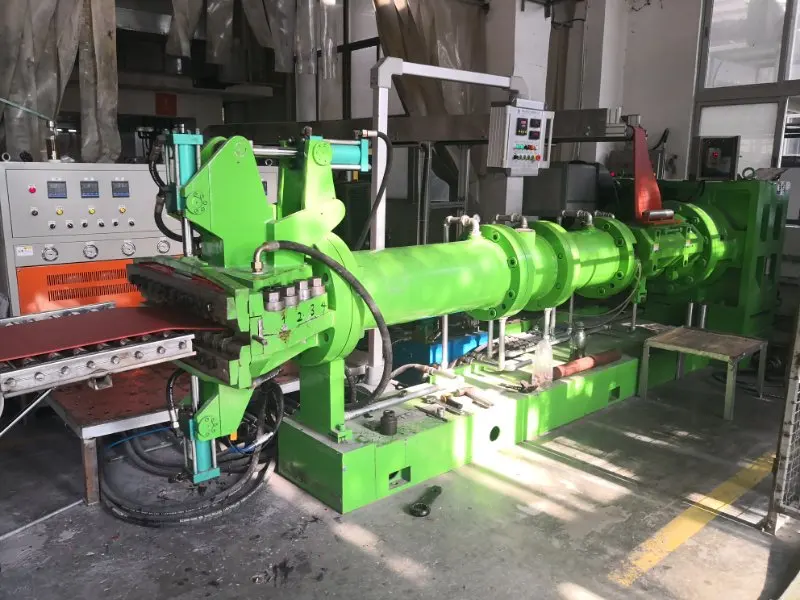

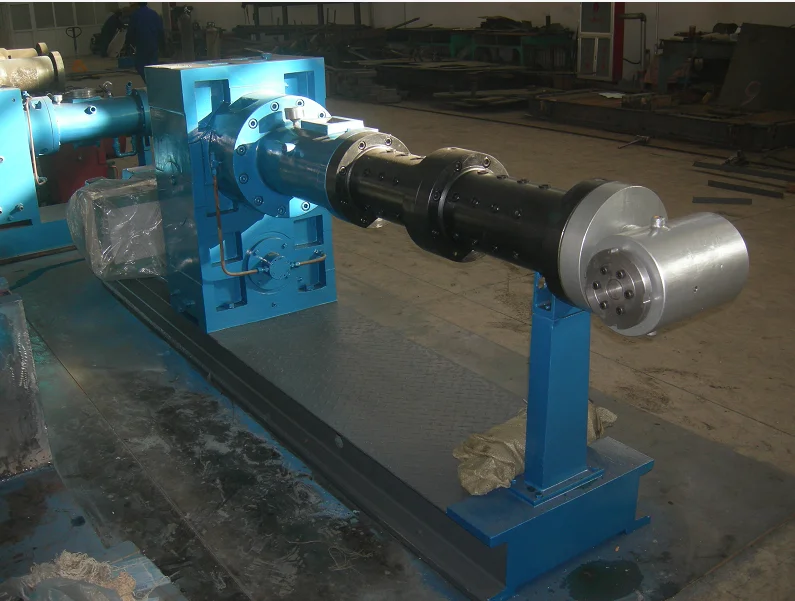

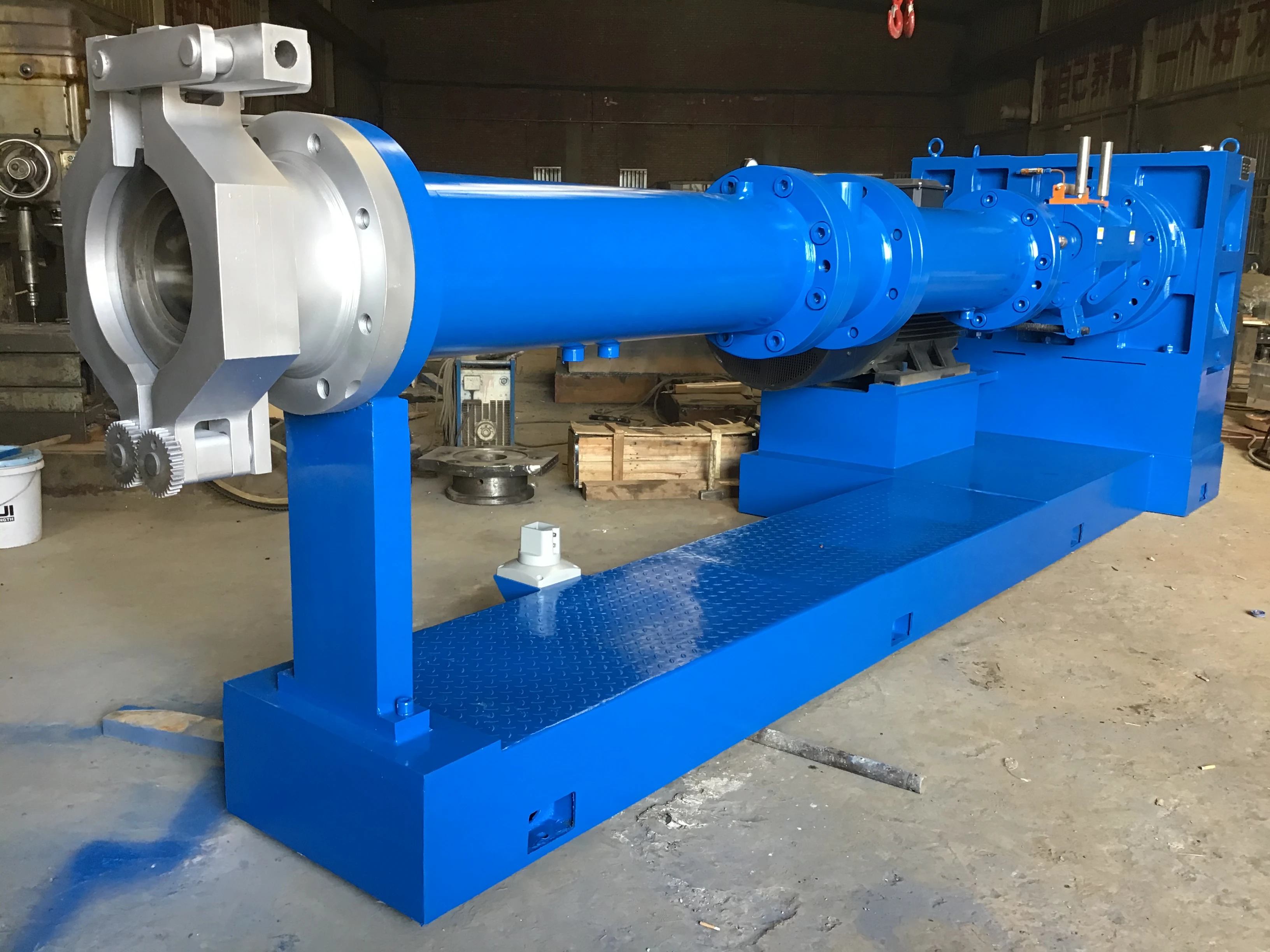

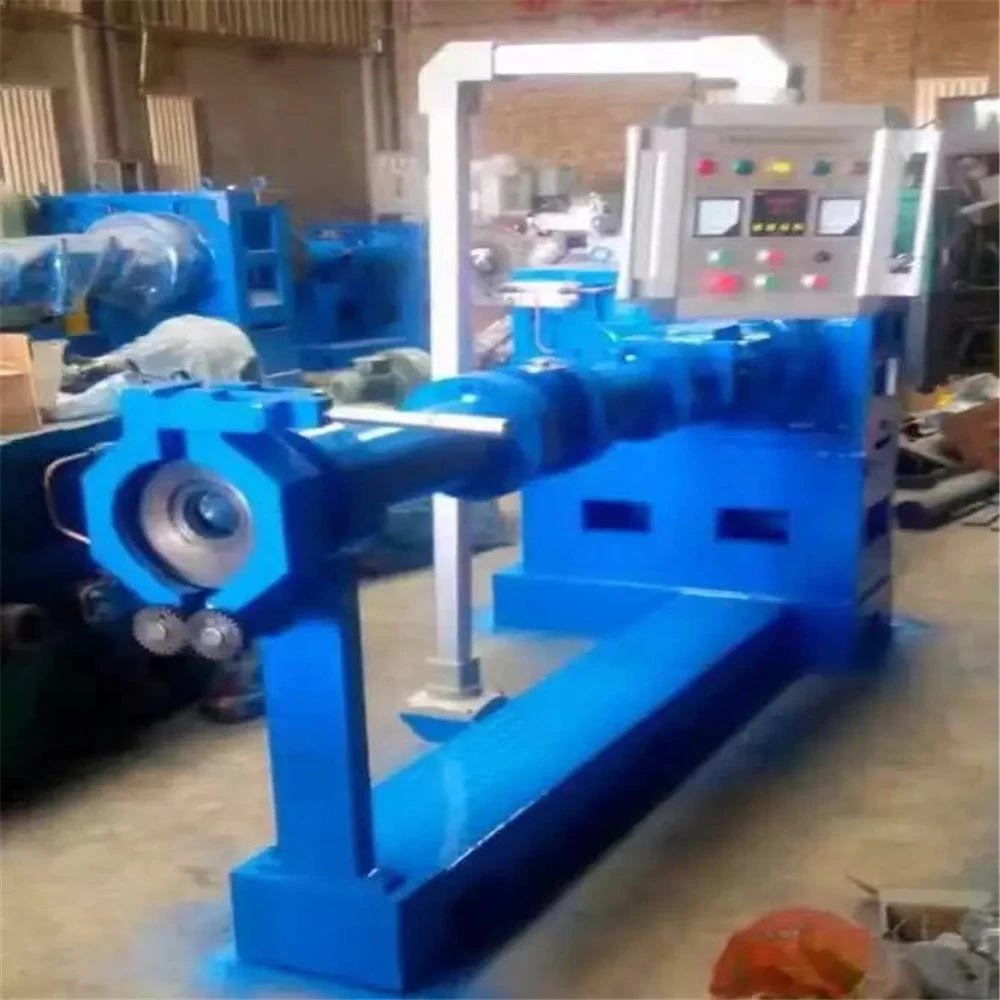

XJD-150 Pin-barel Rubber Cold Feed Extruder / rubber seal strip extruder machine price



1.Specifications

1)The screw and liners all made of nitrided steel are nitrogenized, so resistance to wear enough and better self-cleaning.
2)The screw with advanced structure is machined withN. C. Milling machine, so high precision.
3)Liners of the barrel with helical intake groolves had better heat conduction and feeding rolls are fixed at the feed zone.
4)Advanced reducer with a forced lubrication system, high working accuracy, less noise and wear resistance.
5) It is driven by a D. C. Motor, choose extrusion parameter according to diferent kinds of rubber stock and viscidity.
6)Each zone of the extrusion body can be automatically controlled with a hot water circulating unit.
7)More usres, the extrusion head or screw can be changed to extrude different kings of rubber stock



2.Parameters of the product

Spec	GE90KS×14D	GE120KS×14D	GE150KS×16D	GE200KS×18D	GE200KS×18D	GE250KS×14D
Screw dia(mm)	90	120	150	200	200	250
L/D ratio	14:1	14:1	16:1	18:1	12:1	12:1
Max.screw speed (r/min)	60	55	44	33	26	22.63
Hopper (mm)	130×122	164×140	200×165	260×210	260×210	320×246
Pin qty.of each row	6	6	8	10	10	12
Row qty of pin	8	10	10	12	10	10
Model of motor	Z4-200-21	Z4-200-31	Z4-250-21	Z4-280-32	Z4-280-11	Z4-280-32
Power (kw)	67	90	185	315	250	315
Zone of hot water circulation	4	4	4	4	3	4
Zone of hot water circulation power(KW)	24	48	48	54	42	48
Capacity (kg/h)	360	800-1000	1800-2000	2100-2600	2300	3000
Overall dimensions	2540*1493*1416	3996*1575*1760	6000*2600*1800	7770*3000*2035	6250*3000*2035	6885*2400*2090
About weight(t)	~4.5	~6	~7.25	~16.6	~12.6
