Products Description

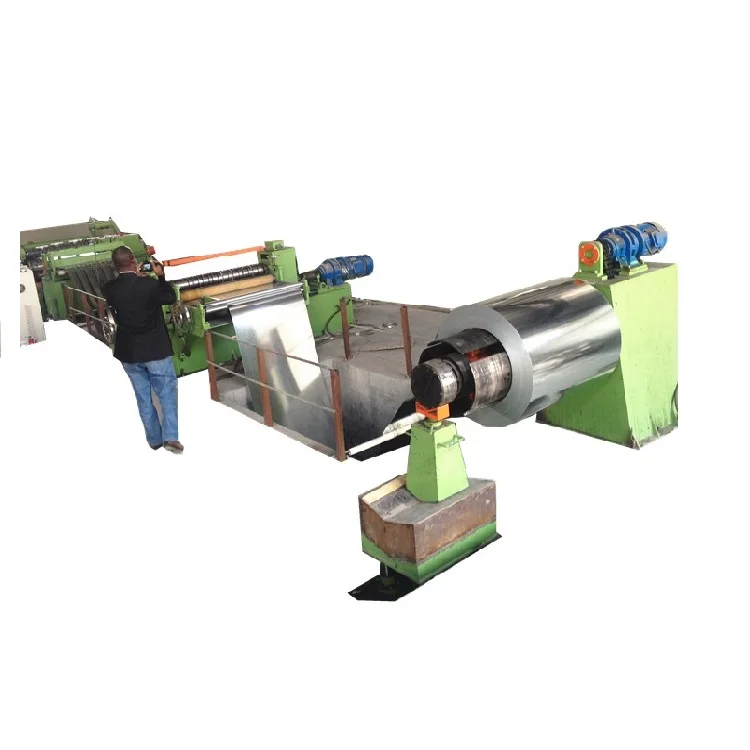

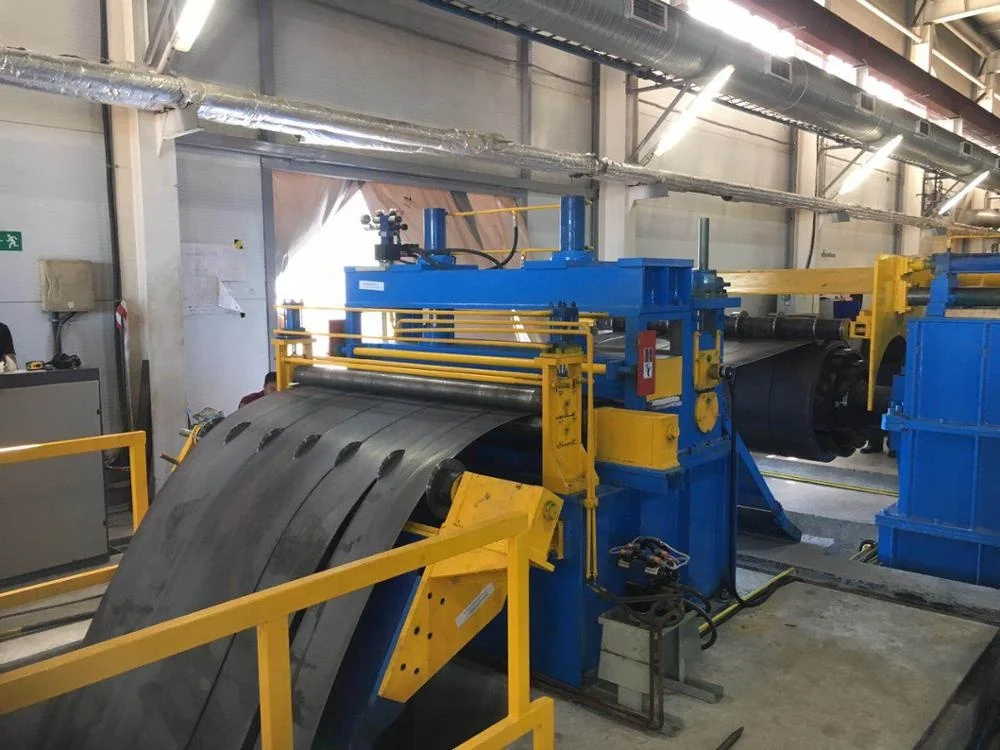

Automatic slitting line
Automatic slitting line is a complete line to slit the big steel coil into strips and then rewinding by PLC , it can slit various
size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc.
.
Automatic slitting line
Automatic slitting line is composed as coil car,decoiler,pinch device,head cutter,slitter,scrap winder,tension stand ,recoiler and exit coil car.The speed can be max 120m/min
Product Paramenters
Standard specifications of automatic slitting line(if other size,can be customlized)
Model
Thickness(mm)
Width(mm)
No. of slitting
Tolerance(±mm/m)
Speed(m/min)
Weight(T)
ZJX-2X650
0.2-2
100-650
10-30
±0.05
0-120
10
ZJX-2X1250
0.2-2
500-1250
10-30
±0.05
0-120
10、15
ZJX-3X1250
0.3-3
500-1250
65-30
±0.05
0-120
10、15
ZJX-3X1600
0.3-3
500-1600
5-30
±0.05
0-120
15、20
ZJX-4X1600
0.5-4
500-1600
5-30
±0.05
0-100
20、25
ZJX-6X1600
1-6
500-1600
5-20
±0.1
0-80
20、25
ZJX-8X2000
3-8
800-2000
5-15
±0.1
0-40
25、30
ZJX-10X2000
3-10
800-2000
5-10
±0.1
0-40
25、30
ZJX-12X2000
4-12
800-2000
5-10
±0.1
0-30
25、30
ZJX-16X2200
6-16
800-2200
4-8
±0.1
0-20
30、35
Standard specifications of simple hydraulic slitting line(if other size,can be customlized)
Model
Thickness(mm)
Width(mm)
No. of slitting
Tolerance(±mm/m)
Speed(m/min)
Weight(T)
ZJX-1.5X650
0.2-1.5
100-650
5-15
±0.05
0-40
5
ZJX-1.5X1250
0.2-1.5
500-1250
5-15
±0.05
0-40
5、10
ZJX-2X1250
0.2-2
500-1250
5-15
±0.05
0-40
5、10
ZJX-3X1250
0.3-3
500-1250
5-15
±0.05
0-40
10
ZJX-3X1600
0.3-3
500-1600
5-15
±0.05
0-30
10、15
ZJX-4X1250
0.5-4
500-1250
5-15
±0.1
0-30
10
ZJX-4X1600
0.5-4
500-1600
5-15
±0.1
0-30
10、15、20
Details Images

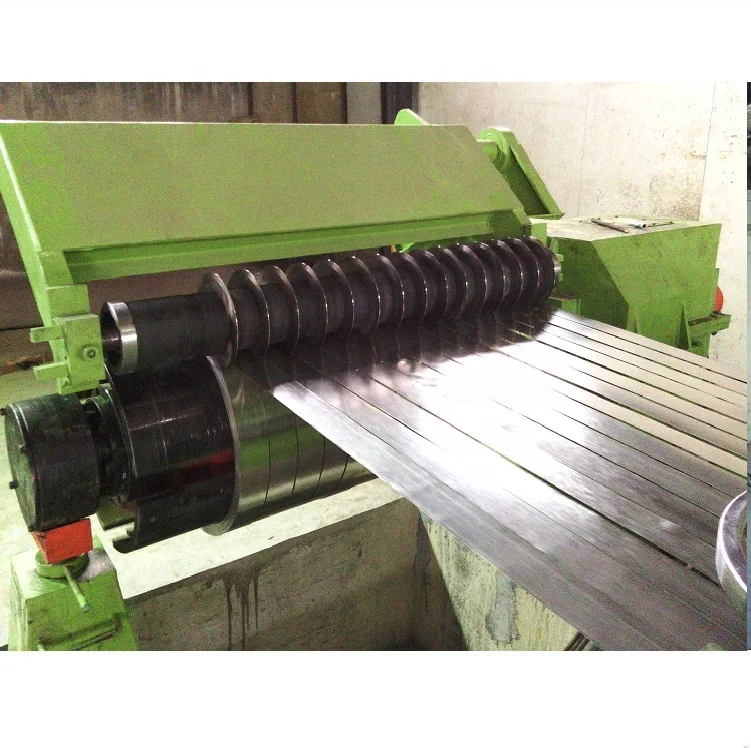

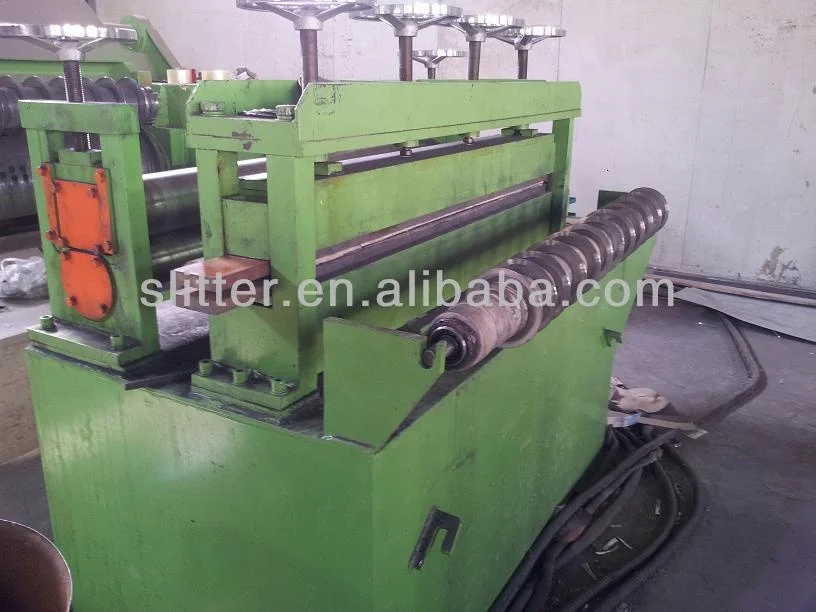

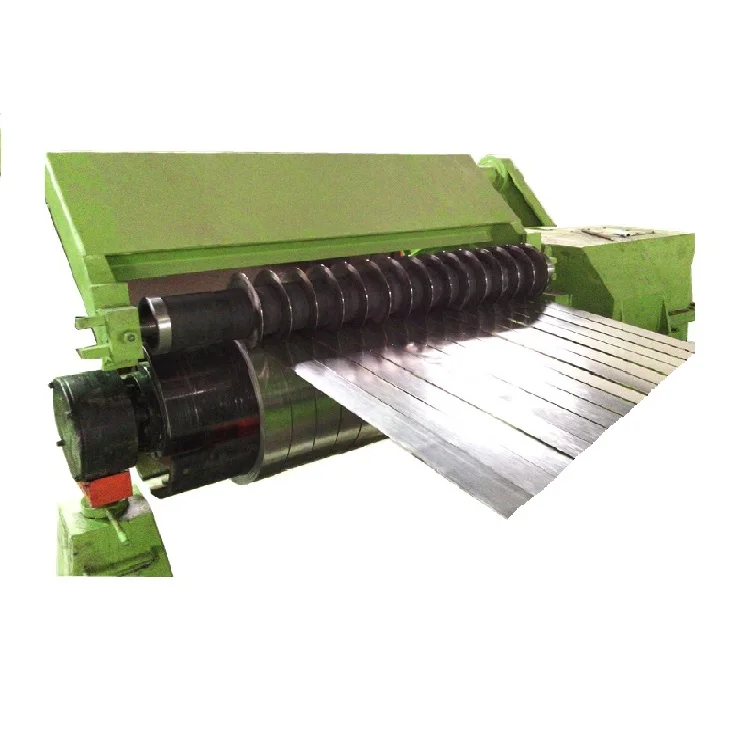

Slitter
Composed of bottom-stand, fixed bracket, big slide, knife pivot, movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device.

It is the important part to slit good-quality coil strips

Can slit the different size according as blade adjustment
Recoiler
Designed with 8-fan-shaped plates which can be a round circle and machining as a whole to ensure the recoiling quality.

Designed with clip mouth and clip the strips heads.

Designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.
Product packaging
Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes.
After loading to the container,it will be fixed by lifting rope.
Company Profile
WUXI BANGZHOU MACHINERY
      We are the manufacturer specialized in steel coil straightening machine, slitting line, cut to length line and flat bar straightening and chamfering machine for about15 years.
       It is professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.
Certifications
Customer Photos
Our compnay will attend professional exhibition of this industry every year.
Always welcome to visit our factory.
Customer feedback
We will visit customers periodically to keep good relationship and ask the use sense of machine
Customer feedback
We will visit customers periodically to keep good relationship and ask the use sense of machine
FAQ
What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and humanized .
 A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 3-4 lines per month.
Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.
How to visit your company?
Our factory is located in Wuxi city, near Shanghai. So there are two ways to our city. One is by flight, direct to Wuxi Airport.
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
What information you need to prepare the quotation?
1. coil thickness(min-max)?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
