Высокоскоростная флексографическая печатная машина для 6 видов

Product Application

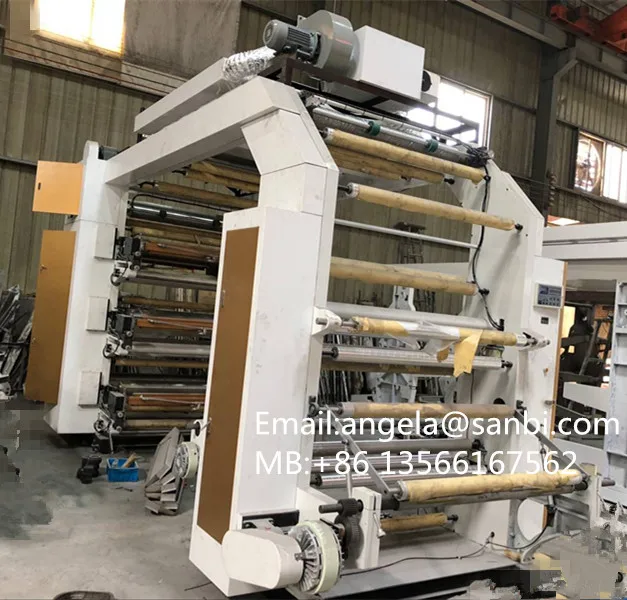

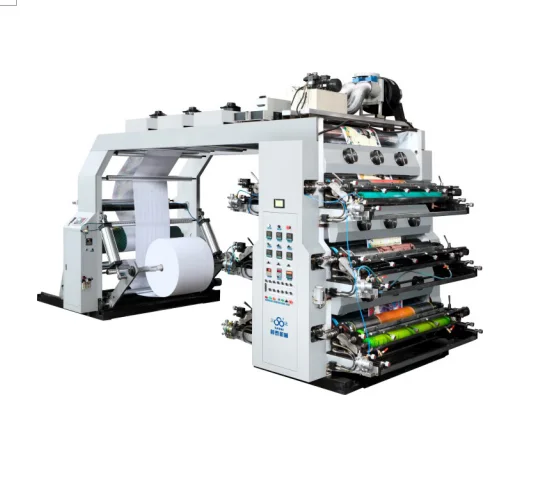

HYT-6600-61600 High speed Flexographic Printing Machine

Product Application
High Speed flexo printing machine is suitable for printing such packing materials as polyethylene, polypropylene bag, plastic film  and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

2.Machine features:
1.Low speed and full load startup; stable running by tension control when increasing and decreasing speed , noise is decreased

2.High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering.

3.Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop. The special made modulus angular gears adopted; accurate printing size and full printing specifications (5mm is a spec)

4.With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.

5.Printing rolls should keep moving while machine halted

6.Material holder use air shaft

7.Auto tension control

8.Unwind with auto deviation correction system (EPC)

9.Reversible printing 4 color press for4+0, 1+3 2+2,

10. 1 sets of printing cylinder, sizes: 15 inches.

Main Features

1) Equip with bigger gear driving to make the max speed 120m/min.

2) Equip with double chambered doctor blade ,cermaic anilox roller .

3)Equip with static screen togther with camera system to register the printing .

4) Equip with double way ink pump to make ink circulation .

5) Equip with unwinder and rewinder automatic tension controller and EPC.

Machine Parts

Name: Double chambered doctor blade

Brand:Denmark brand

Original: Denmark

Equip with double doctor blade and ceramic anilox roller to make more clear design.

Main Features

Name: Double Way Ink Pump
Brand: sanbi
Original: China
Equip with double way ink pump to make ink circulation.

Machine Parts

Name: Video Inspection system
Brand: Sanbi
Original: China
Equip with static screen with camera system to register the colors .

Main Features

Name: Bigger Gear
Brand: Sanbi
Original: China
Equip with bigger gear to make the max printing speed 120m/min.
