Характеристики


HAC Transformer Coil Drying Oven


transformer coil drying oven


I Description of HAC transformer coil drying oven

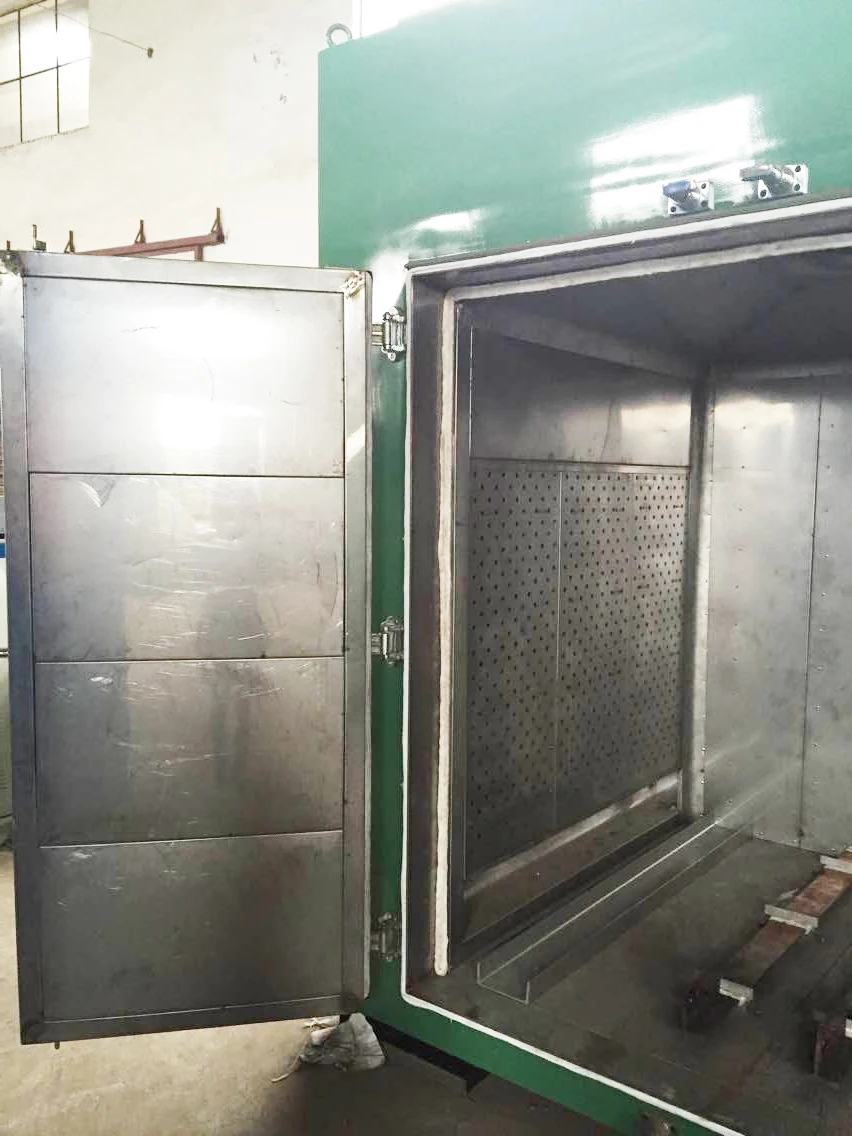

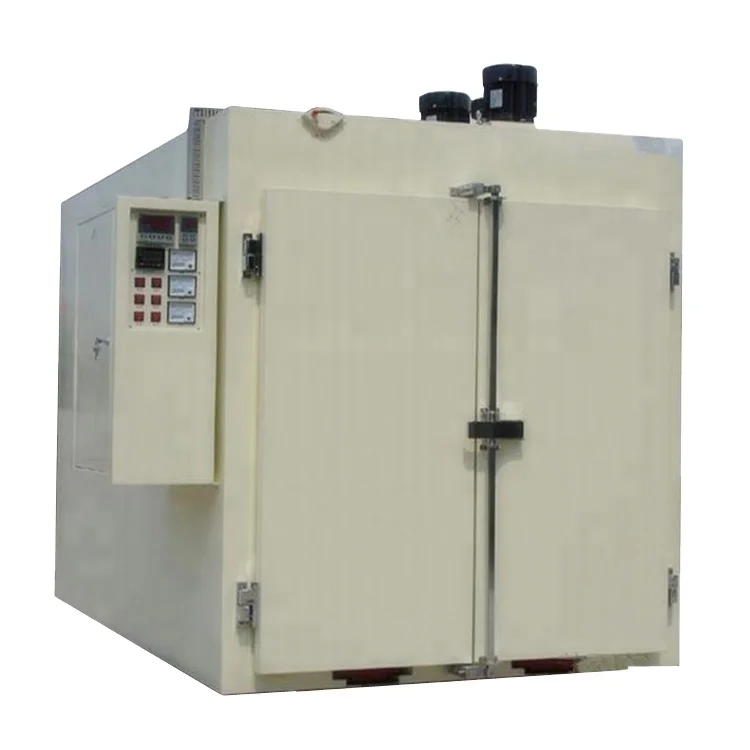

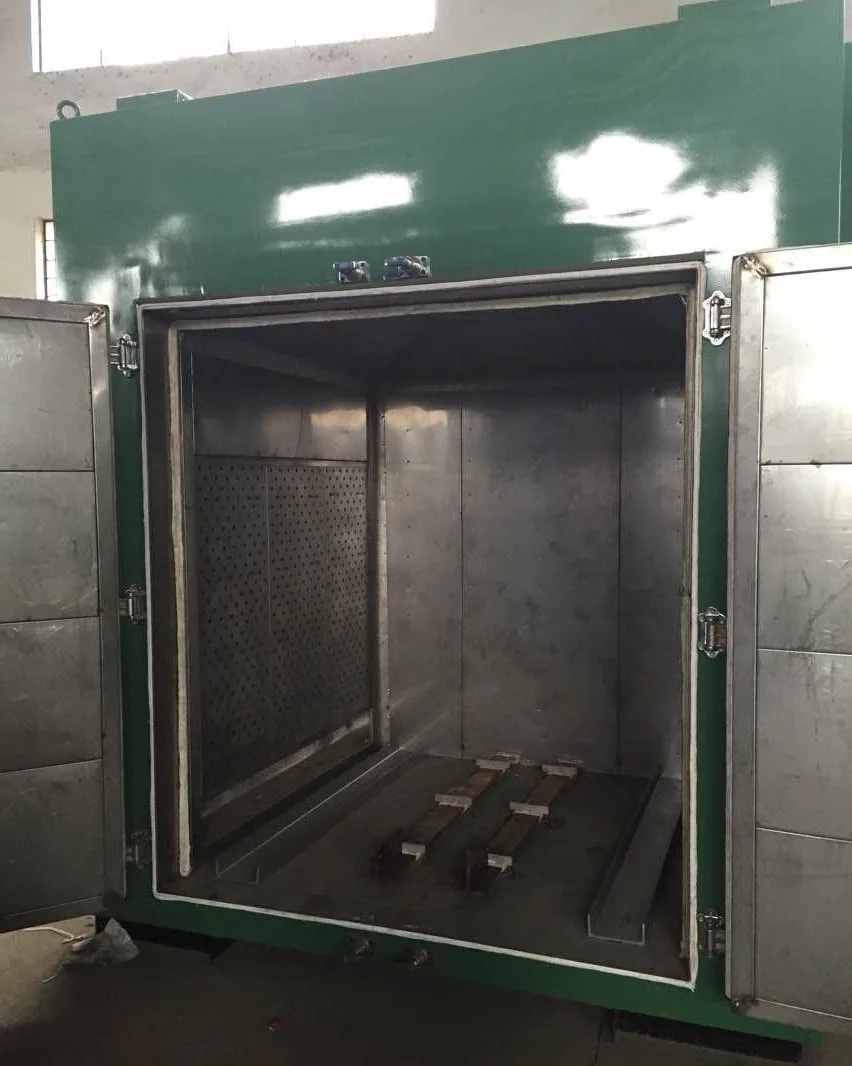

This drying oven is specially designed for drying transformer active parts (transformer coils) or for solidifying casted dry-type transformers.


This drying oven is hot-air-cycling type, equipped with 6 pieces high temperature resistance centrifugal fans for better temperature evenness.


II Main technical data of HAC transformer coil drying oven




































































































































































Oven body structure



Inner effective size



1740 x 1850 x 2580mm(W x H x L)



Outline dimension



2050 x 2570 x 2920mm (W x H x L)



Outer surface



1.5-2mm Q235 cold rolled steel anti-rust painted, spraying acrylic air-dry paint



Inner surface



1.5mm Q235 cold rolled steel anti-rust painted, spraying high temperature resistant paint



Heat insulation material



aluminum silicate fiber, 150mm thick



Door opening method

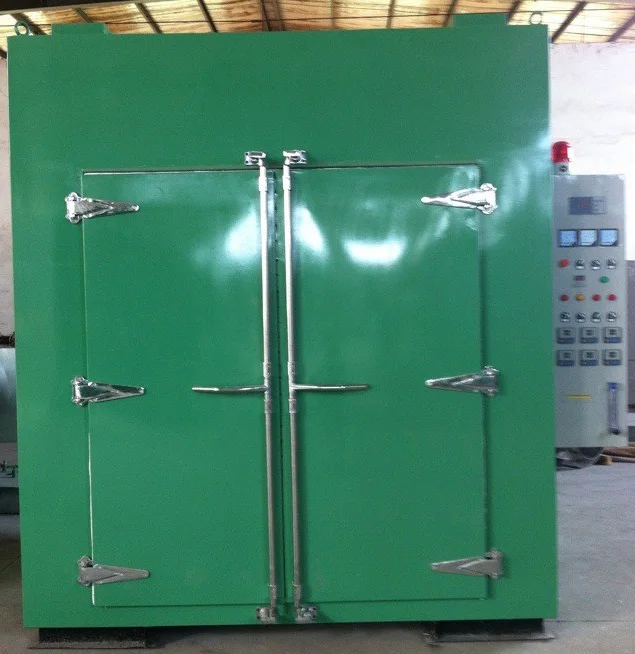

double-door, manual



Door sealing material



asbestos rope



Viewing window



two sets



Main technical data



Working temperature



ambient temperature~180°C



Temperature fluctuating



≤±2°C



Temperature uniformity



≤±2.5°C (max temperature empty test)



Temperature rise of outer surface



≤ambient temperature+25°C



Temperature raising speed



≤90min(idle test, from ambient temperature to 180°C)



Heating power



51.2kW



Motor power for blowing fans



1.1KW x 6 sets



Motor power for exhausting fan



0.25KW×1 set



Power supply



380V, 3phase, 50Hz



Blowing system



Air supplying model



bottom to top, compulsive hot air circulating



Air outing way



left and right bottom



Air flowing control

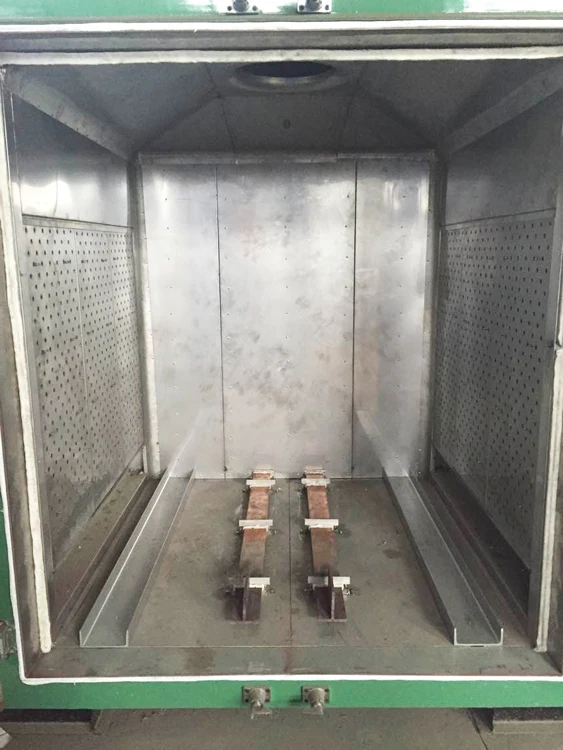

double layer multi-hole adjusting panel



Air returning method



Multi-hole panel on the top of heating chamber



Centrifugal fan



low noise, noise level < 65dB



Heating system



Electric heater



Star-connection, 220V 50Hz, U-shaped heating tubes



Location



in air duct, left and right sides



Control system



Control cabinet



independent type control cabinet, dimension 600 x 500 x 1750mm



Controller



high precision Shinko original from Japan, precision grade 0.2-0.3



Over-temperature alarm



digital temperature controller Shinko (original from Japan) with temperature sensing element PT100



Heating control



SSR solid state relay, contact power adjustment



Lighting inside



high temperature resistant light, 1 set



Protecting system



1. Over-temperature alarm system


2. Motor over-current protection


3. Electric heater over-current protection


4. Electrical and heating interlock


5. Control circuit protection


6. Air switch



Accessories



Intake valve



Manual adjust according to work pieces conditions



Exhaust valve



Manual / automatic intermittent exhaust system, flange interface



Body color



As per customer’s request



Trolley



Manual traction, capacity 3 tons, 1 set, 1640 x 300 x 3530mm



Outside guide



For trolley movement






We can design any HAC transformer coil drying ovens based on your max. transformer coil sizes and your required productivity. Any other size transformer coil drying ovens are available.
