                       Aluminum Window Manufacturing Machine  Aluminum Window Making Machine





Function

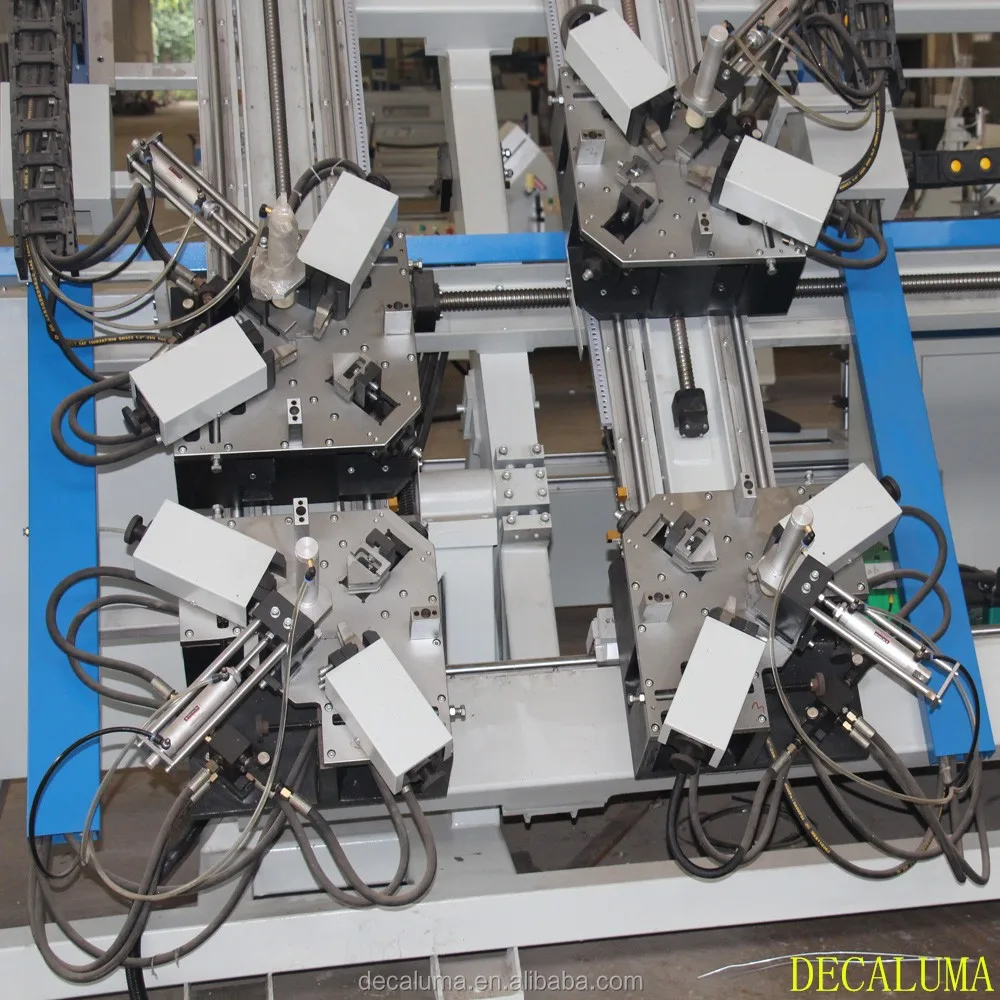

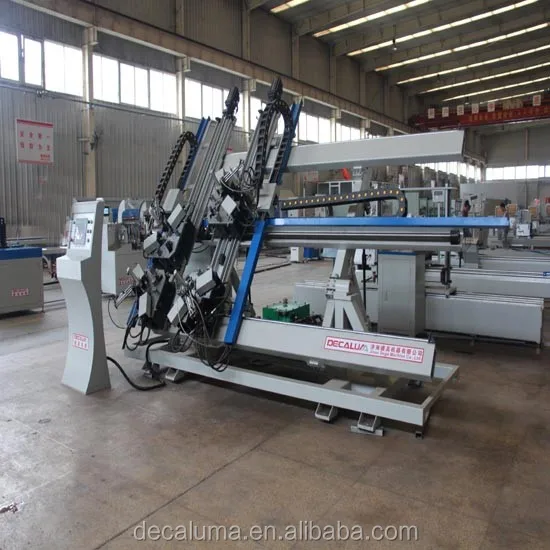

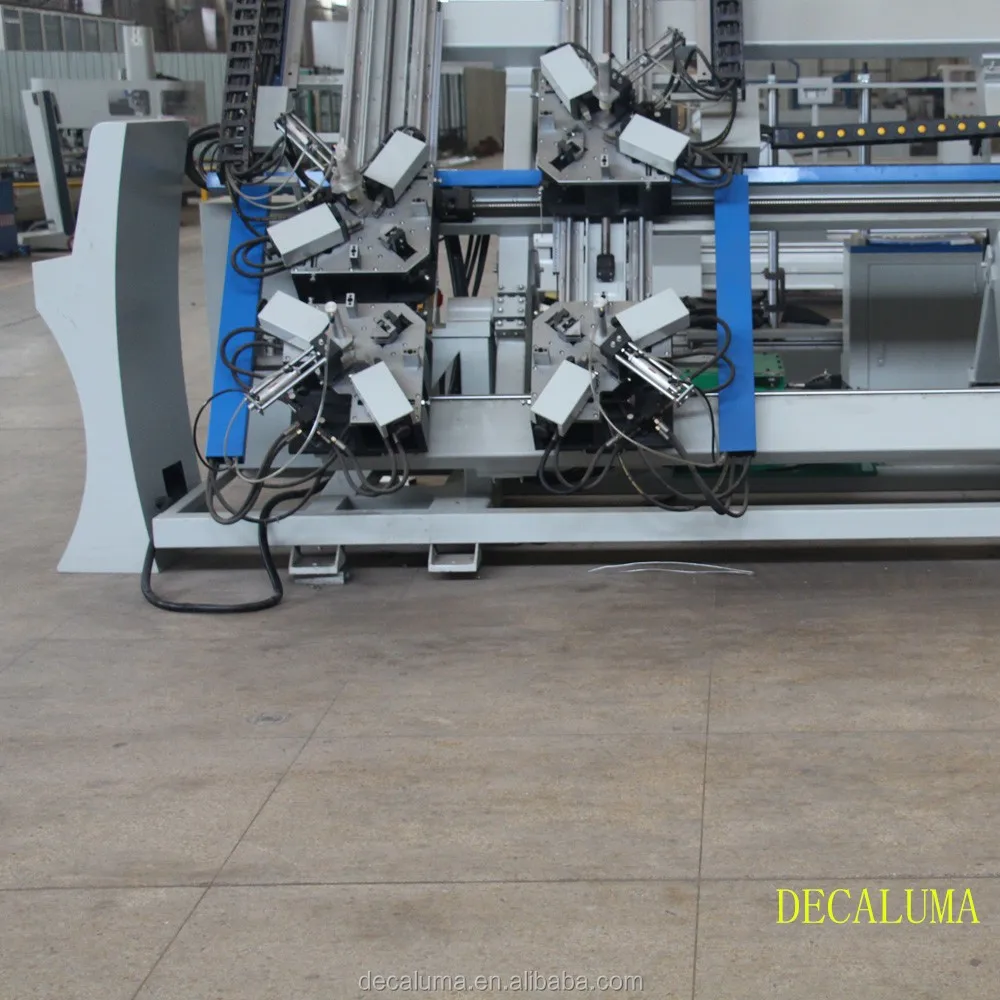

1.Used for corner crimping of aluminum window and door and curtain wall sash, four corners can be finished in one cycle.

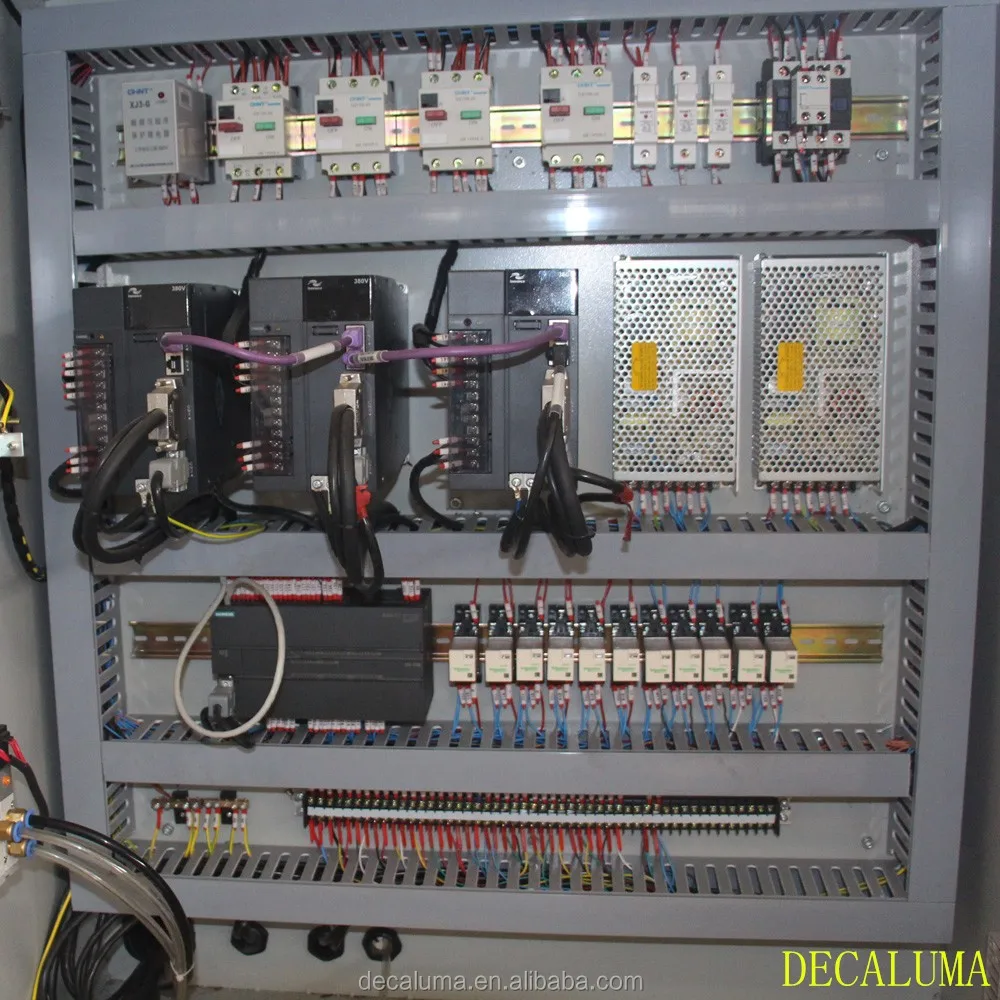

2.High automatic and intelligent operation in the whole working cycle with CNC system driving, 3.Automatic fabricating size control.

4.Linear bearing moving with high accuracy and stability.

5.Four corner auto pre-clamping by moment supervising of servo-control system.

6.Convenient adjustment of the crimp tooling for different profile requirement.



Technical Parameter:



Power supply	Made to order
Hydralic gearbox motor power	7.5KW
Rate oil cylinder pressure	15Mpa
Oil tank capacity	40L
Air pressure	0.50.8Mpa
Air consumption	60L/min
Crimping pressure	12Mpa
Processing profile height	Max. 95mm
Travel size for crimping cylinder	85mm
Adjust range of main locating plate	54mm
Fabrication range	5001800×3000 mm
Dimension (LxWxH)	4700×2000×2660mm
Weight	1500kg













How to find your company ?

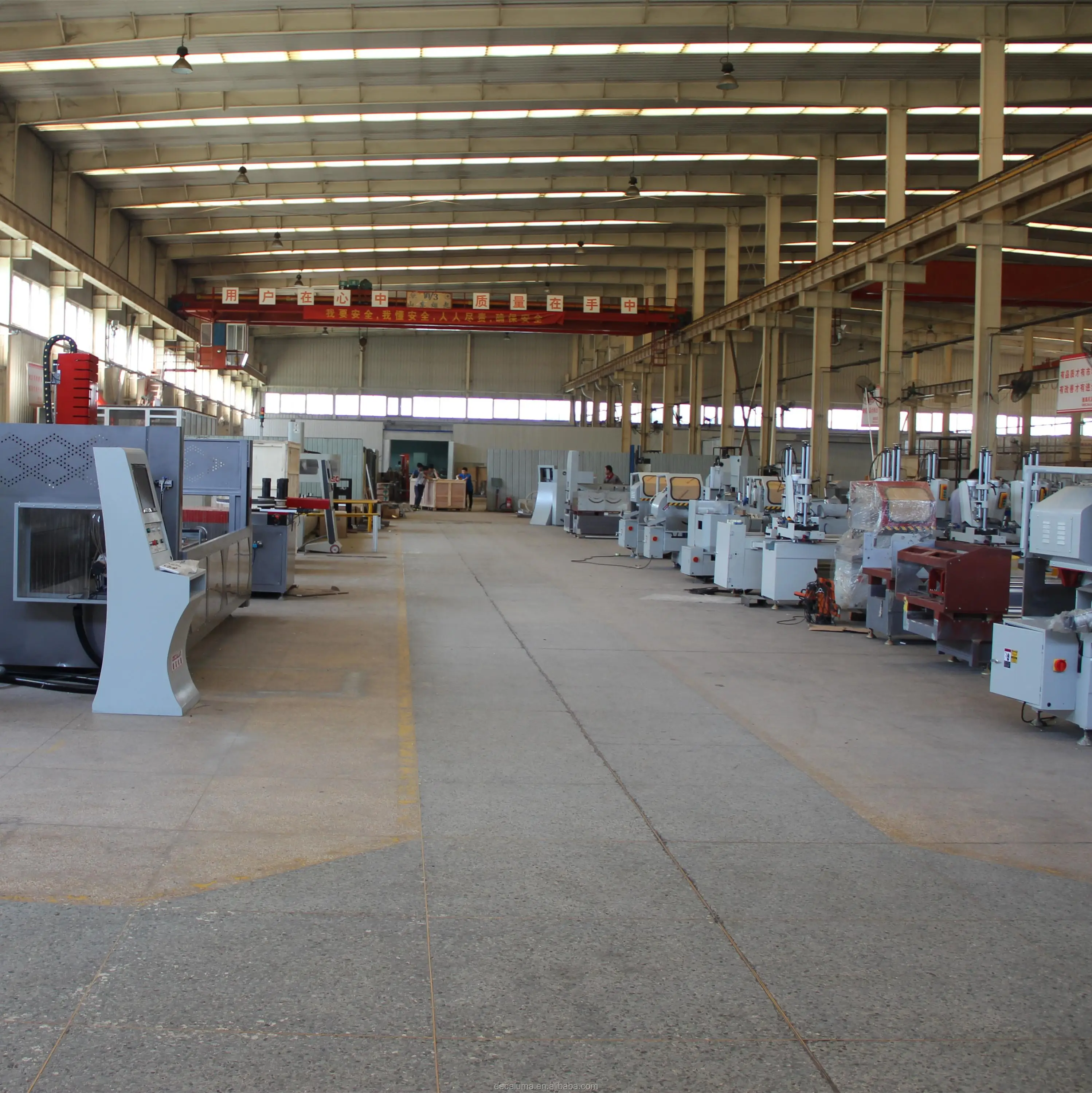

Company Introduction
Company Name	JINAN DEGA MACHINE CO.,LTD
Year Established	2006
Location	Shandong China
Business Type	Manufacturer
PRODUCTS	CNC machine centre,cutting machine, milling machine,corner crimping machine, curtain-wall processing machine
Product Advantage	using advaced solidworks design platform
Management Certification	ISO9001,national patent
Fair we attend	Shanghai international Windows show
E-catalogue	available
OEM & ODM	accept
Small Order	accept
Shipping Port	Qingdao Port
Payment Terms	T/T or L/C



Log in YOUTOBE ,  search  Decaluma  you can also find us.













3. Why Choose Us  ????



        1.  We have excellent sales and after-sales team.





    2.  We have Perfect  after-sales service .



           one year guarantee

           Free adjustment

           Free training to operation and maintenance workers

           Free industrial information

           Free investment annalysis for windows

           Oversaes service avilable



    3.We guarantee the quality of the products.













4.Wholesale Policy



MOQ	1 set
Price	FOB
payment	T/T or Ll/C
supply capacity	40 Sets every month
product time	within 10 days after confime order
packing	as request
shipment	by sea



5.Remarks:



          1. How to order?







2. Which equipment does a new door and window factory need?





1).double head cutting saw,model:LJZ2-500*4200A



 2).Lock hole copy milling machine,model:LXF-300*100



3).End milling machine,model:LXD-200



4).Automatic Corner connector automatic cutting saw,model:LJJZ-500



5).Single head Corner combining machine,model:LZJ-120C
