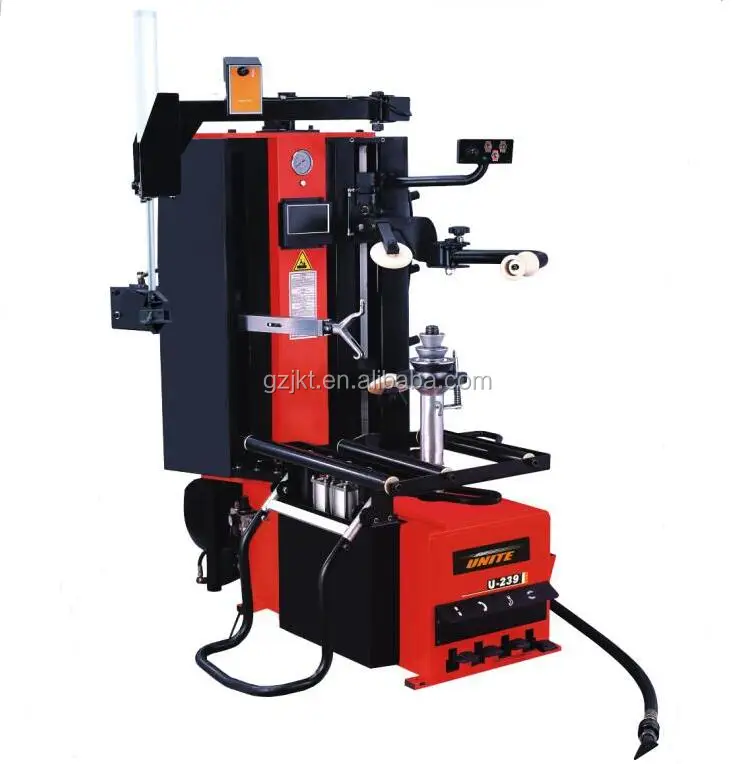

Шиномонтажный станок U-239 WHIT колеса зажима центровочные

Описание и отзывы

Трекер стоимости

Характеристики

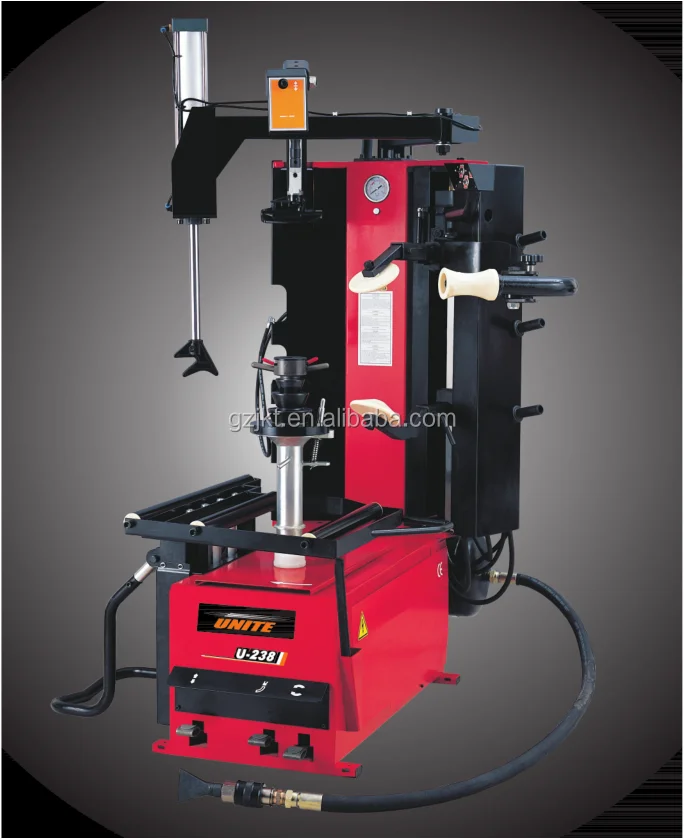

Tire changer machine with wheel clamping by centering flange

Features:

1. Full automatic movable central positioning flange platform system is suitable for various high class tyres
2. Full automatic hydraulic 360° rotary steel tyre demounting hook can demount tyre without lever
3. Full hydraulic combined pressing disk and nylon pressing roller make tyre and rim detached instandly
4. Full pneumatic tyre pressing combind arms can press tyre with visualized operation, They also have central positioning function
5. Pneumatic tyre elevator moves tyre up and down freely
6. High resolution camera and 8″ VGA LCD visualization system lets operator to monitor and control tyre demounting operation,imported hydraulic pump station and reverse switch
7. Equipped with nylon protection rubber bar ,anti-skidding pedal
8. Quick air booster system makes low profile tyre and rim sealed instantly
9. Full automatic operation control and clamping rim size 10″-30″are specially suitable for big size tyres,anti-flat tyres ,RV tyres and big vacuum tyres

Technical specification:

Motor supply                    0.75kw/0.55kw/1.1kw
Power supply                   220V/400v/110v
Max.wheel diameter          50″(1250mm)
Max.wheel width              22″(558mm)
Outside clamping             12″~23″
Inside clamping               14″~26″
Air supply                       8-12bar
Bead breaker force           1400kg

Hydraulic pressure           100bar
Noise level                     <75db
Packgae size                   1170*1150*1750mm
Weight                     626/556kg
