Высококачественная Расточная машина для сиденья клапана

Высококачественная Расточная машина для сиденья клапана

Категория: Расточные станки >>>
Поставщик: Xian,Amco,Machine,Tools,Co.,Ltd.

Цена:8 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	10115.32 $*	10621.14 $*
Aug-17-2025	10030.5 $*	10532.33 $*
Jul-17-2025	8415.14 $*	8836.75 $*
Jun-17-2025	9860.92 $*	10353.47 $*
May-17-2025	8585.25 $*	9014.87 $*
Apr-17-2025	9690.43 $*	10175.3 $*
Mar-17-2025	9605.43 $*	10085.22 $*
Feb-17-2025	9520.9 $*	9996.24 $*
Jan-17-2025	9435.93 $*	9907.14 $*

Характеристики

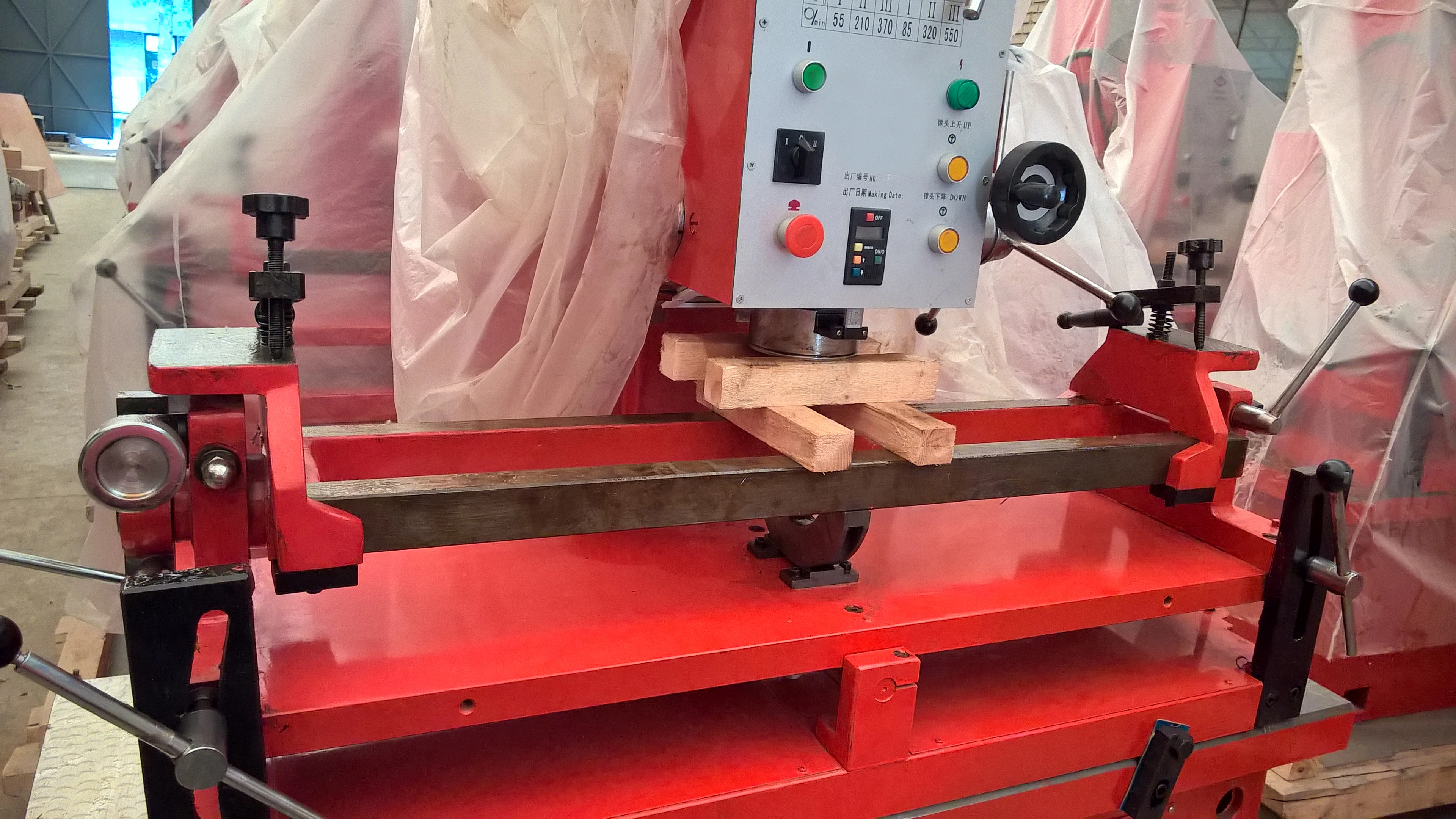

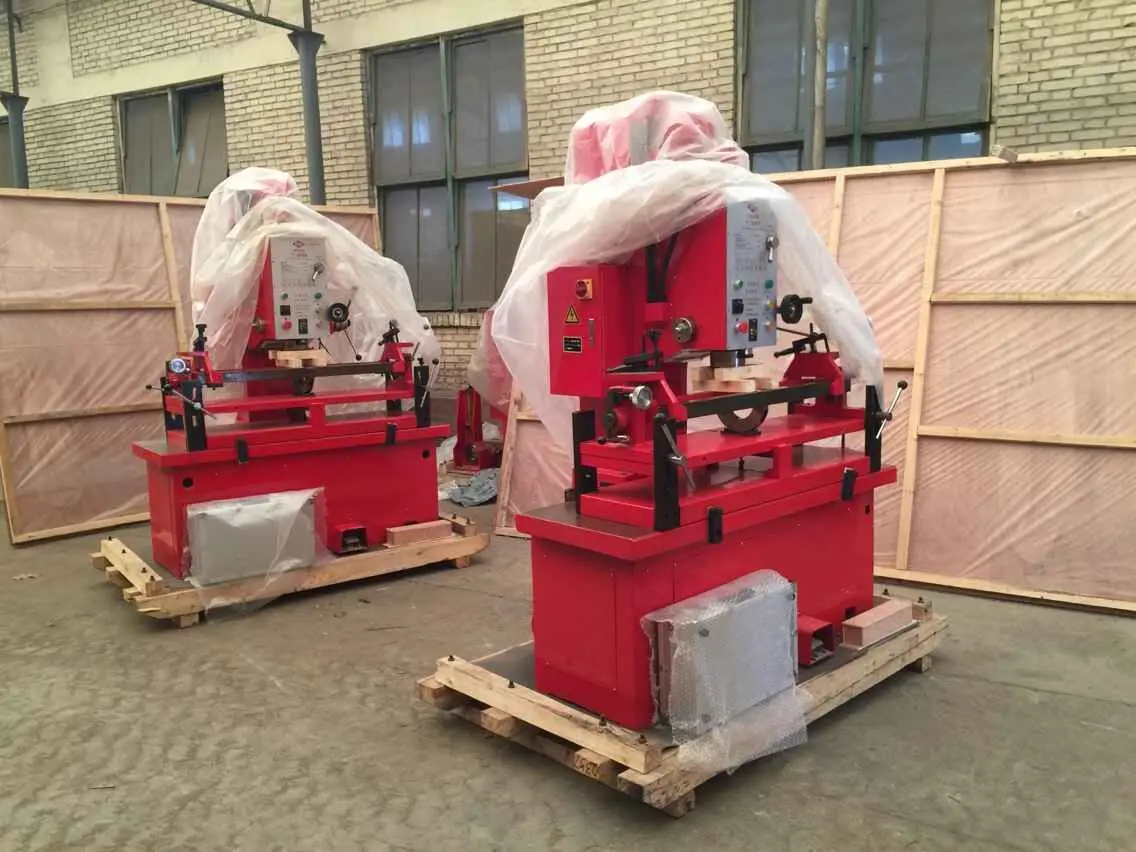

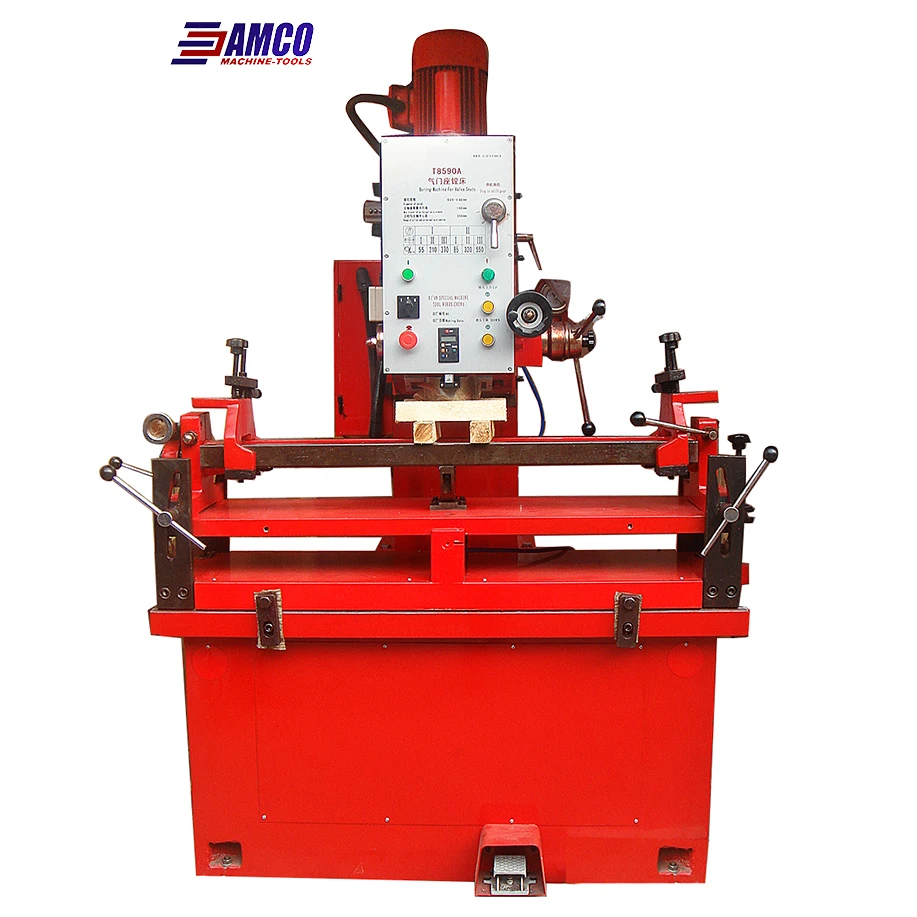

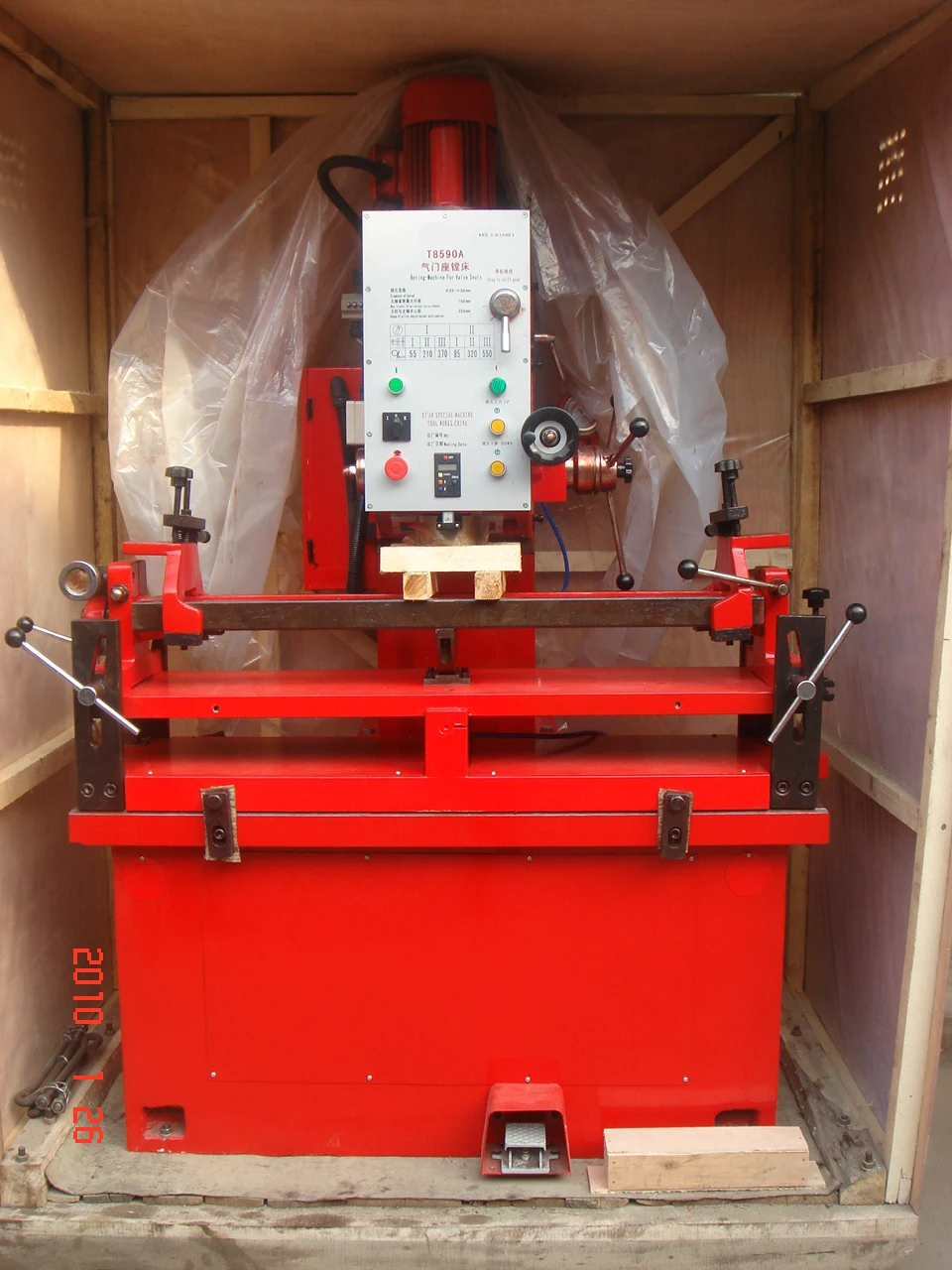

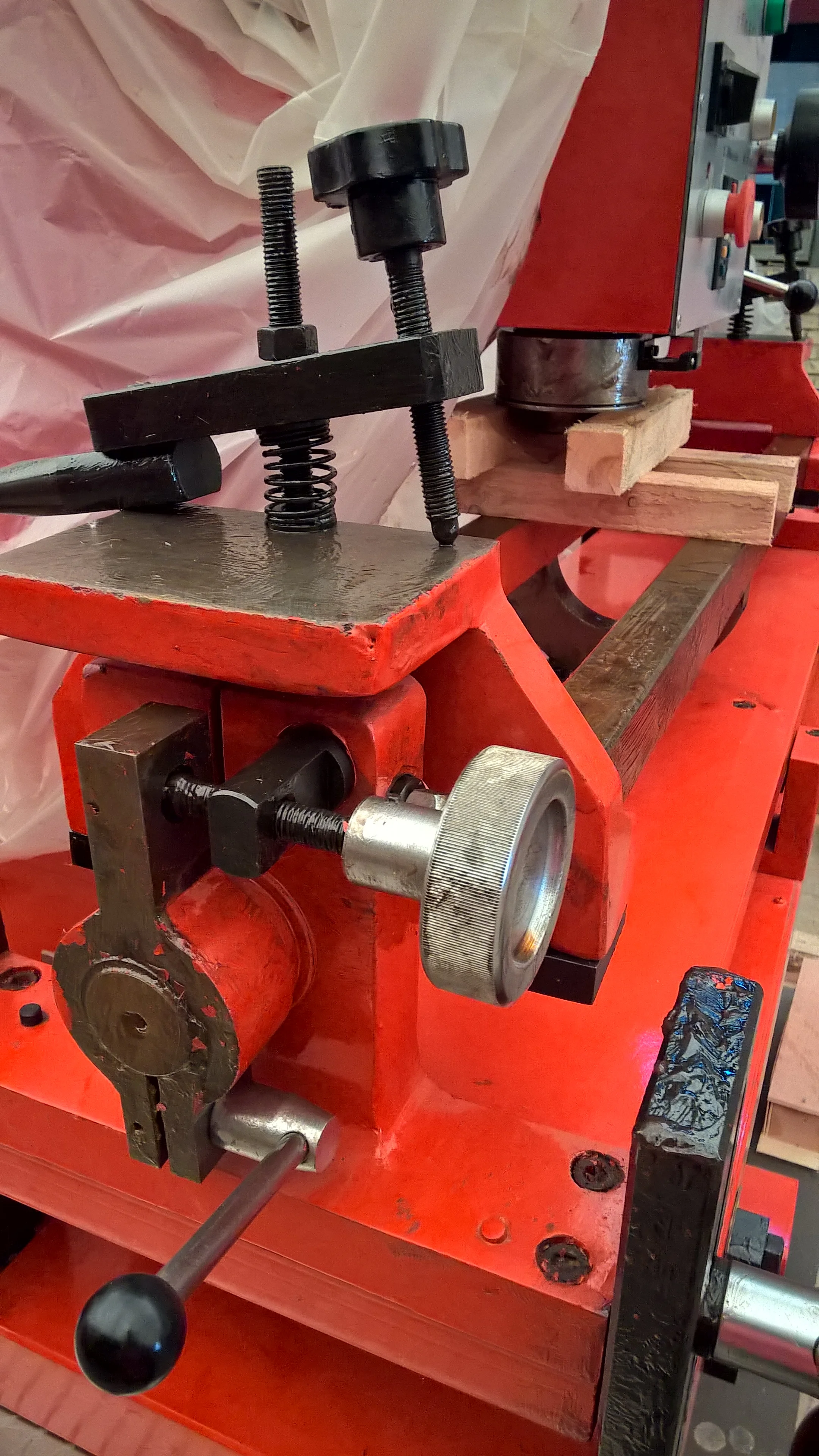

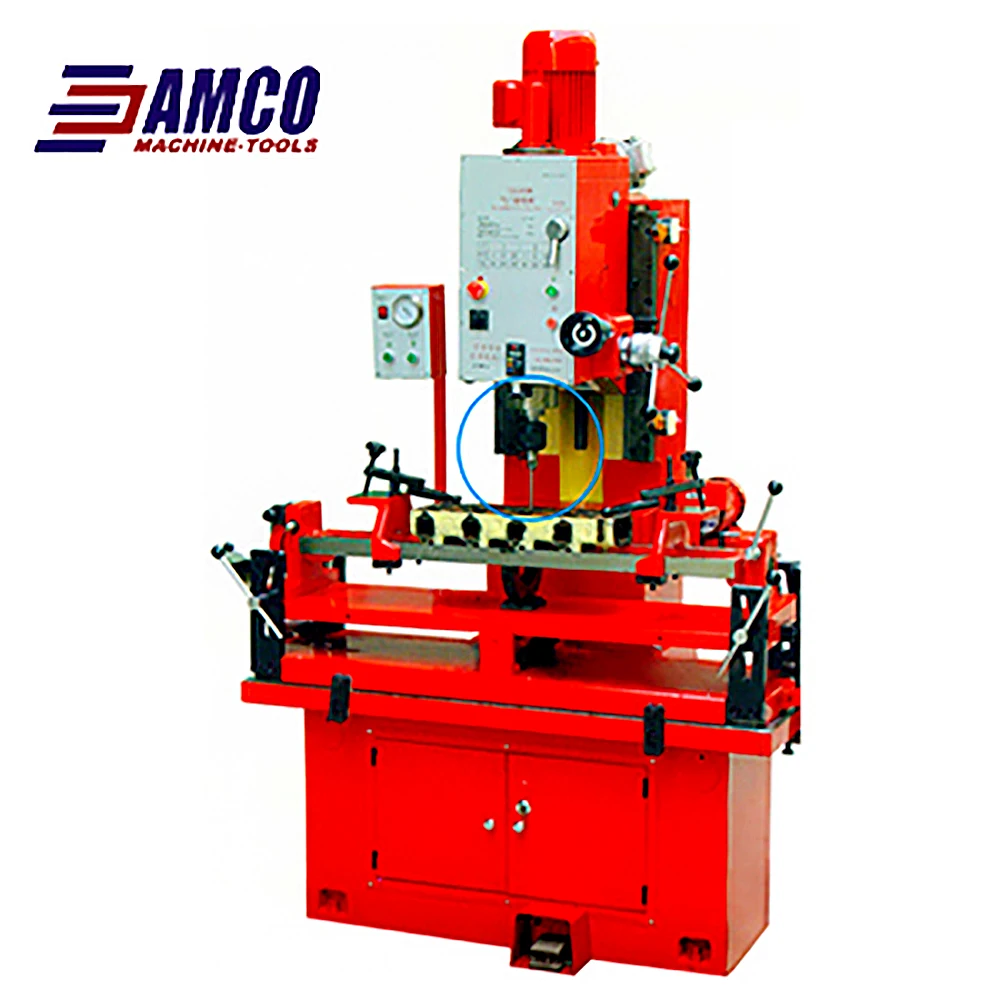

Valve Seat Boring Machine T8590A tool suits the needs of various cylinder cover for every engine. It adopts the air-floating work table. When equipped with all sorts of tools. It can manufacture the gas valve seats hole for cylinder cover with various angles.When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.

Model	T8590A
Dimension of machine (length * width * height)	1300X800X1900mm
Dimension of worktable	1280X790X700mm
Dimension of clamp body	1240X360X390
Travel of principal axis	180mm
Distance of principal axis to front end plane of slide rail	290mm
The Max distance of principal axis end to the surface of worktable	720mm
Moving diatance of clampdy	Transverse: 870mm longitudinal 125mm
Angle of oscillation of support	0-8°
Max boring diameter	φ90mm
Minimal boring diameter	φ20mm
Taper vent of principal axis	Morse No.4 taper
Speed of revolution of principal axis	Variable frequency infinitely adjustable-speed
Principal motor	1.1KW 1000/1500r/min
Vacuum pump	180W limiting pressure 6p_a
Cutter grinder	250W 2800r/min diameter of emery wheel φ125mm
Net weight of machine	1200kg
Gross weight	1400kg
Dimension of package box	2200X980X2150mm
